Shenmu Kuyehe Bridge
神木窟野河特大桥
Shenmu, Shaanxi, China
(295) feet high / (90) meters high
541 foot span / 165 meter span
2012



One of the longest expressway bridges in Western China, the Shenmu Kuyehe Bridge snakes through the city of Shenmu for more then 3 kilometers across dozens of beam spans on the Yushang Expressway.

The complex arrangement begins with an unknown number of 30 and 40 meter approach spans followed by +88+4x165+88 +69+4x130+79.5+39.5 +76+4x140+76 +3x43+50 meters. The tallest pier measures 76.5 meters. The total length is 3,446 meters.

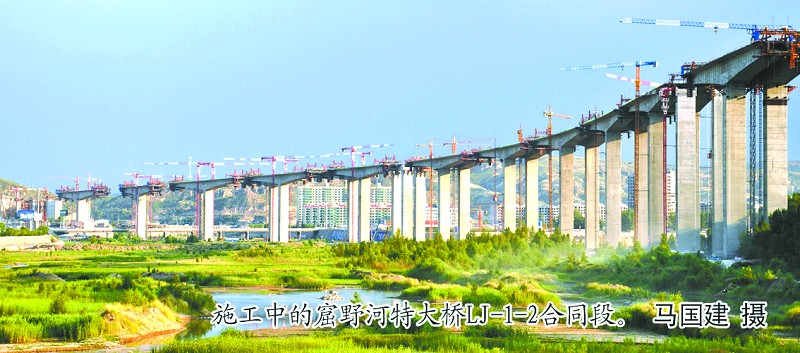

Kuyehe Bridge2.jpg

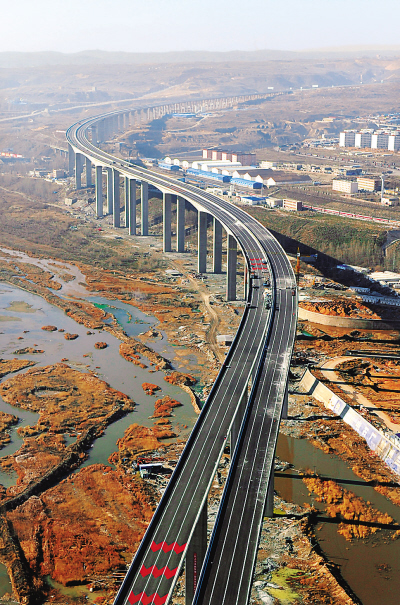

Kuyehe Bridge1.jpg

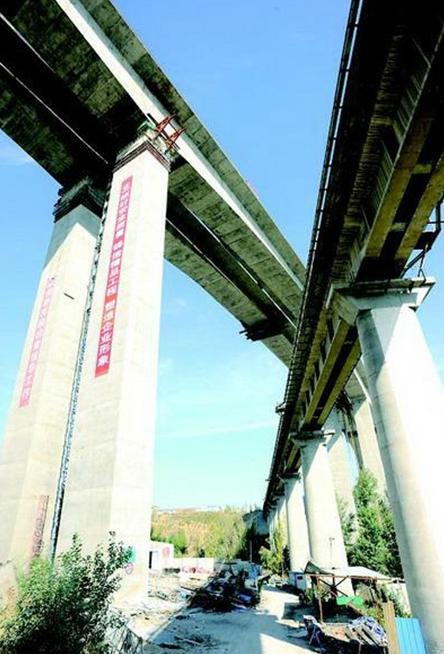

Kuyehe Bridge3.jpg

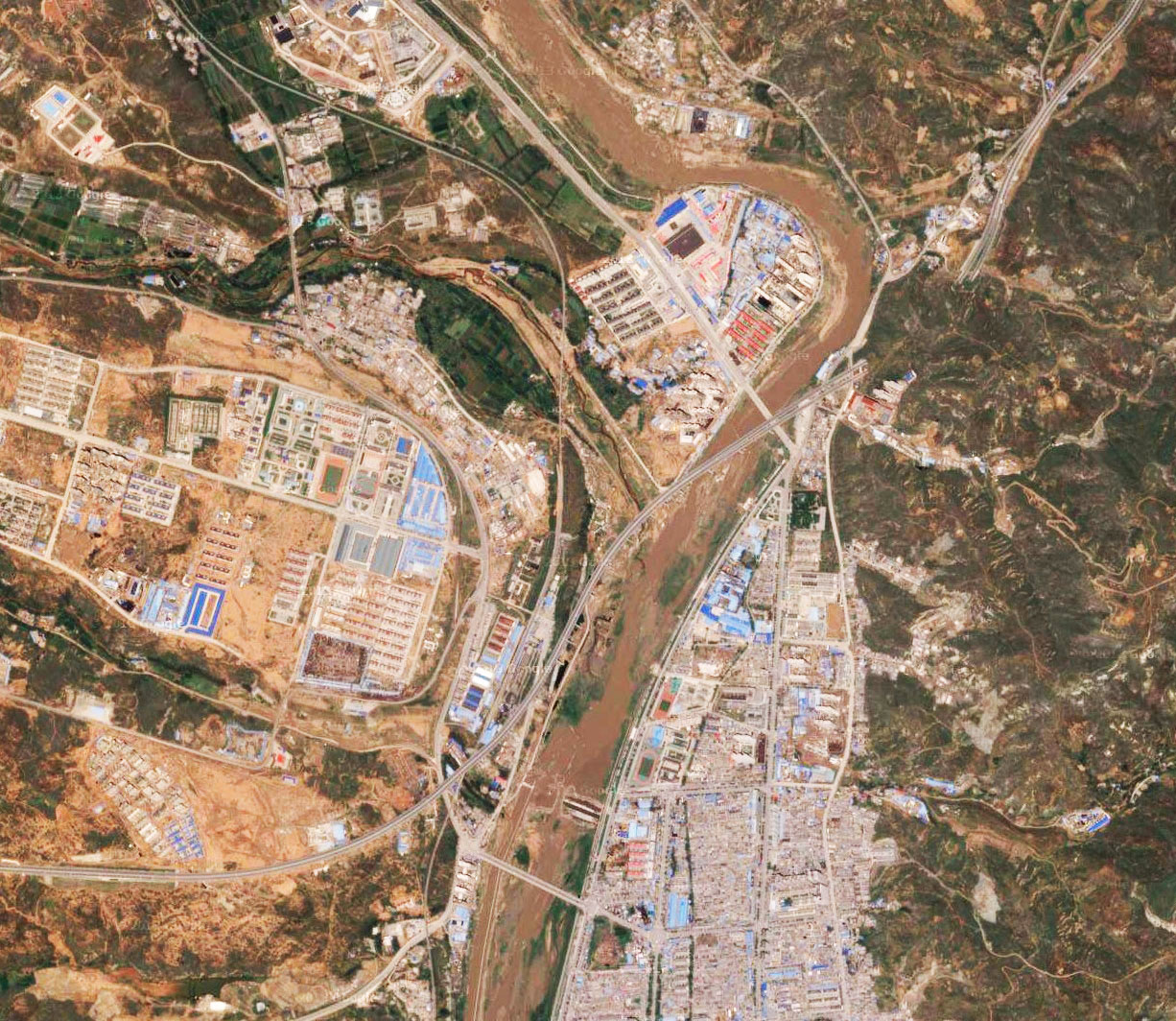

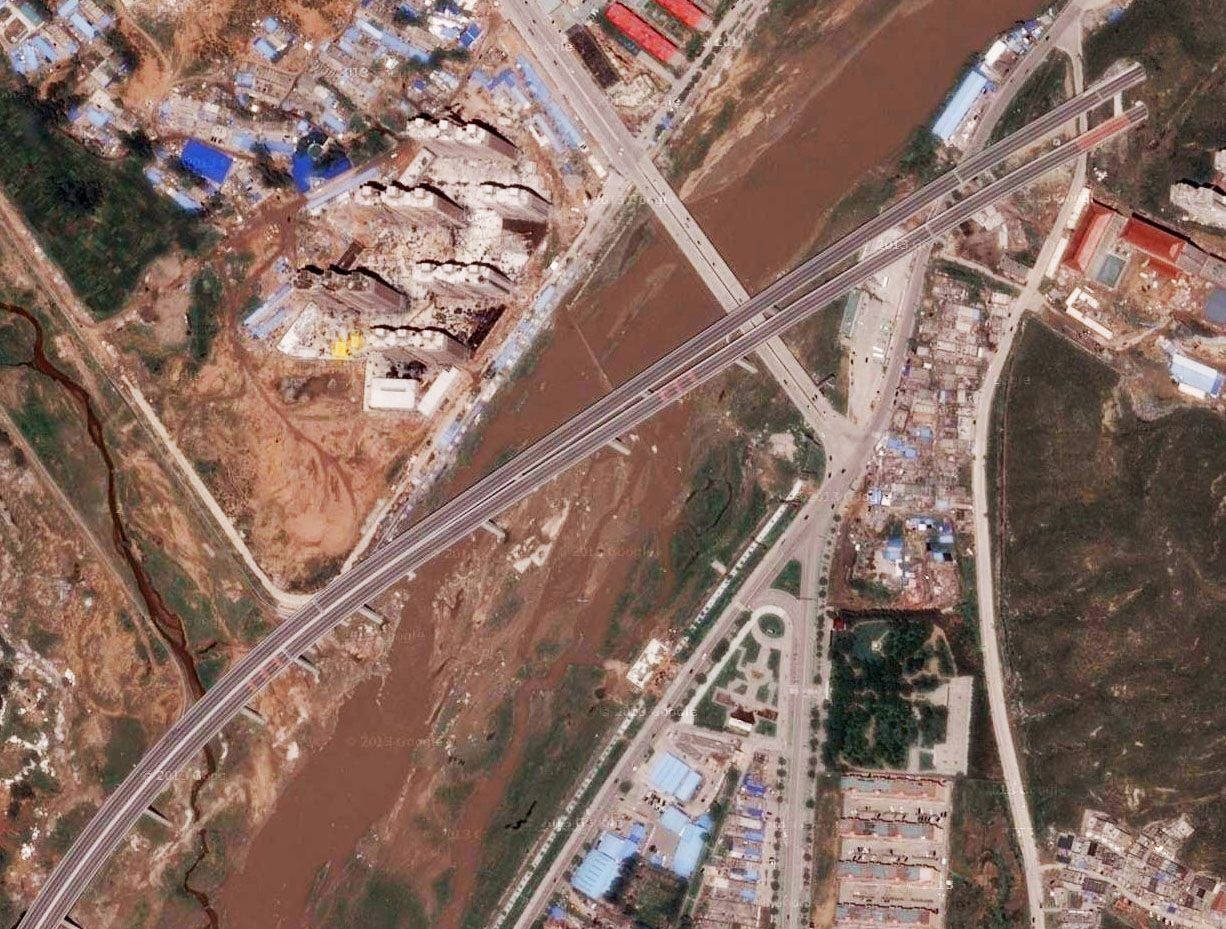

Shenmu Kuyehe Bridge satellite image.

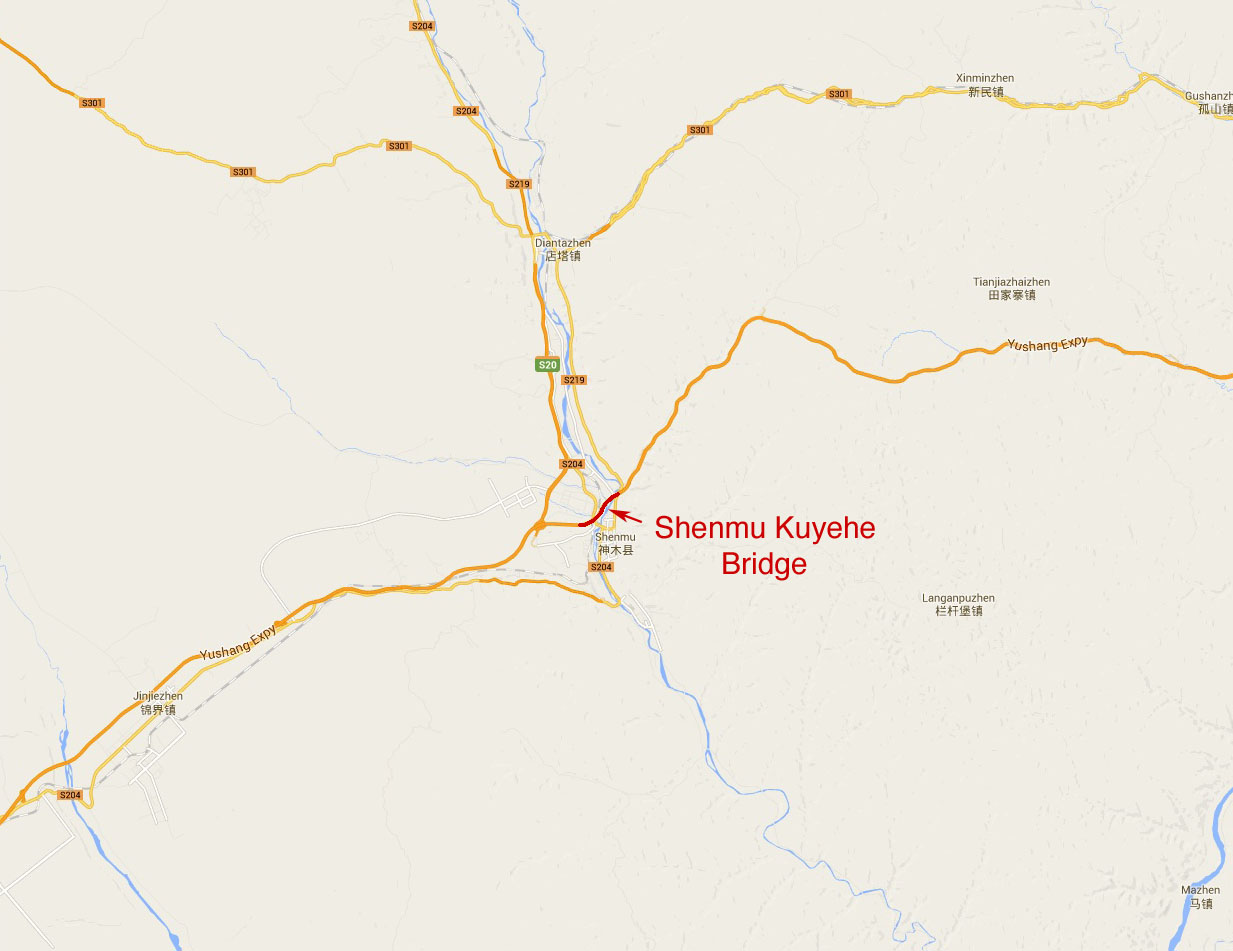

Shenmu Kuyehe Bridge location map.
