Xiaotiegou Bridge

From HighestBridges.com
Jump to: navigation, search

Xiaotiegou Bridge
小铁沟特大桥
Luoning, Henan, China
479 feet high / 146 meters high
525 foot span / 160 meter span
2013



The smaller of two high bridges across the Iron Ditch Creek in Henan Province, the Xiaotiegou Bridge is on the Zenglu expressway between Luoyang and the Shaanxi Province border. The larger Iron Ditch Bridge is called Datiegou. Both spans are near the small town of Luolingxiang where the highway enters the mountains alongside the older S323 road in western Luoning County.

Xiaotiegou Bridge has a central span of 160 meters on piers as tall as 103 meters. With approach spans the entire structure measures 675.48 meters long.



Image by www.lmjx.net.

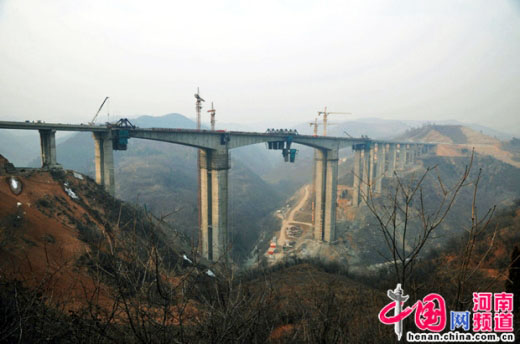

Image by www.henan.china.com.cn.


Xiaotiegou Bridge drawing.



Xiaotiegou Bridge topo map. The Datiegou and Xiaotiegou Bridges cross one of the deep ravines in the center of the image near the older route S323.

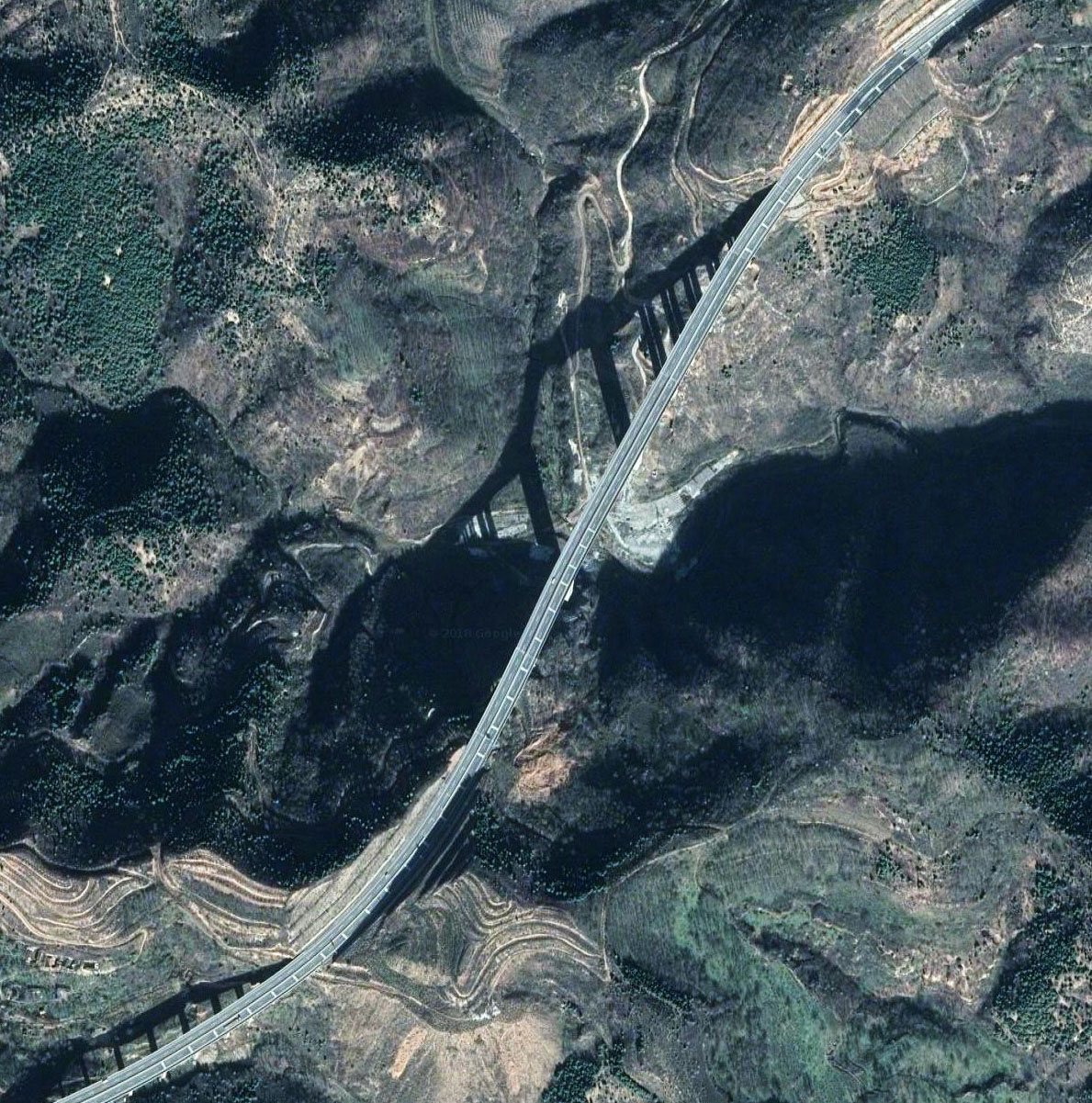

Xiaotiegou Bridge satellite image.



Xiaotiegou Bridge location map. The The Datiegou and Xiaotiegou Bridges are located west of Luolingxiang.
