Latest revision as of 00:46, 3 September 2021
Qujiang Bridge
渠江特大桥
Guang'an, Sichuan, China
(394) feet high / (120) meters high
623 foot span / 190 meter span
2021

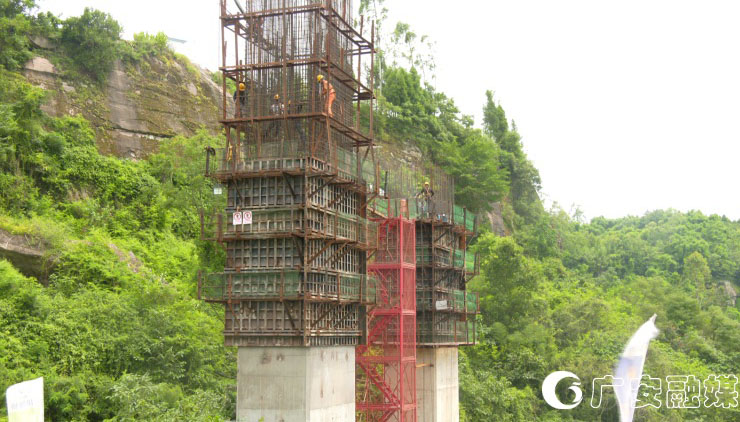

Qujiang Bridge is a 1,108.5 meter long cantilevered beam bridge with a span configuration of 4x40 +100+190+190+100 +9x40 meters. The 31.5 meter wide deck is supported on piers as tall as 109 meters that rest within a shallow reservoir.
The Qujiang Bridge is one of 3 big crossings that surround Guang'an City in Sichuan Province, China.

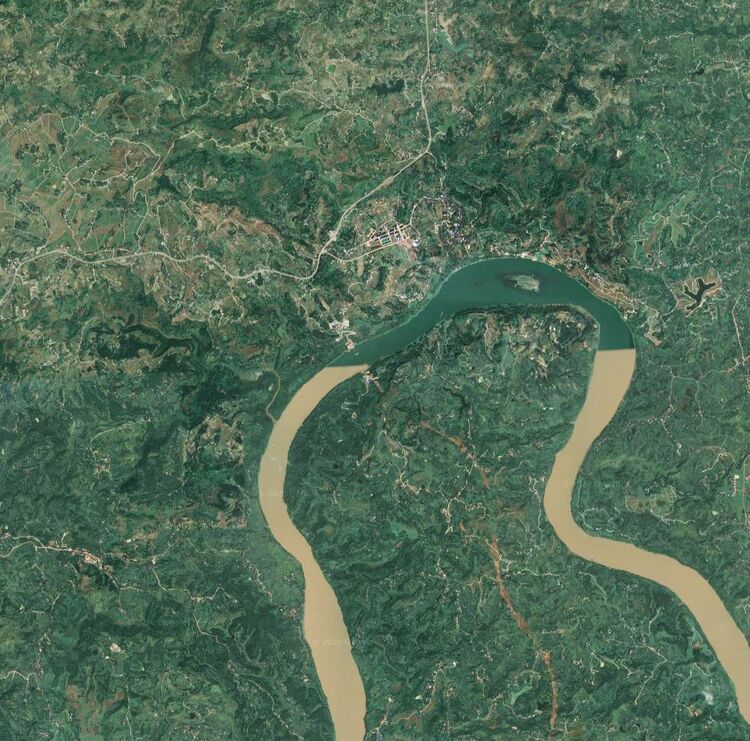

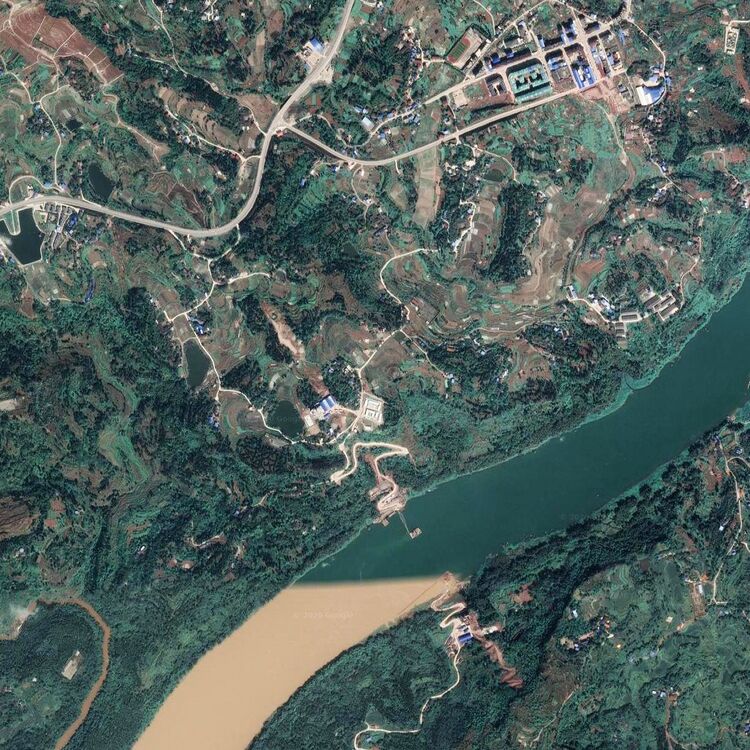

Qujiang Bridge satellite image.

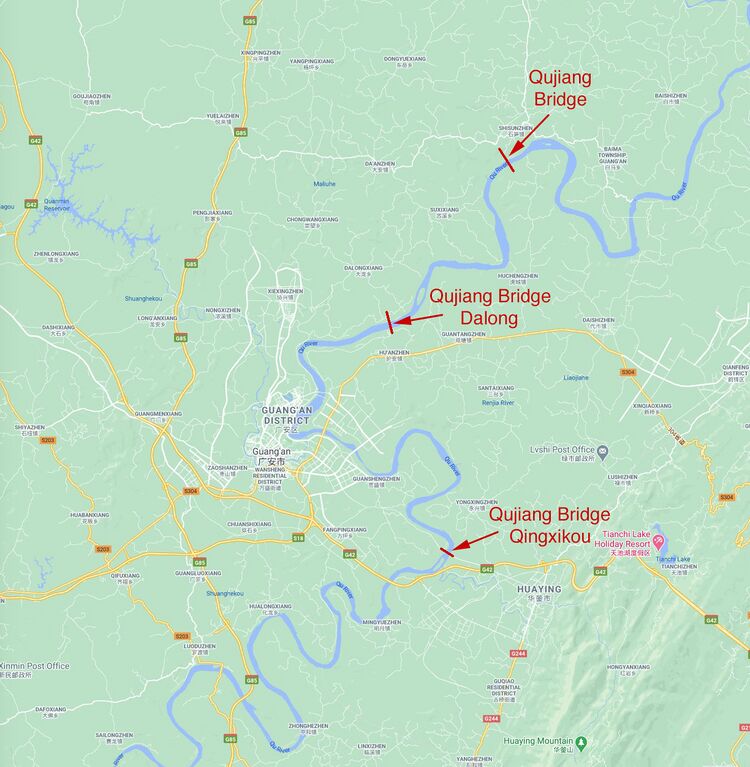

Qujiang Bridge location map.
