Longjinghe Bridge
龙井河特大桥
Nayong, Guizhou, China
276 feet high / 84 meters high
525 foot span / 160 meter span
2015
The G76 expressway has so many large and high beam bridges that the extradosed Longjinghe Bridge is a breath of fresh air, curving across a remote river valley in the mountains north of Nayong city.

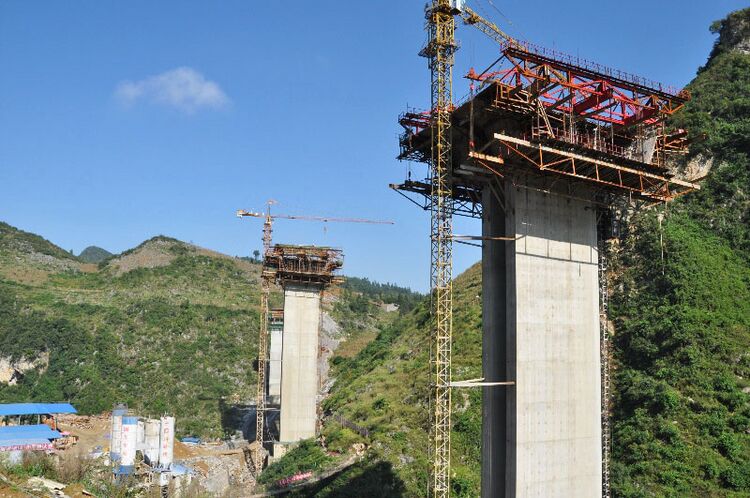

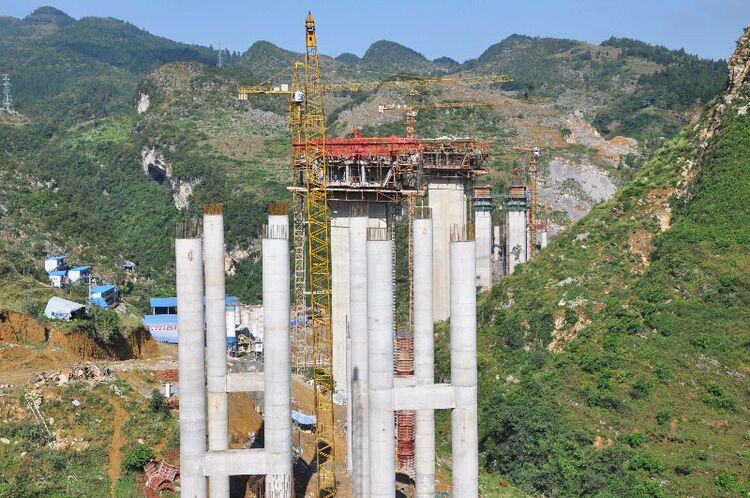

The central span consists of double cable planes that arc across an 850 meter radius using a 4 ° lateral slope. The spans are 86 +160 +86 meters. The main deck is a 28 meter wide single three-compartment box with a depth of 6.5 meters at the towers and 3 meters at mid-span. The double-walled rectangular piers are 60 meters tall. The two main towers rise 28 meters above the road deck and support six pairs of parallel stays that are spaced 4 meters apart at the deck.
Just a kilometer to the west is the newer Naqing expressway cantilevered beam bridge.
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Image by Eric Sakowski / HighestBridges.com
Longjinghe Bridge satellite image.
An older Longjinghe Bridge satellite image before construction began.
Longjinghe Bridge Naqing location map.
