Shuinan Bridge
水南特大桥
Yesanguanzhen, Hubei, China
361 feet high / 110 meters high
361 foot span / 110 meter span
2009



Located just west of the record breaking Siduhe suspension bridge on the West Hurong highway, the Shuinan Viaduct is a prestressed continuous rigid-frame bridge with 5 main spans of 361 feet (110 mtrs) and a maximum height of 361 feet (110 mtrs).


就位于沪蓉西高速的世界纪录四渡河大桥以西,水南高架桥是一座预应力连续钢构桥,有着5跨连续110米的主跨和最大高度也是110米。

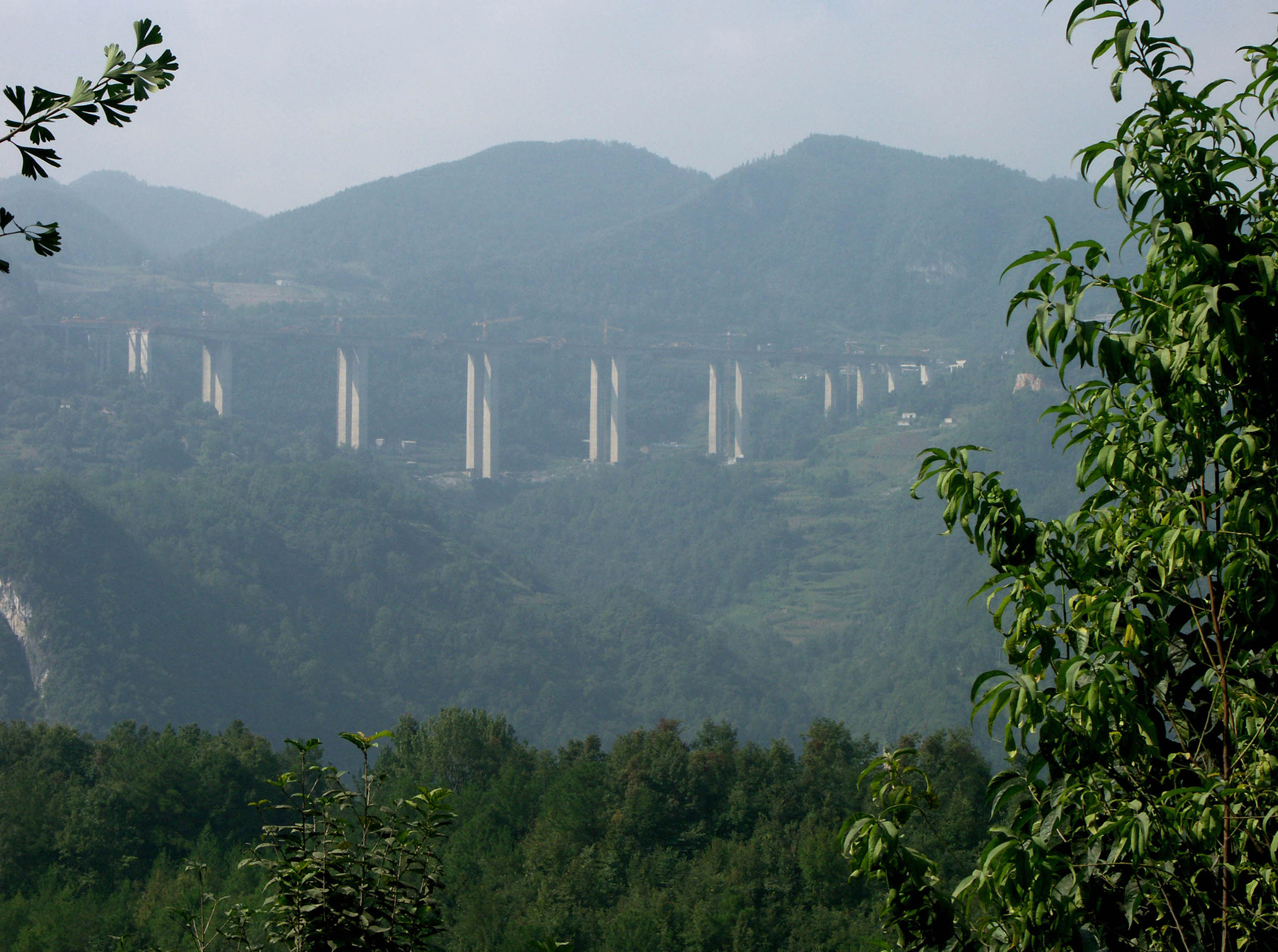

Image by Eric Sakowski / HighestBridges.com

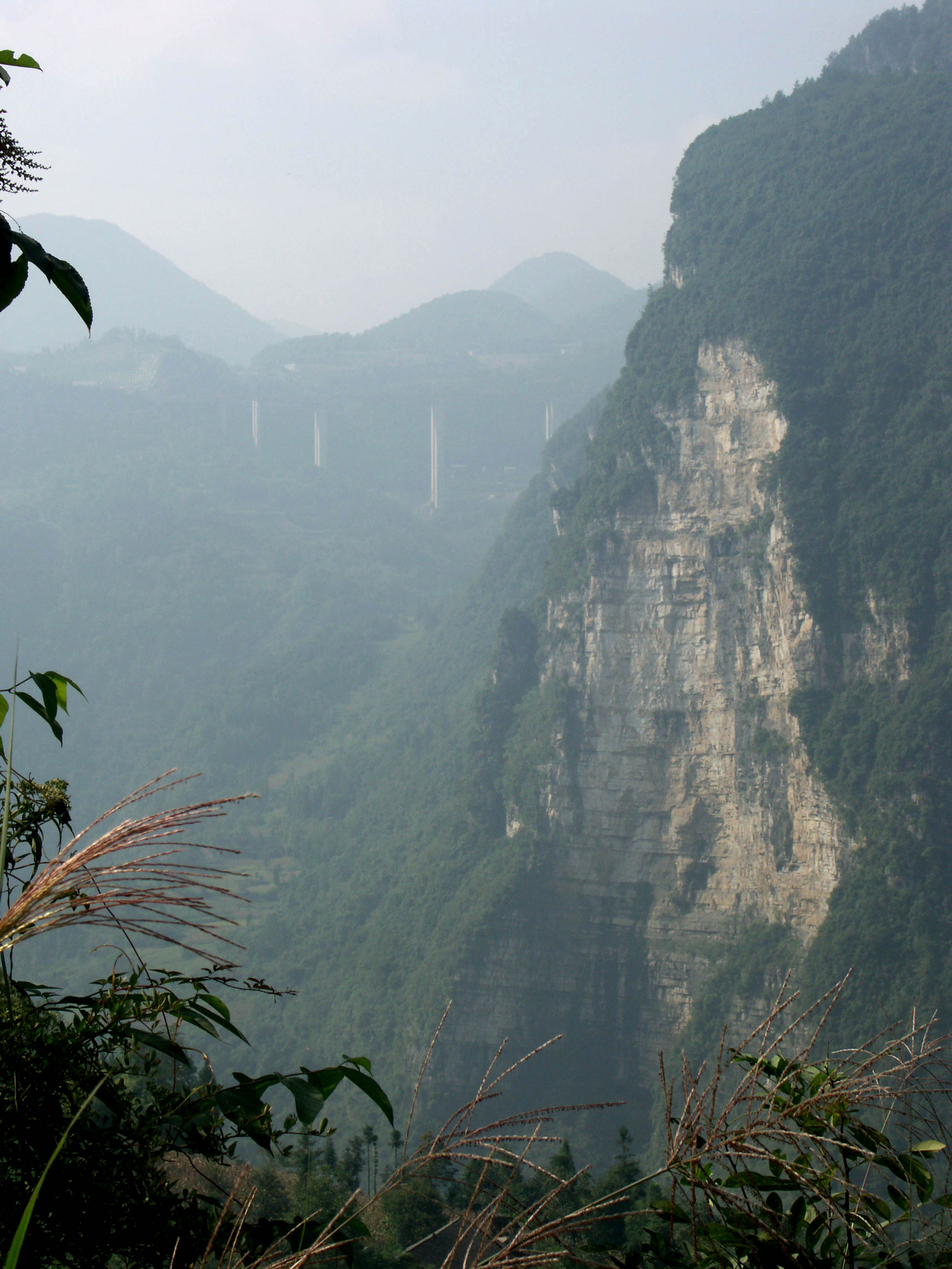

Image by Eric Sakowski / HighestBridges.com

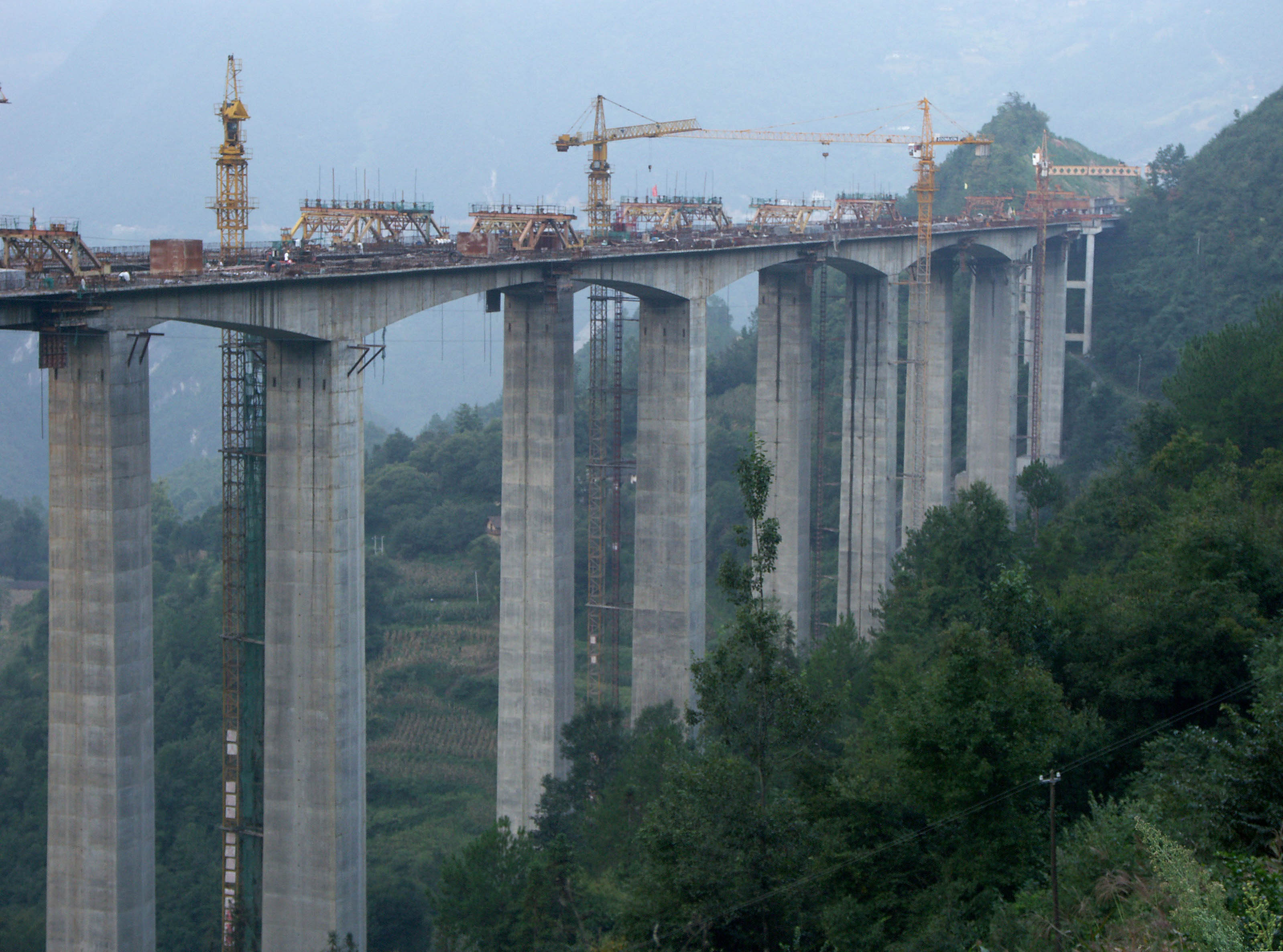

Image by Eric Sakowski / HighestBridges.com

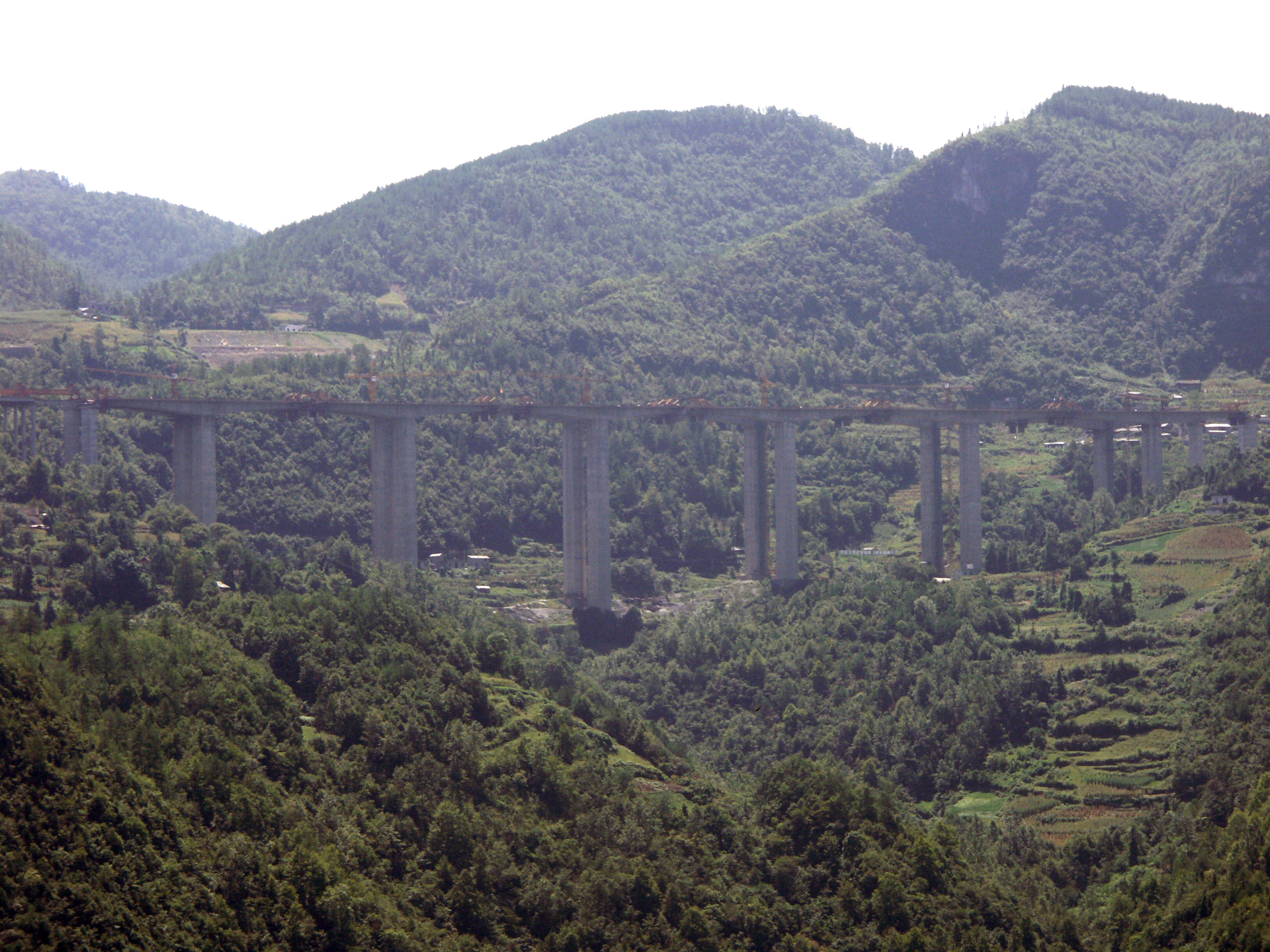

Image by Eric Sakowski / HighestBridges.com

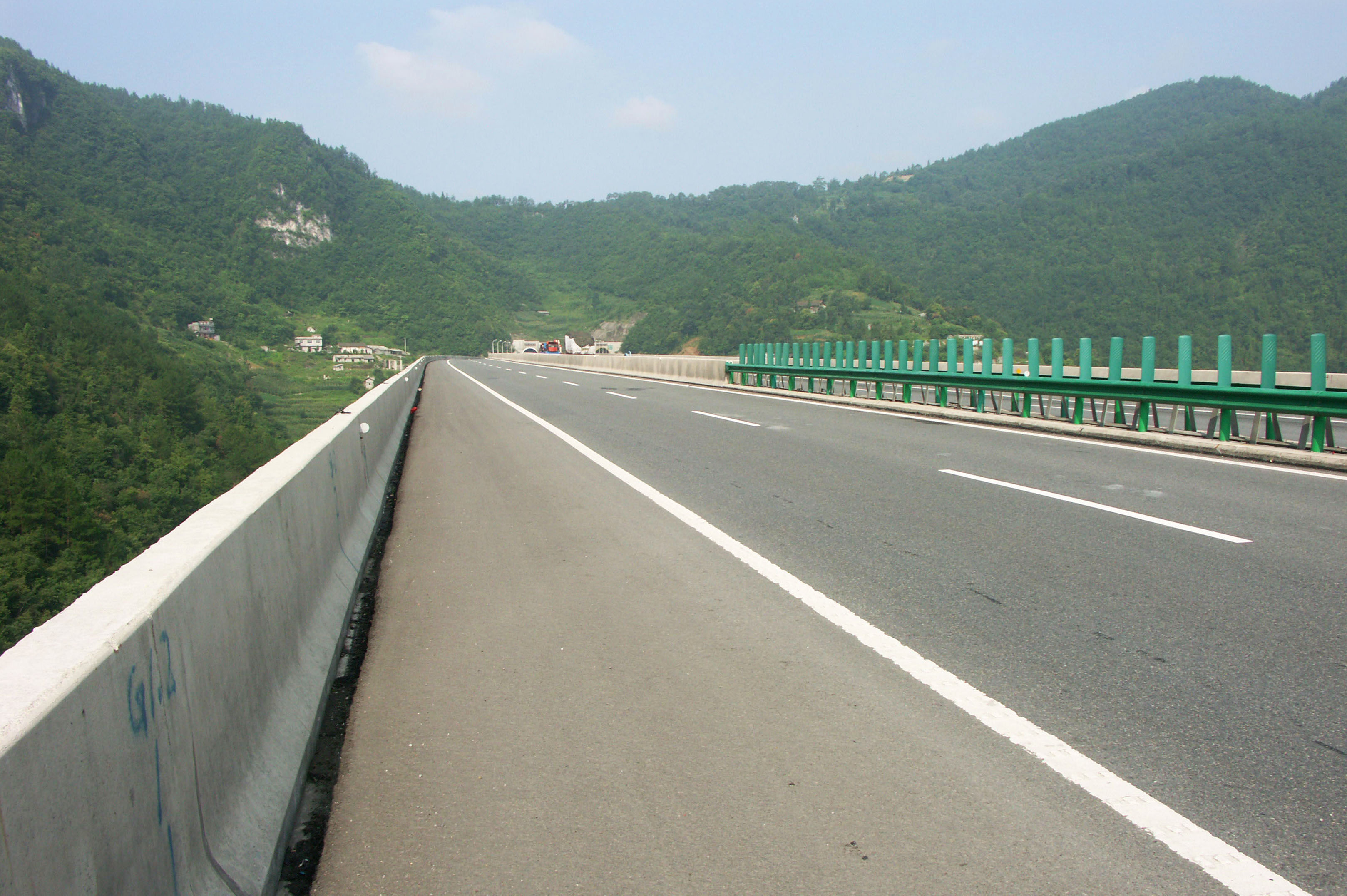

Image by Eric Sakowski / HighestBridges.com

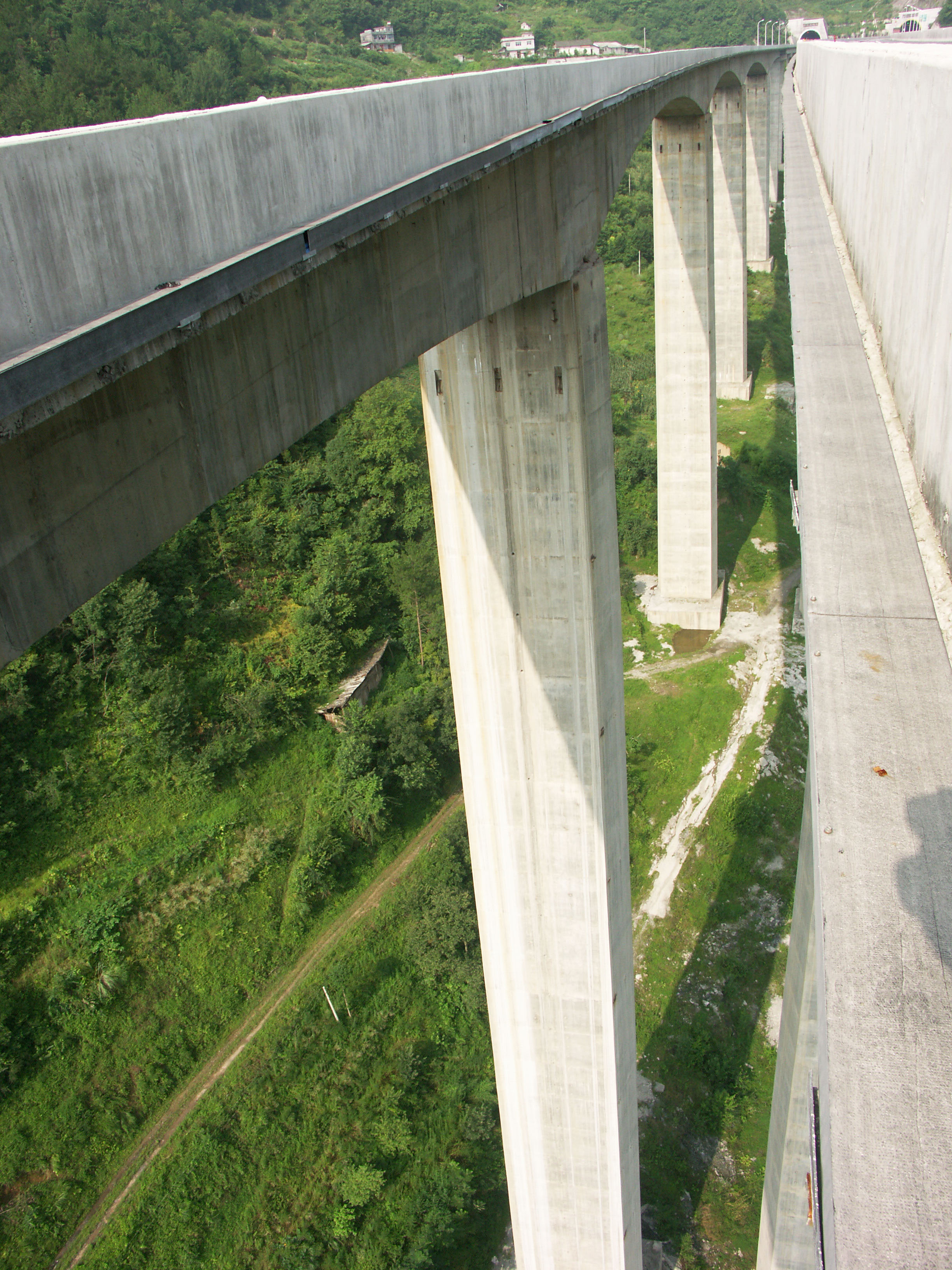

Image by Eric Sakowski / HighestBridges.com

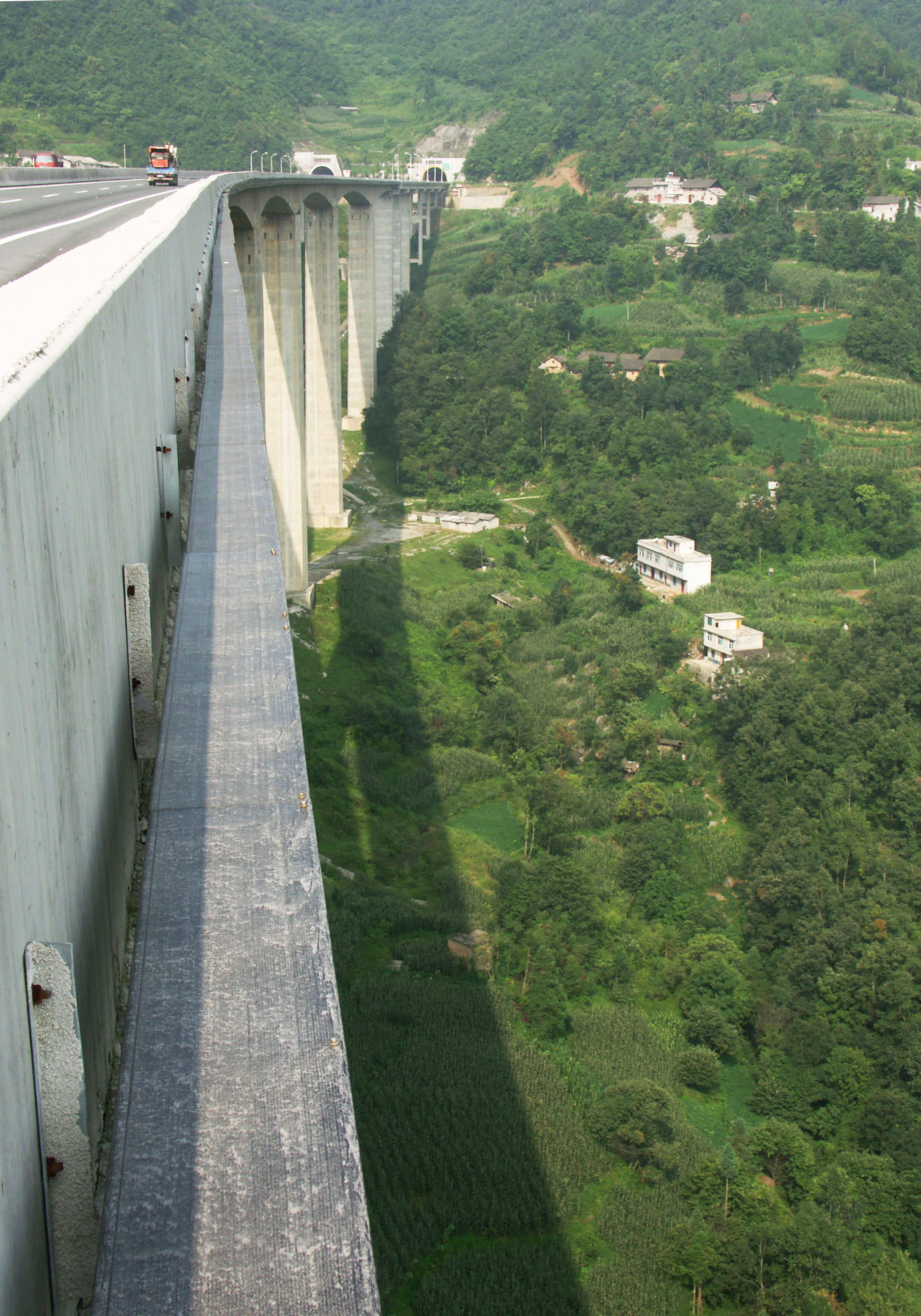

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com





Image by Eric Sakowski / HighestBridges.com

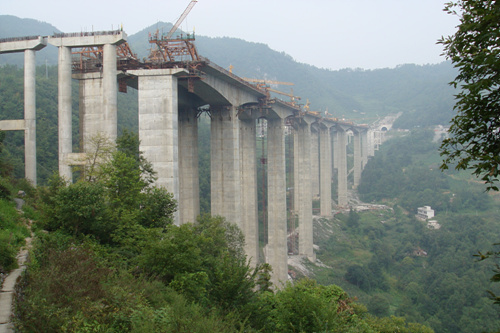

The piers were halfway finished in late 2006. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Within a stretch of just 8 miles (13 kms), the West Hurong highway crosses 4 bridges that are nearly 200 meters or higher. Between these deep valleys there are several other viaducts and tunnels including Shuinan and the nearly 4 kilometer Siduhe tunnel.



Shuinan Bridge location map.
