Anjiashanhe Railway Bridge
安家山河大桥
Fengjiachuanxiang, Shanxi, China
(312) feet high / (95) meters high
427 foot span / 130 meter span
2016



Anjiashanhe Railway Bridge is a high beam span on the Xingbao Railway line in Shanxi Province. The 440 meter long crossing has a central pier of 85 meters supporting a main span configuration of 80+130+80 meters. The four track structure has a width of 22.8 meters.

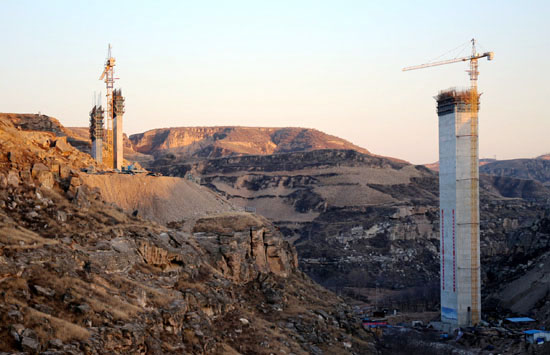

Wujiagou78mtrPier Prob2x120mtr.jpg


Wujiagou RailwayName兴保铁路全线XingbaoLine.jpg



Anjiashanhe Railway Bridge satellite image.





Anjiashanhe Railway Bridge location map.
