Beipanjiang Bridge Wang'an

From HighestBridges.com
Jump to navigationJump to search

Beipanjiang Bridge Wang'an
北盘江岩架大桥
Ceheng, Guizhou, China
656 feet high / 200 meters high
1,076 foot span / 328 meter span
2015



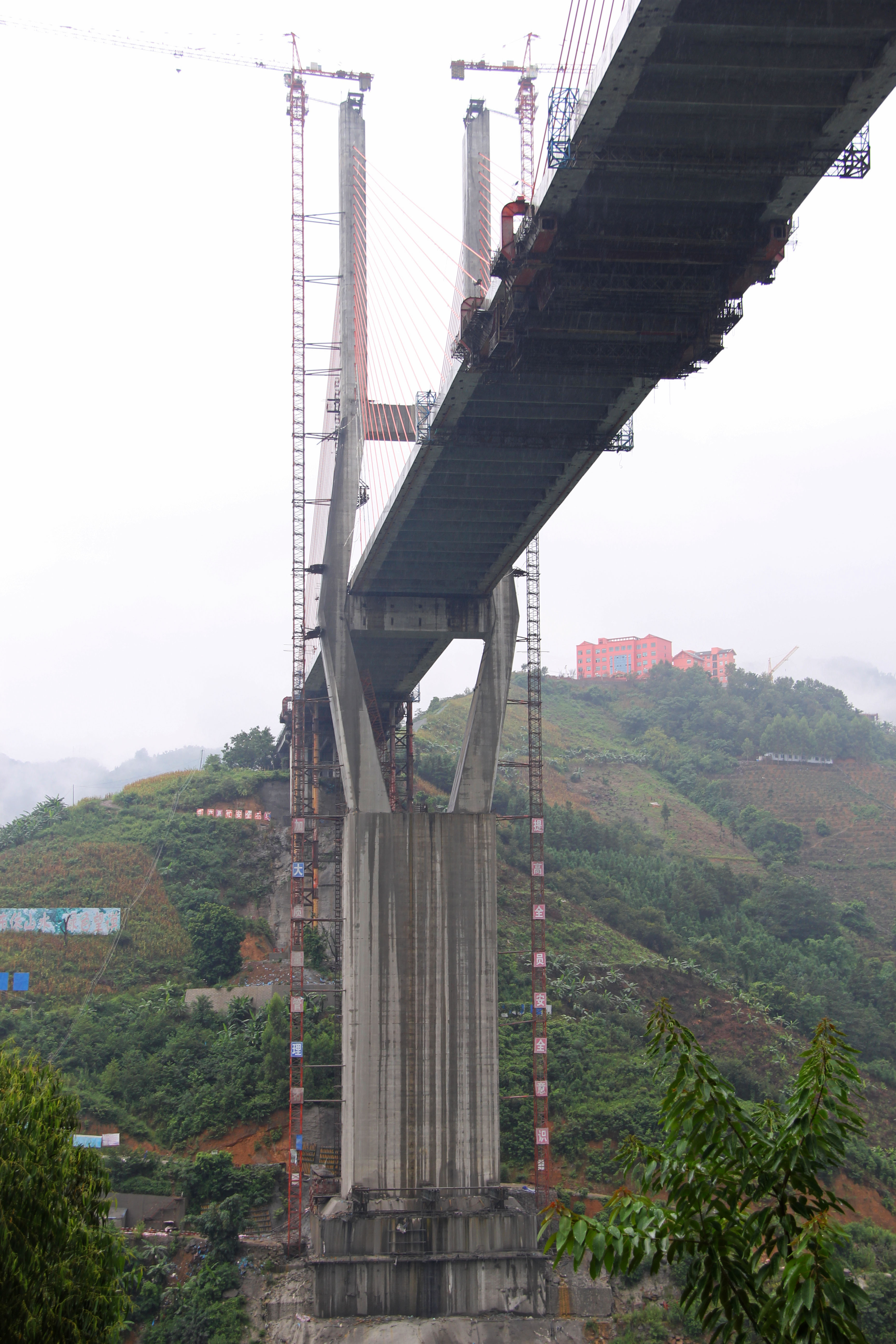

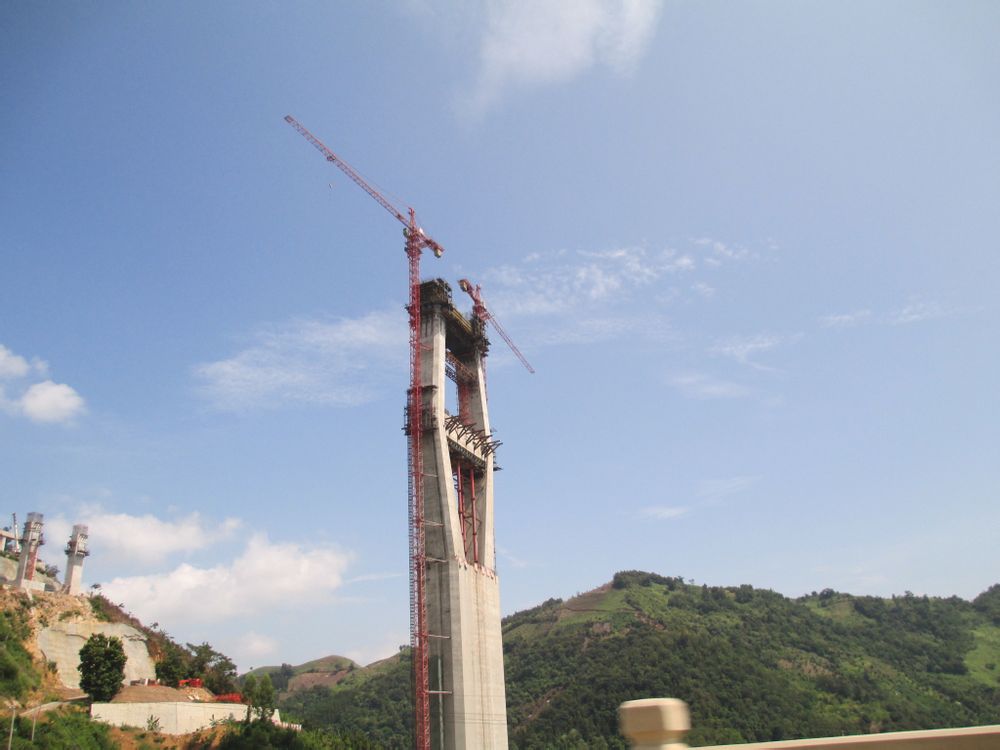

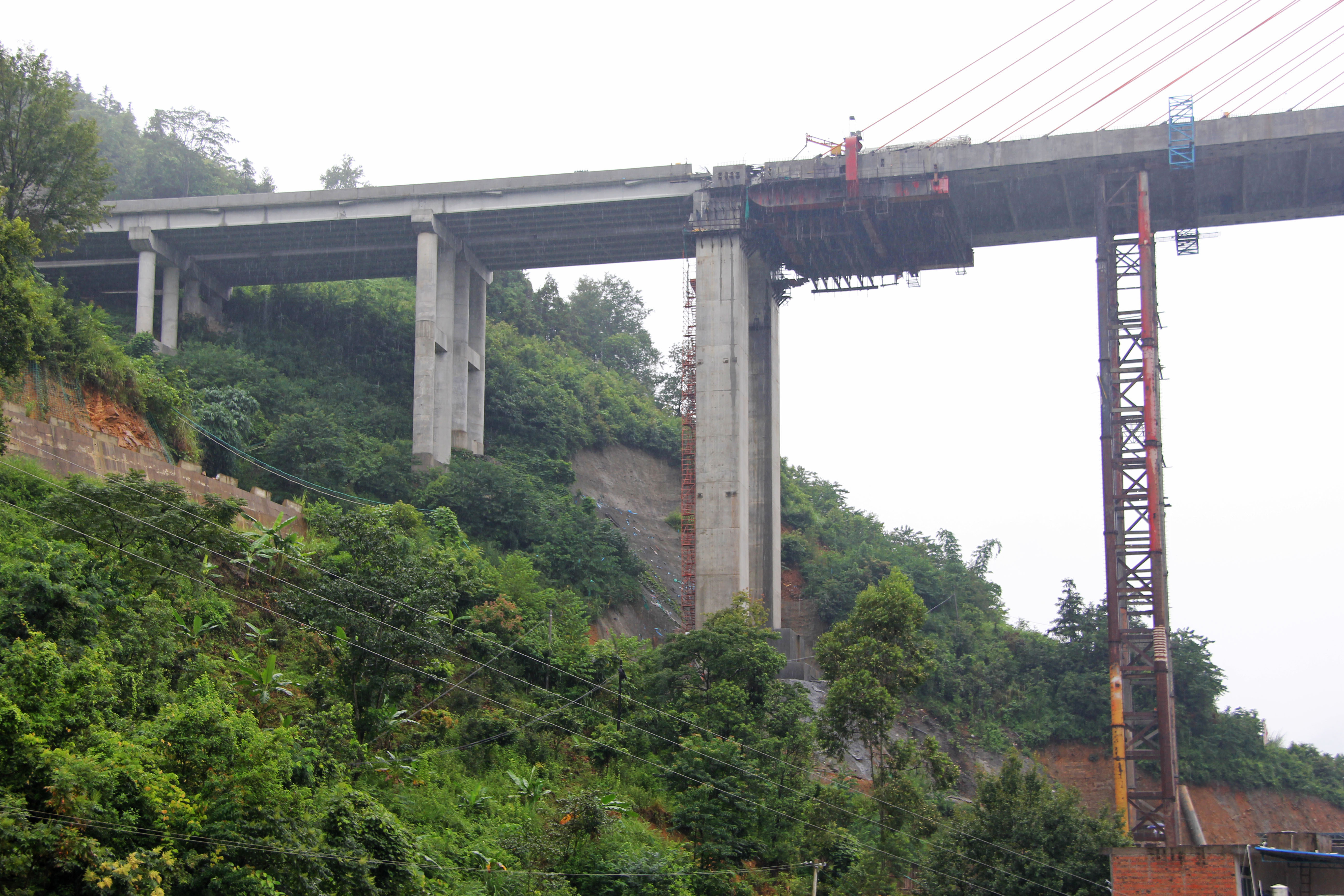

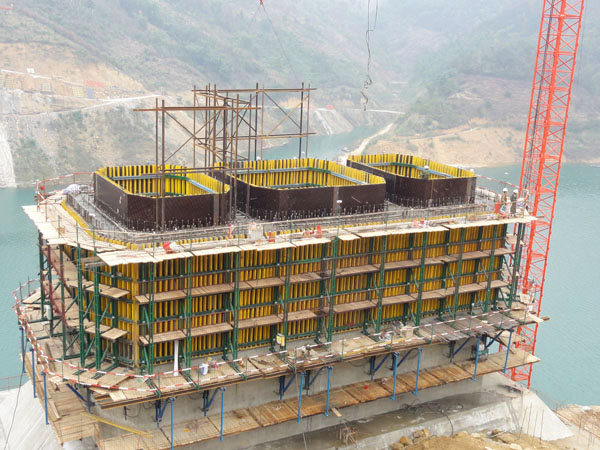

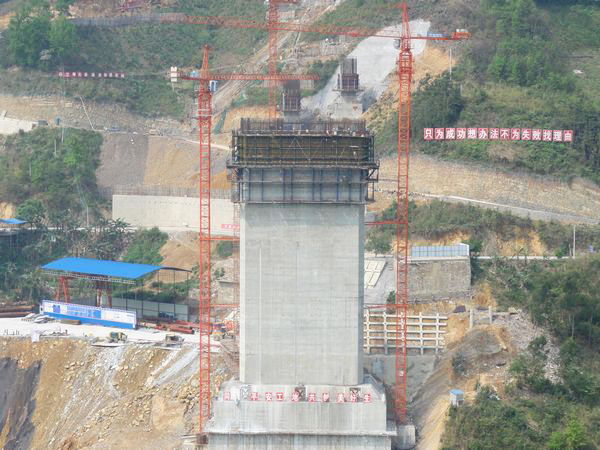

Although not as spectacular as the world's highest cable stayed bridge across the Beipanjiang at Duge, the Wang'an Expressway Beipanjiang Bridge is still an impressive structure with 190.4 meter towers supporting a central span configuration of 150+328+150 meters with 30 meter approach spans. The two main towers are 190.4 and 187.9 meters tall with a total length of the bridge being 817 meters. The main span cable stays are spaced 7 meters apart with spacing of 5 meters for the side spans. The whole width of the deck is 24.1 meters.

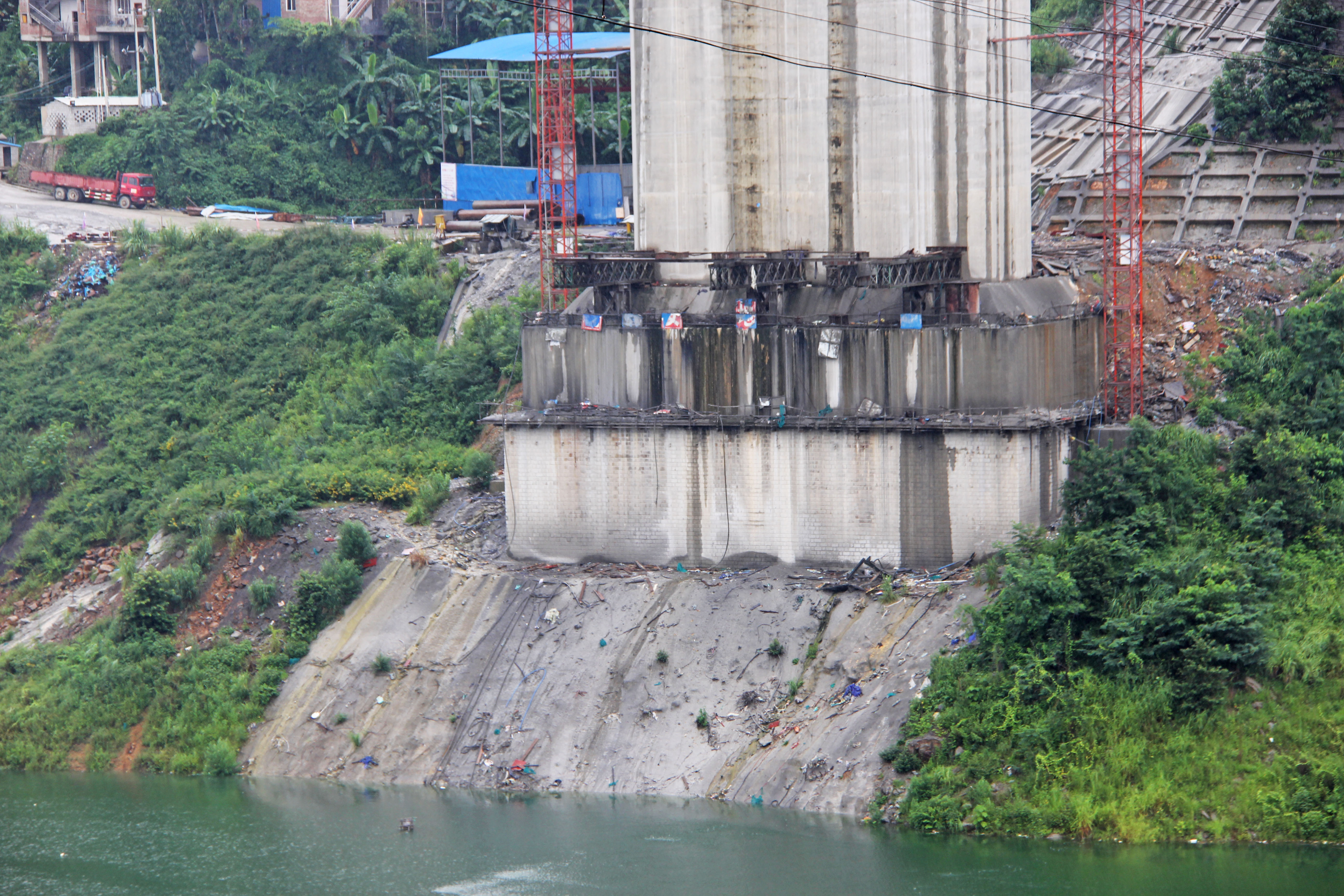

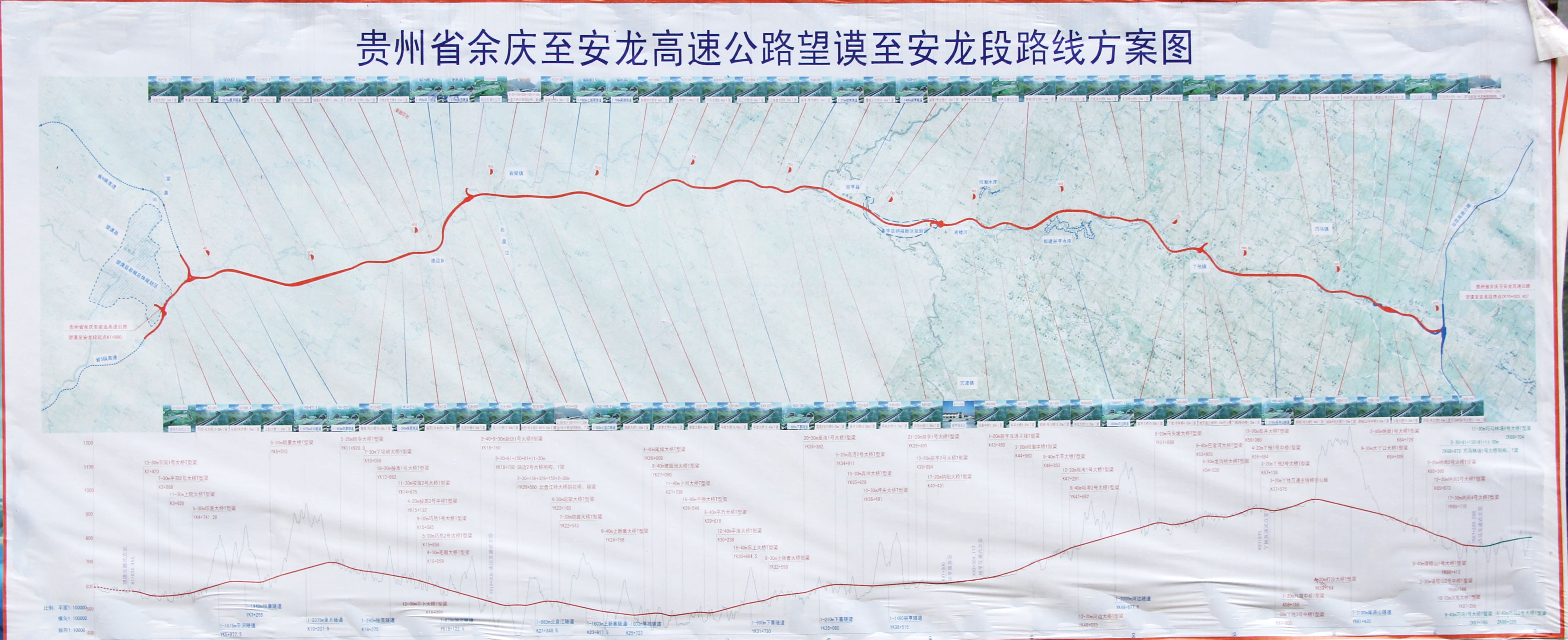

Much of the bridge height is hidden beneath the Longtan reservoir created by the completion of a downstream dam in 2008. Just north of the Wang'an expressway Bridge is a high beam bridge that carries the older route S312 over the Bei Pan River. Before the construction of the dam, route S312 crossed a multi-arch bridge. Located at kilometer 20, the S62 Yuqing-Anlong Expressway connects the cities of Anlong and Wangmo in remote southwestern Guizhou Province.

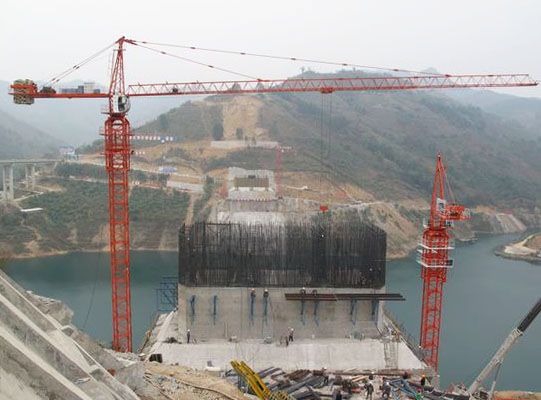

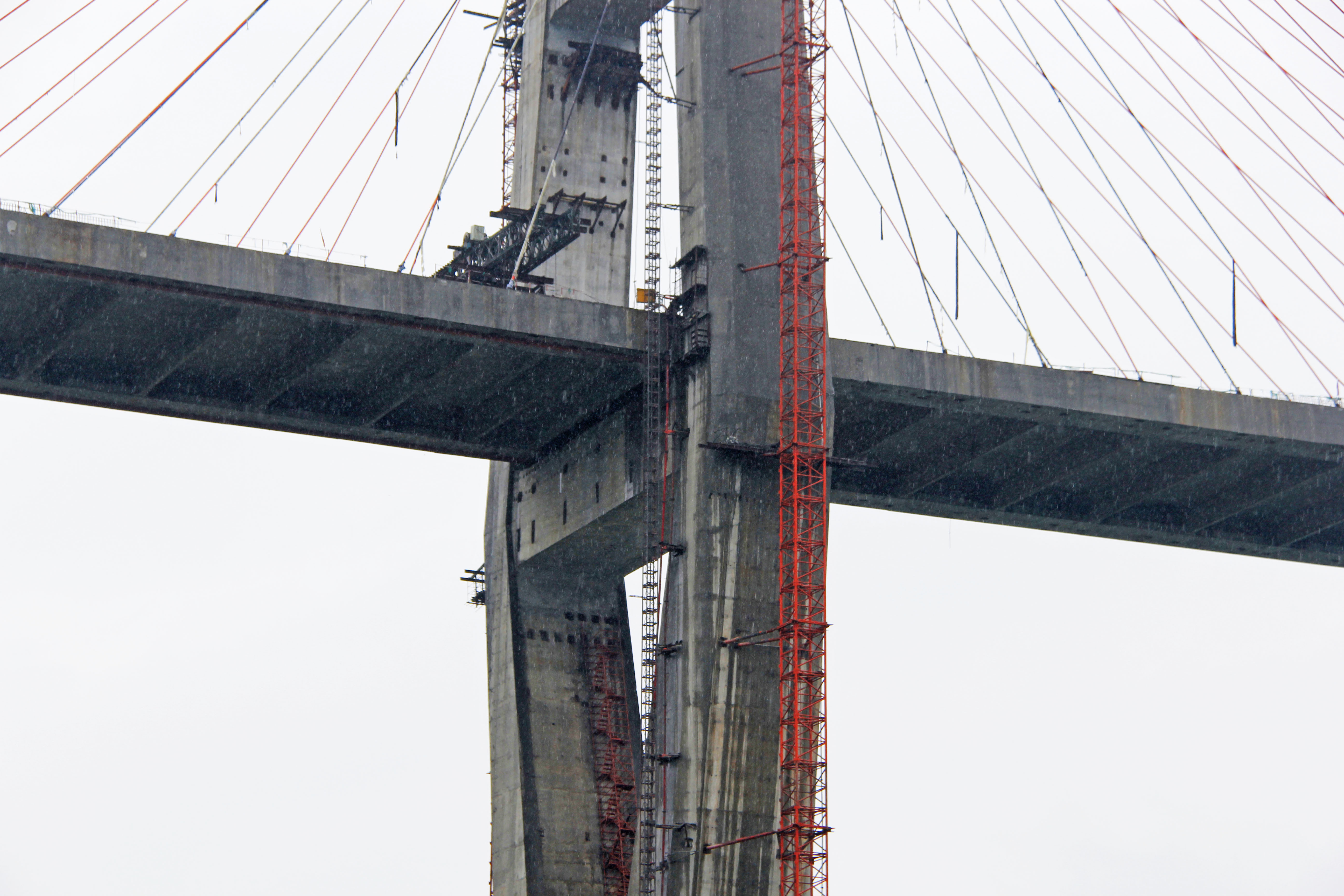

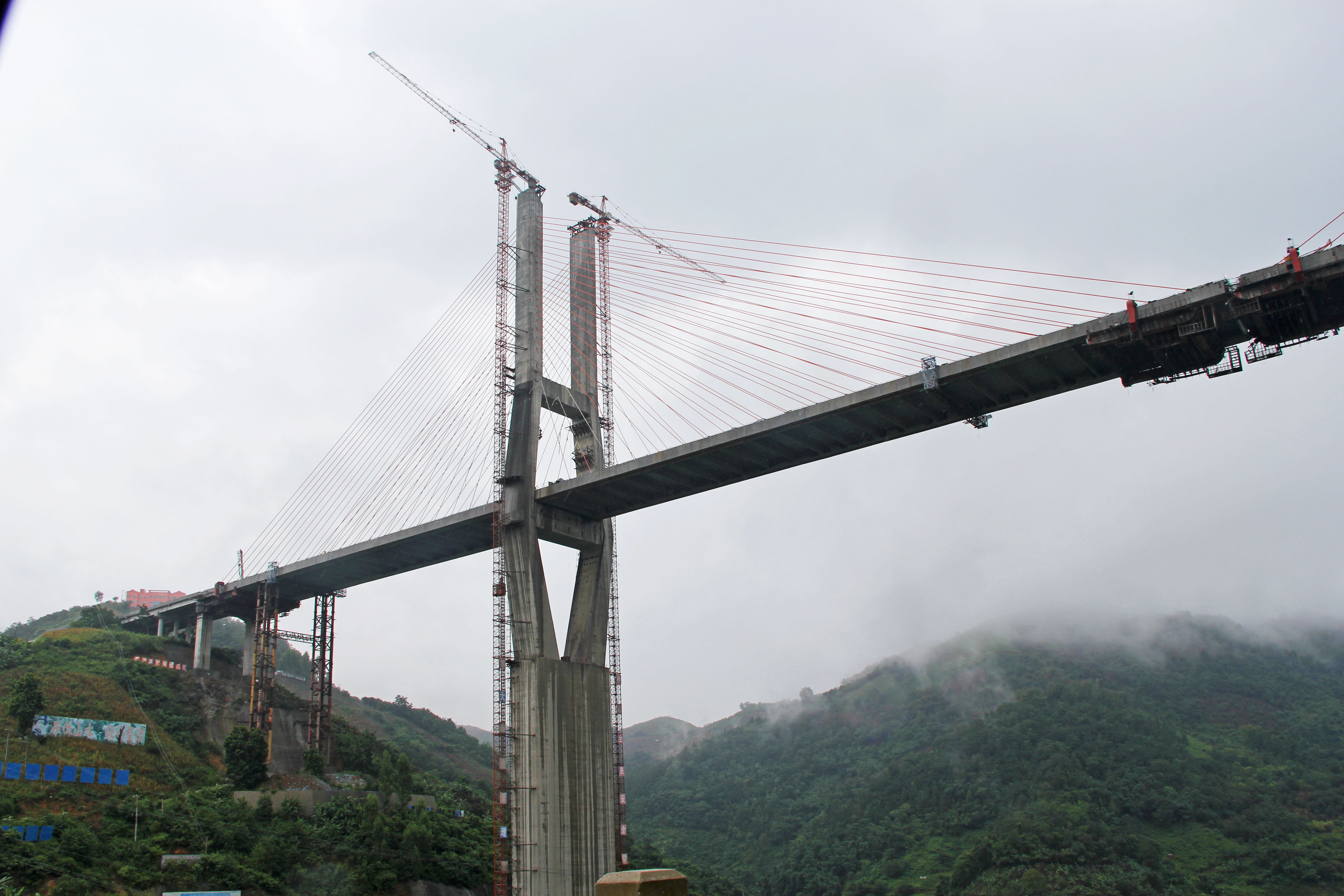

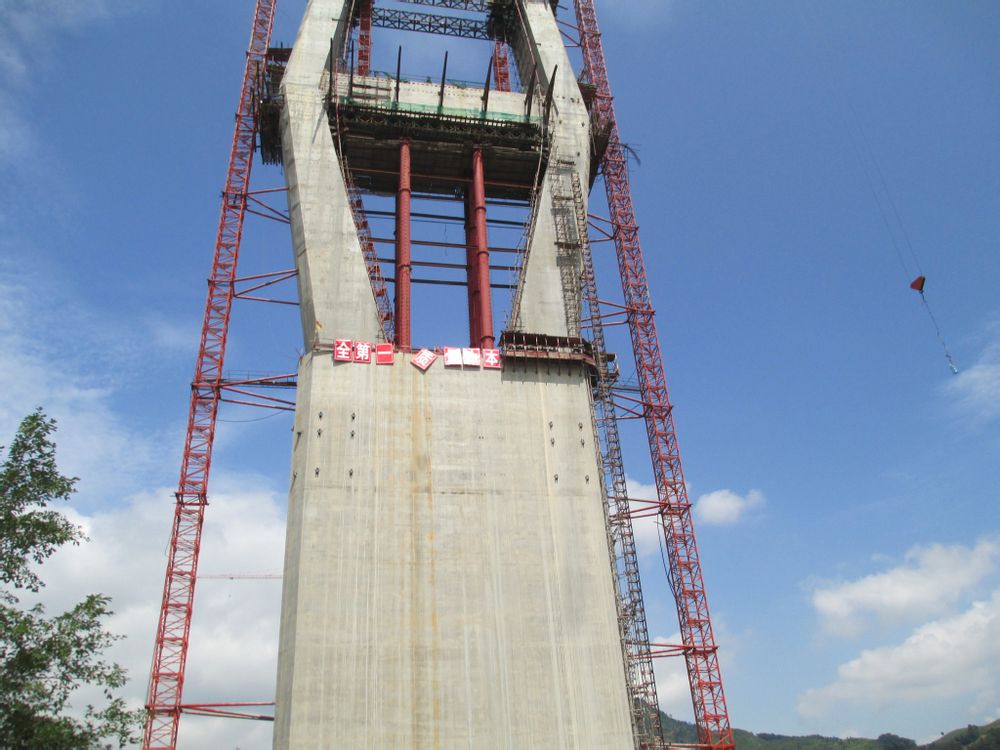

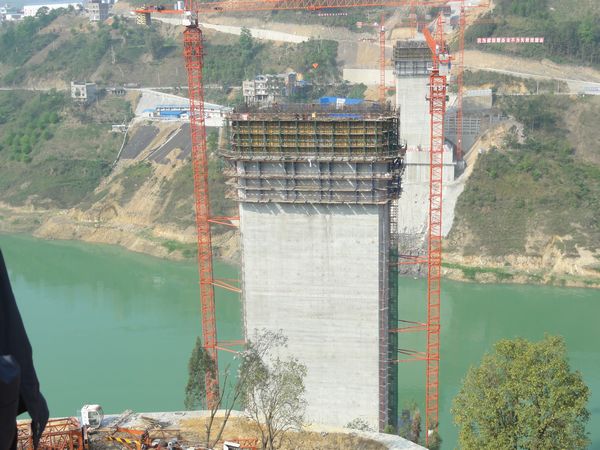

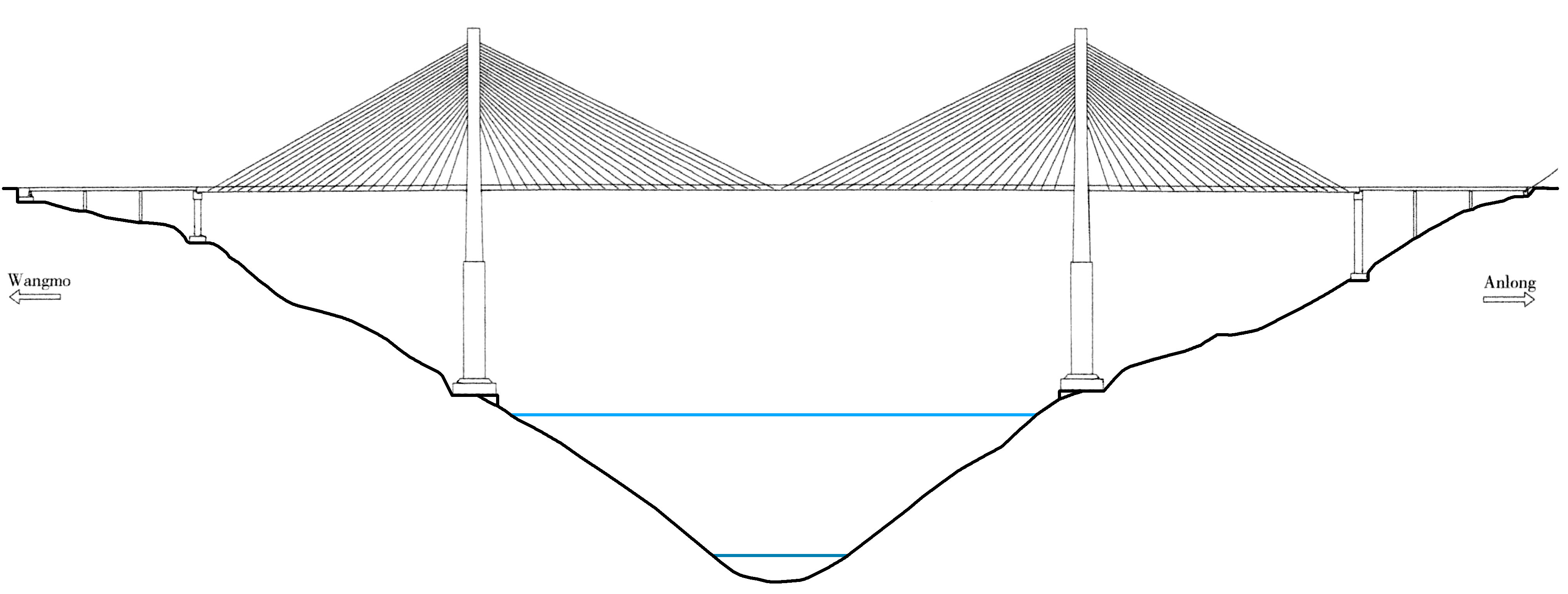

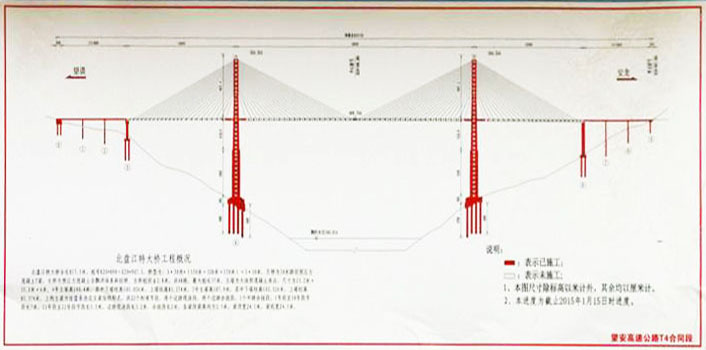

Beipanjiang Bridge Wang'an Elevation

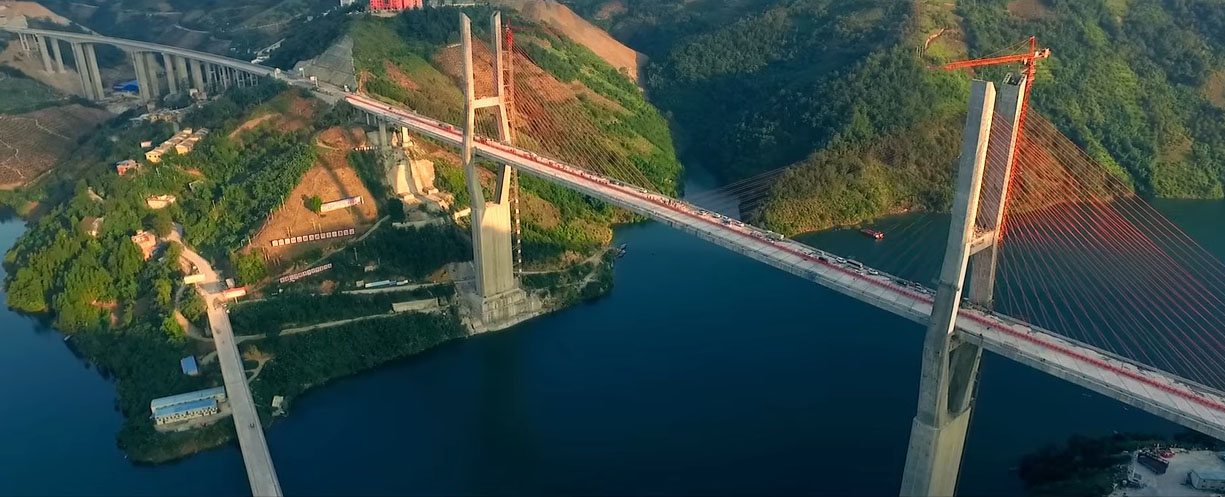

Beipanjiang Bridge Wang'anDroneView.jpg

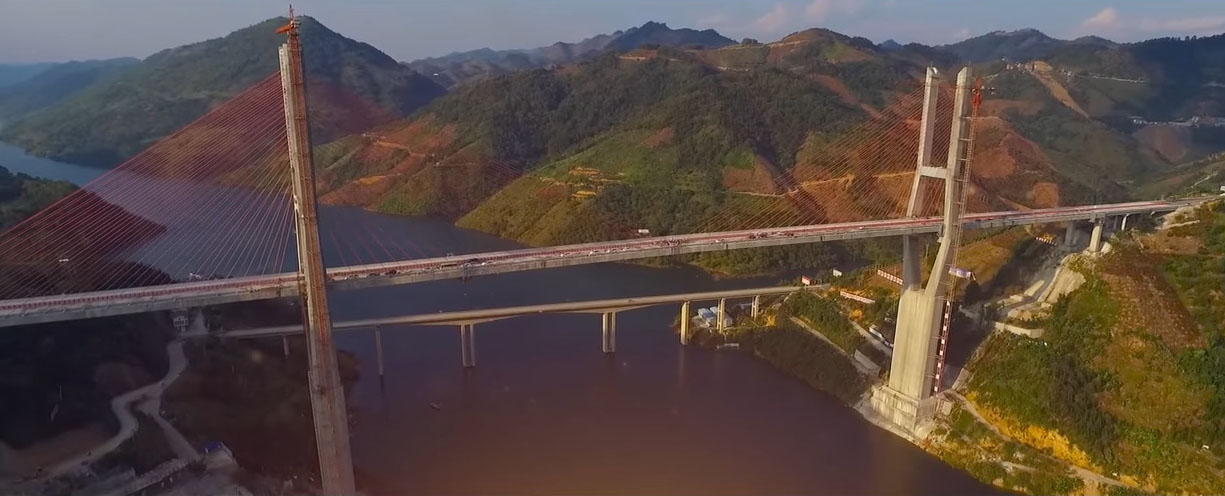

Beipanjiang Bridge Wang'anDrone.jpg


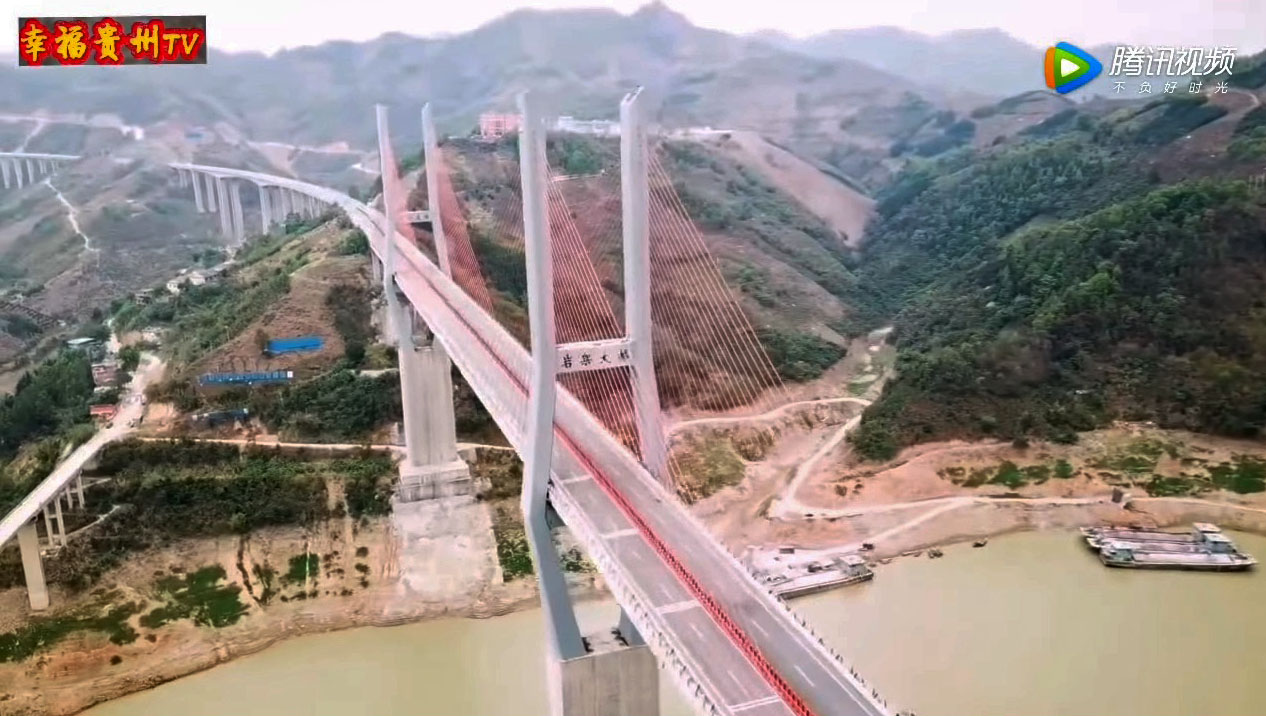

Beipanjiang Bridge Wang'an3.jpg


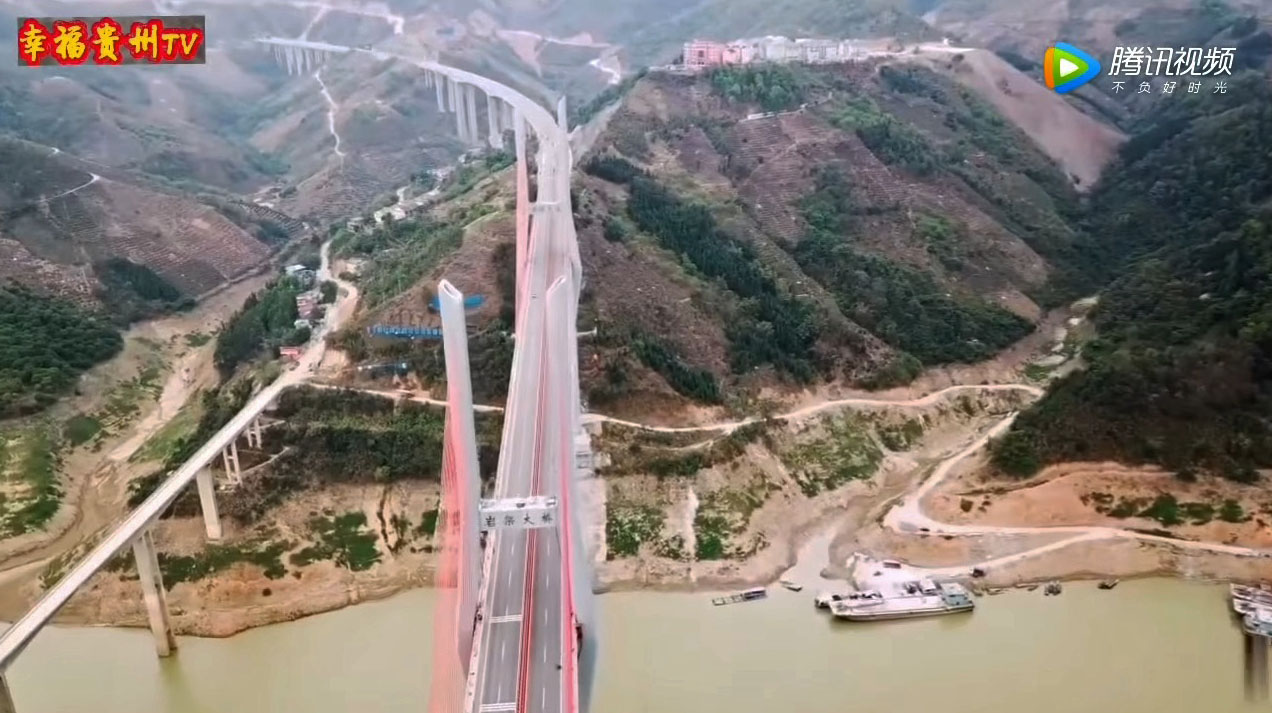

Beipanjiang Bridge Wang'an4.jpg

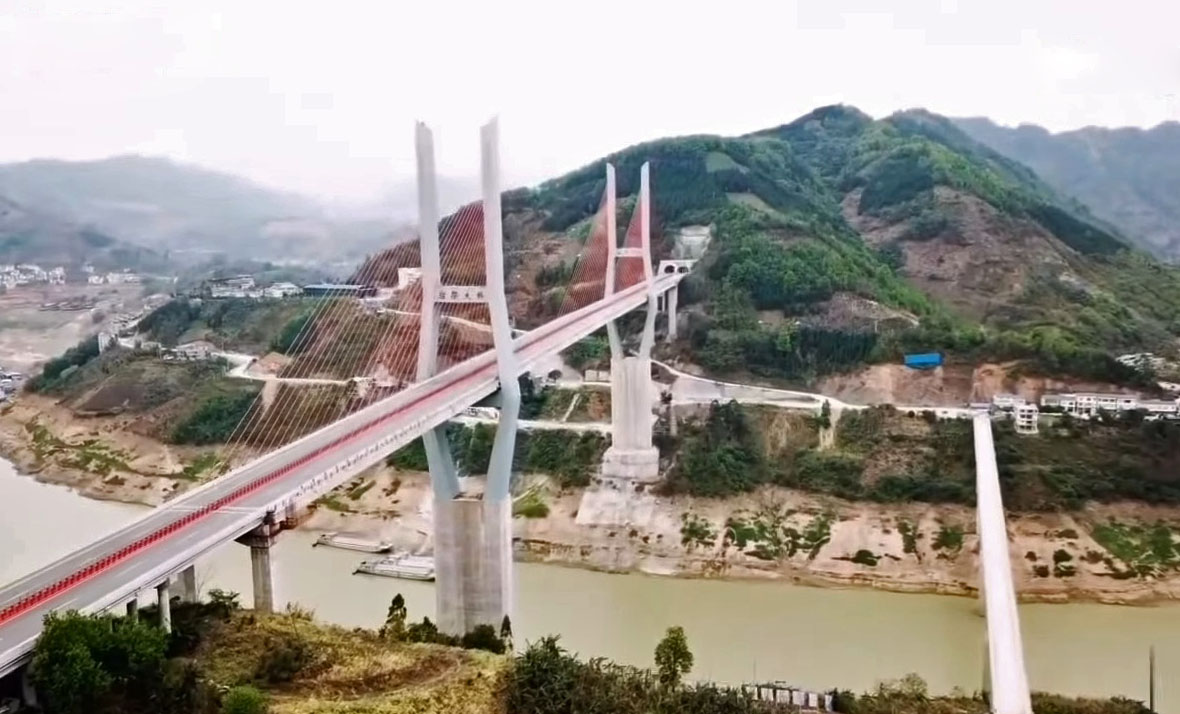

Beipanjiang Bridge Wang'anDroneWhite.jpg


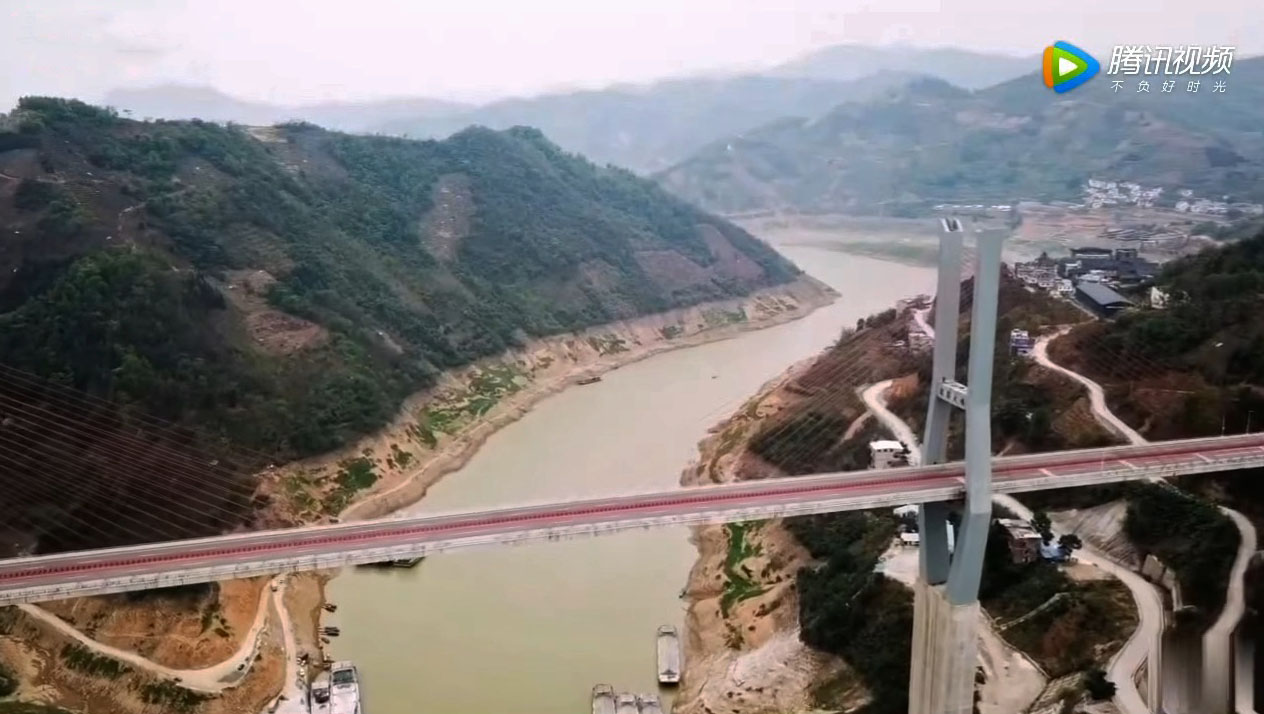

Beipanjiang Bridge Wang'anWhite2.jpg

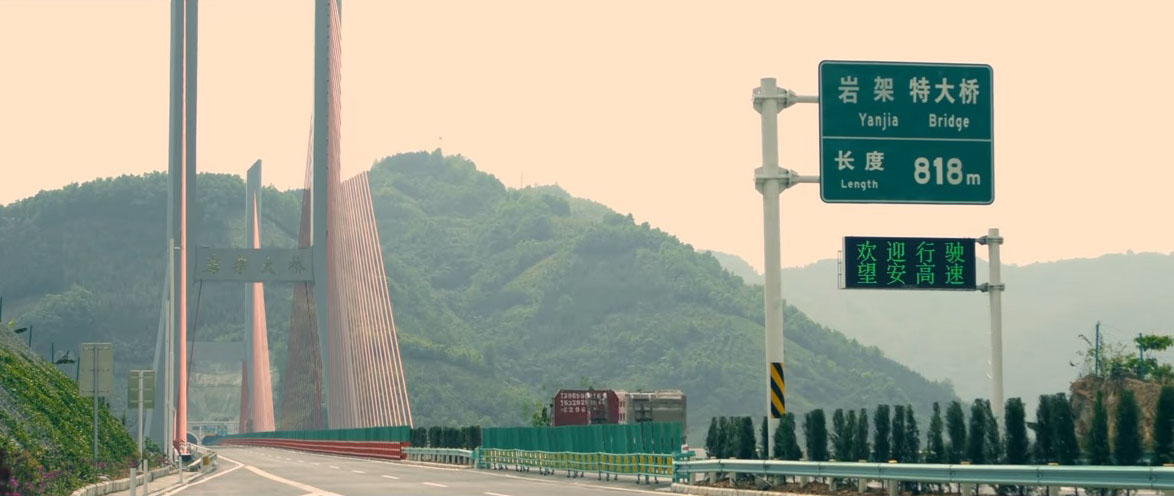

Beipanjiang Bridge Wang'anSign.jpg

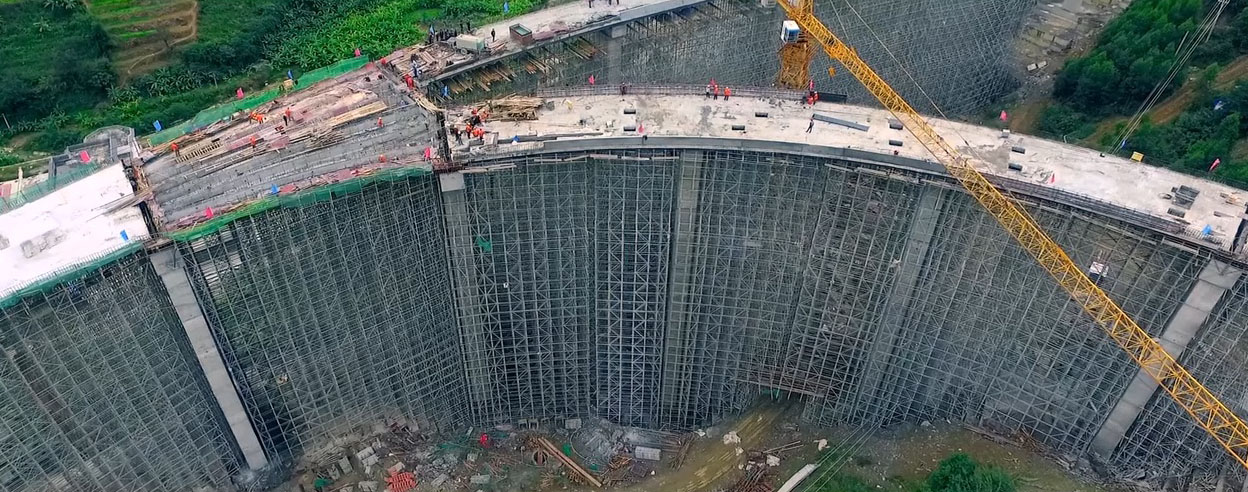

Beipanjiang Bridge Wang'anAreaInterchange.jpg



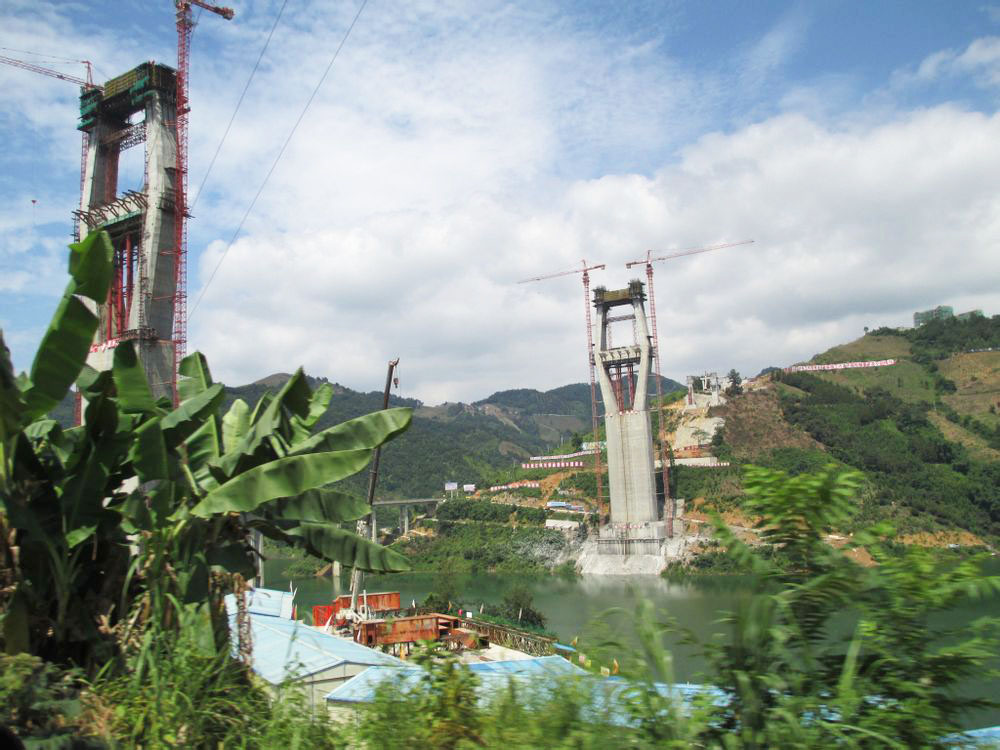

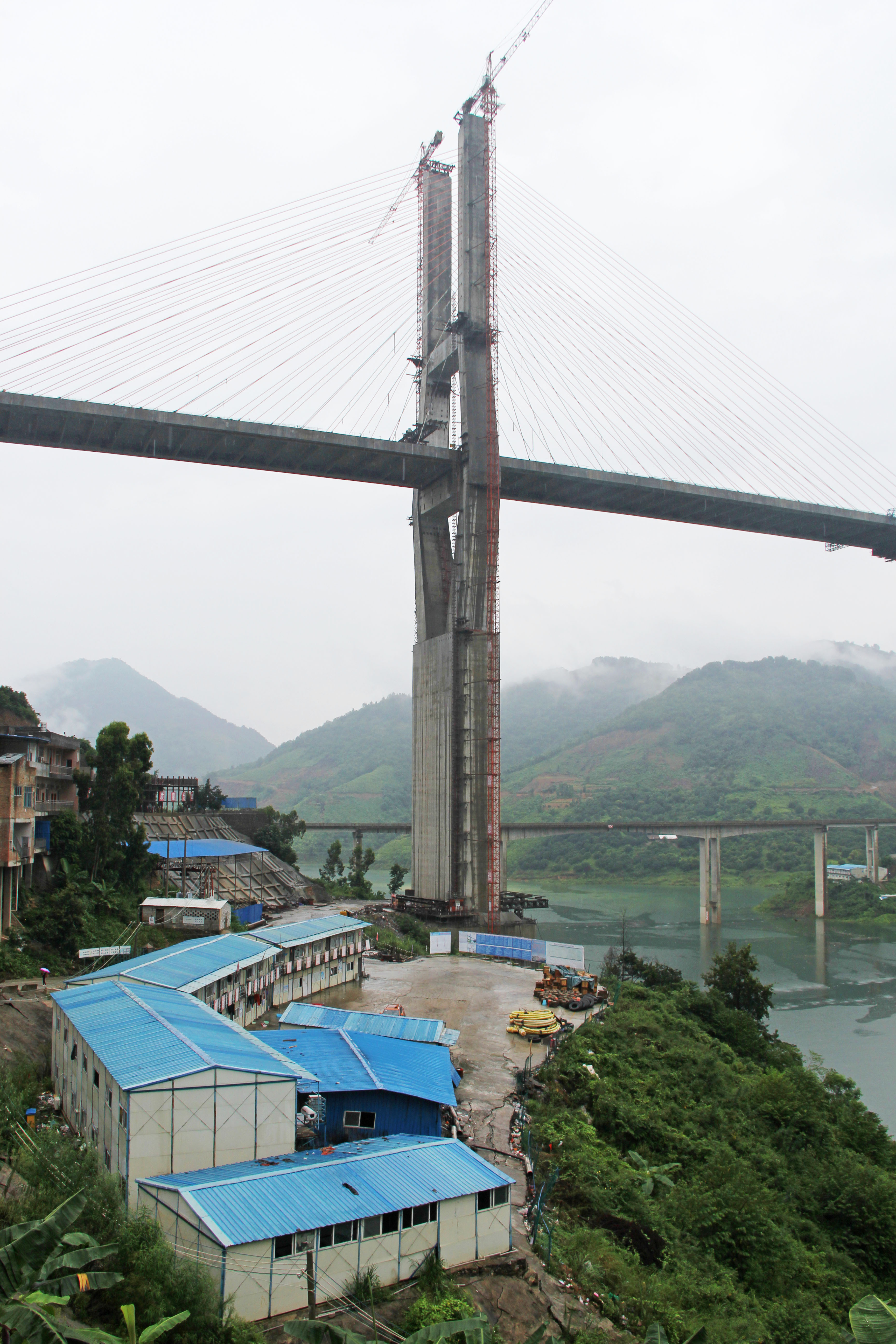

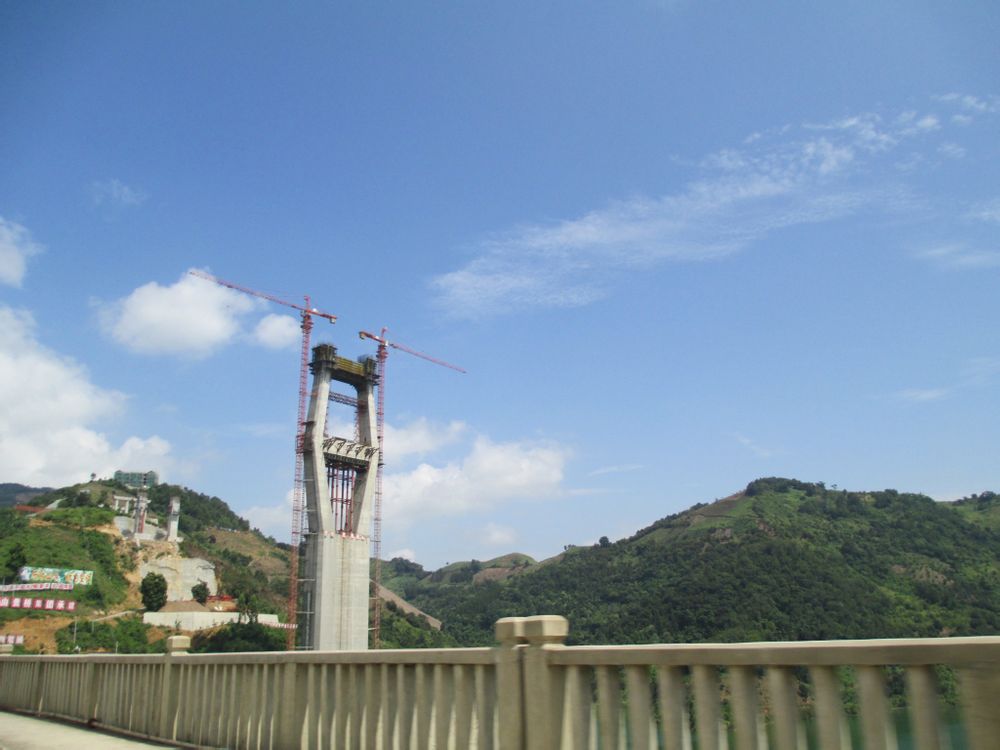

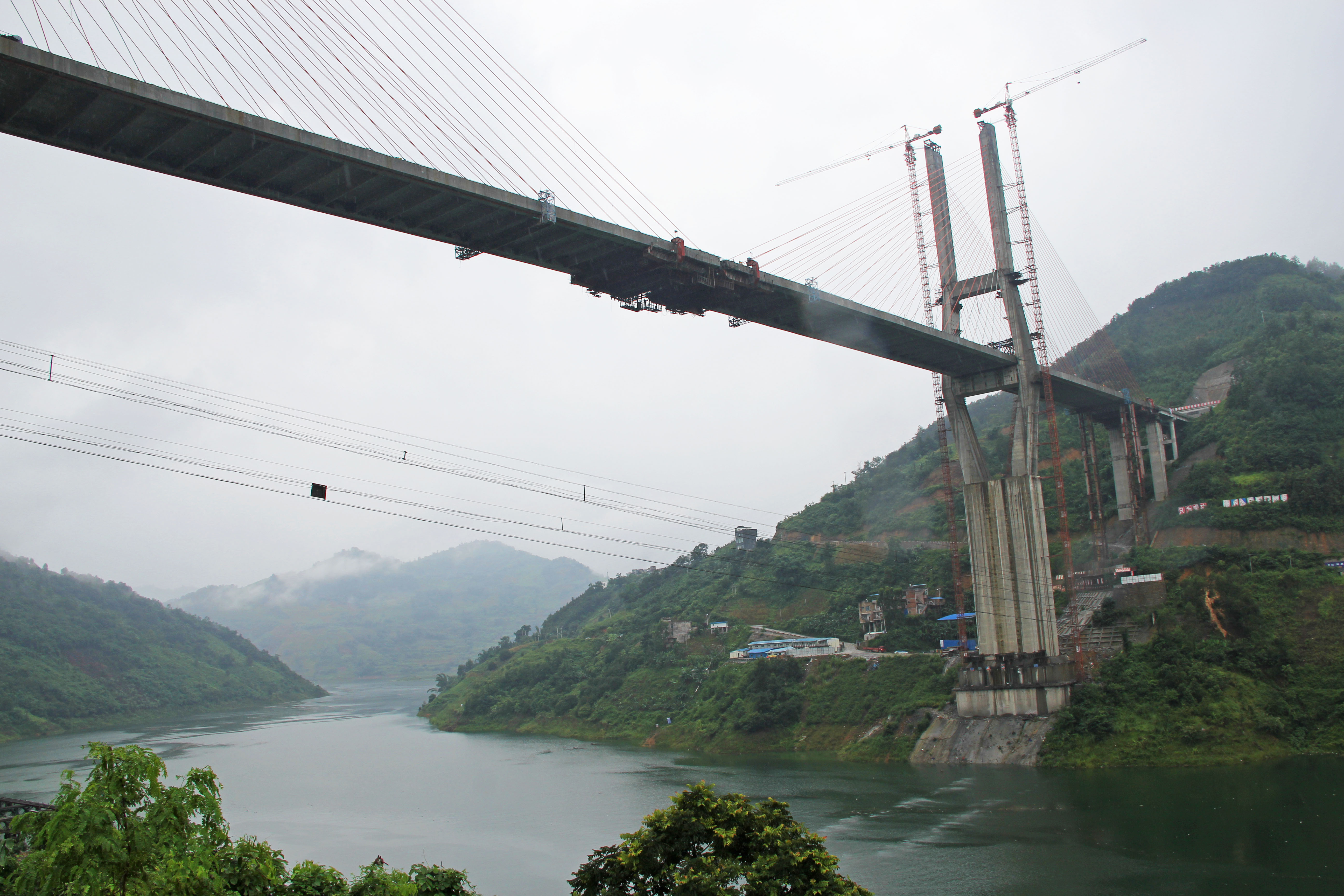

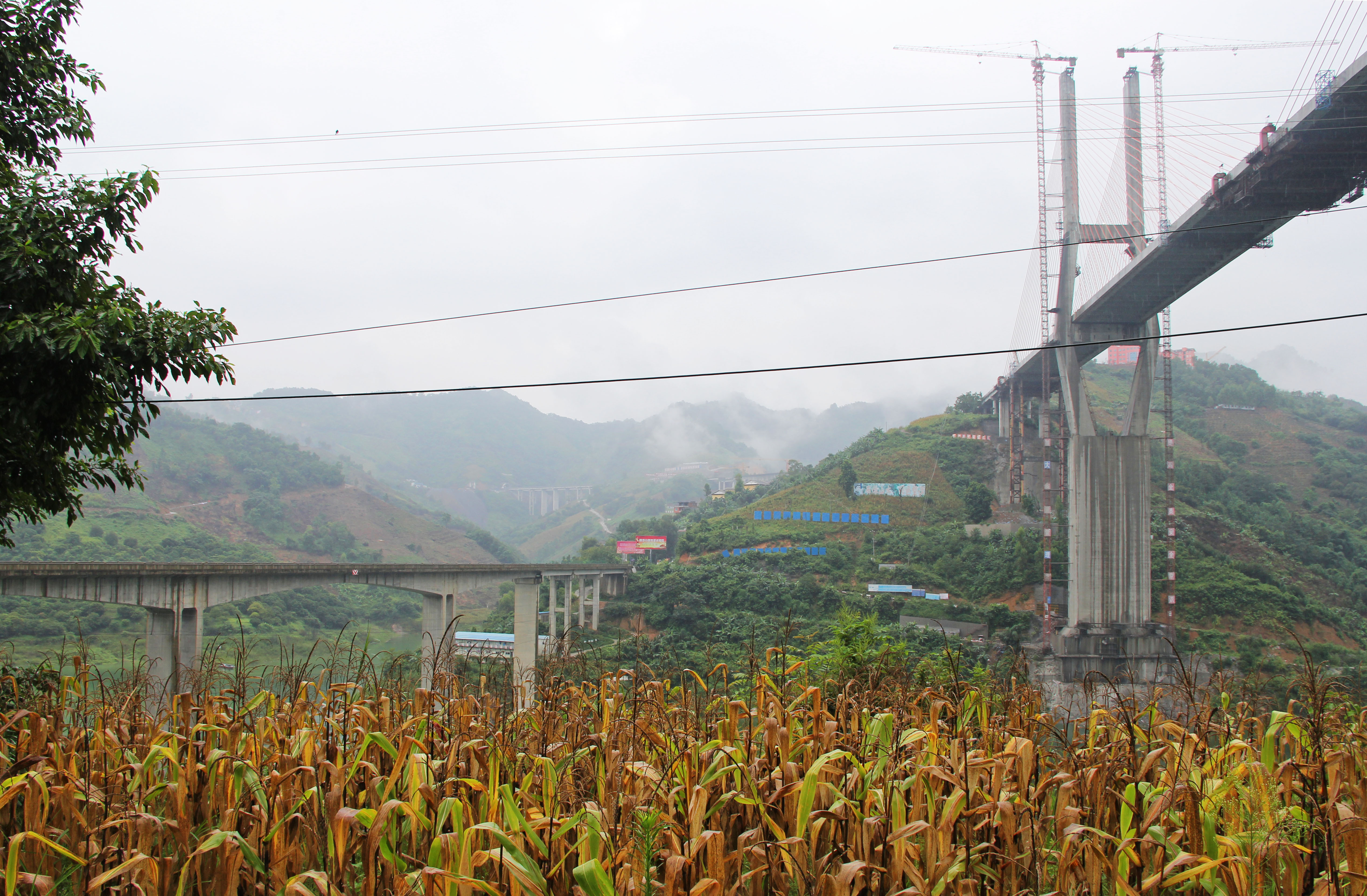

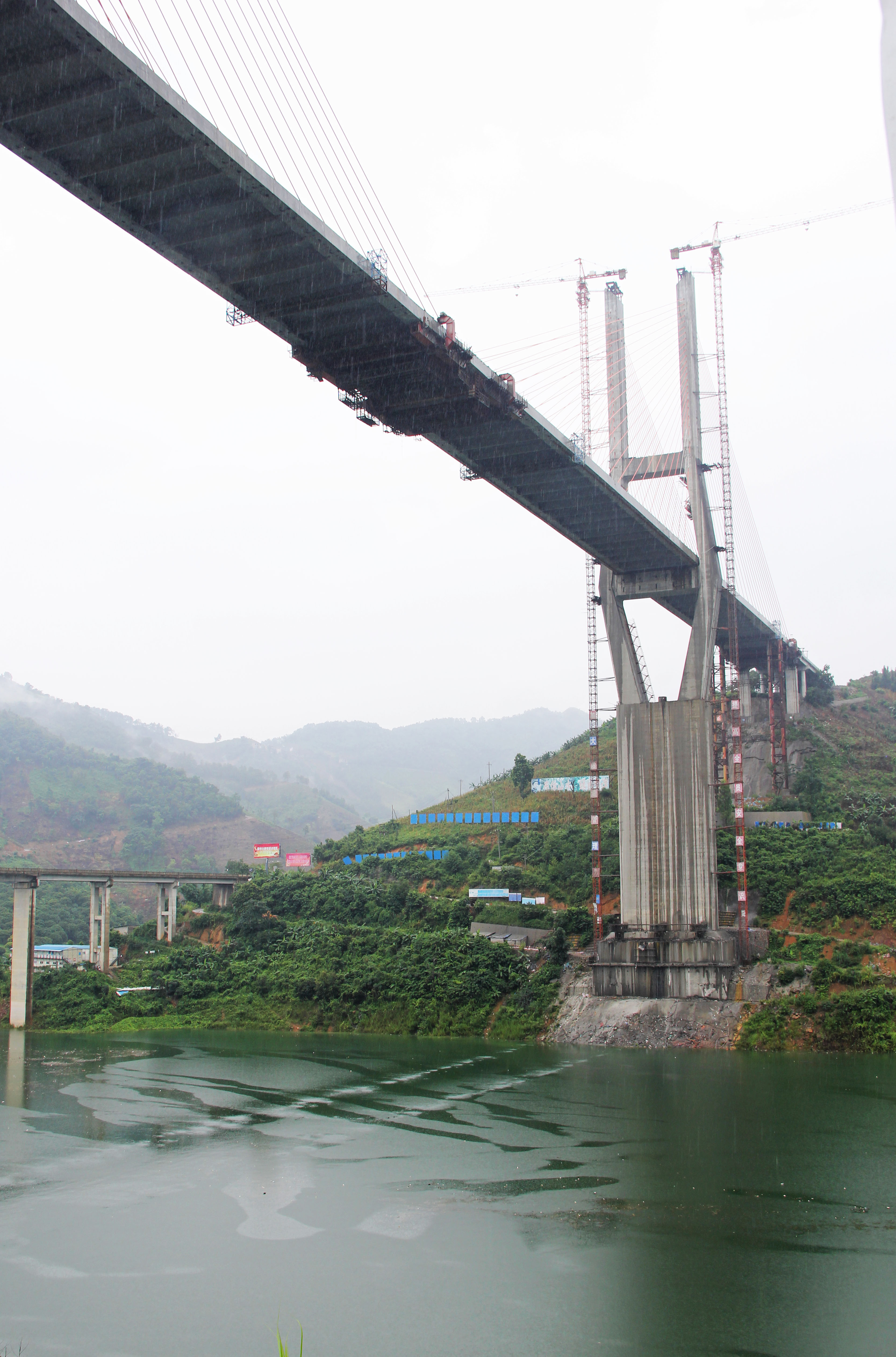

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

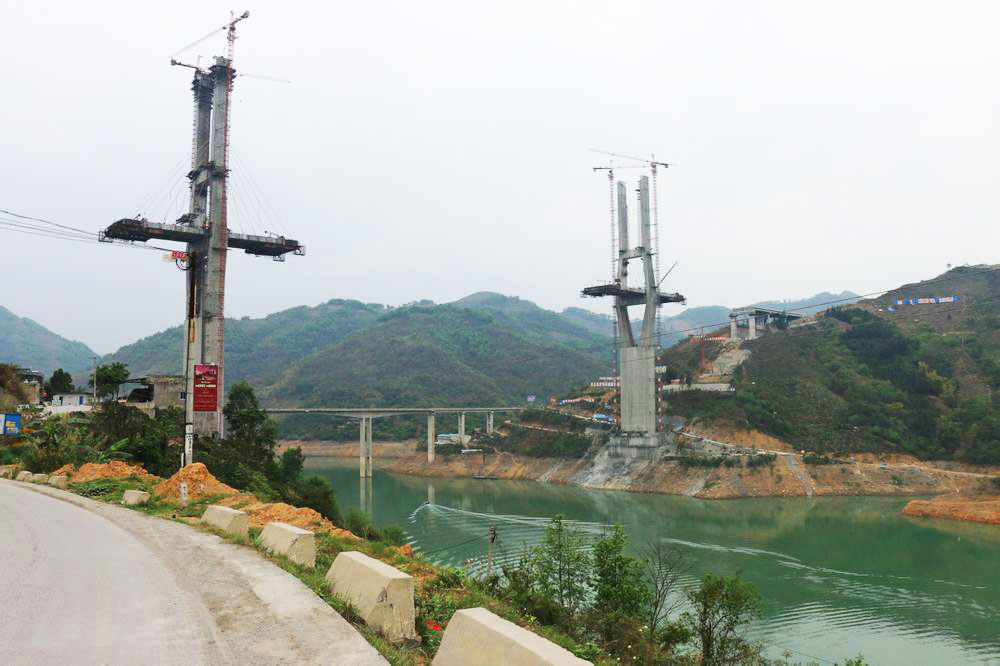

Beipanjiang Yanjia (Wang'an) 20150321.jpg




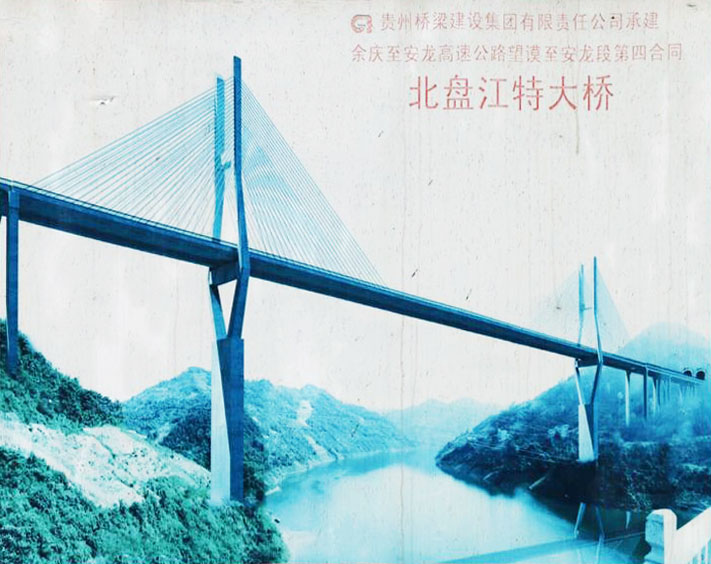

Beipanjiang Yanjia2.jpg

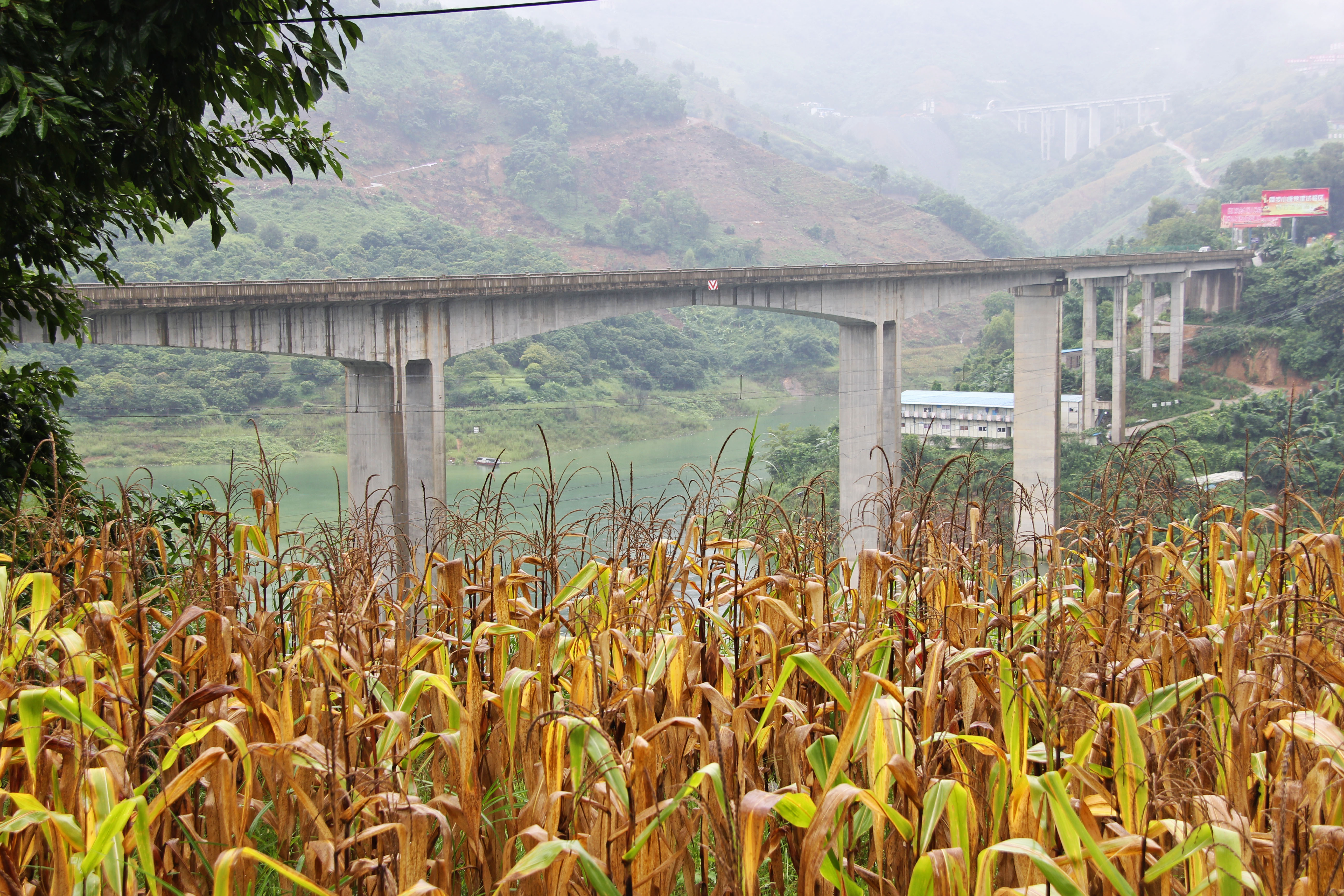

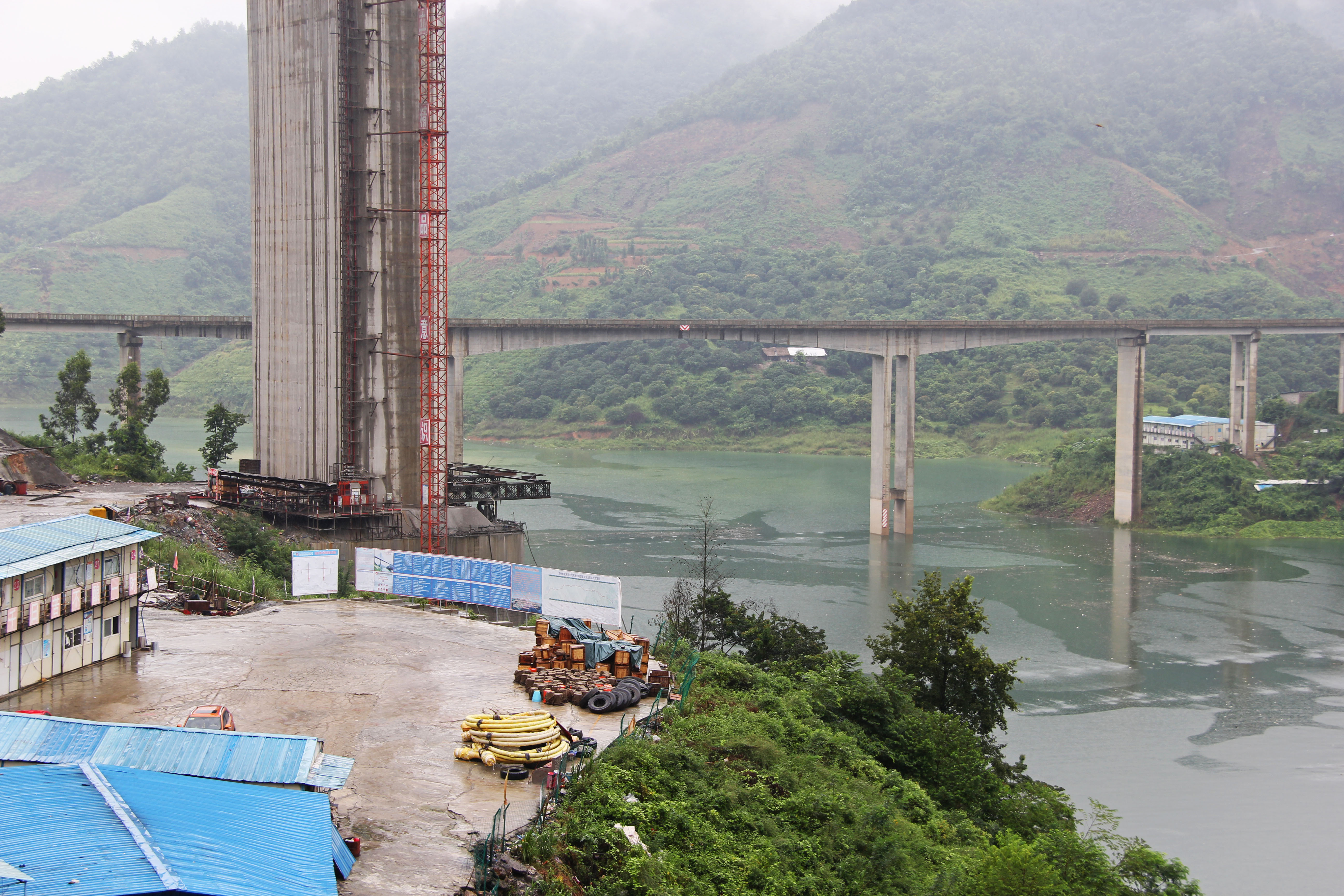

The 2008 Yanjia Beipanjiang Bridge that carries the local route S312.



The older Yanjia arch bridge that was located about 1 kilometer south of the new S312 bridge.



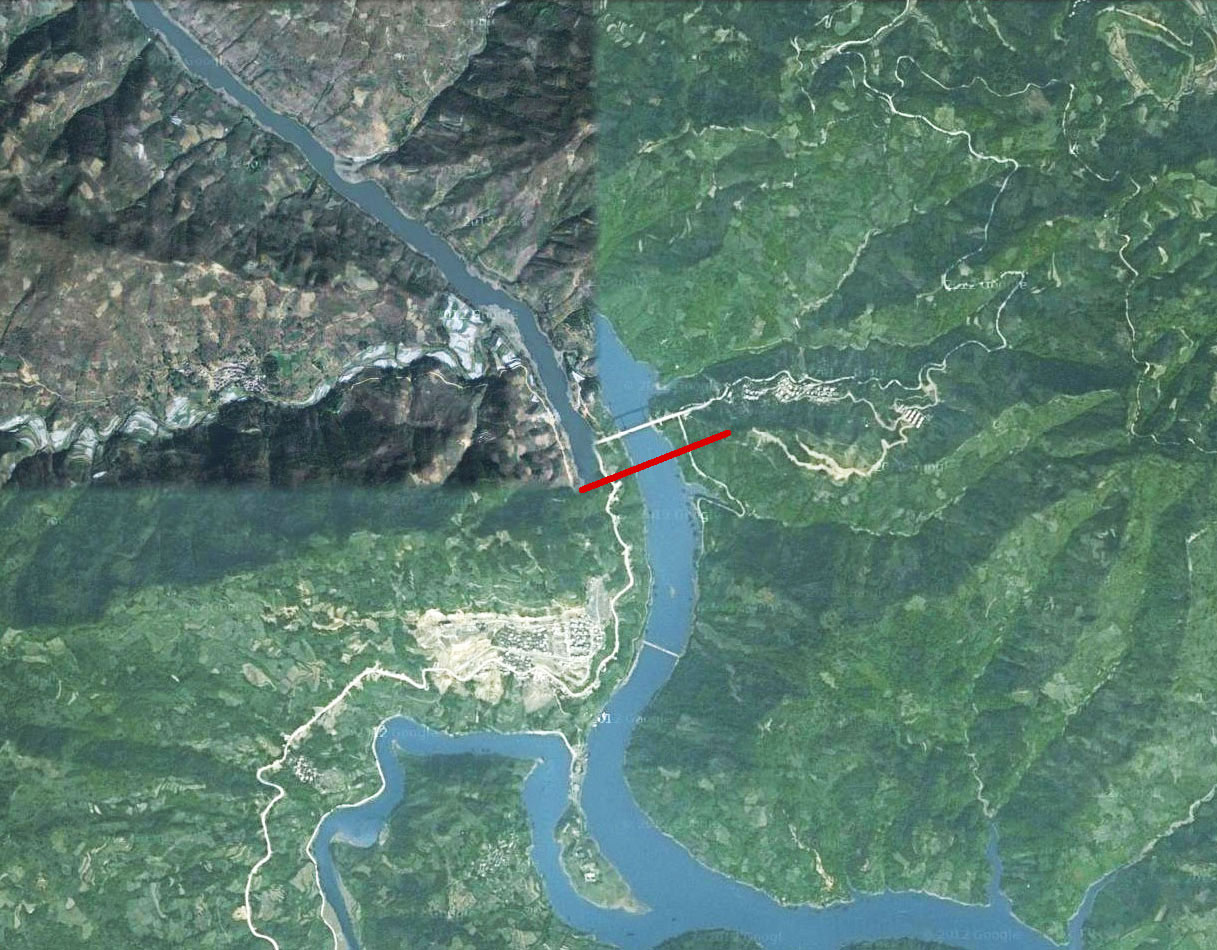

Beipanjiang Bridge Wang'an Expressway satellite image.





An older Beipanjiang Bridge Wang'an satellite image.


Beipanjiang Bridge Wang'anLocationMap.jpg

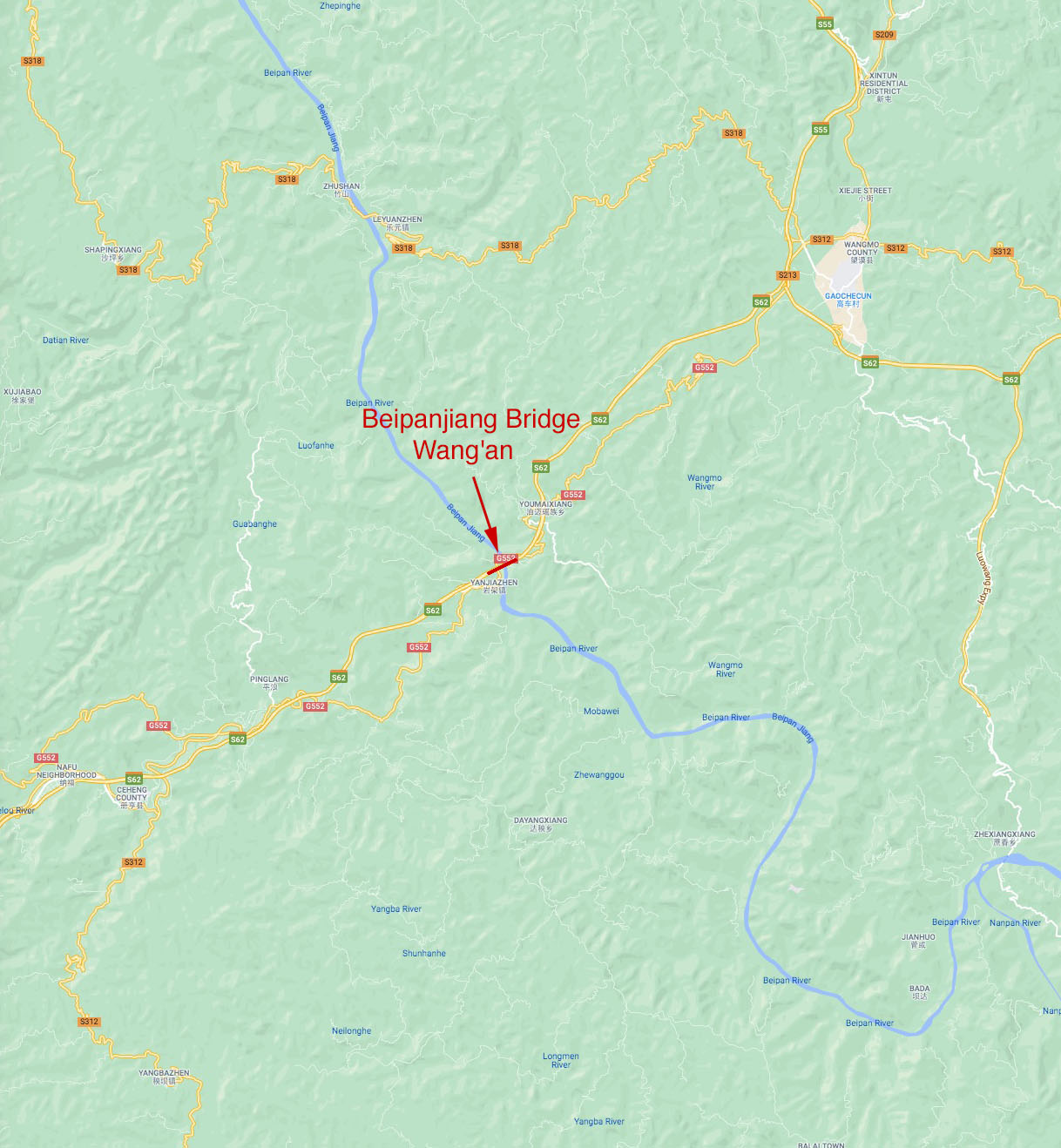

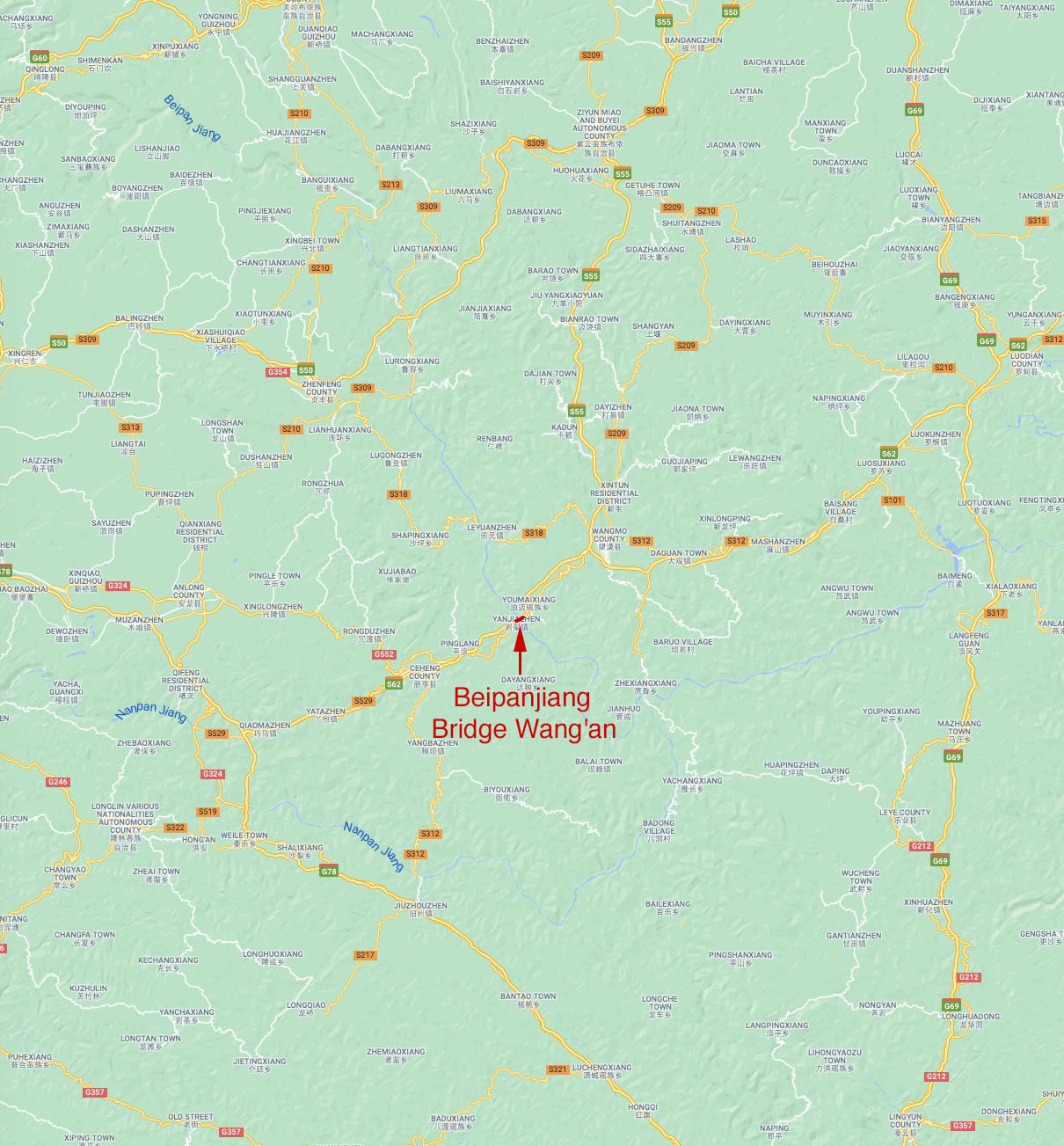

Beipanjiang Bridge Wang'an location map.
