Fengdu 2 Yangtze River Bridge

From HighestBridges.com
Jump to navigationJump to search

Fengdu 2 Yangtze River Bridge
重庆丰都长江二桥
Fengdu, Chongqing, China
295 feet high / 90 meters high
2,231 foot span / 680 meter span
2017



Fengdu 2 Yangtze River Bridge follows the original Fengdu city suspension bridge crossing by 20 years, opening in 2017. The giant 4-lane cable stayed bridge has a main span of 680 meters with a steel box deck approximately 90 meters above the old level of the Yangtze River which is now hidden beneath the upper reaches of the giant 3 Gorges Dam reservoir. The steel box girder is 28.5 meters wide with a deck 26.5 meters wide.

The construction of Fengdu 2 Yangtze River Bridge was delayed by a year when a crane collapsed during construction in late 2013.


Fengdu2Elevation copy.jpg

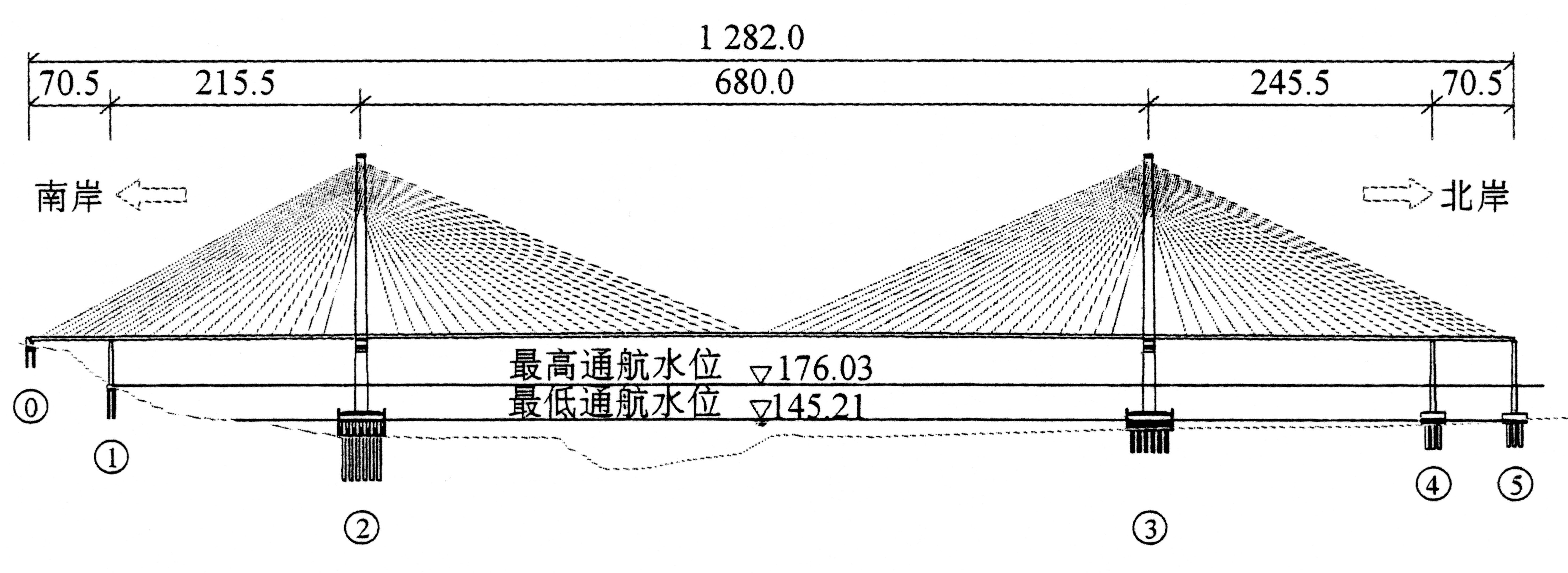

Fengdu 2 Yangtze River Bridge Elevation



Fengdu Two Bridge. Image by John Filmer.


493FengduTwoTower copy.JPG

Image by Eric Sakowski / HighestBridges.com


494FengduTwoDampeners copy.JPG

Image by Eric Sakowski / HighestBridges.com



Image by John Filmer.



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


497FengduTwoCableSky copy.JPG

Image by Eric Sakowski / HighestBridges.com


498FengduTwoTowerTopCables copy.JPG

Image by Eric Sakowski / HighestBridges.com


499FengduTwoCables&Sky copy.JPG

Image by Eric Sakowski / HighestBridges.com


500FengduTwoTrees copy.JPG

Image by Eric Sakowski / HighestBridges.com

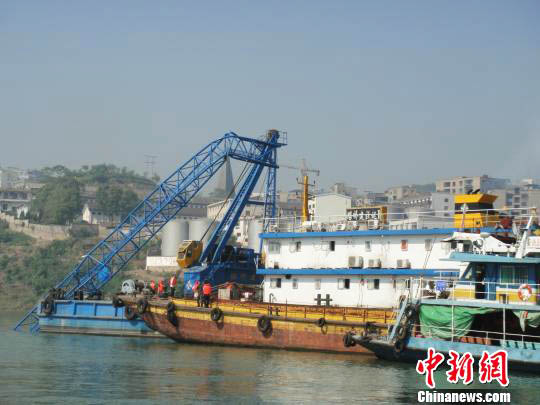

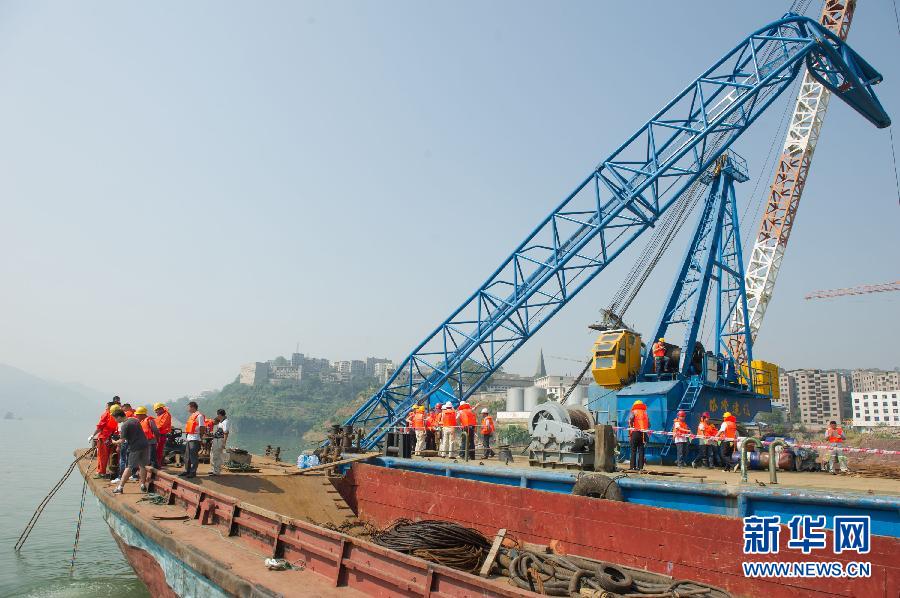

Fengdu 2 Yangtze River Bridge crane collapse during construction in 2013.





Image by Richard Scott.

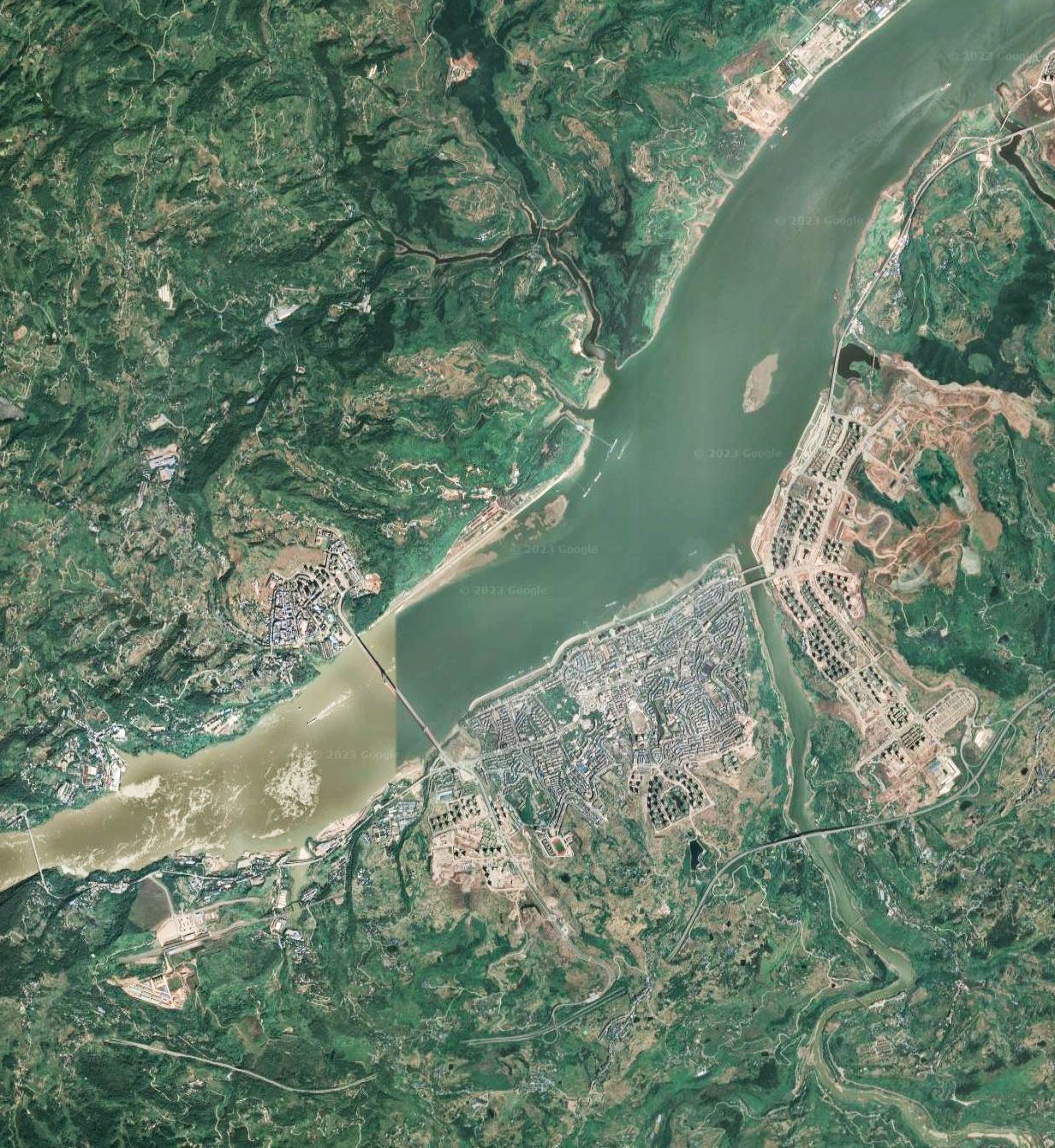

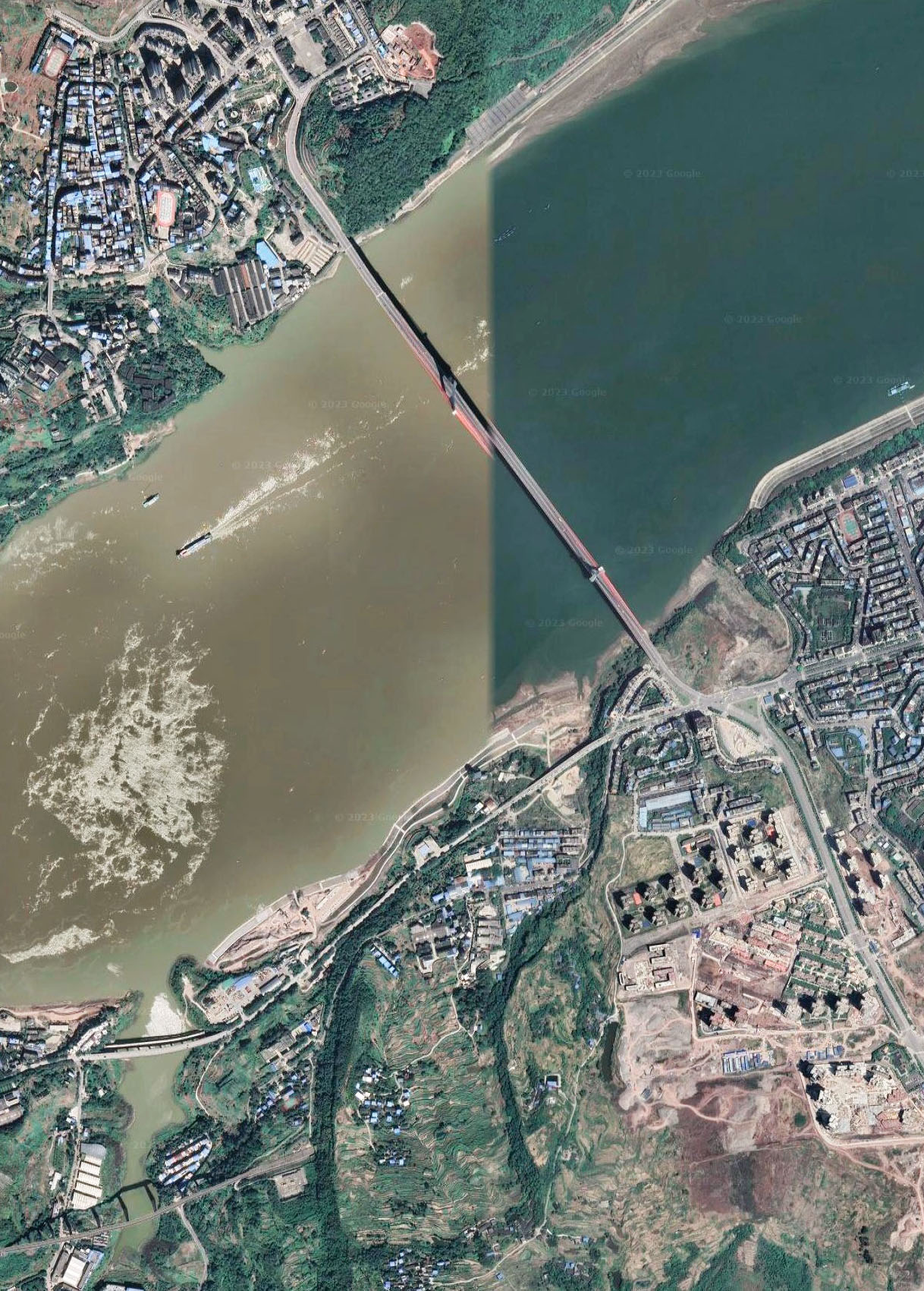

Fengdu 2 Yangtze River Bridge satellite image.





Fengdu 2 Yangtze River Bridge location map.
