Fenshuihe Bridge
汾水河大桥
Jinpenxiang, Chongqing, China
315 feet high / 96 meters high
518 foot span / 158 meter span
2008

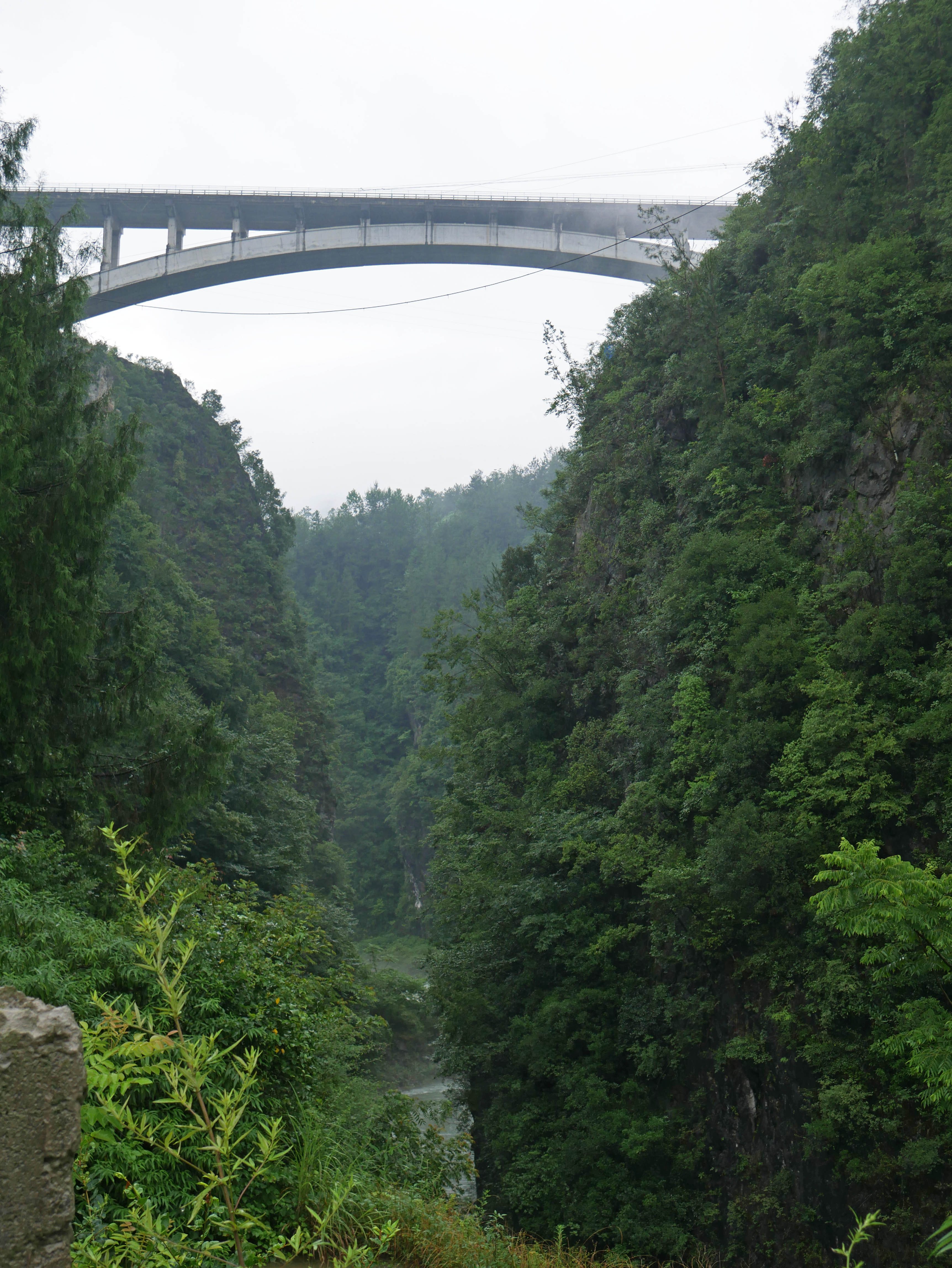

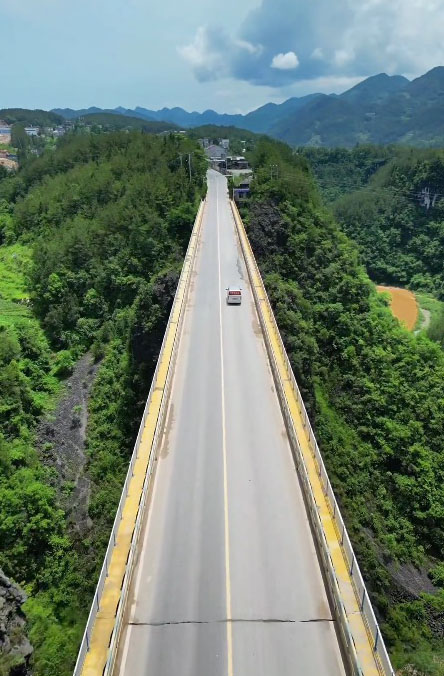

Located along the older national road S102, the Fenshuihe arch bridge is part of a short bypass that avoided a steeper and more dangerous descent down into the Fenshui River canyon. The two lane route spans the river on a concrete arch that was built in segments that were lowered into place from a highline. Each parallel rib is made up of 7 arch segments.

In 2024 the parallel Fenshuihe Bridge Wuyuankai opened with a main steel beam span of 90 meters.





















Fenshuihe Wuyunkai Expressway Bridge render.

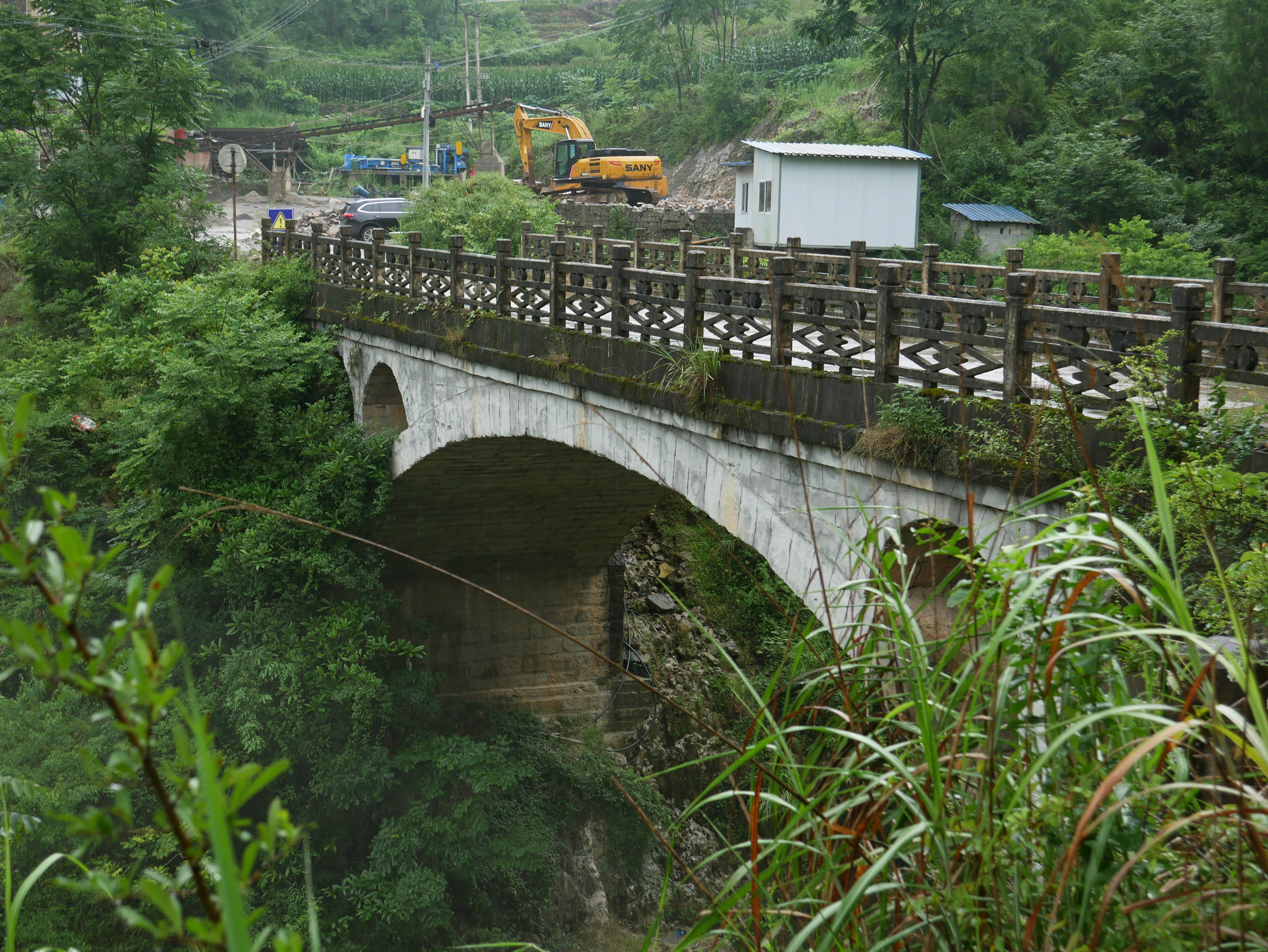

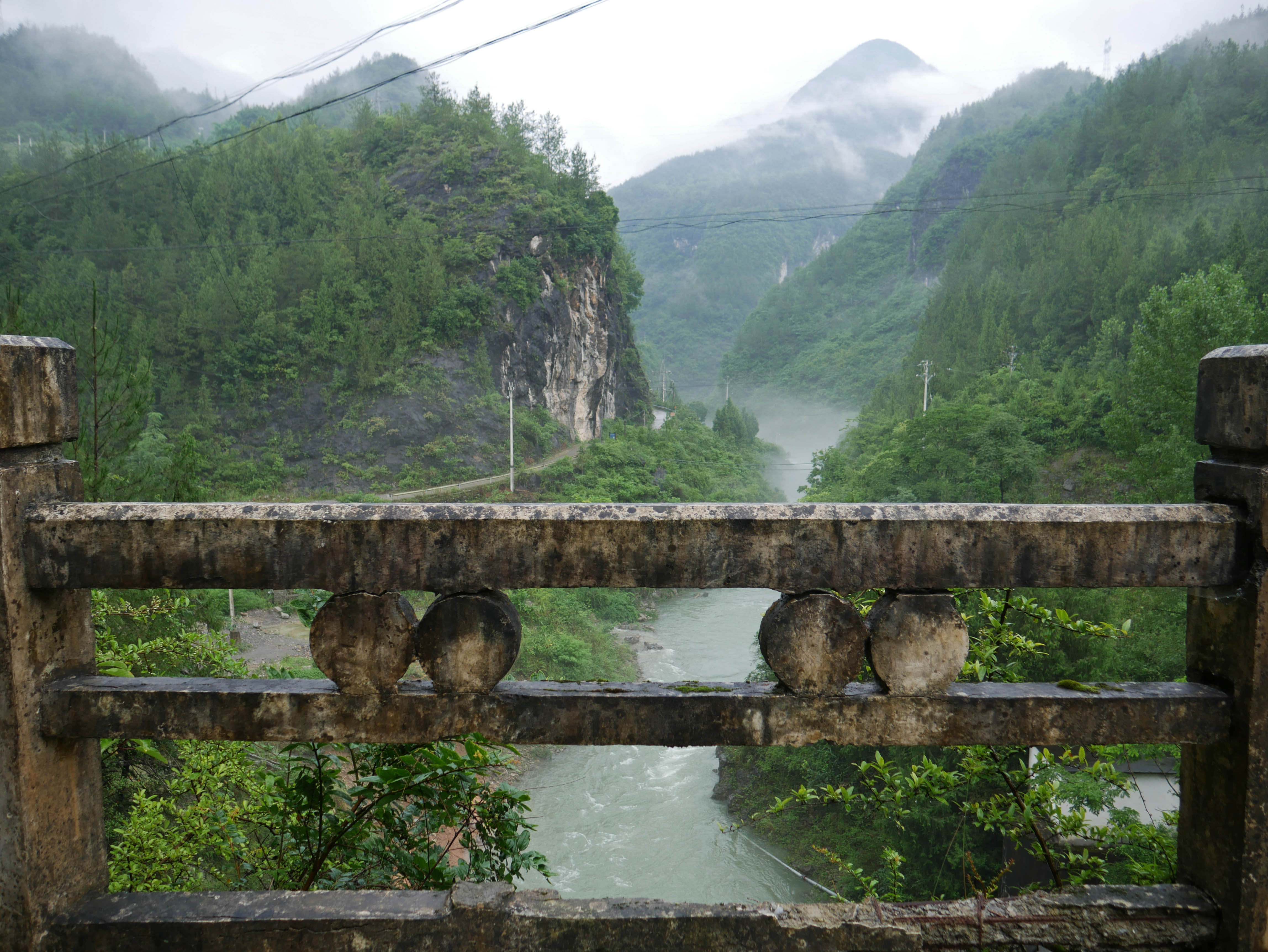

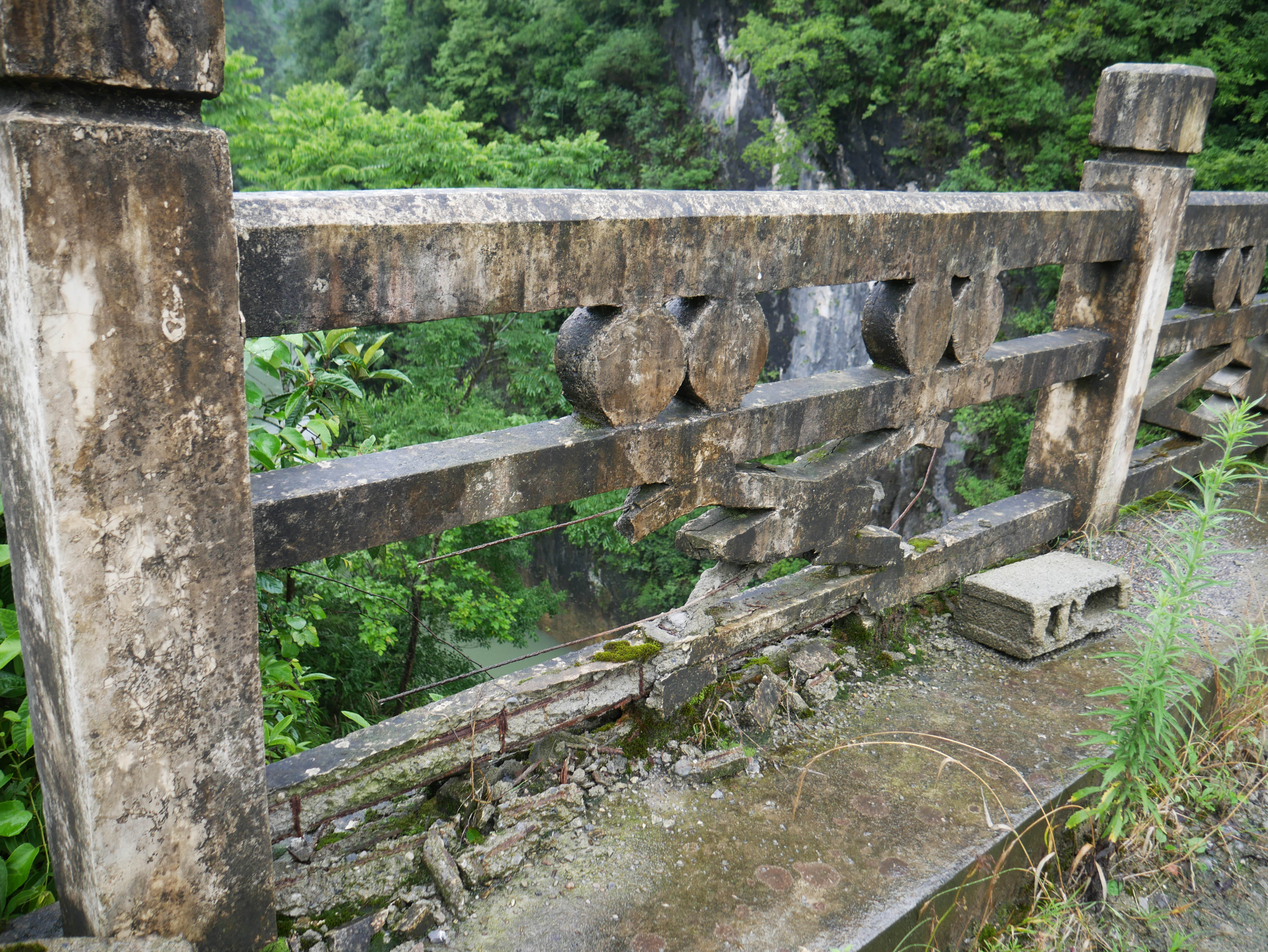

The original stone arch Fenshuihe Bridge.



Image by Mo Ry.



Fenshuihe Bridges satellite image.



Early Fenshuihe arch bridge satellite image showing the start of construction on the new arch bridge south of the older crossing.





Fenshuihe Bridges location map.
