Guozigou Bridge
果子沟大桥
Lucaogouzhen, Xinjiang, China
591 feet high / 180 meters high
1,181 foot span / 360 meter span
2011

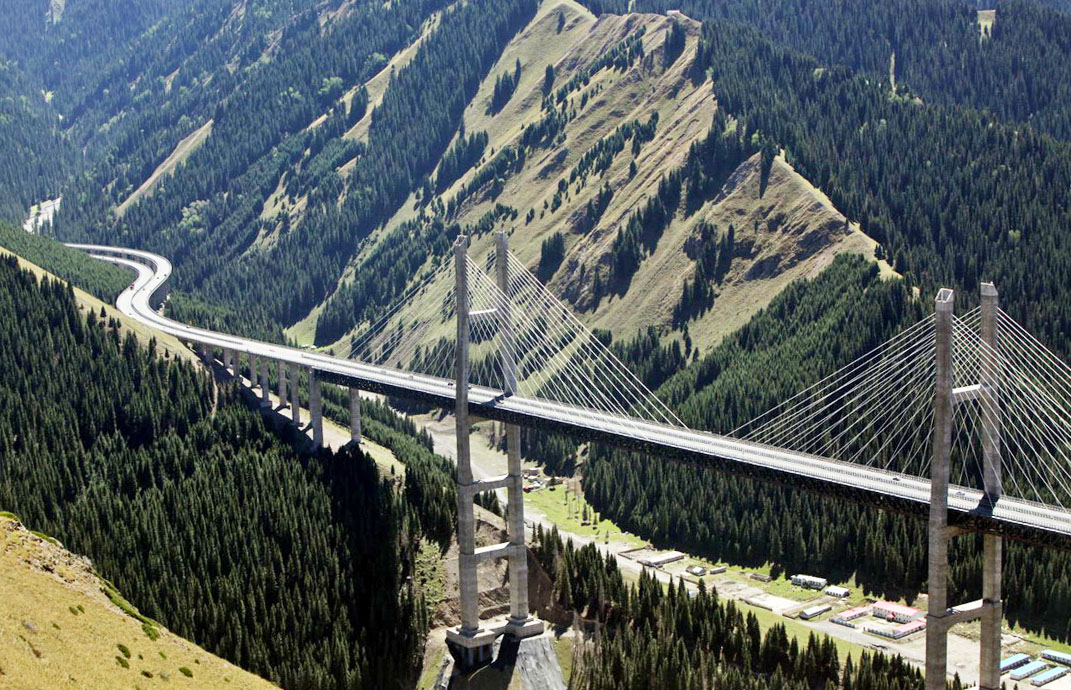

The highest cable stayed bridge in far Western China, the Guozigou may also be the most remote large sized cable stayed span in the world. Located in China’s largest and most northwesterly province of Xinjiang, the 4-lane structure consists of two extremely tall H-frame ladder towers 215.5 meters / 707 feet and 209.5 meters 687 feet. The crossing is the largest structure on the remote G30 Lianhuo Expressway connecting Lianyungang and Horgos near Sayram Lake.

The Guozigou Bridge has a main span configuration of 170+360+170 meters. The deck is composed of an N-shaped truss with a depth of 6 meters and a width between the centerline of the beams of 26 meters or a total width of 26.93 meters.

Also impressive is the Xiazigou Bridge that is located just north of the Guozigou Bridge and begins the giant spiral descent into the river valley. These two giant viaducts mark the beginning of an amazing and rare feat of highway engineering that includes a spiral loop and tunnel that winds the G30 Lianhuo Expressway around and back underneath itself. In a stretch of just 40 kilometers the G30 expressway drops a total of 1,200 meters in elevation from the Sayram Lake area at 2,000 meters to Lucaogouzhen city at 800 meters. A rest stop visitors center and overlook is located between the two Guozigou bridges.



Guozigoui Bridge Elevation


作为世界上最高的斜拉桥之一,果子沟大桥可能也是世界上最偏远的一个斜拉桥。坐落在中国最大的最西北的新疆,4车道的大桥上建设了两个极高的H型梯塔,分别达215.5米和209.5米。

大桥的施工图片根本不能够真实反映大桥的真实高度,除非你能够意识到桥面道路是架设在梯子一样造型的主塔的第三层高的横梁之上的。该桥预计2010年通车。

































Image by Laoxinjiang.





The decking of the main span was completed in 2010. Image by cnr.cn





Image by www.ylxw.com.cn


GuozigouTower sneb6.cn.jpg

Image by sneb6.cn



Guozigoui Bridge tower elevation. The taller tower is 215.5 meters.



Image by www.ahgsjl.cn.com









Cross section of the Guozigou truss.







The bridge crew poses for a photo.



Image by CnBridge.com.



Guozigoui Bridge model. Image by www.ylxw.com.cn



This huge Xiazigou Bridge is also spectacular with 120 meter tall piers making it the 2nd highest bridge on the G30 expressway.











Guozigou Bridge satellite image.







Guozigou Bridges location map.
