Honghe Bridge Jianyuan
建元高速红河特大桥
Yuanyang, Yunnan, China
748 feet high / 228 meters high
2,297 foot span / 700 meter span
2021

Honghe bridge JianyuanRenderHeight.jpeg


The Honghe Bridge Jianyuan is the largest and most spectacular crossing on the Jianshui to Yuanyang expressway in a remote region of South Yunnan Province. The steel box deck rises 184 meters above a reservoir formed by the Madushan Dam. The central span of 700 meters was chosen over several other proposals including truss deck suspension spans of 680 and 736 meters as well as a 420 meter span cable stayed configuration.



Honghe Bridge Jianyuan Elevation


Honghe bridge JianyuanAerialRender.jpeg



An earlier design with a shorter east tower but a longer main span and a truss deck.


Honghe bridge JianyuanColorRender.jpeg


Honghe bridge Jianyuan700mtrSpan.jpg


Honghe bridge Jianyuan3DRender.jpeg


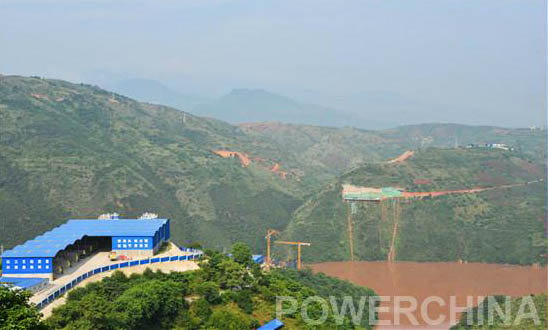

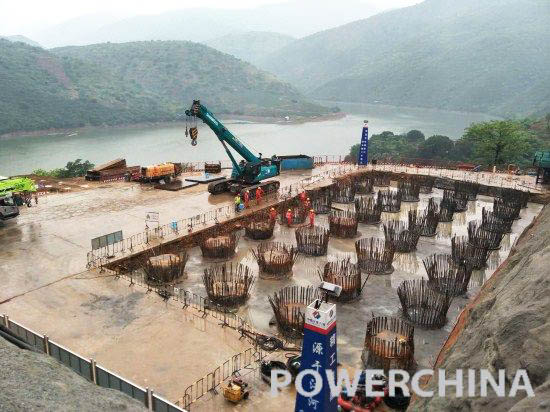

Honghe bridge JianyuanFoundationAerial copy.jpeg

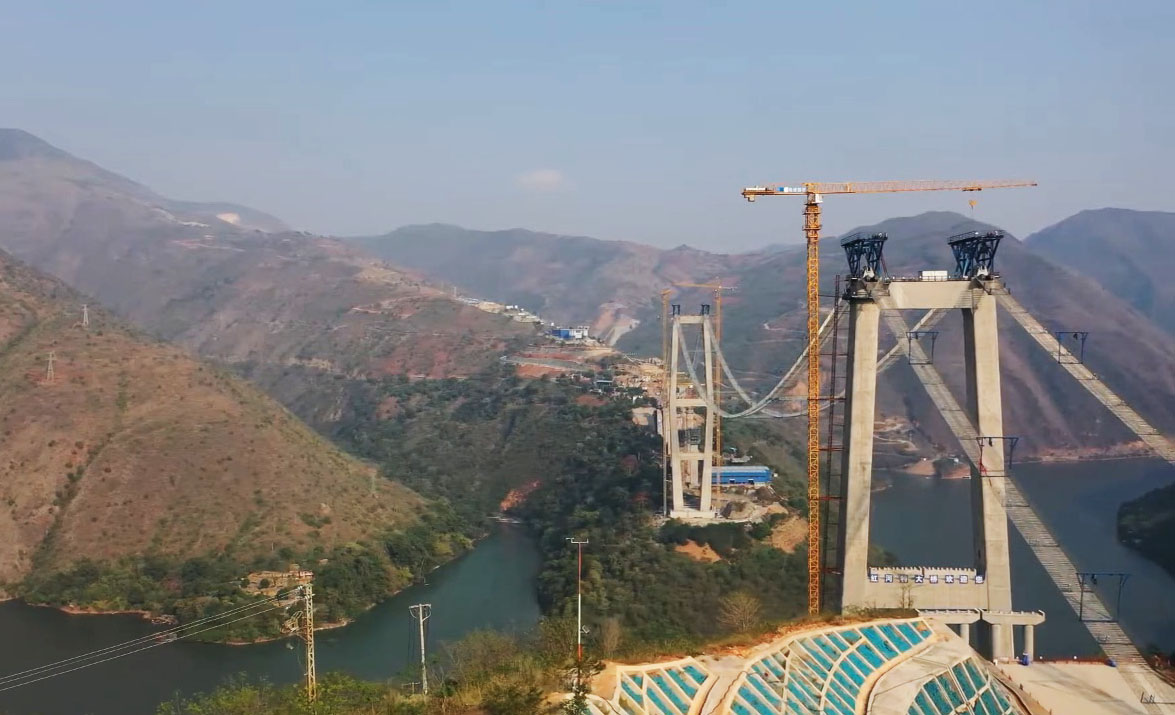

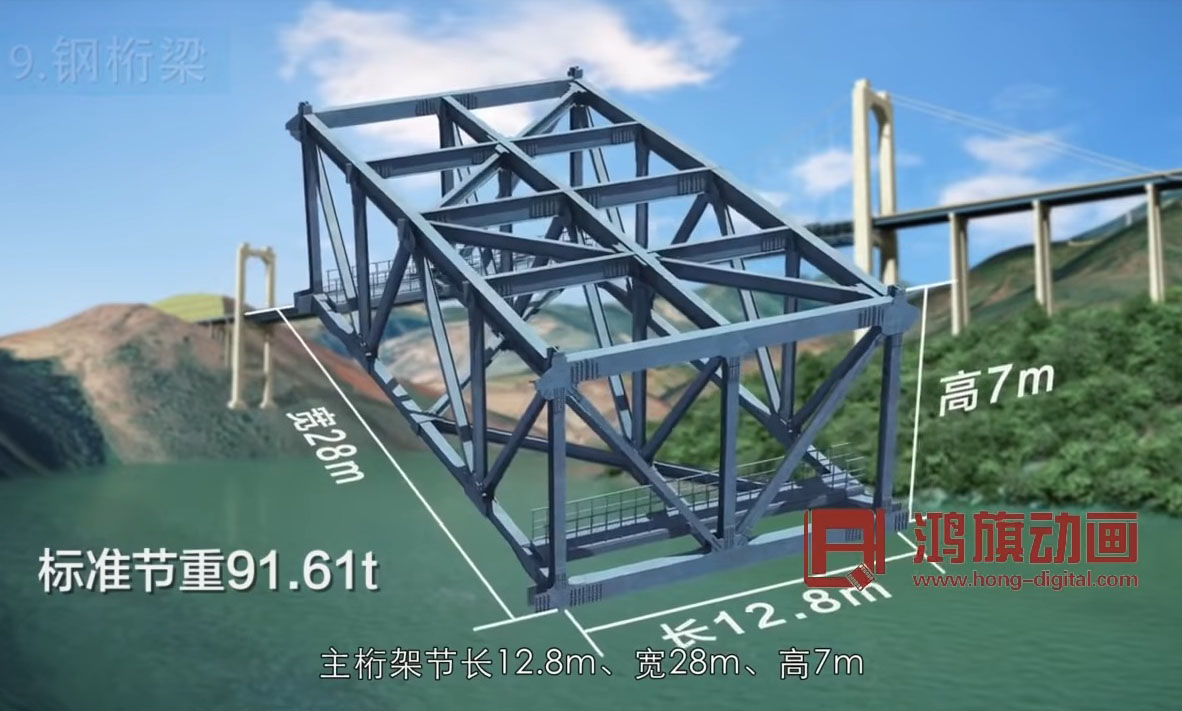

An earlier design had a truss stiffened deck that was discarded in favor of a thin steel box deck.

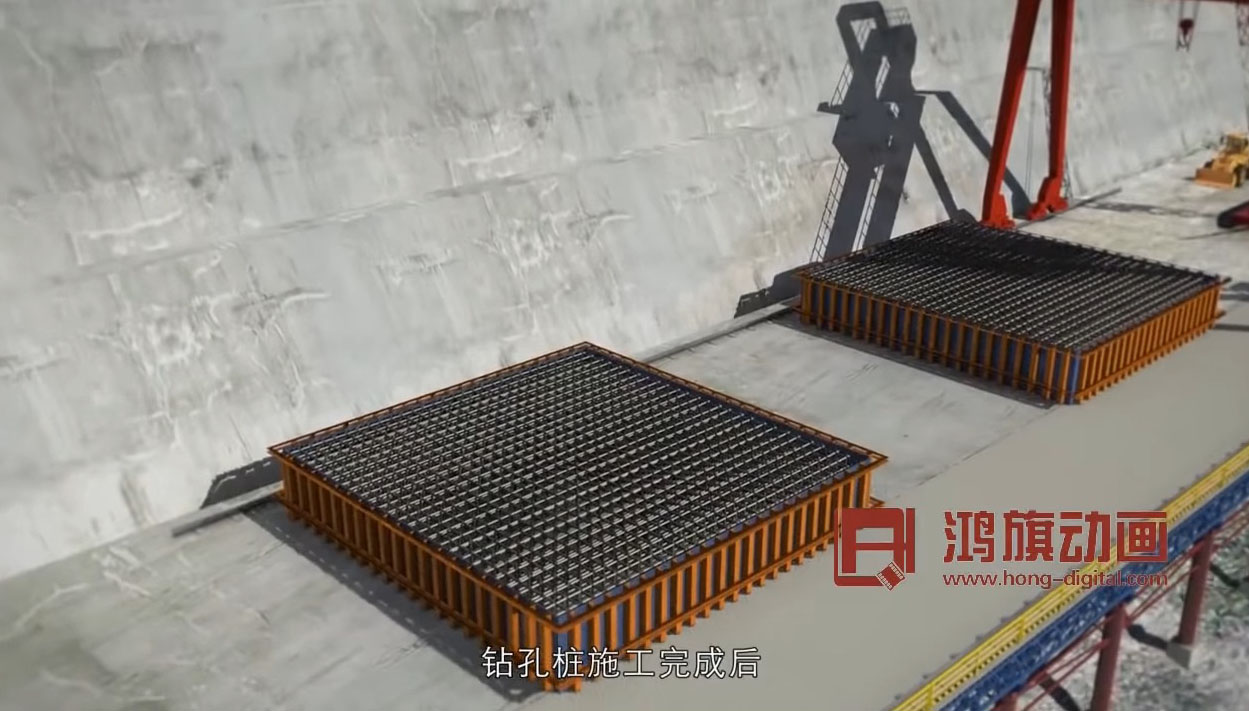

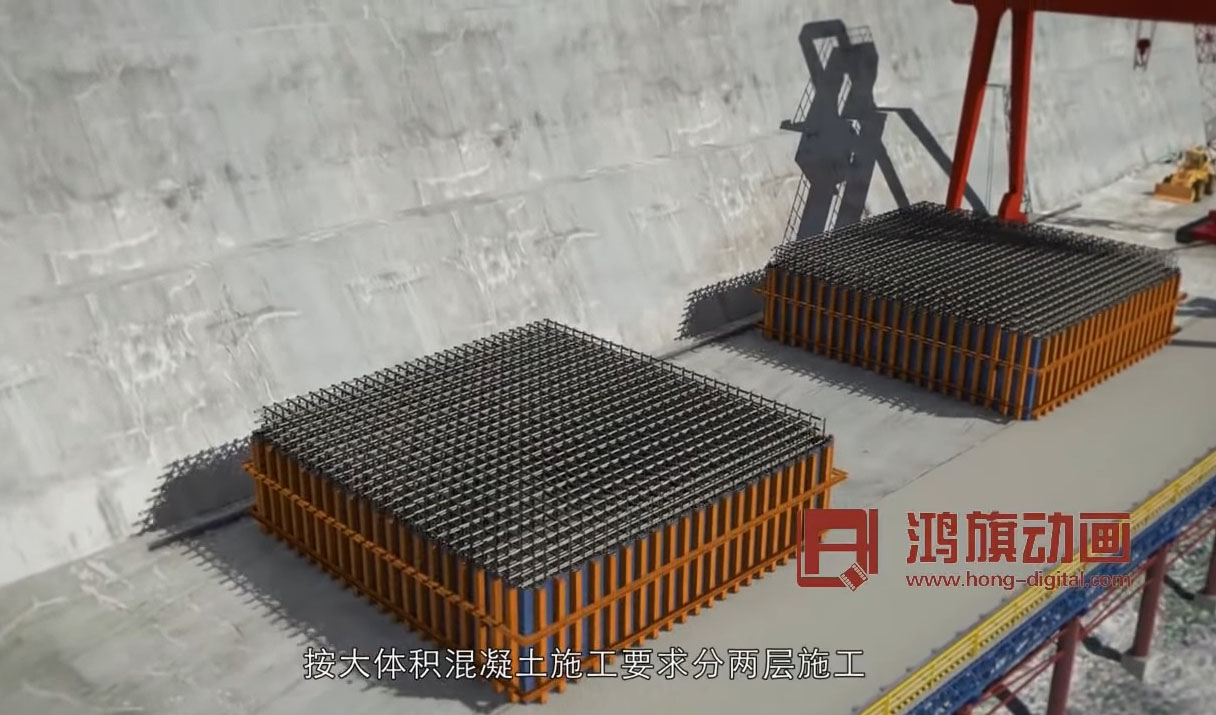

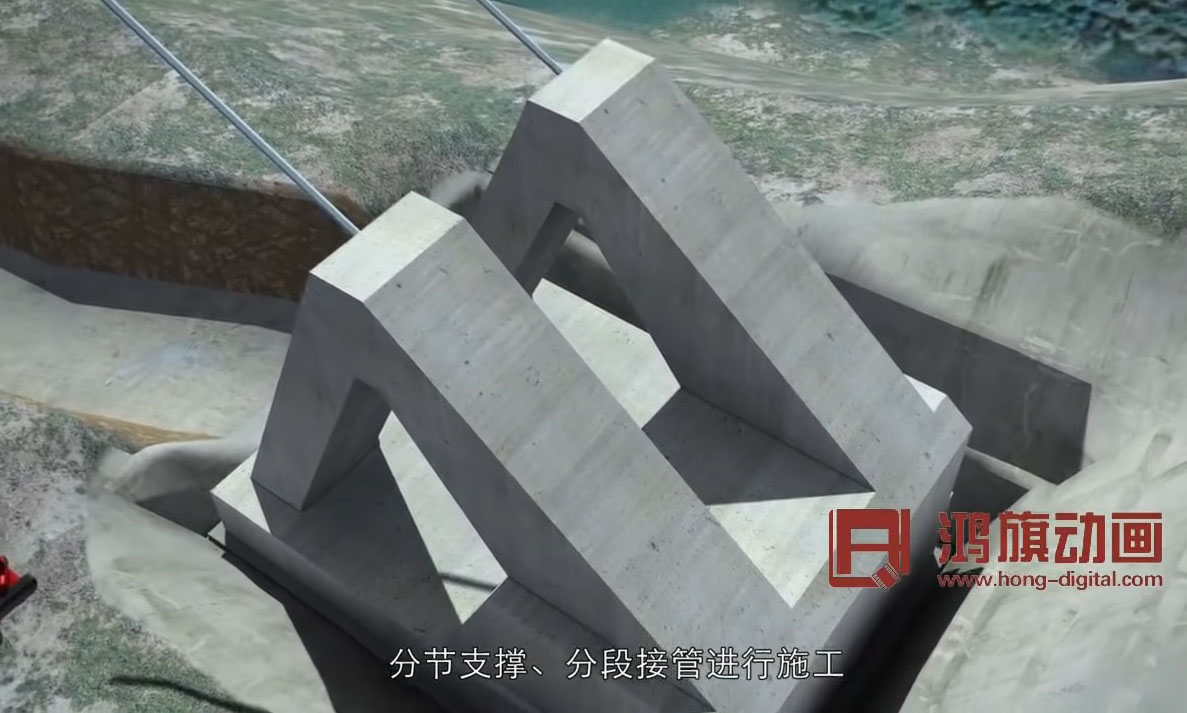

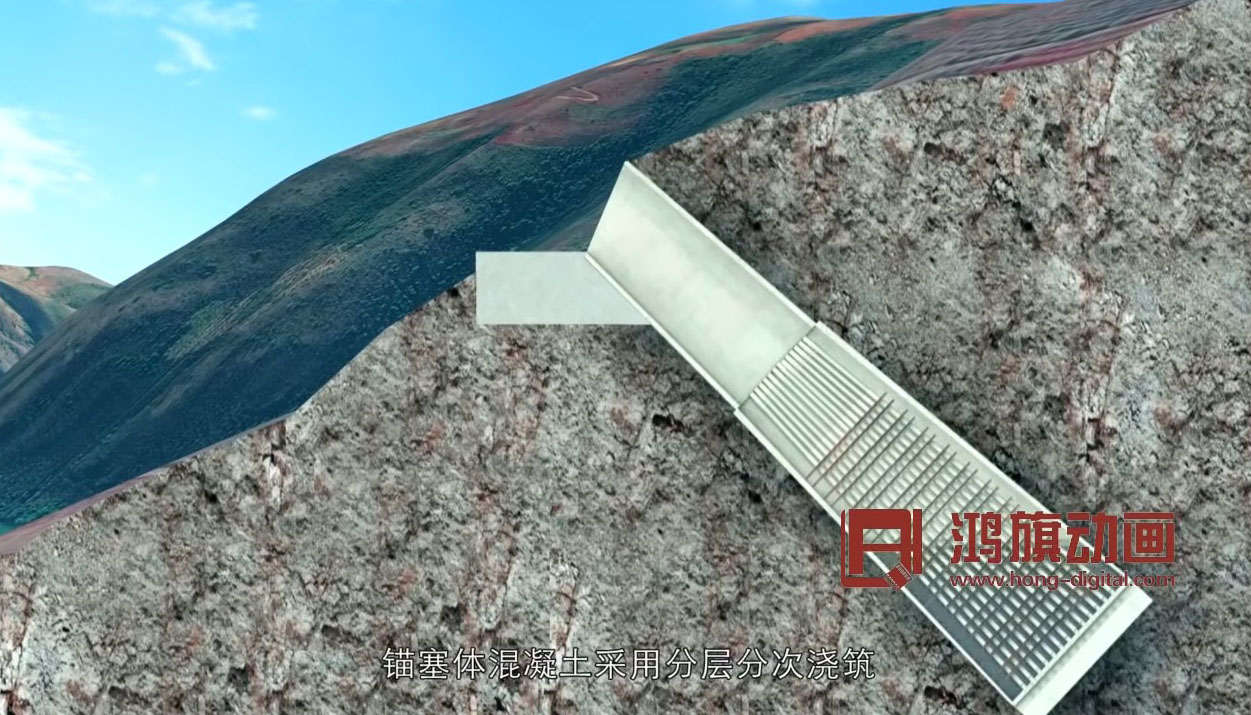

Honghe Bridge Jianyuan east tower basement.jpg





Honghe Bridge Jianyuan satellite image.





Honghe Bridge Jianyuan location map.


Yuanjiang bridge Jianyuan Prob K Route.jpg

Several Honghe River crossing locations were studied before they chose the blue route.


Jianshui to Yuanyang expressway 700m span.jpg
