Hongqi Bridge
红旗大桥
Baiwanxiang, Sichuan, China
761 feet high / 232 meters high
722 foot span / 220 meter span
2023



Hongqi Bridge is part of a rebuild of the local road G317 from the reservoir that formed behind the massive Shuangjiangkou Dam. The Daduhe River has many dams across its waters but the earth fill Shuangjiangkou Dam is in a league of its own with a world record height of 312 meters.

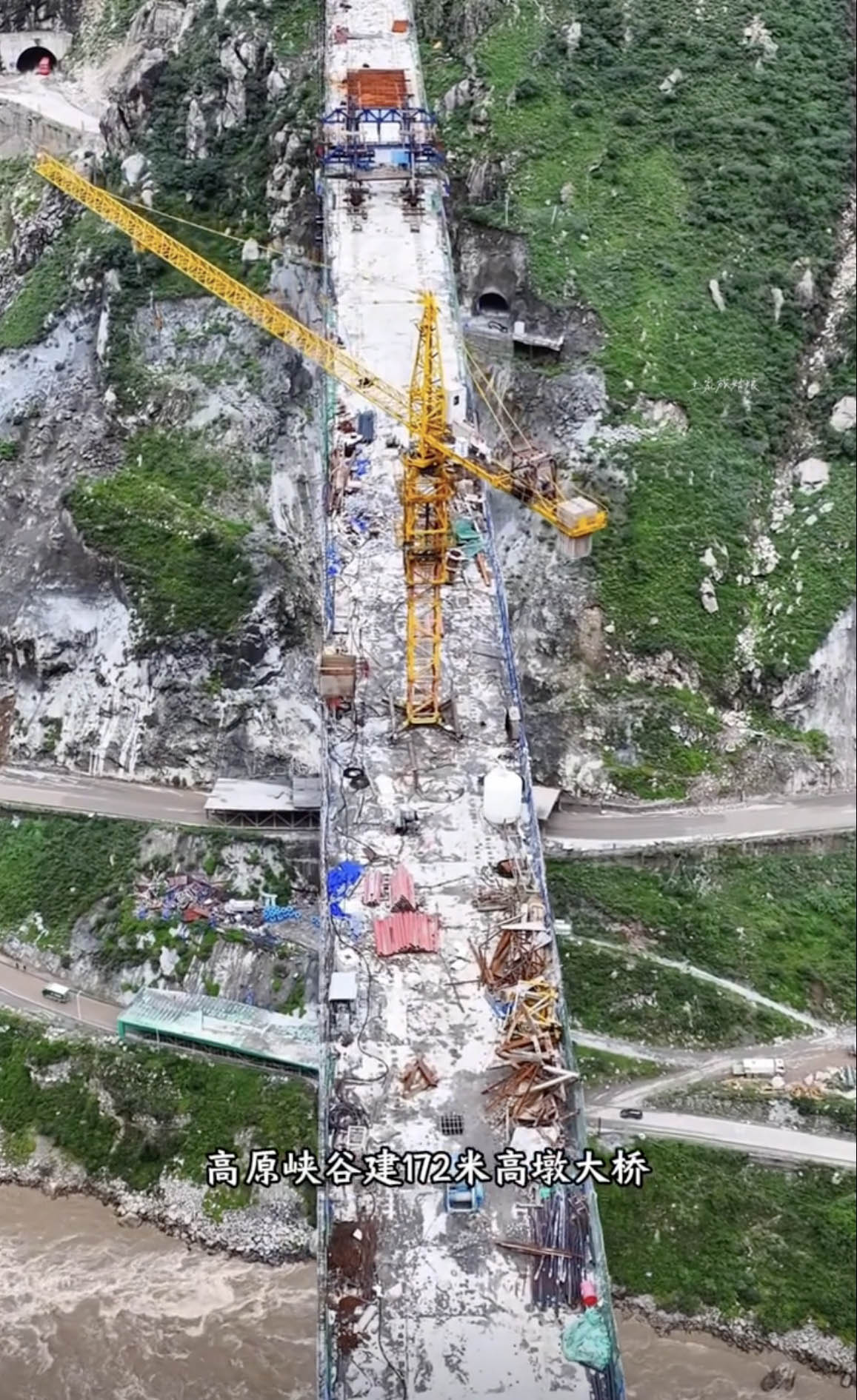

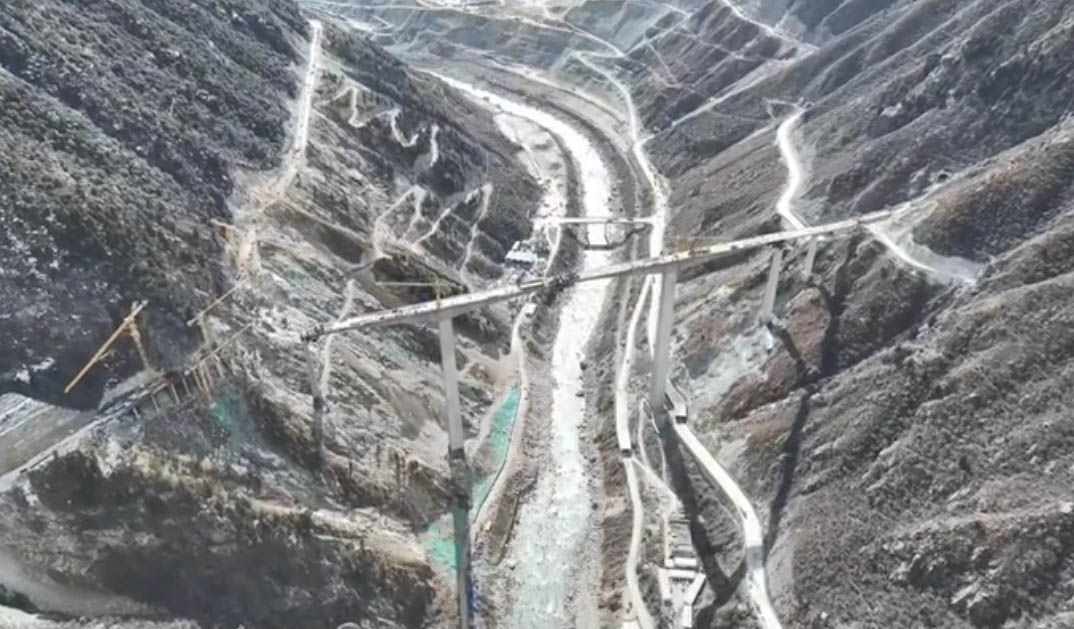

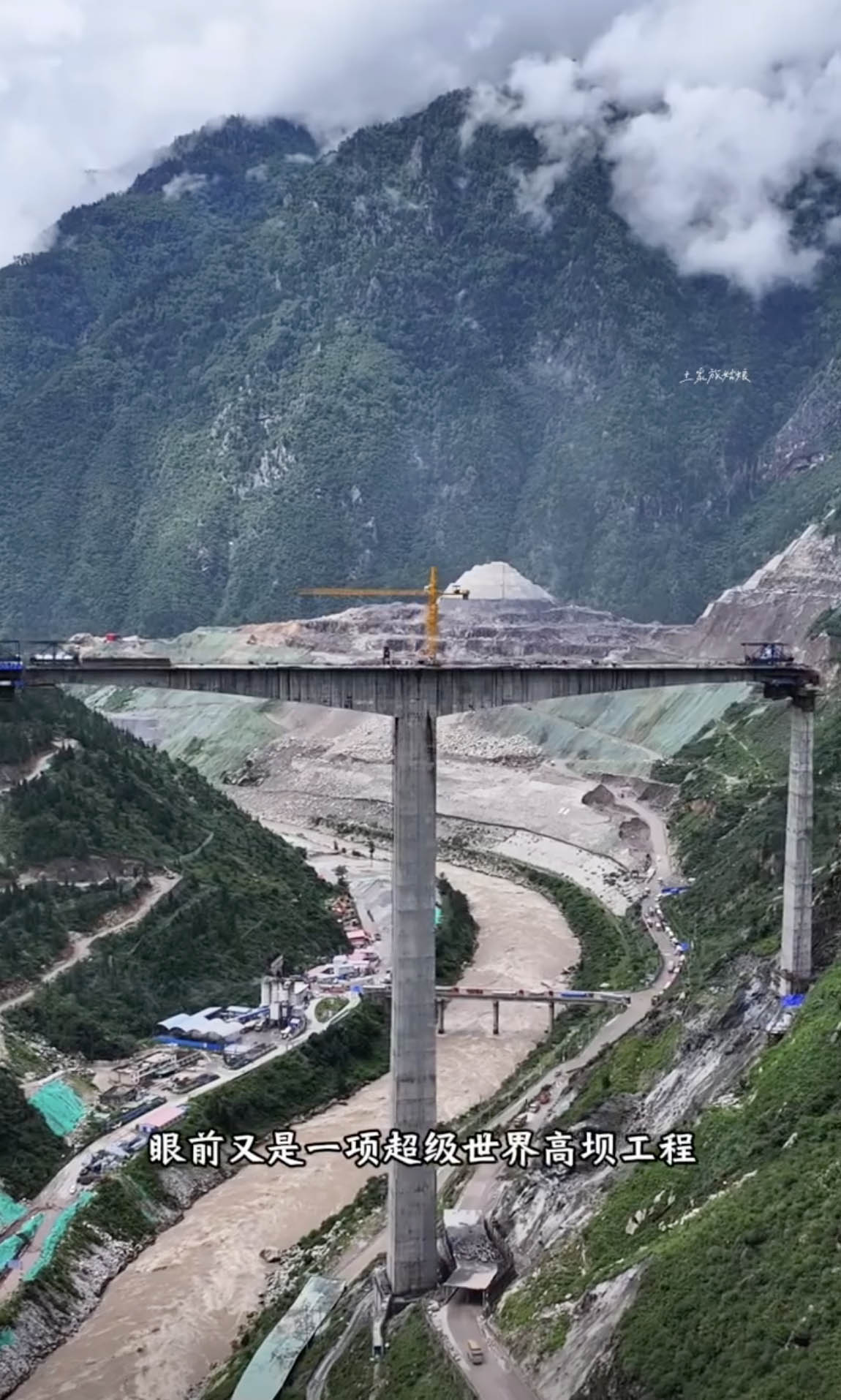

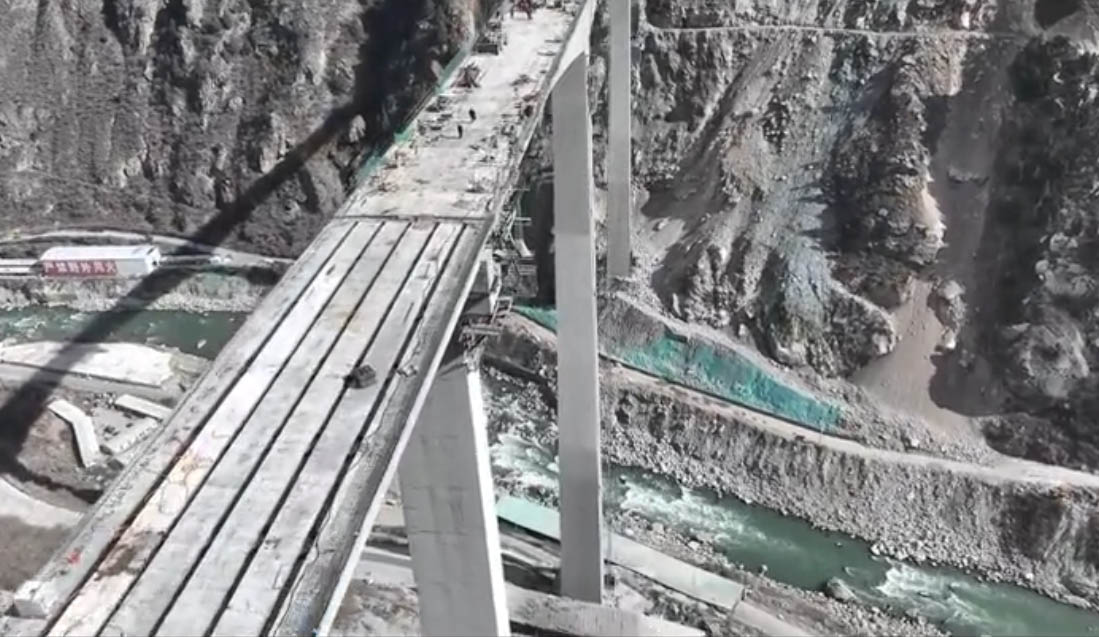

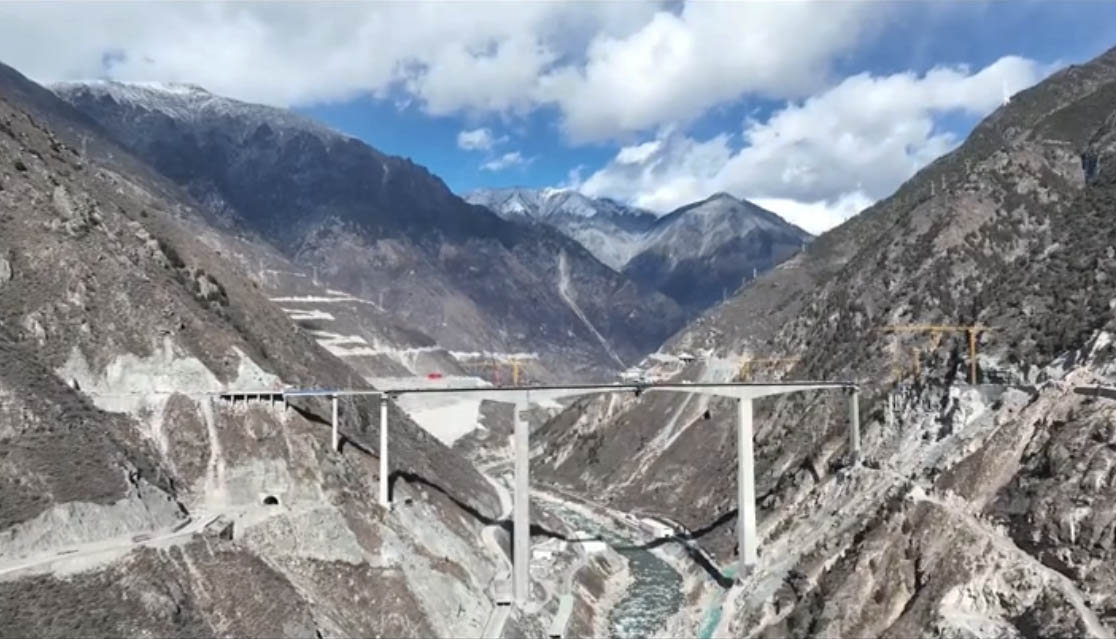

The 662 meter long cantilevered 2-lane beam structure has a span configuration of 4x13+40 +120+220+120 +2x40+13 meters on piers as tall as 172 meters.

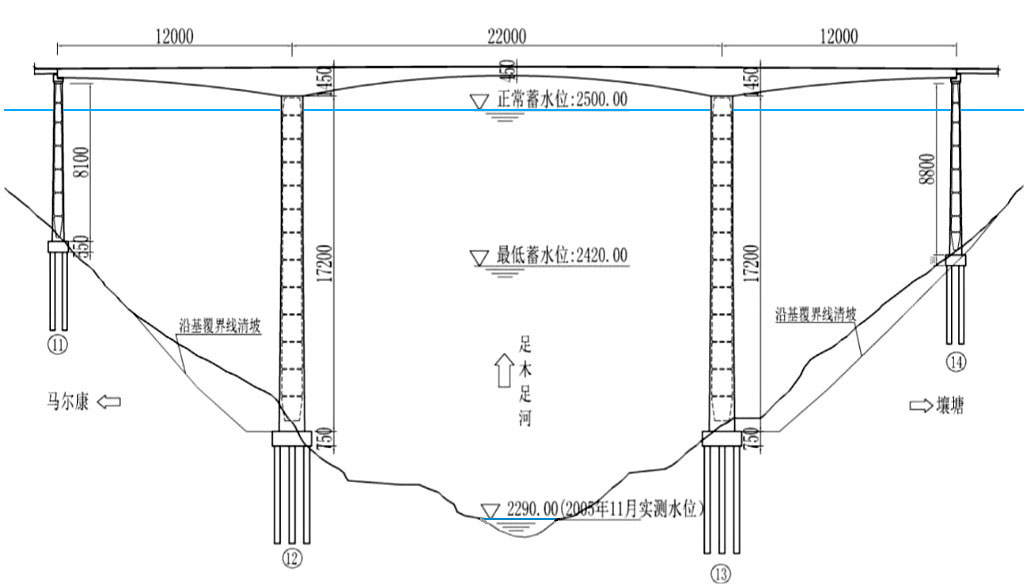

Hongqi Bridge elevation.JPG

Hongqi Bridge Elevation






Hongqi bridge site copy.jpg














Shuangjiangkou DamPlan.jpeg



Hongqi Bridge satellite image.





Hongqi Bridge location map.




Route choice east of Hongqi bridge.JPG


Route choice west of Hongqi bridge.JPG


G317 route.JPG


Daduhe dams.JPG

Daduhe Dams.
