Jinshajiang Bridge Tongyang
金沙江通阳大桥
Lugaozhen, Sichuan, China
305 feet high / 93 meters high
617 foot span / 188 meter span
2009

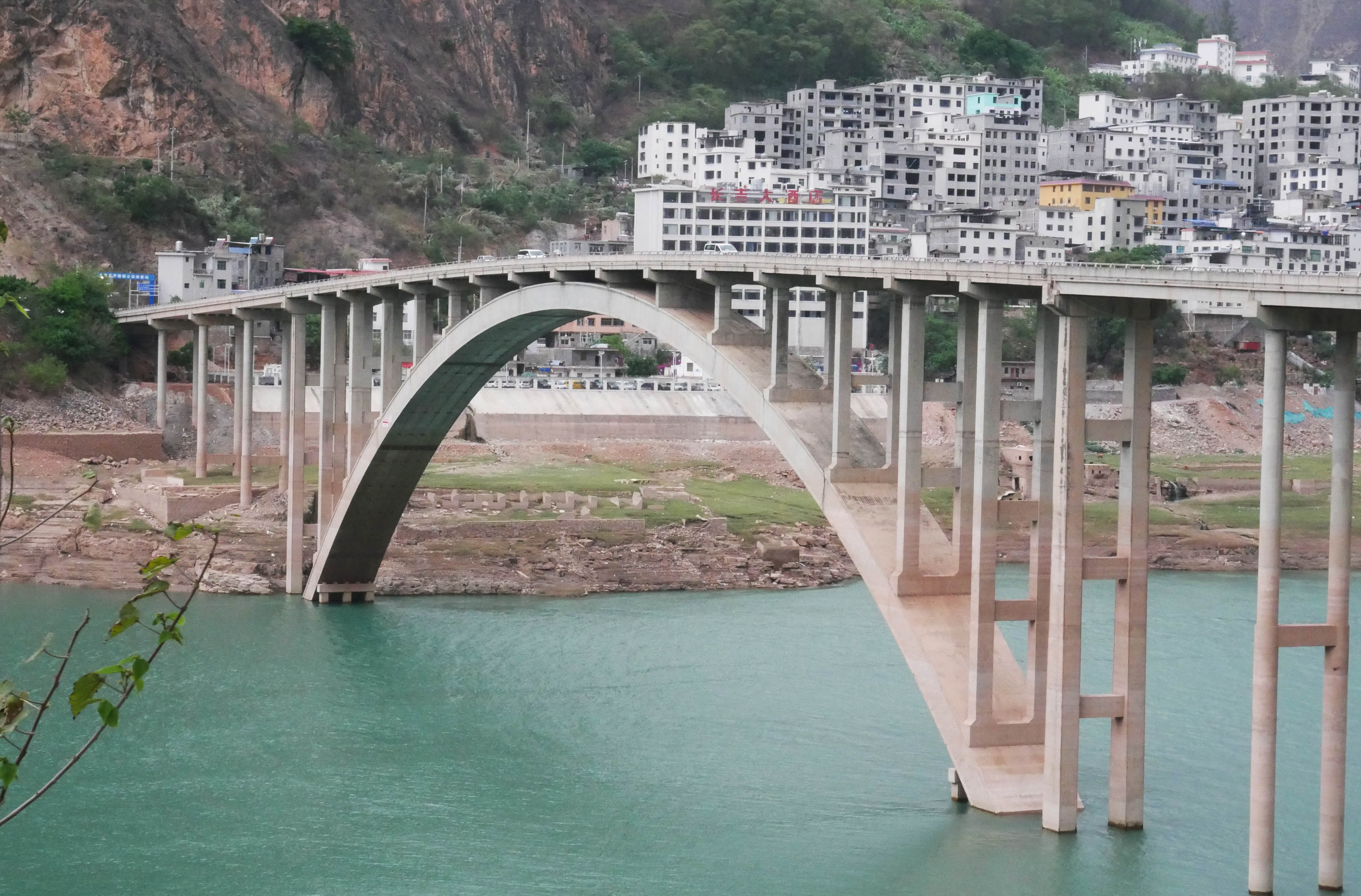

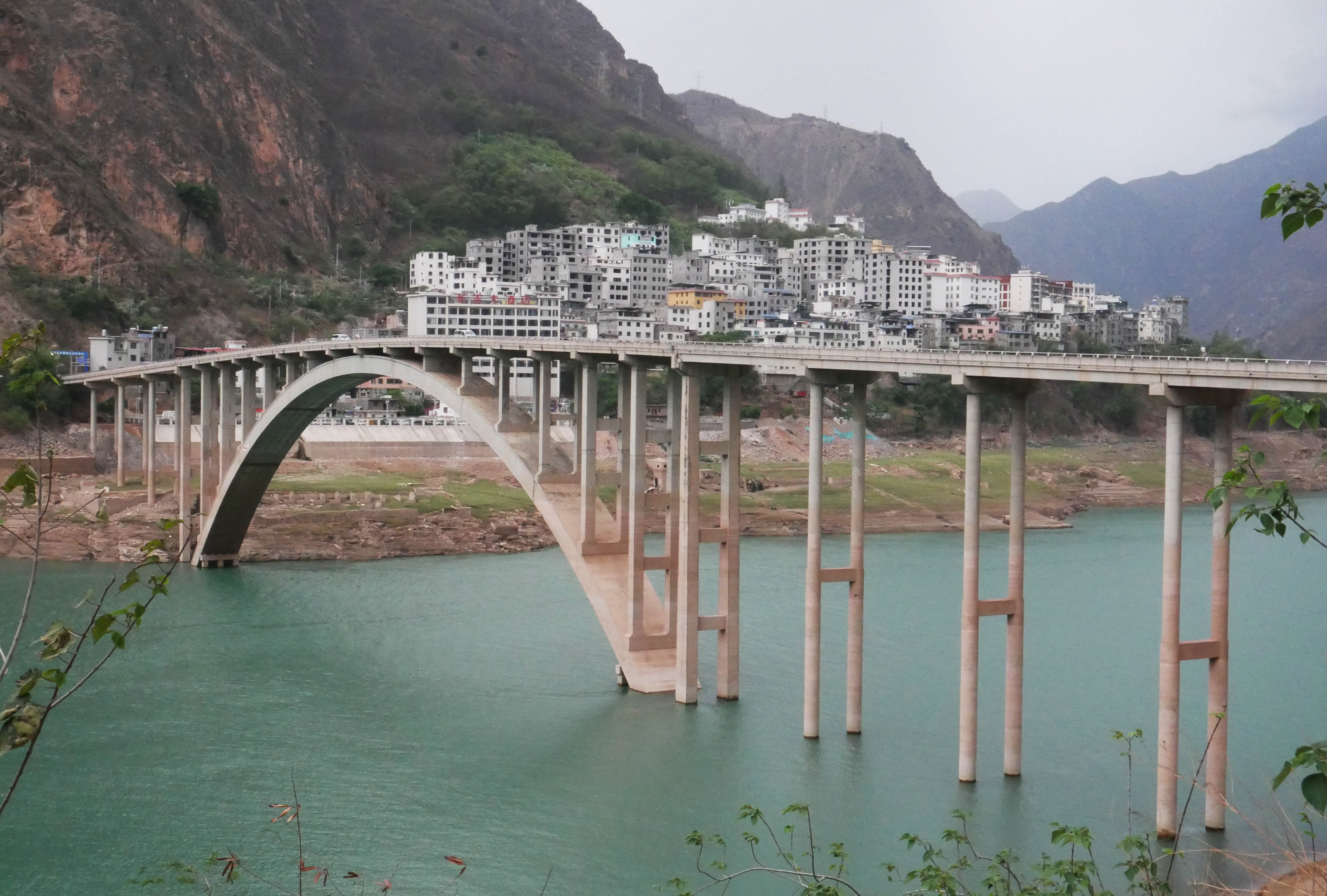

The Tongyang concrete arch bridge carries route S208 across the mighty Jinsha Jiang / Yangtze River with a clear span of 188 meters. The new crossing now allows travel between Zhaoyang County, Yunnan Province and Liangshan County, Sichuan Province.

The bridge has a total length of 508 meters and took just over 3 years to build. The 5 parallel ribs of the arch are each made up of 9 sections that were lowered into place by a highline.



Tongyang Jinsha Jiang Bridge Elevation











Image by Mala.cn.







Tongyang Jinsha Jiang Bridge satellite image. Note the dozens of switchbacks on the mountain road south of the bridge that are required to drive out of the deep Yangtze River gorge.



Tongyang Jinsha Jiang Bridge location map.
