Meixihe Railway Bridge
梅溪河双线特大桥
Fengjie, Chongqing
564 feet high / 172 meters high
1,115 foot span / 340 meter span
2022



Meixihe Railway Bridge is one of several spectacular crossings on the heavily tunneled Zhengzhou to Chongqing high speed railway that skirts through the mountains along the famous 3 Gorges region of Hubei and Chongqing Provinces.

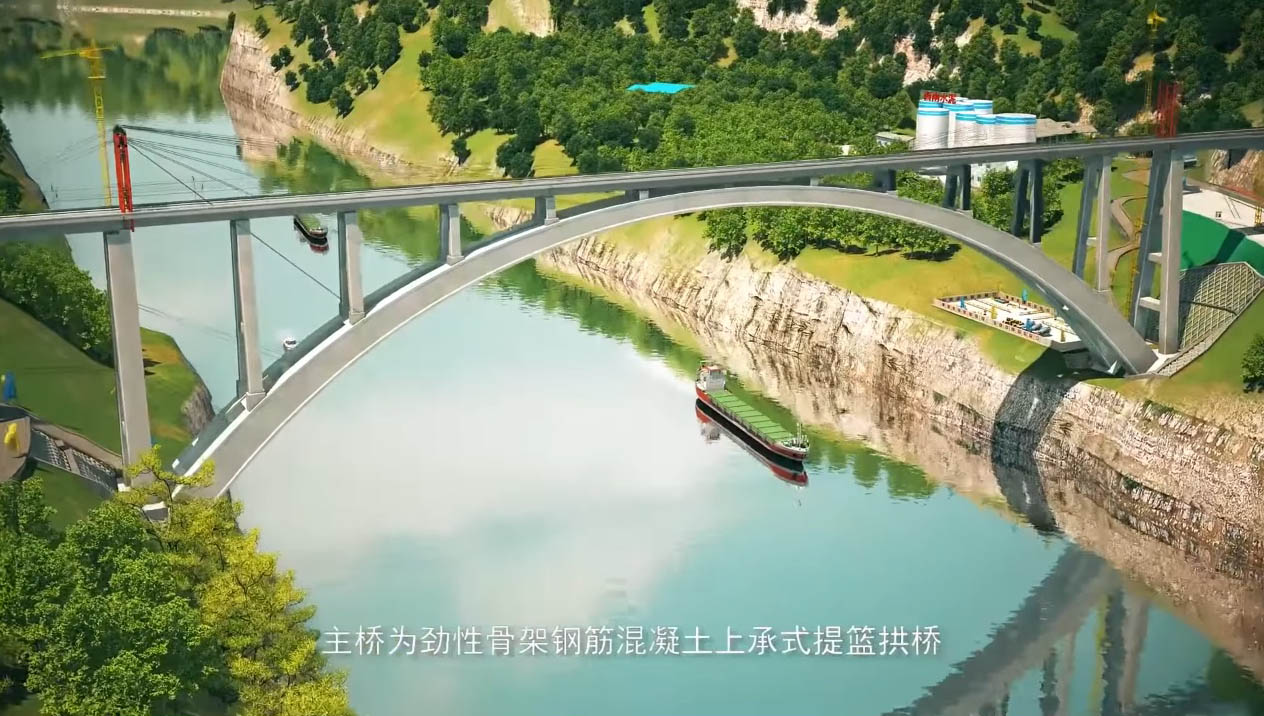

The 340 meter concrete arch carries a double track line high over the deep waters of the reservoir that formed from the giant 3 Gorges Dam. Just to the north of the railway bridge is the 288 meter span concrete filled steel tubular Meixihe road bridge completed in 2000.

Other big railway bridges include a 300 meter steel arch over the Daninghe River, a 200 meter beam-arch span over the Pengxi River, a 260 meter beam-arch over the Shennongxi and other large beam crossings over the Tangxi, Zhuyuan and Xingshan Rivers.











Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



























































































































Meixihe towerless suspension bridge anchorage remains.







Meixihe Railway Bridge satellite image.





Meixihe Railway Bridge location map.
