Mengdonghe Bridge Yongshun
永顺县不二门大桥
Yongshun, Hunan, China
430 feet high / 131 meters high
525 foot span / 160 meter span
2010



The Mengdong River Bridge at Yongshun is a prestressed beam bridge most notable for an asymmetrical design with the west side span considerably shorter then the east side span. The bridge bypasses a much lower bridge that connects G209 with S230. The new high level crossing bypasses the city of Yongshun located 2 kilometers to the north.

The uneven span configuration is 60+160+100 +46 meters. The two main piers are 75 and 23 meters tall.

The giant Mengdong arch bridge on the new S10 Zhangjiajie to Huayuan Expressway is located several kilometers to the south and is one of the highest arch bridges in the world at 232 meters.



Mengdong Yongshun Bridge Elevation



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

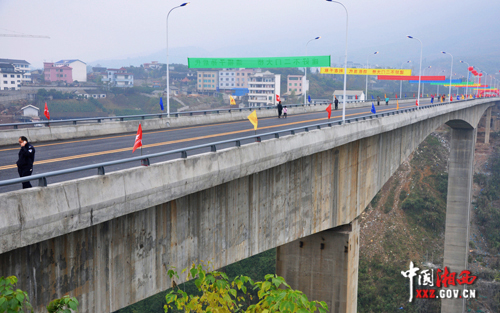

Image by xxz.gov.cn.



Opening celebrations in late 2010. Image by xxz.gov.cn.


Image by www.cnbridge.cn.



Image by Eric Sakowski / HighestBridges.com

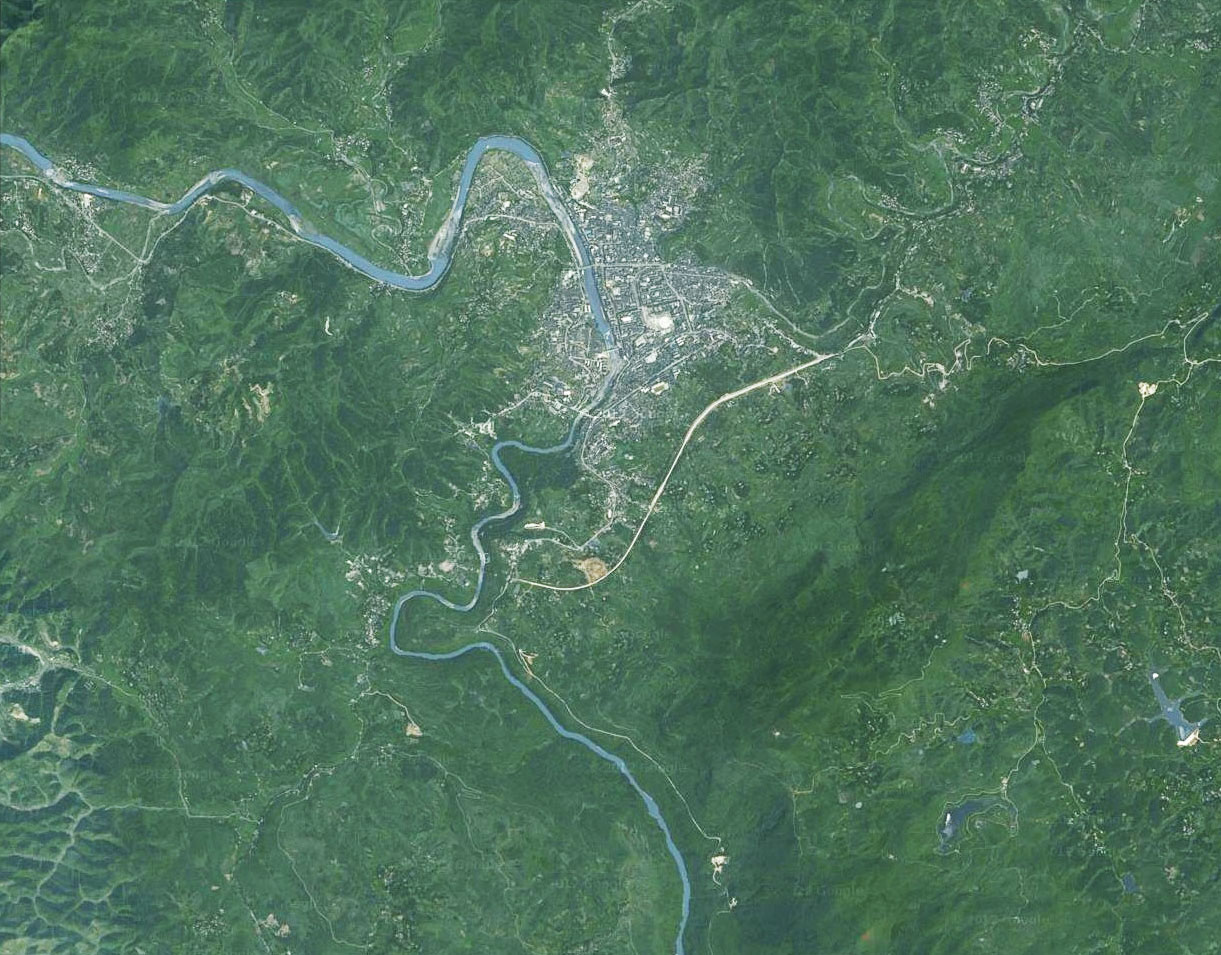

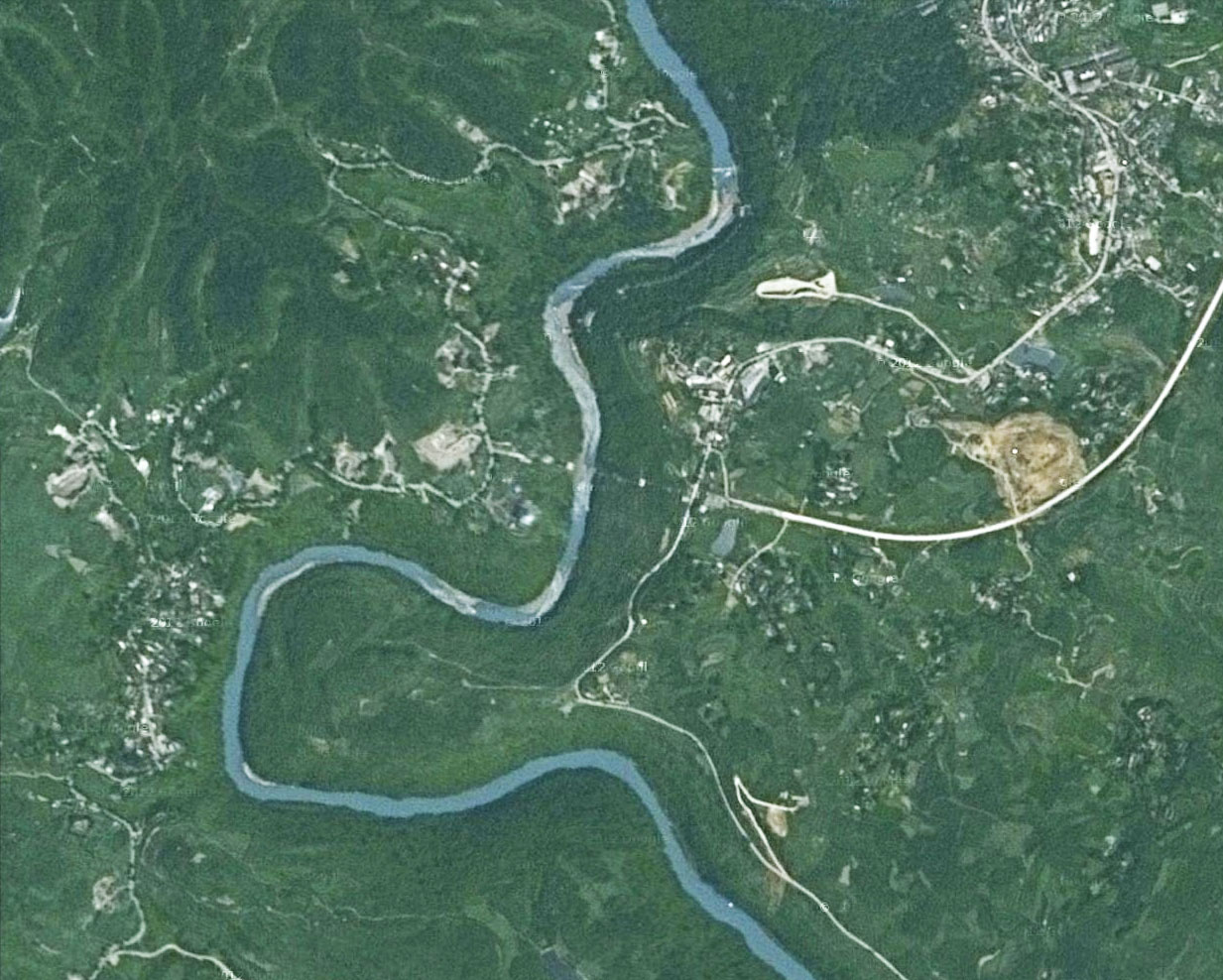

Mengdong Yongshun Bridge satellite image.



The city of Yongshun can be seen north of the new crossing.



Mengdong Yongshun Bridge location map.
