Shijiazhai Bridge

From HighestBridges.com
Jump to navigationJump to search

Shijiazhai Bridge
石家寨大桥
Jishou, Hunan, China
295 feet high / 90 meters high
131 foot span / 40 meter span
2012, 2017

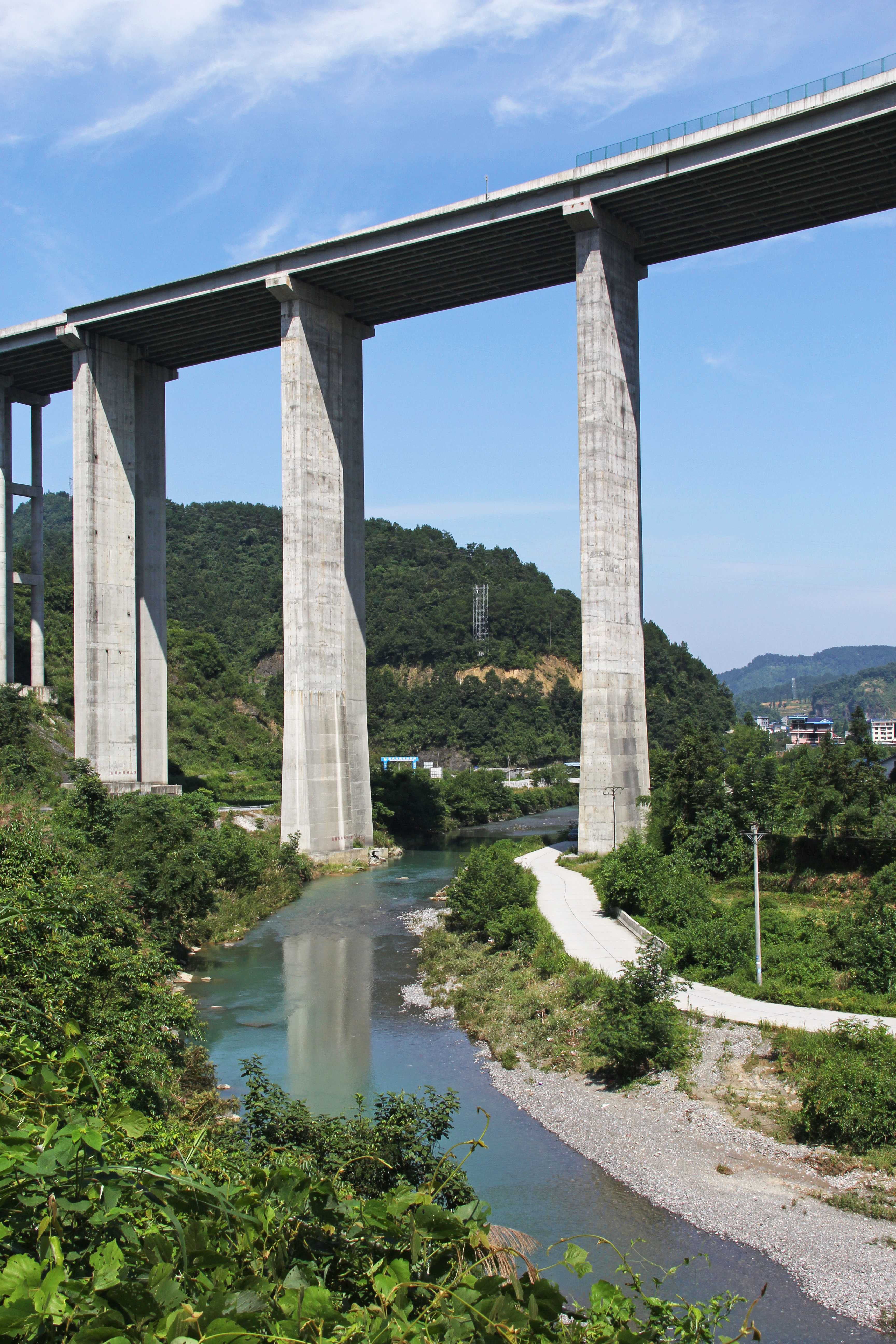

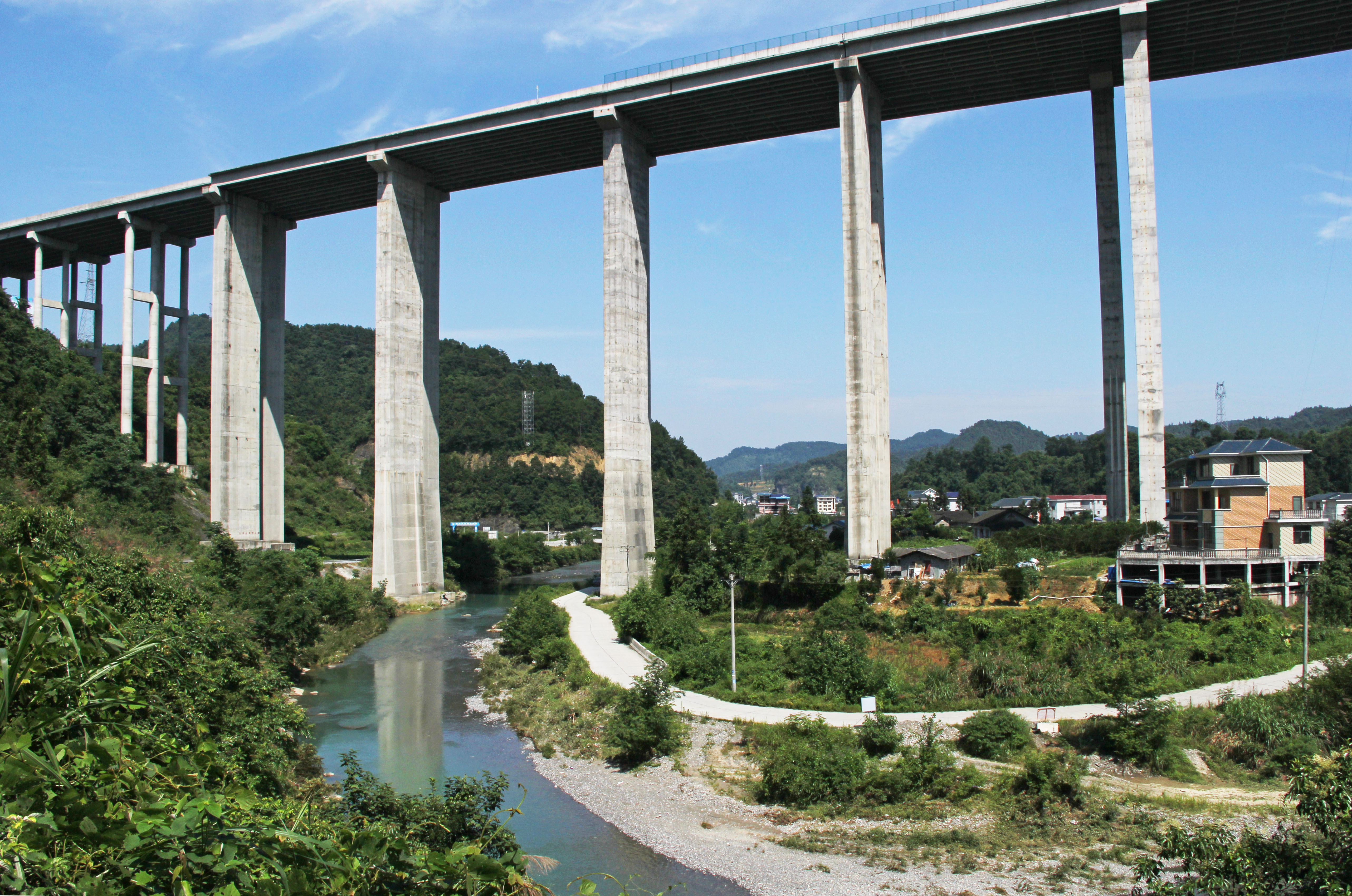

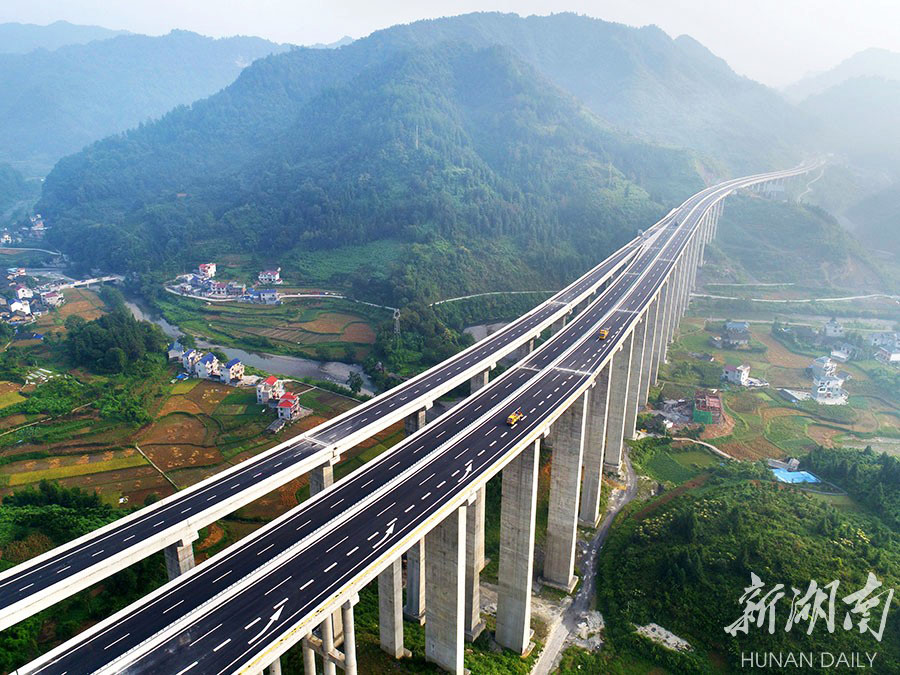

Shijiazhai Bridge was originally is a simple 4-lane beam structure that opened in 2012 with 16 spans of 40 meters and is one of 4 nearly back to back beam bridges just north of Jishou City where the G65 expressway junctions with the S99 Yongshun expressway. The 3 other big beam bridges nearby include Tonghe, Elipo and Zhuangjiapo Bridges.

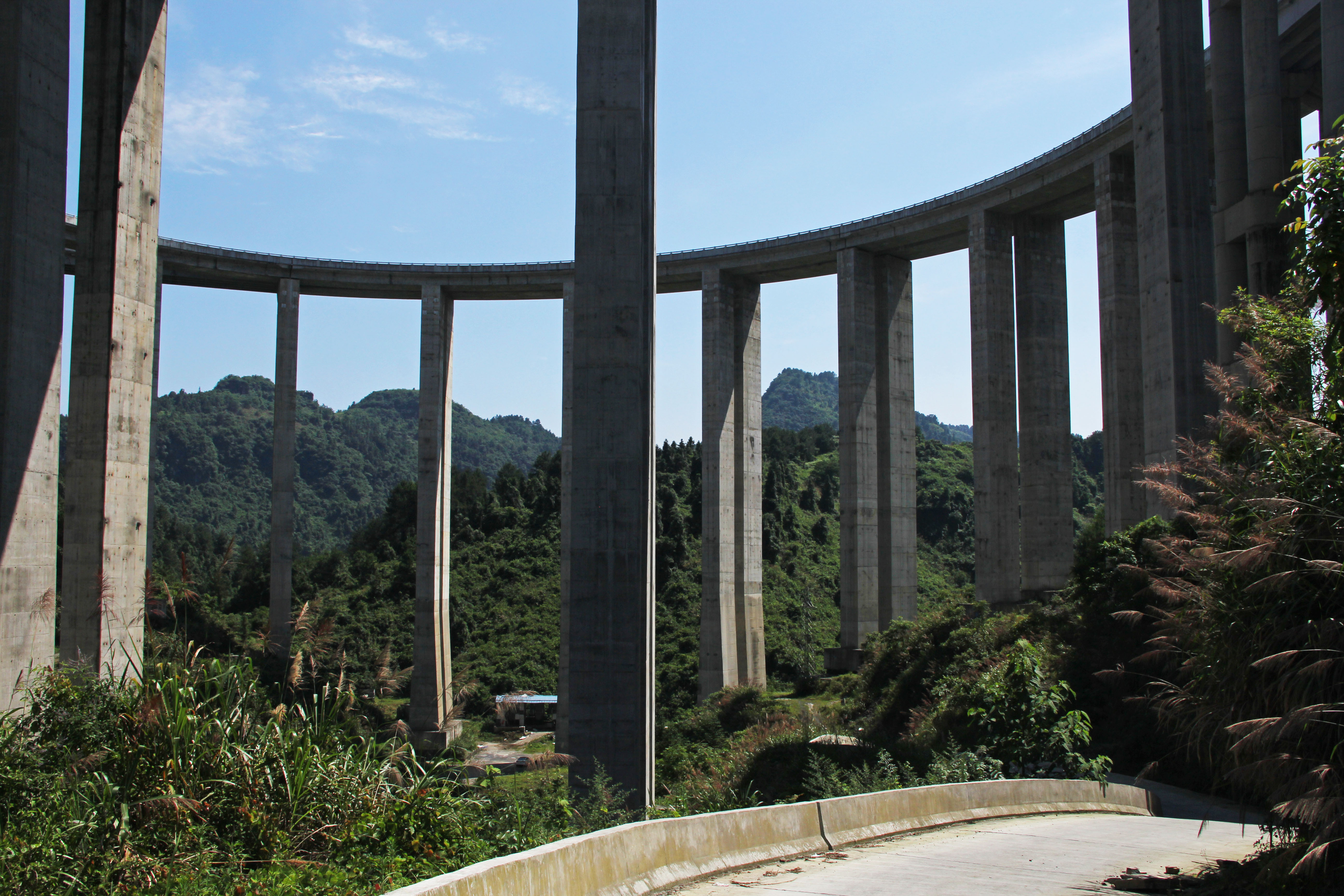

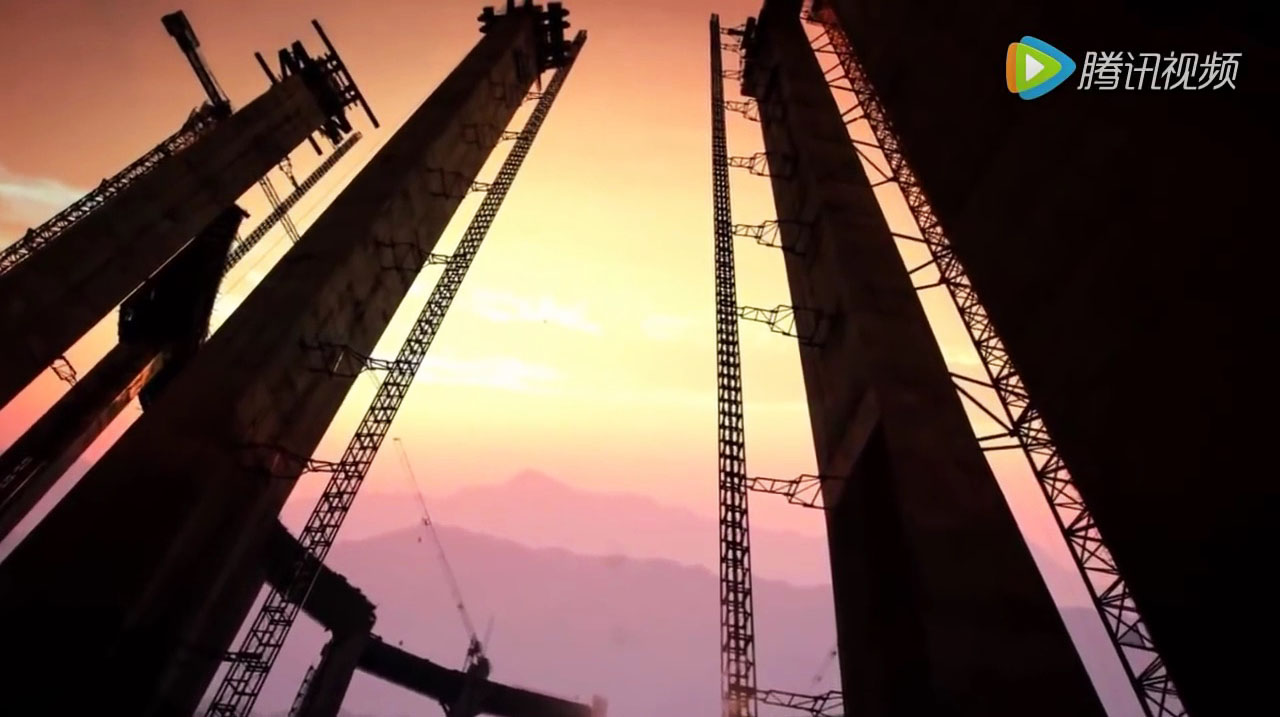

In 2017 the Shijiazhai Bridge was heavily modified and expanded to become part of the giant aerial interchange with the S99 Yongshun expressway that forks off to the north. The newer structure includes a towering 270 degree spiral exit ramp that is likely the highest of its type in the world with piers more then 80 meters tall. The construction of this expressway interchange also required a widening of the Zhuangjiapo Bridge located just to the north of the Shijiazhai Bridge.

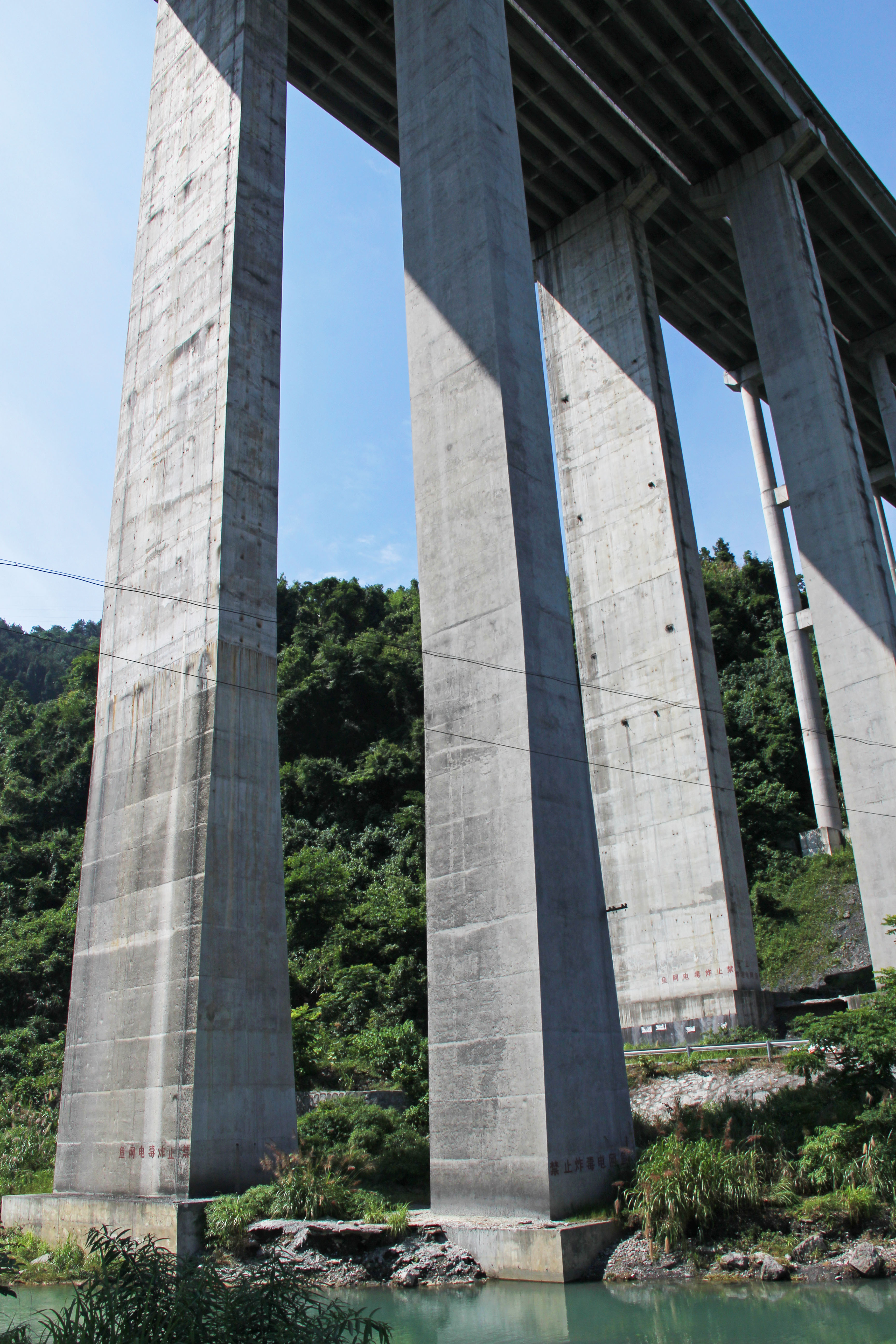

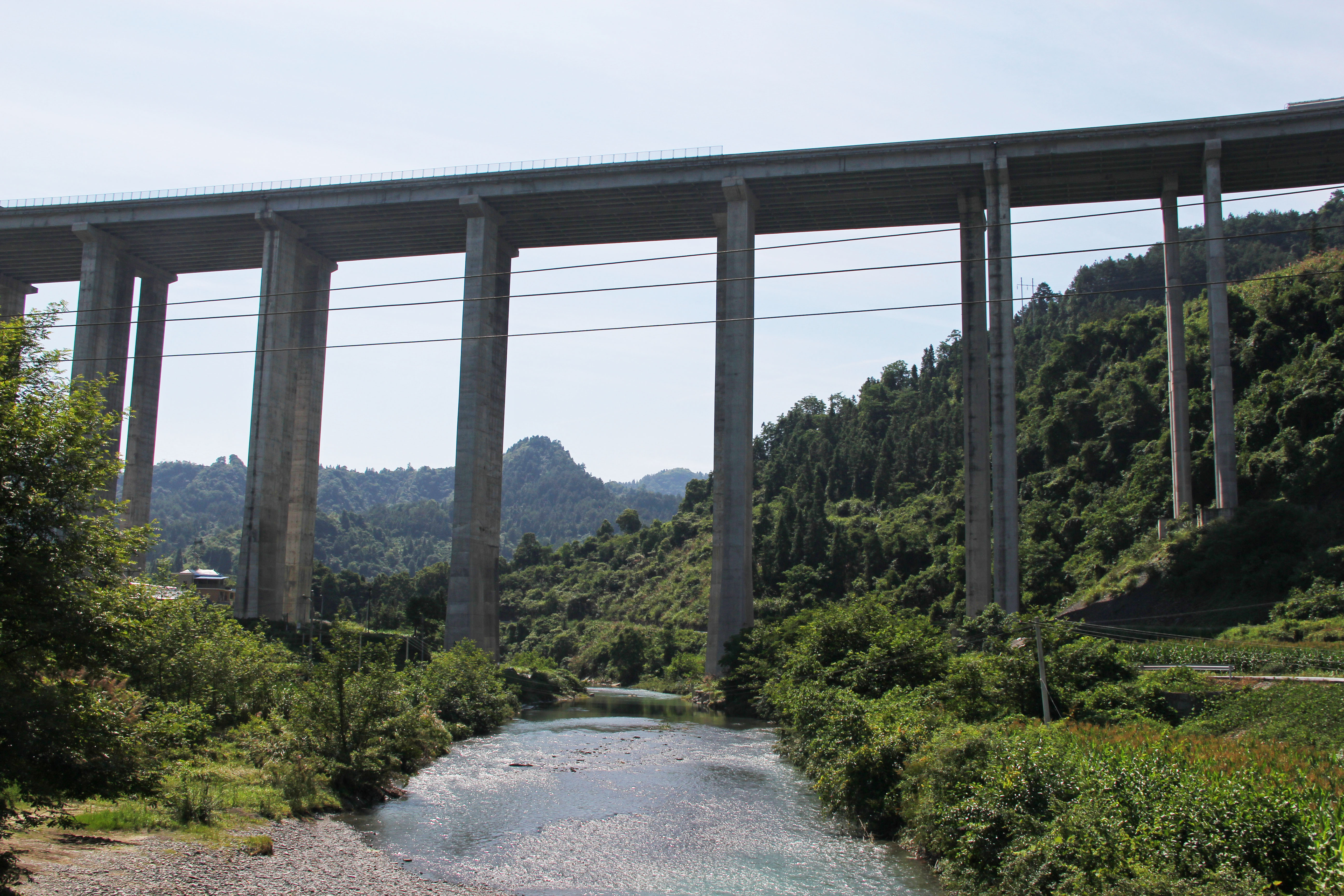

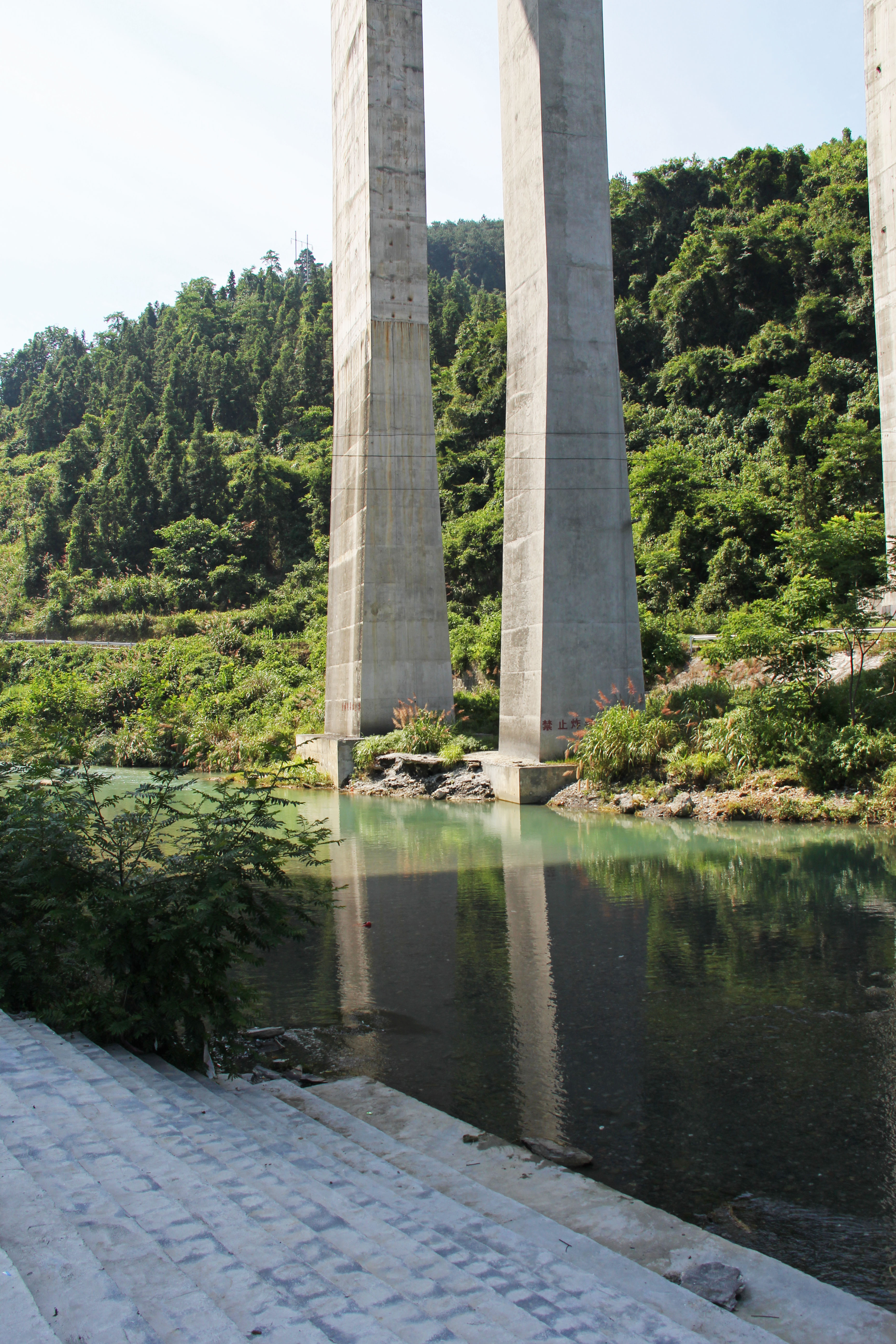

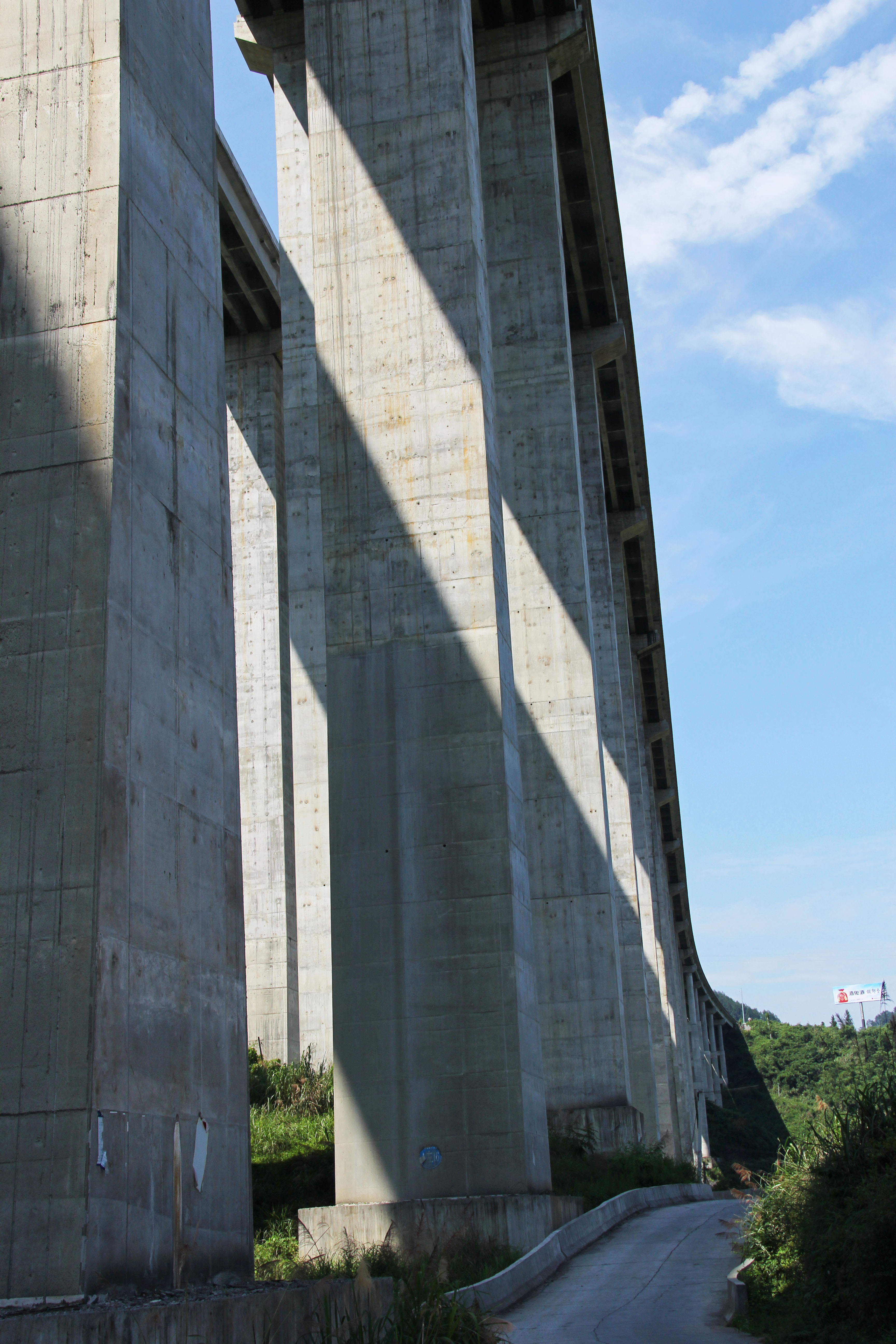

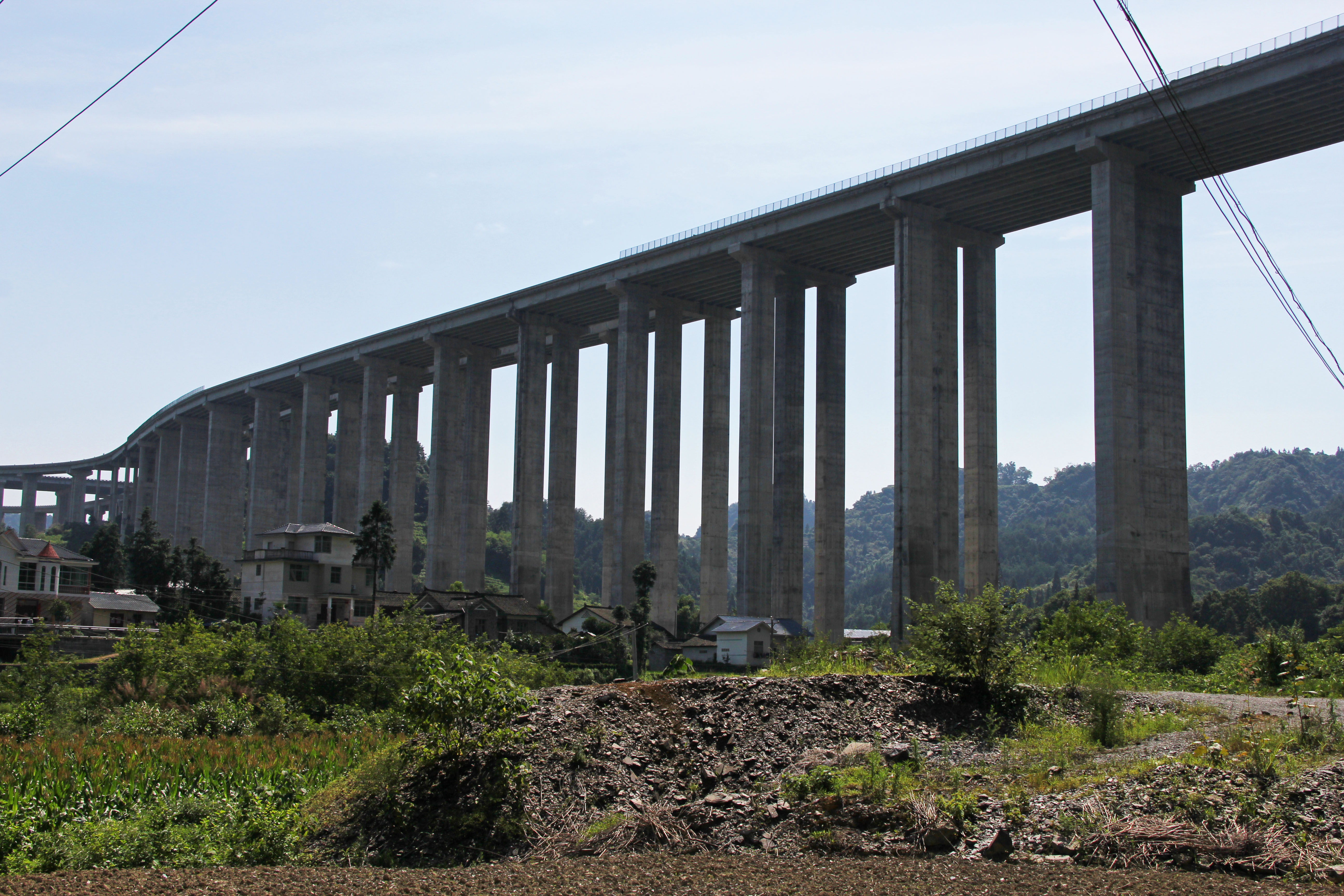

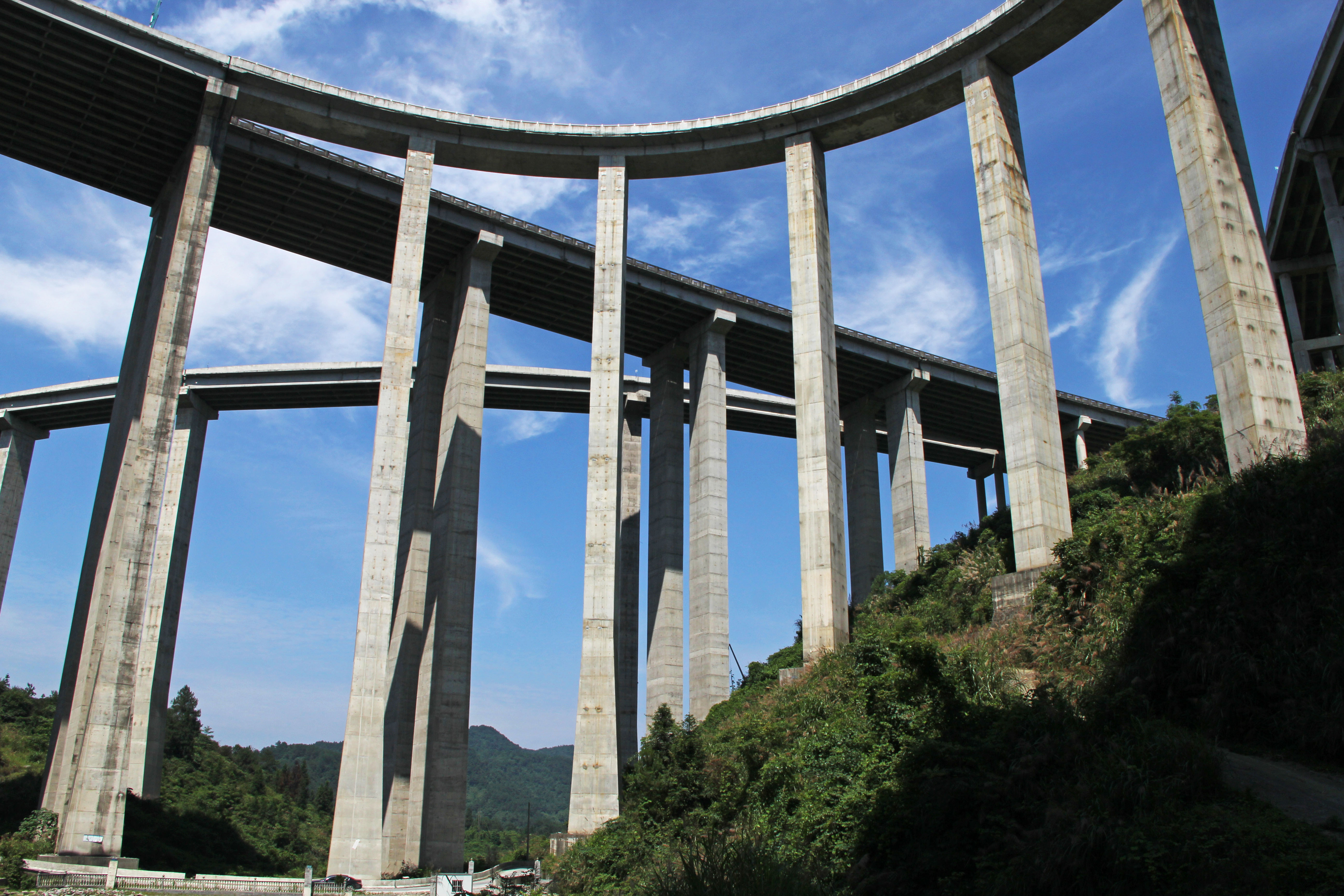

The giant Shijiazhai Bridge interchange viaduct has 4 high points that are 90, 88, 86 and 86 meters above the ground.





The 4 high points of the giant Shijiazhai Bridge interchange.



















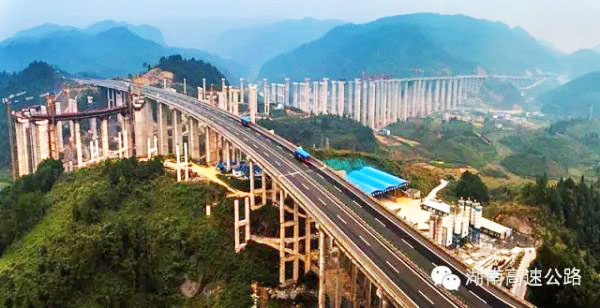

The older G65 Expressway cuts across the new bridge interchange that marks the start of the S99 Yongshun Expressway.













Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

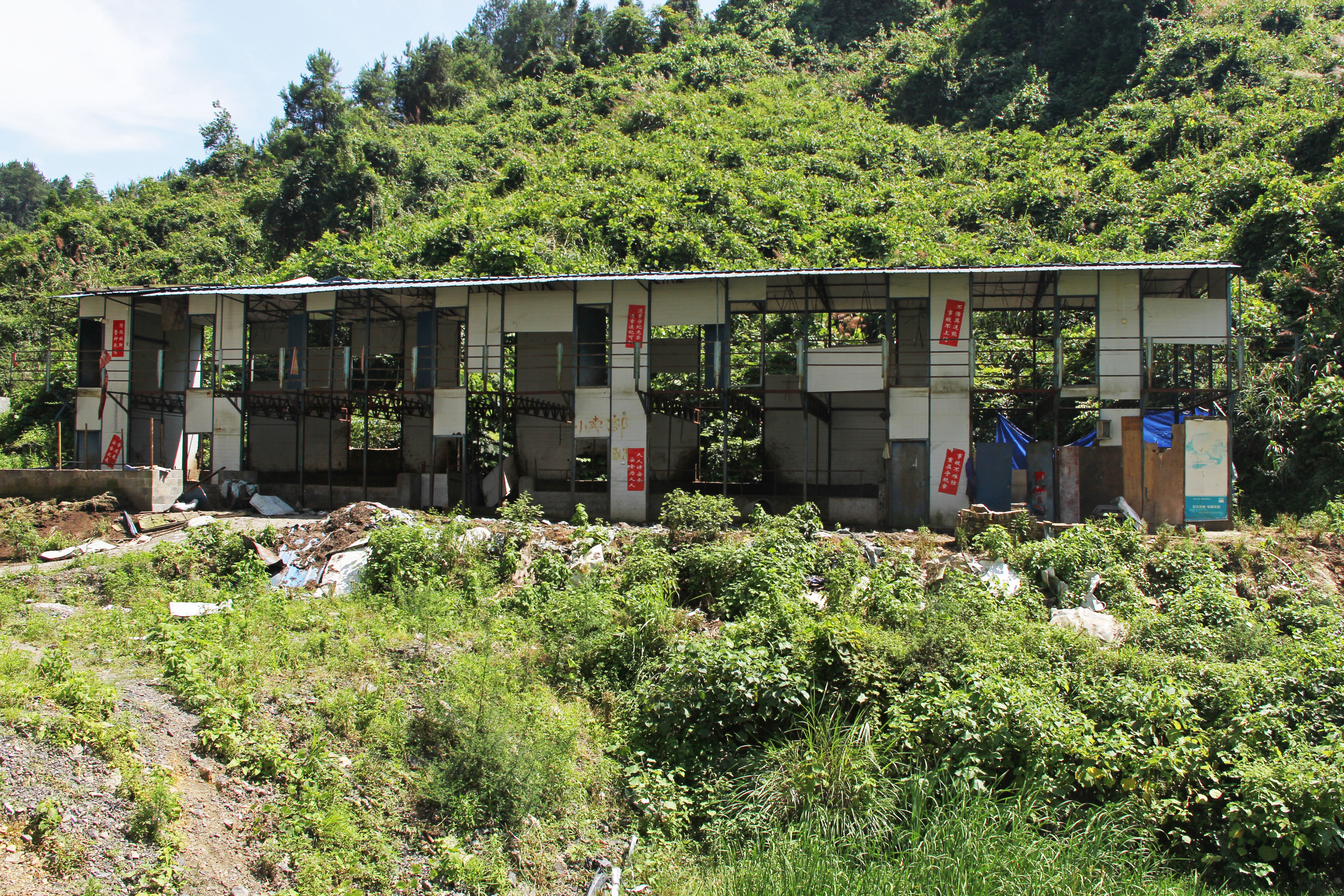

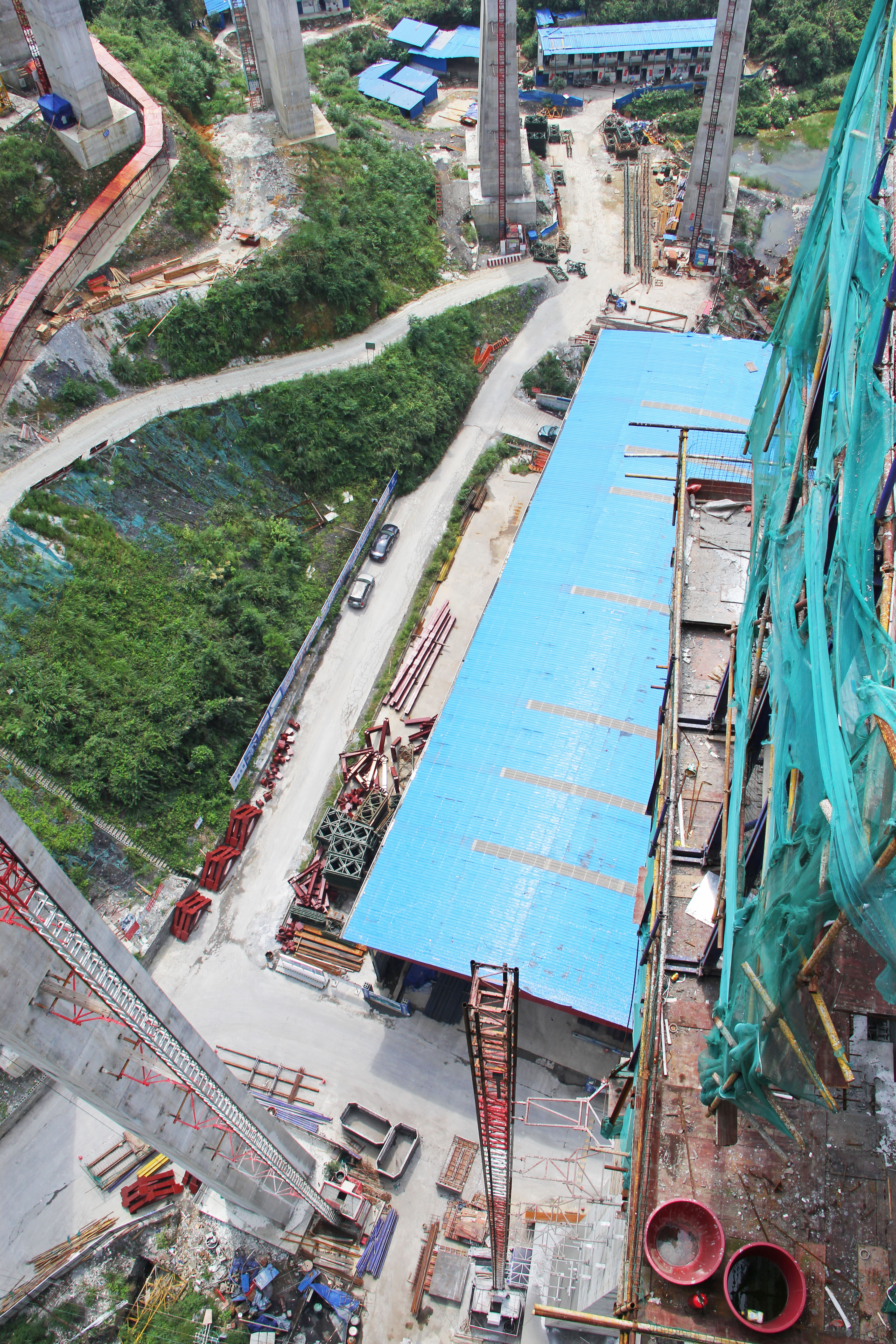

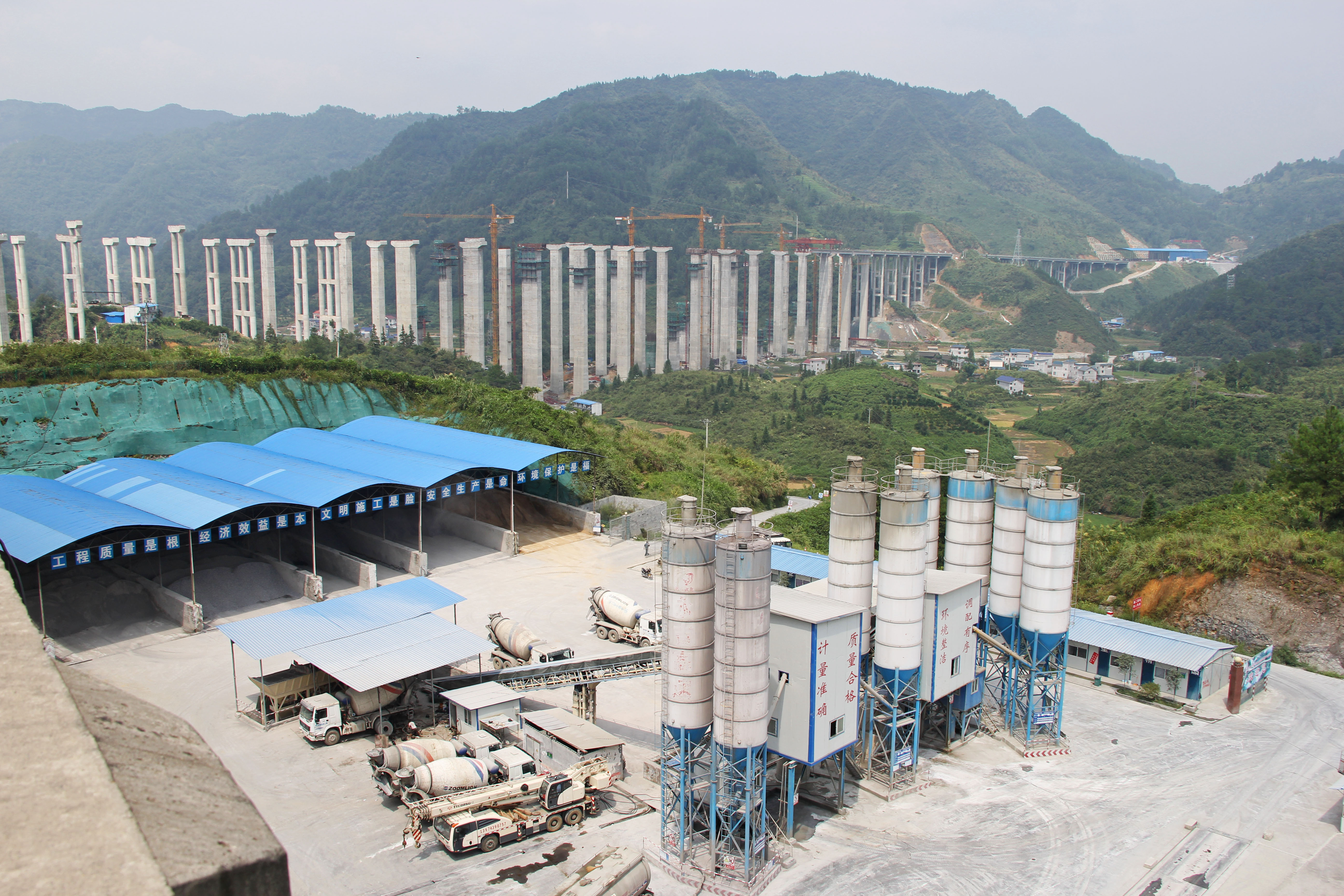

Worker housing. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

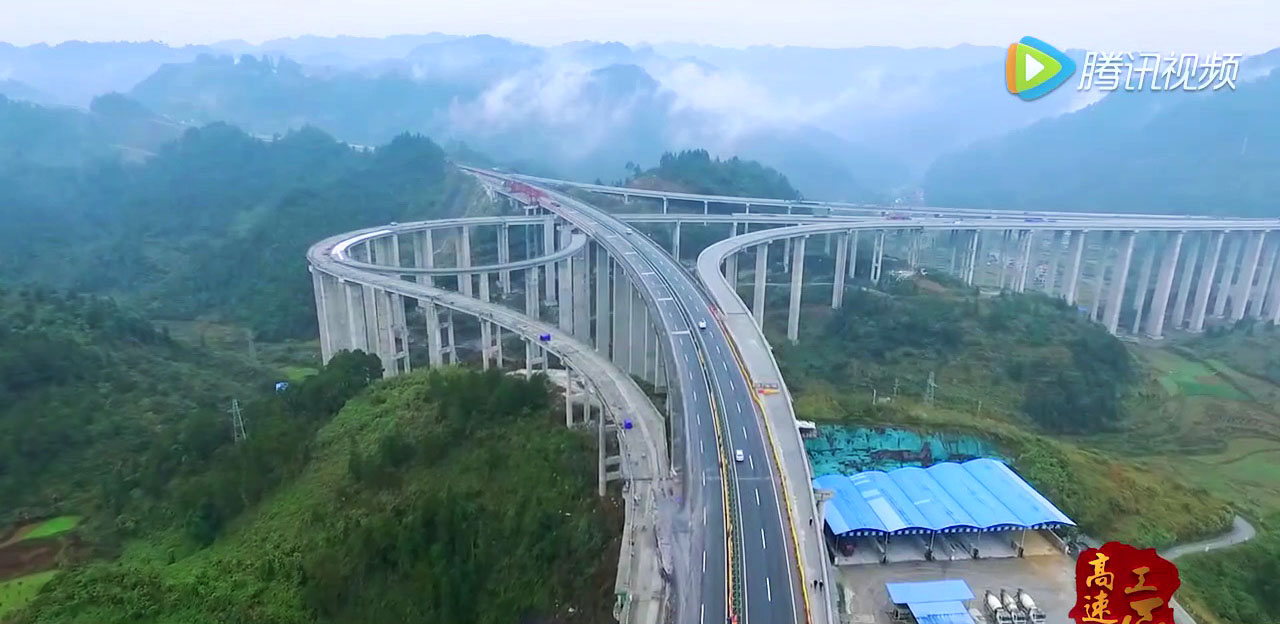

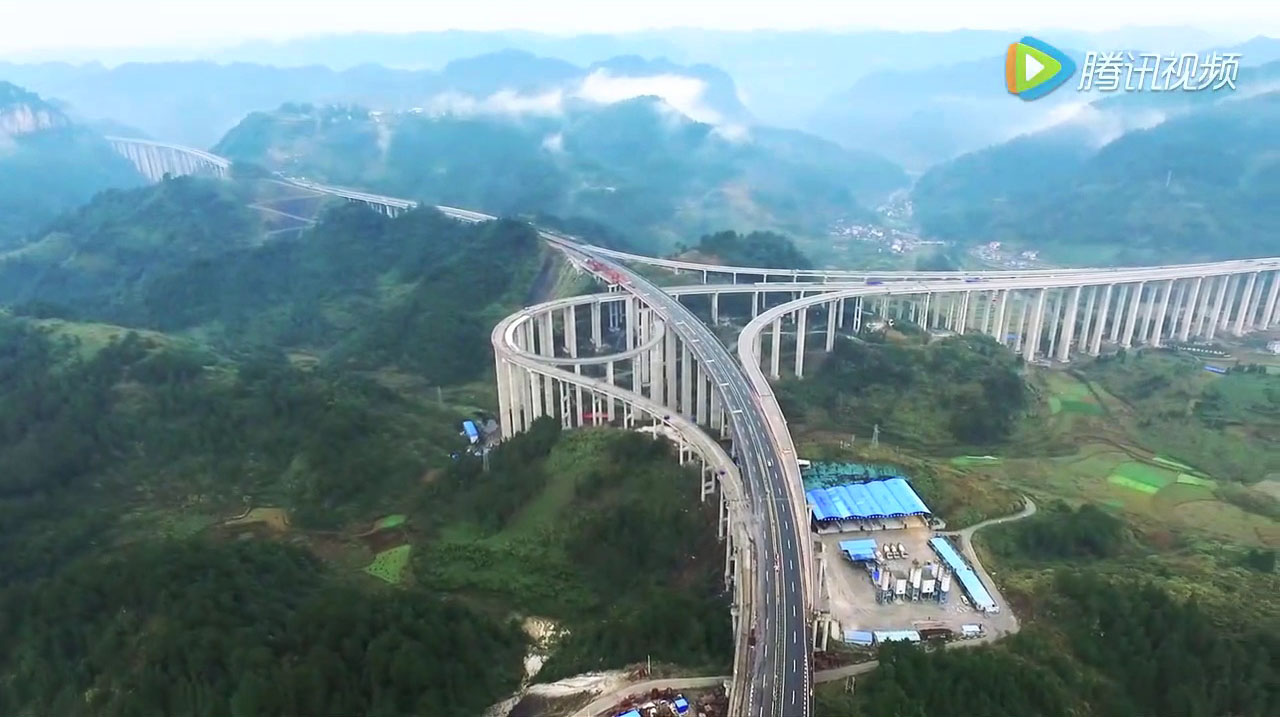

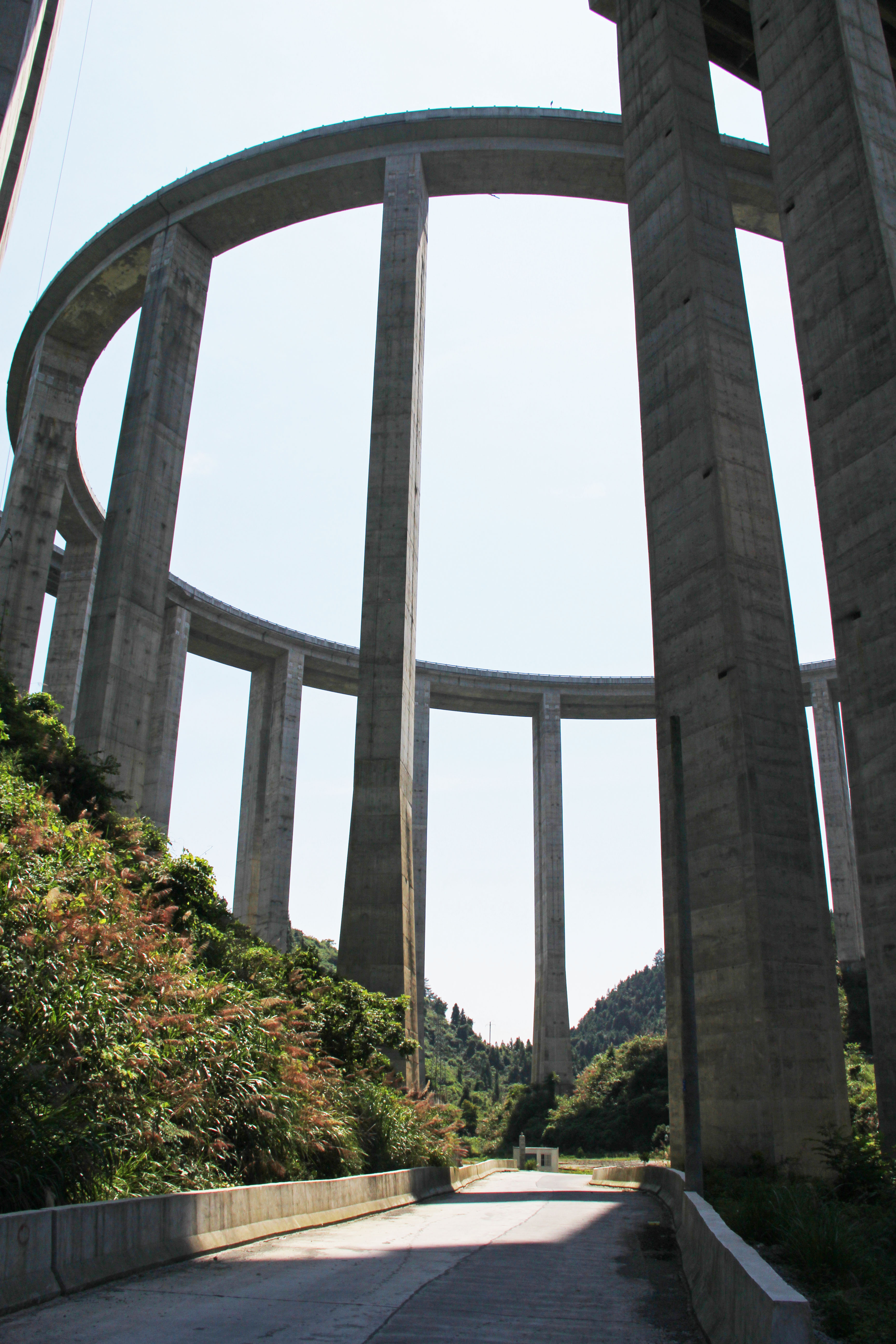

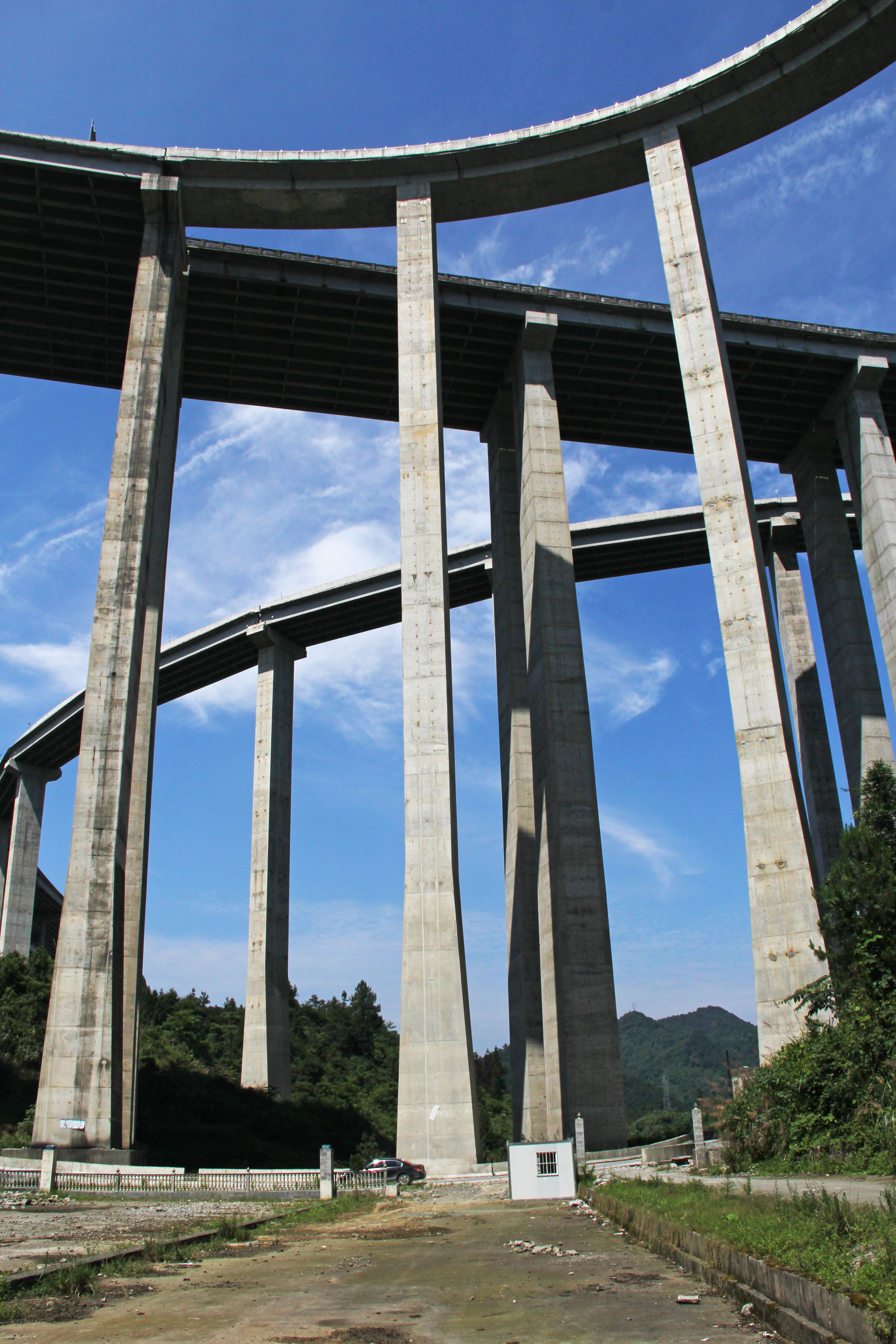

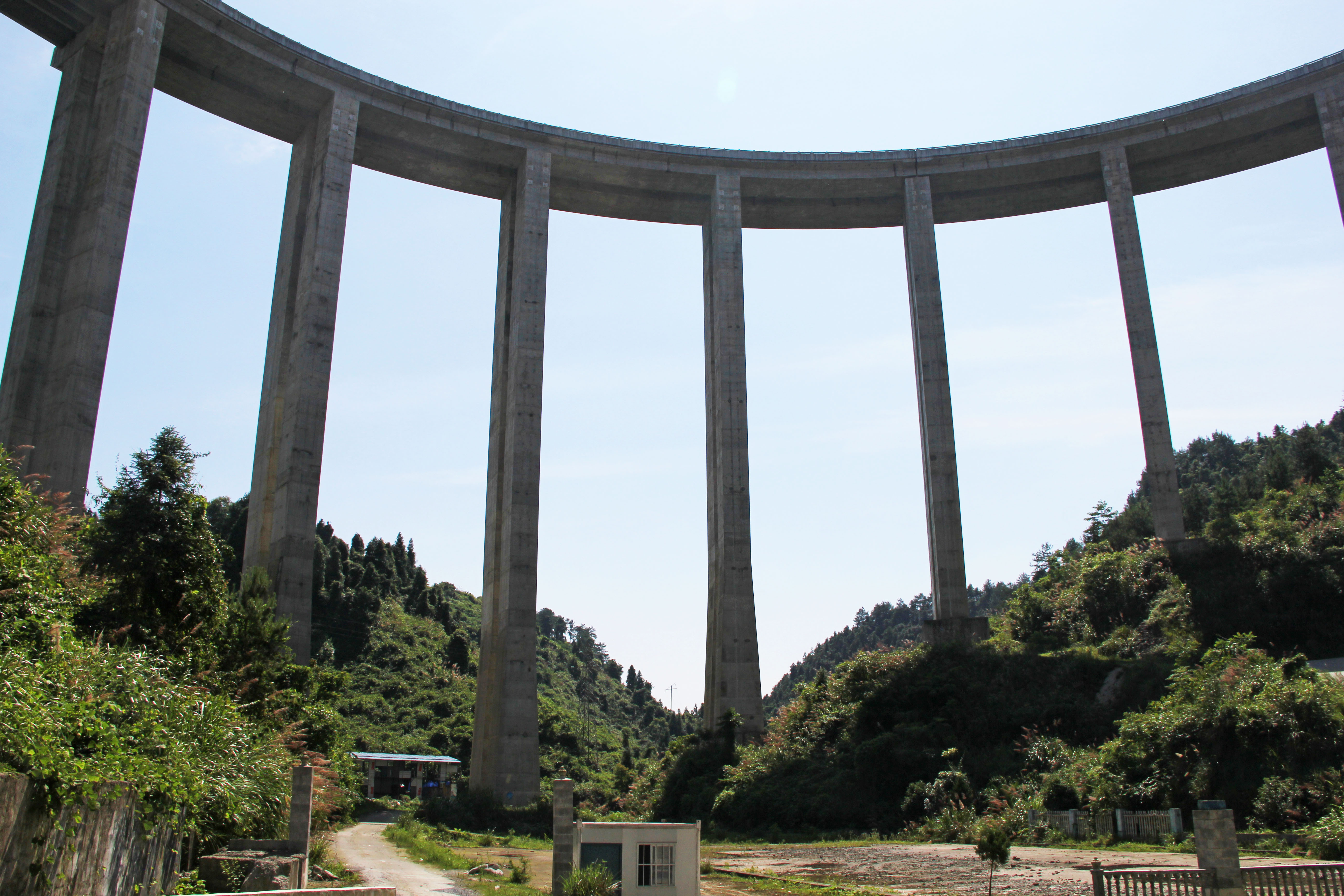

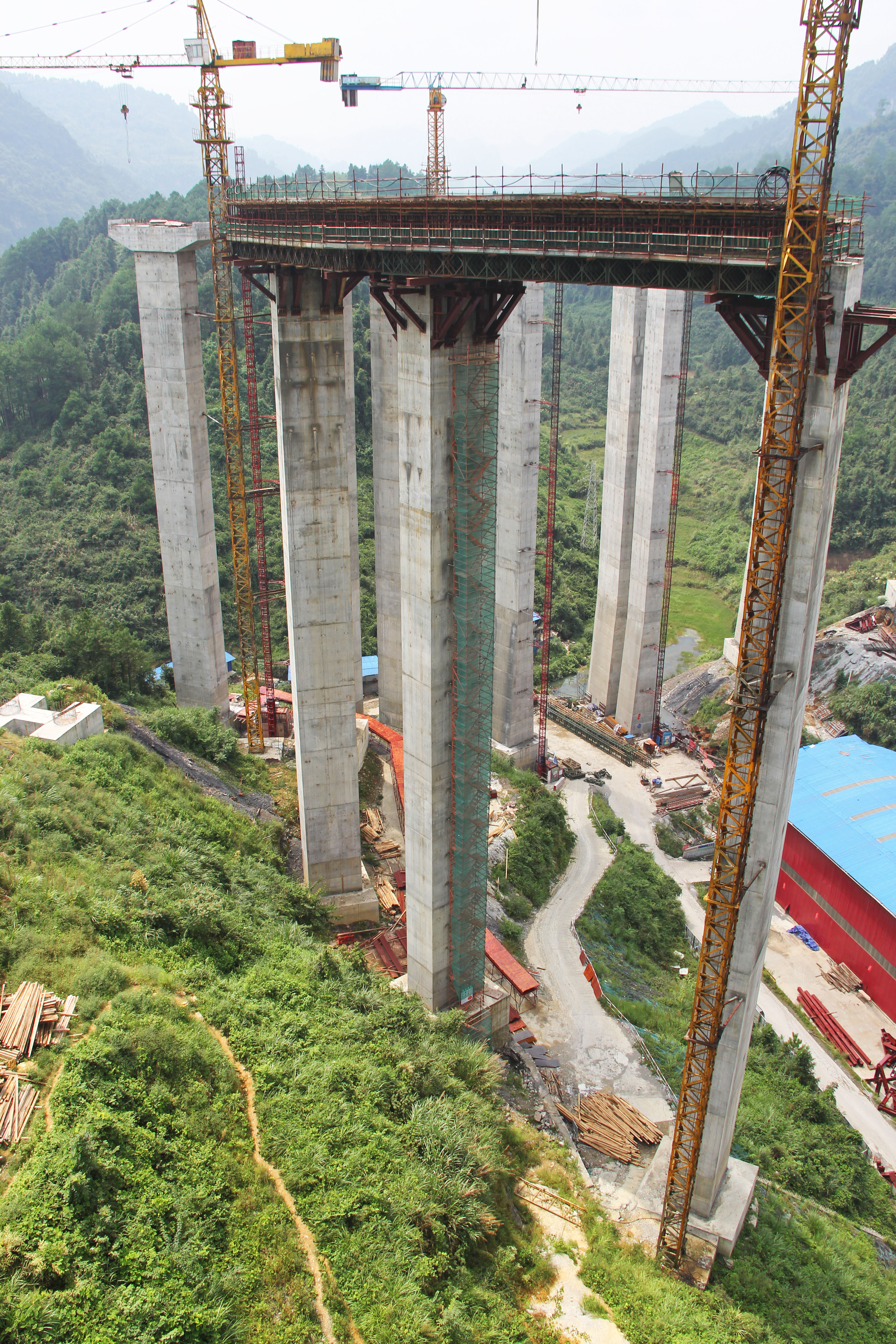

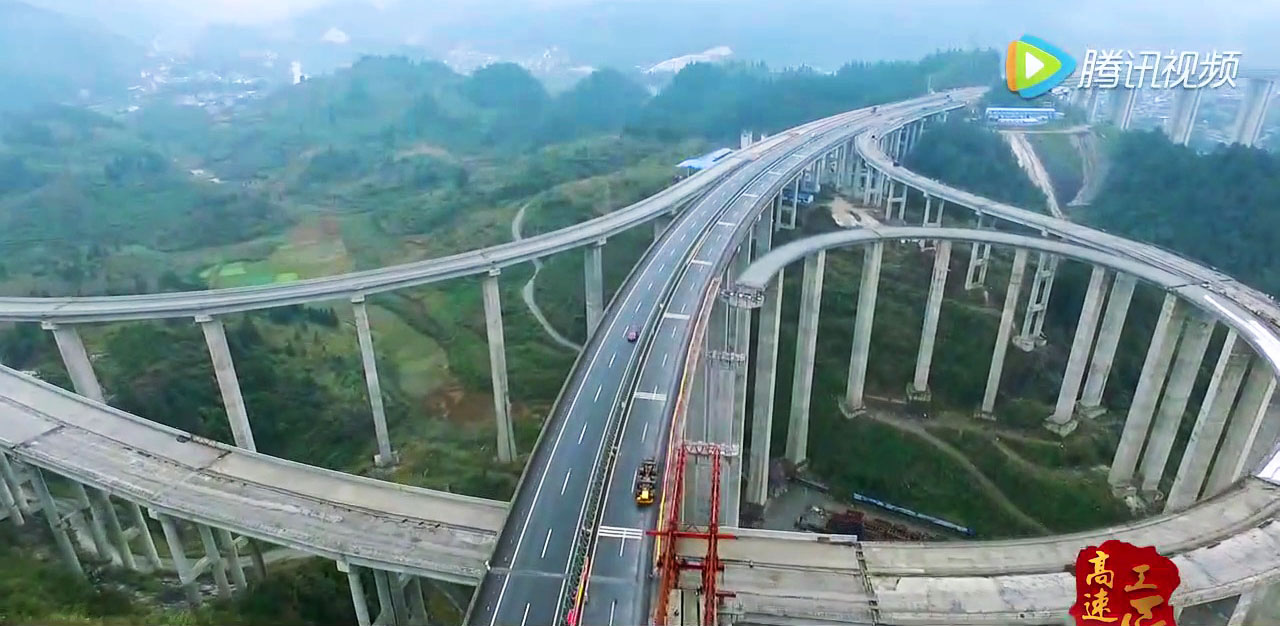

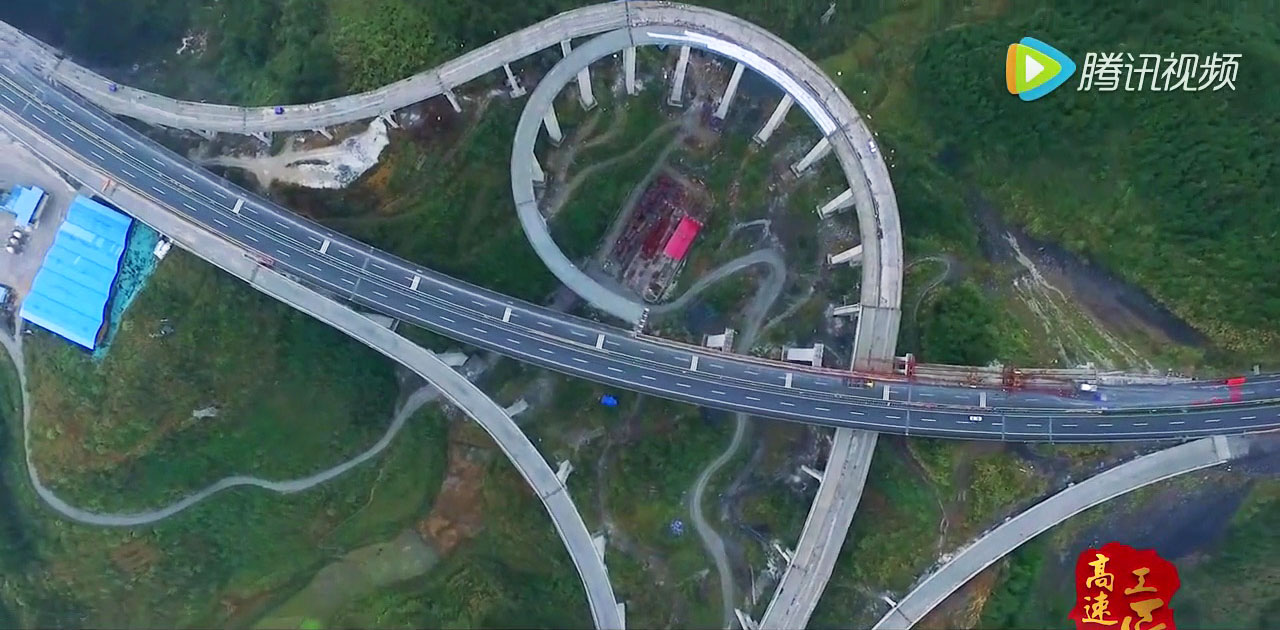

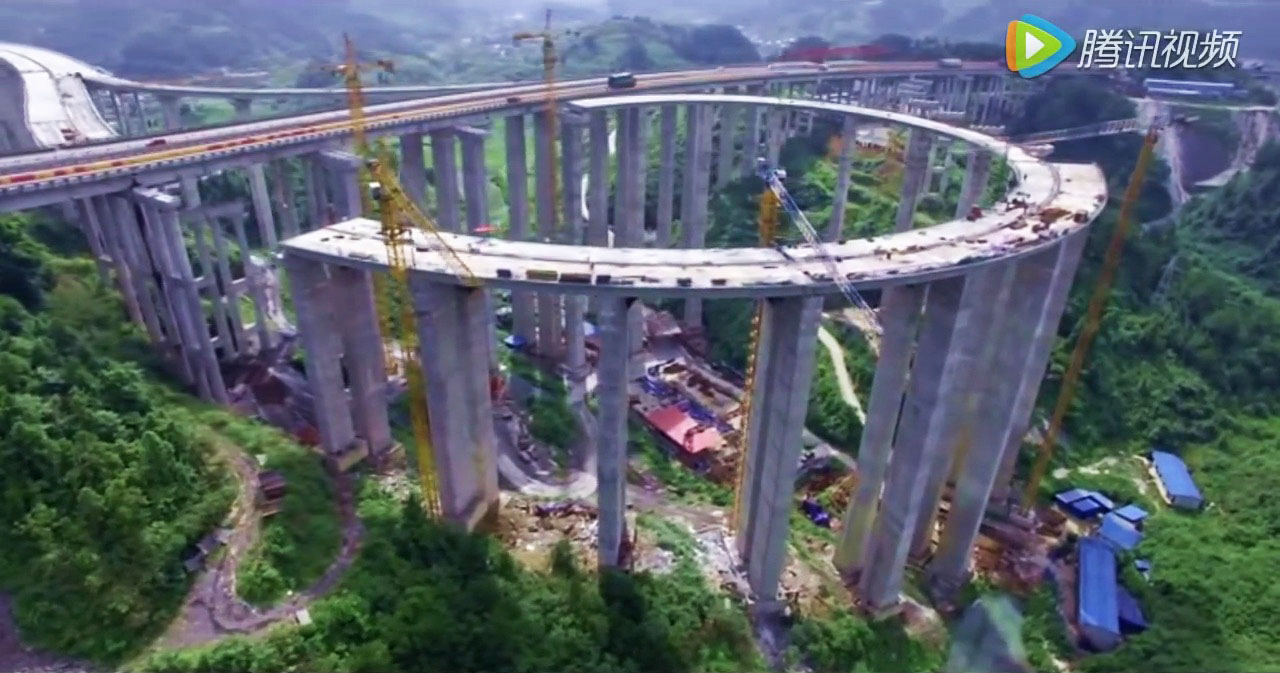

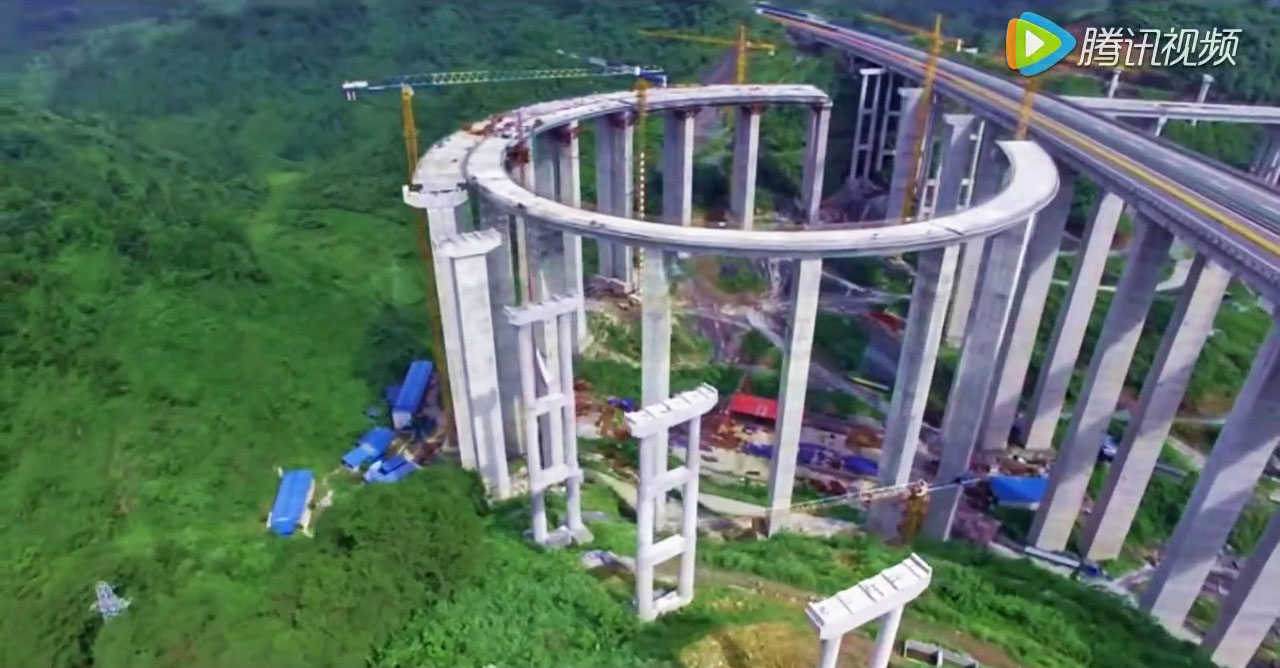

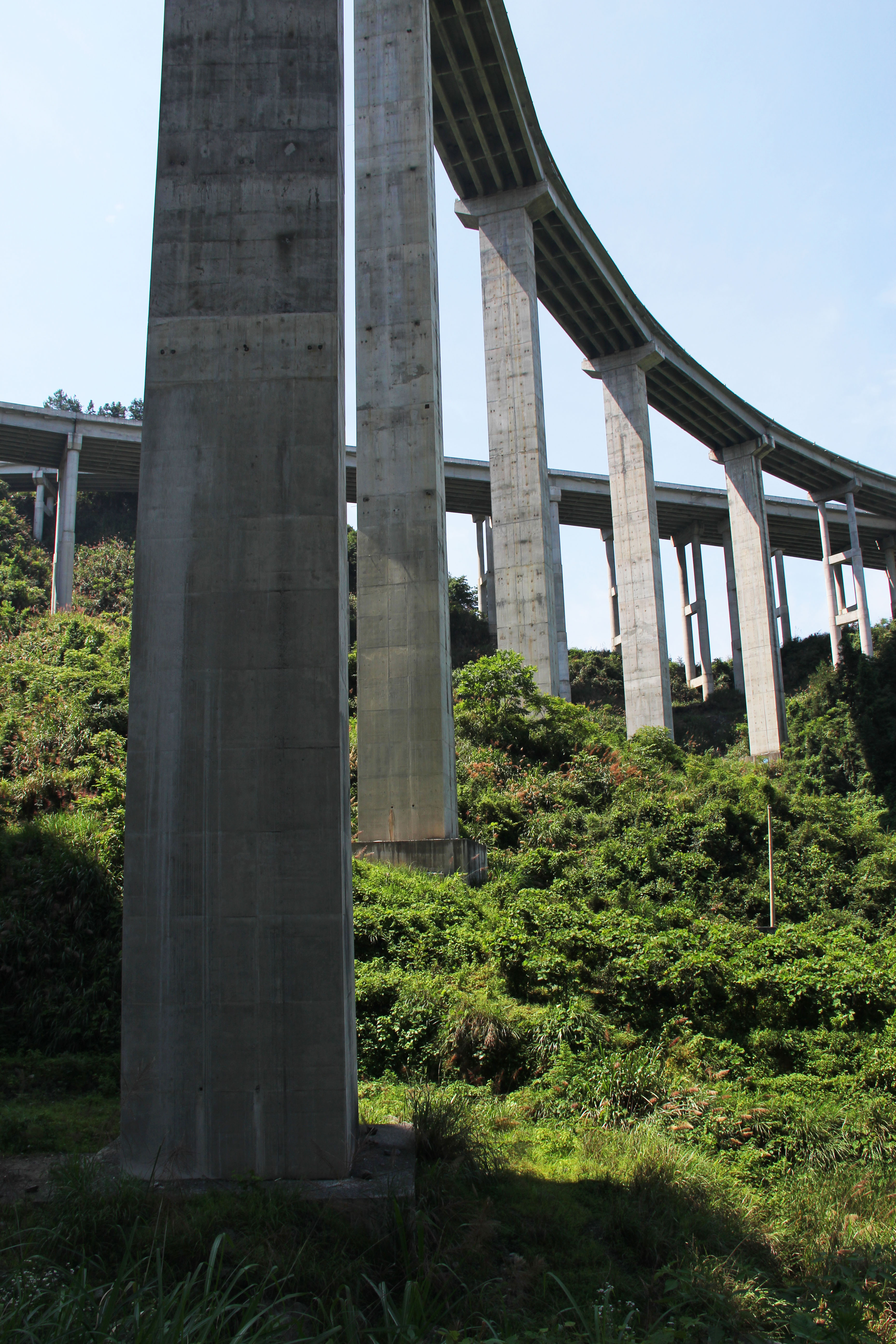

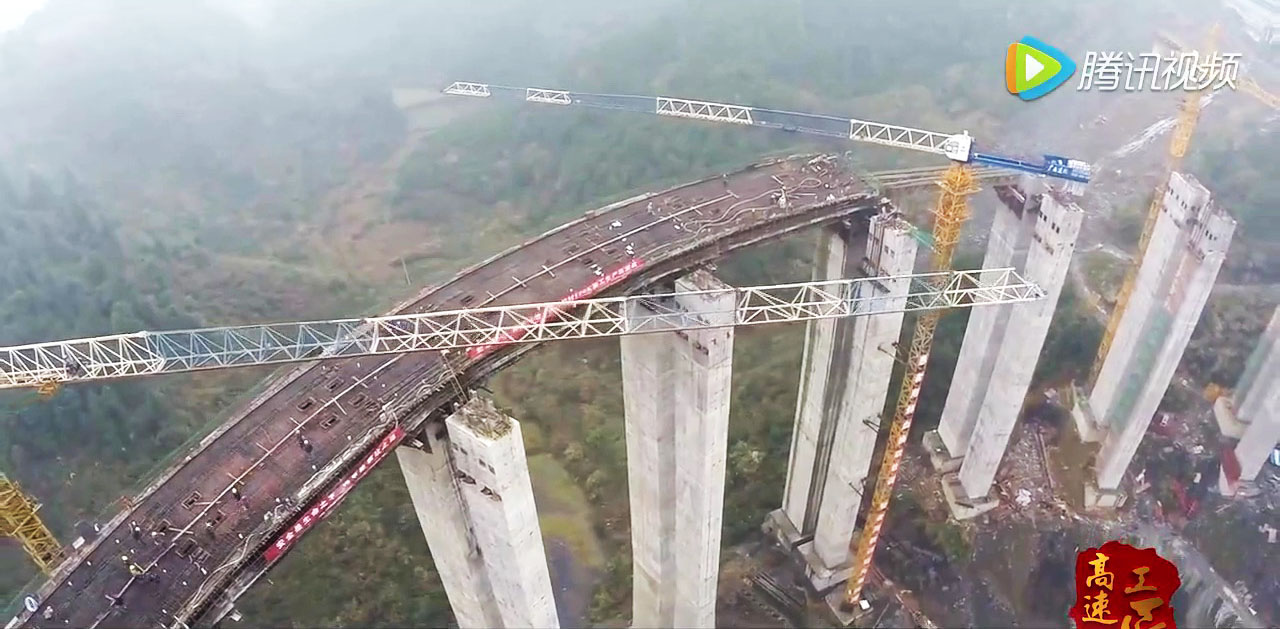

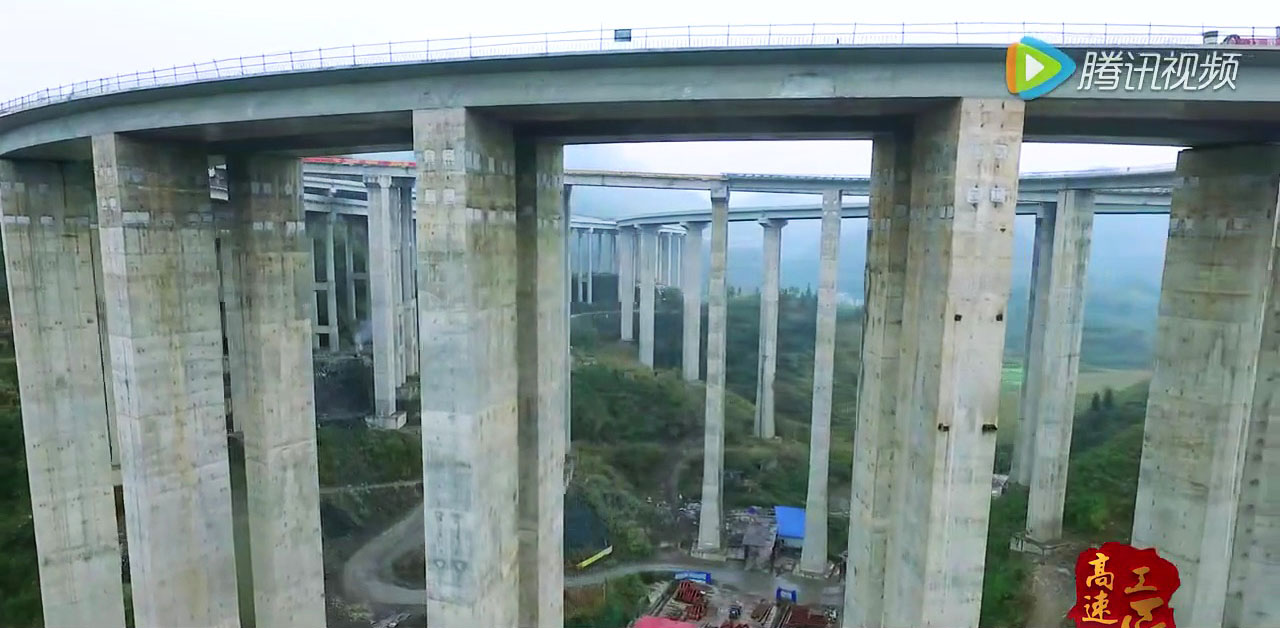

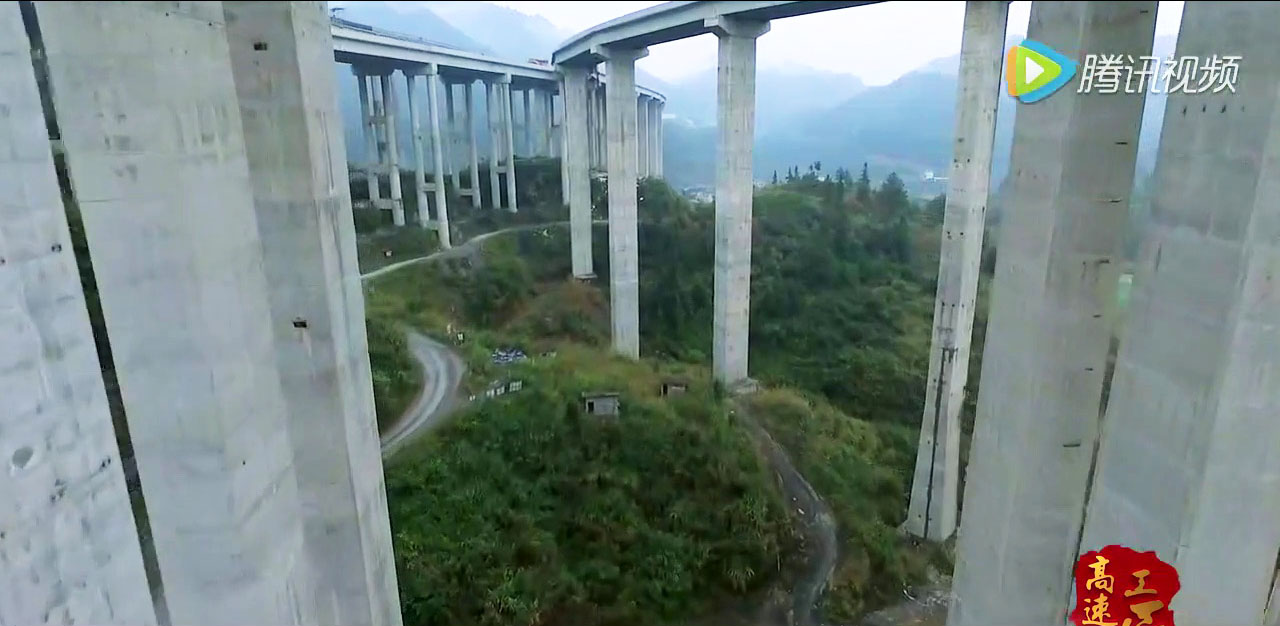

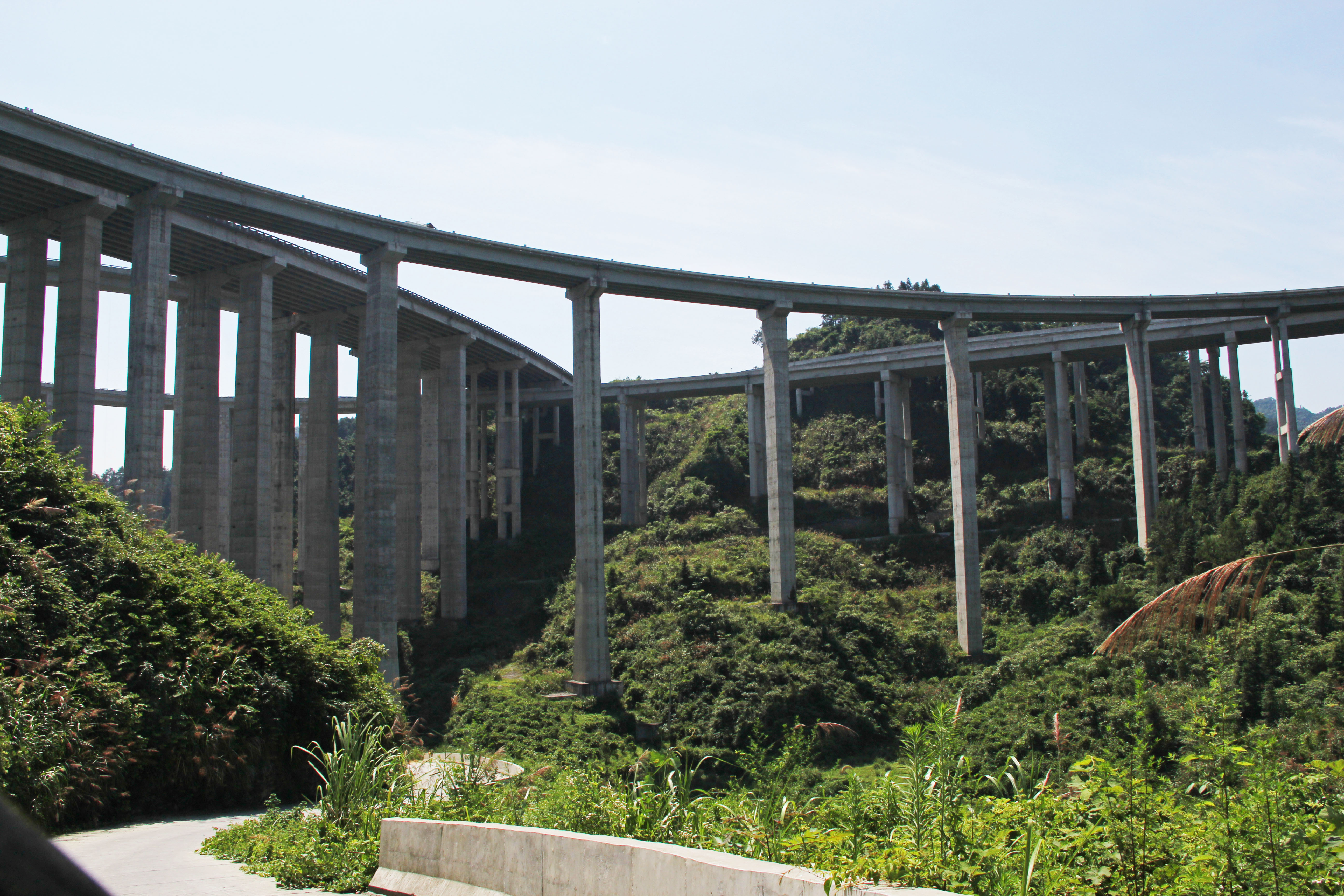

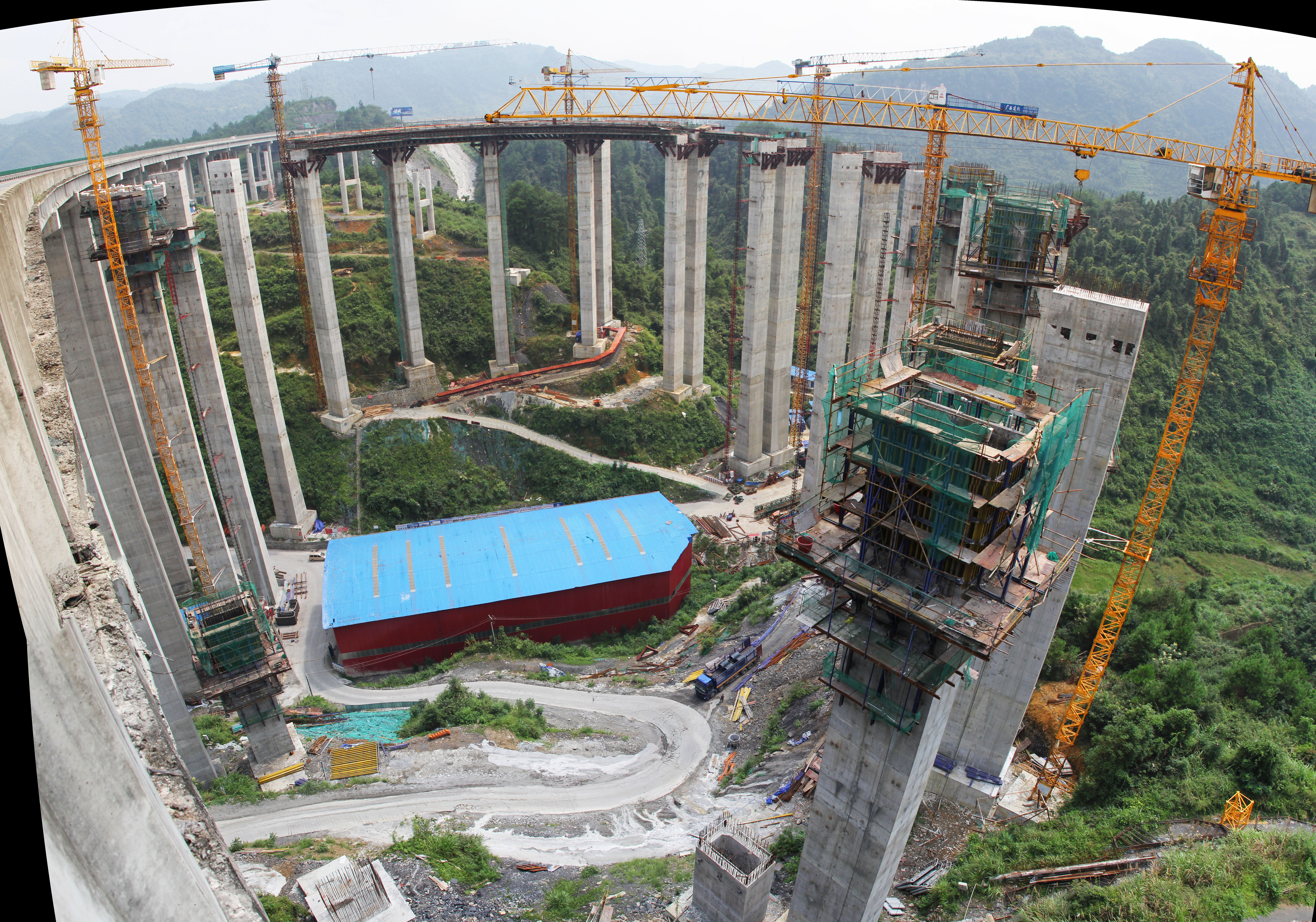

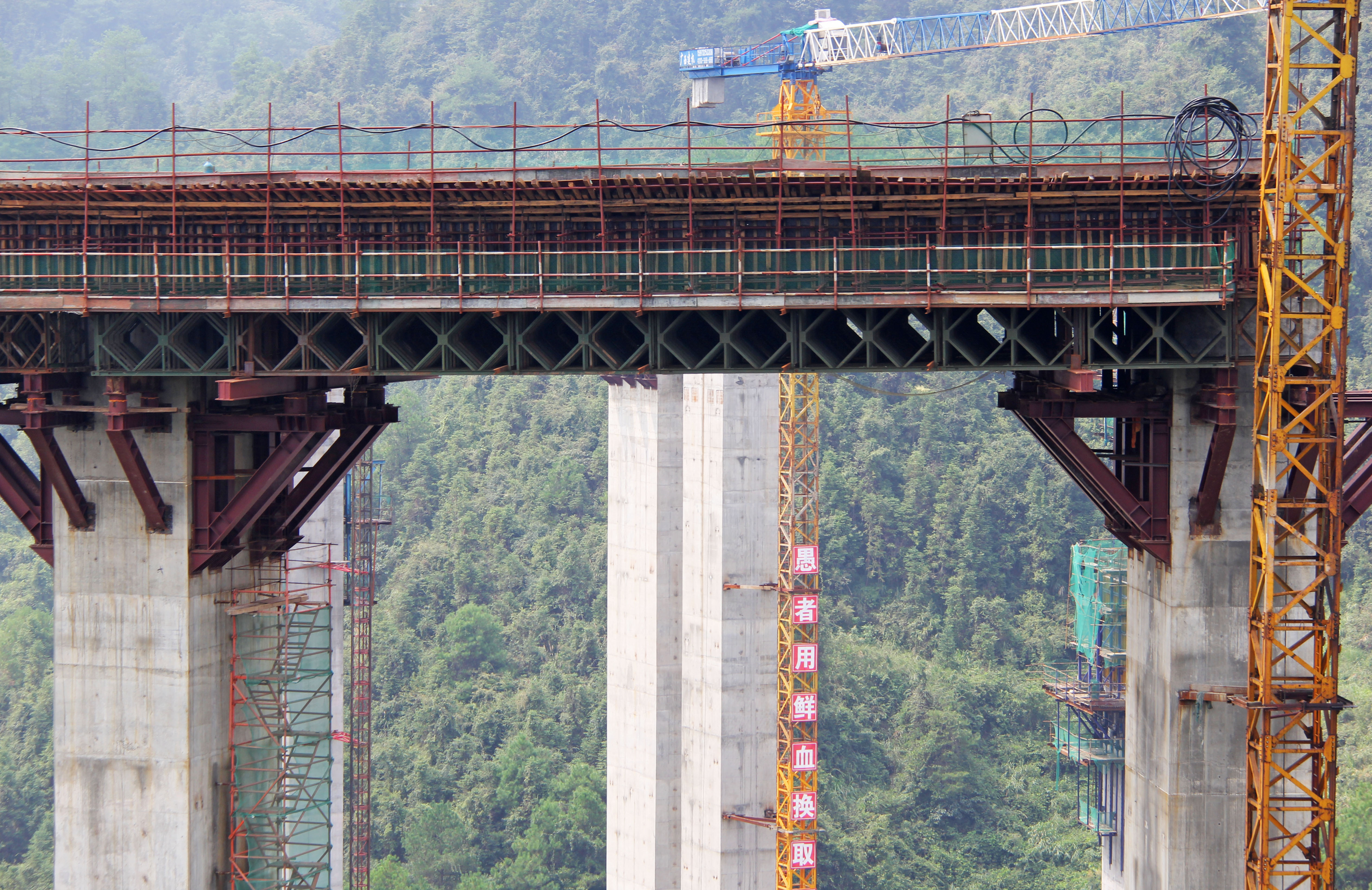

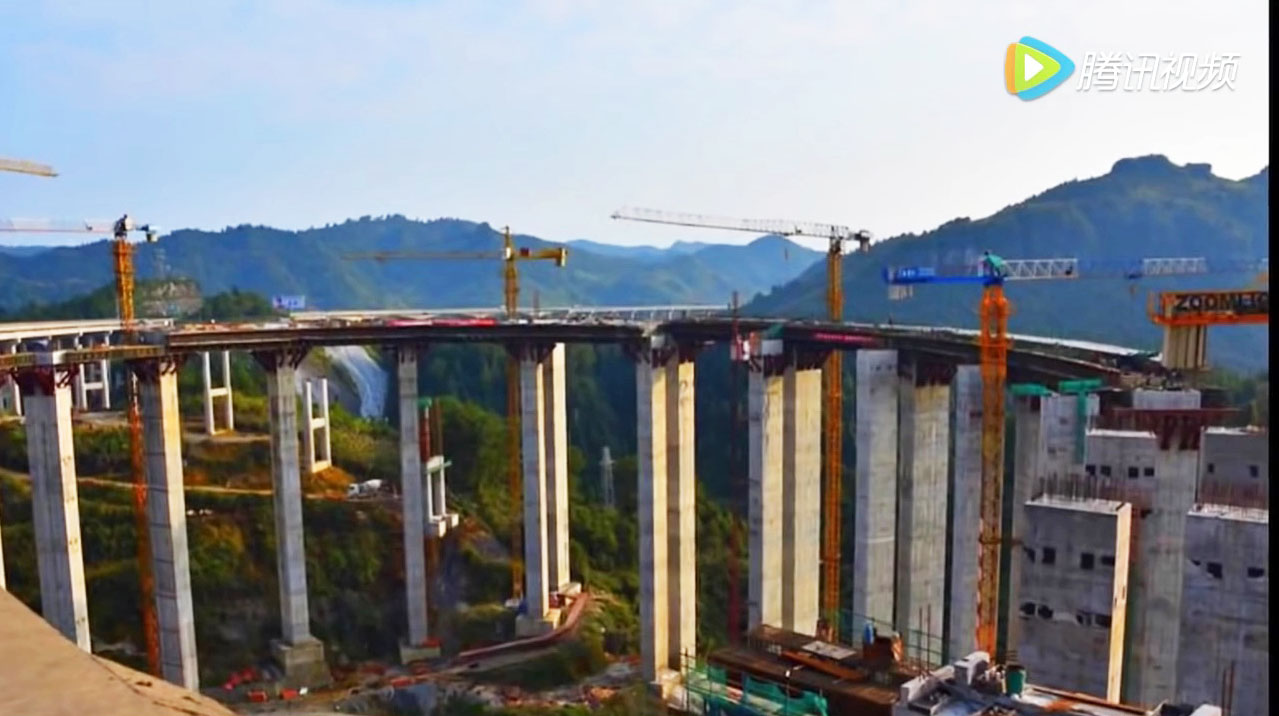

The 270 degree spiral interchange that will transition travelers from the Southbound G65 to the Northbound S99 Yongshun Expressway and from the Yongshun Expressway to the Southbound G65 expressway. Image by Eric Sakowski / HighestBridges.com

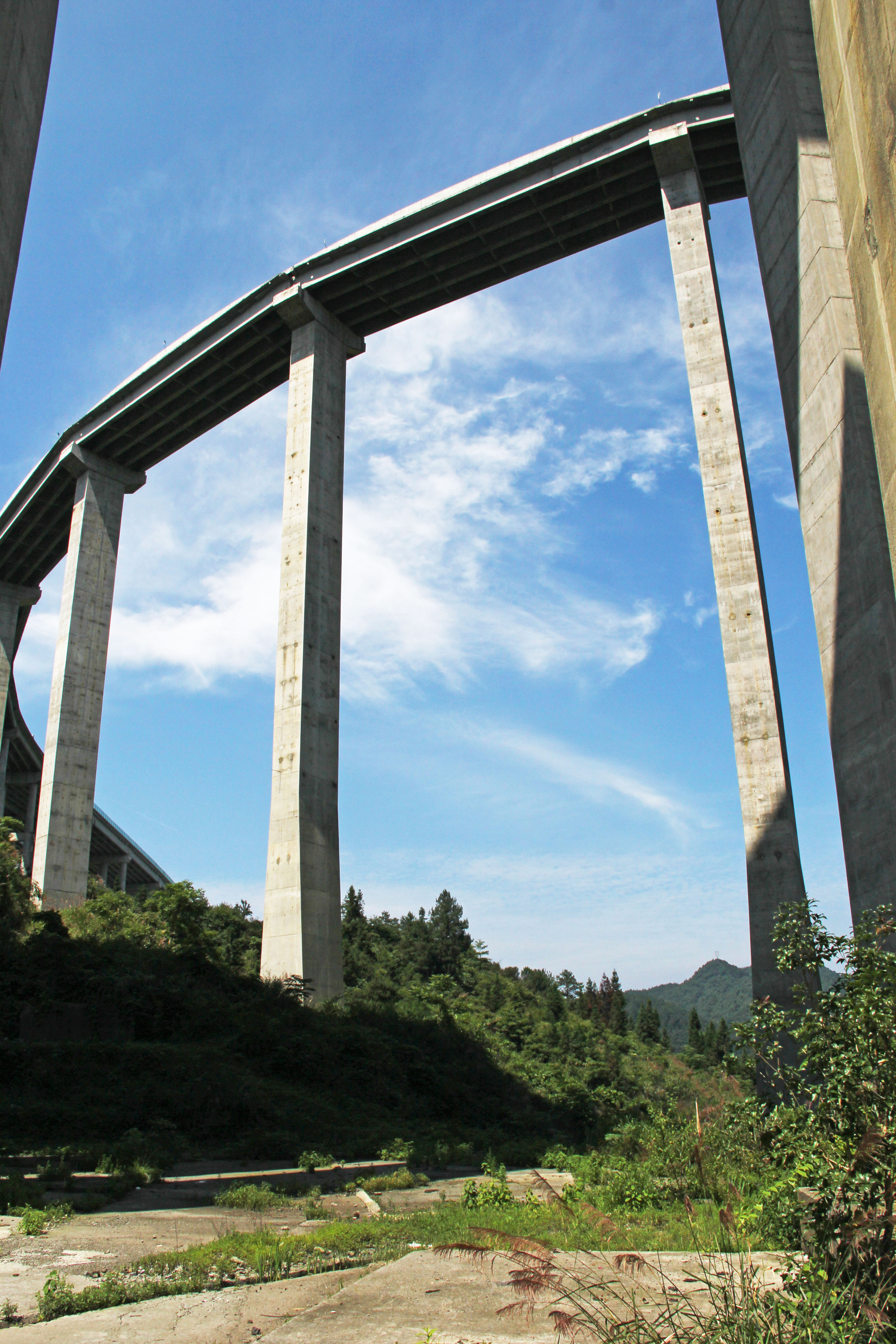

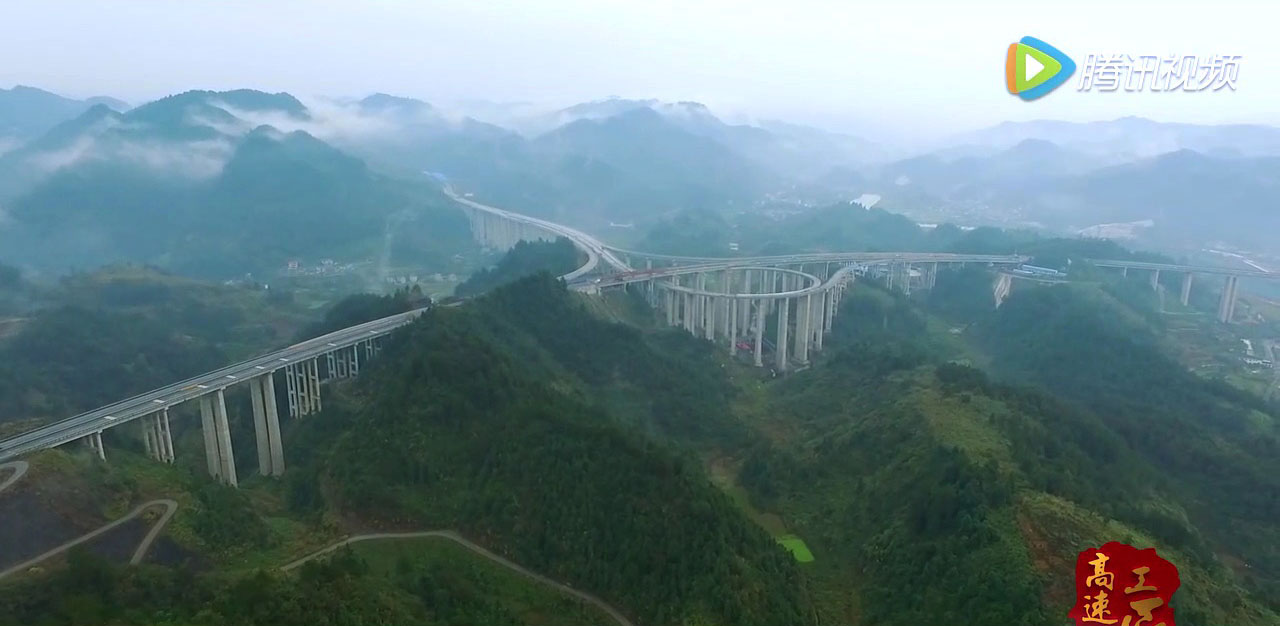

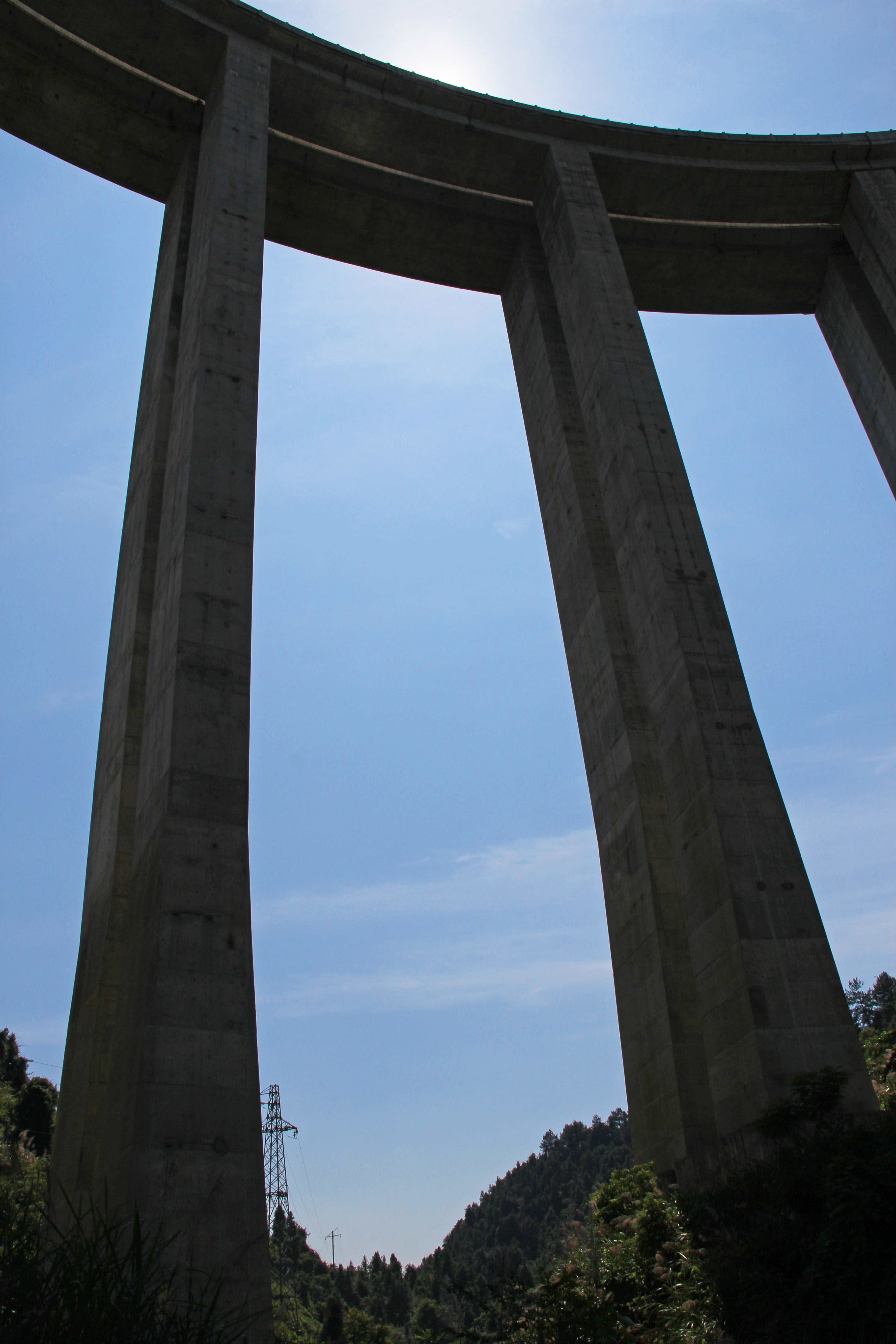

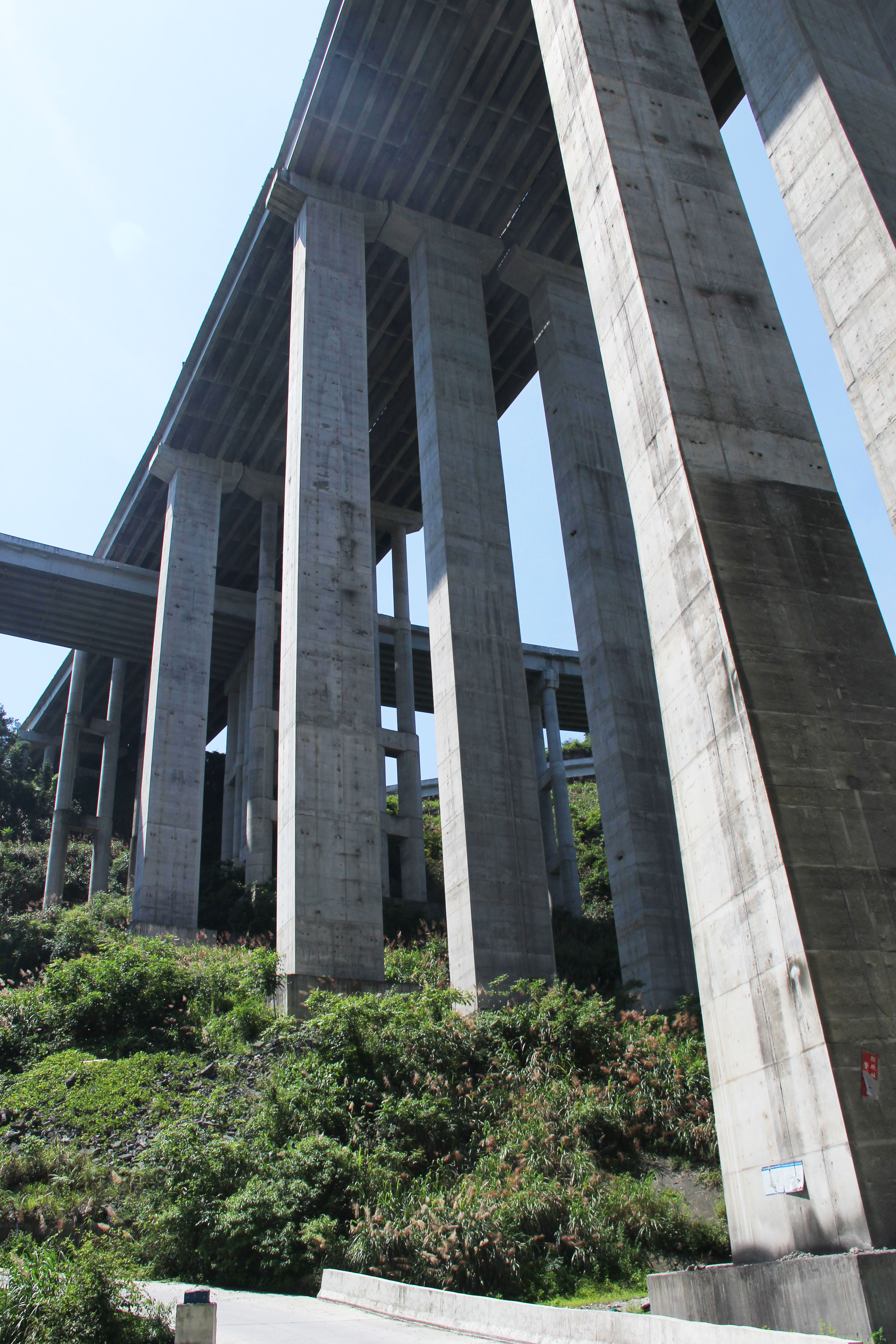

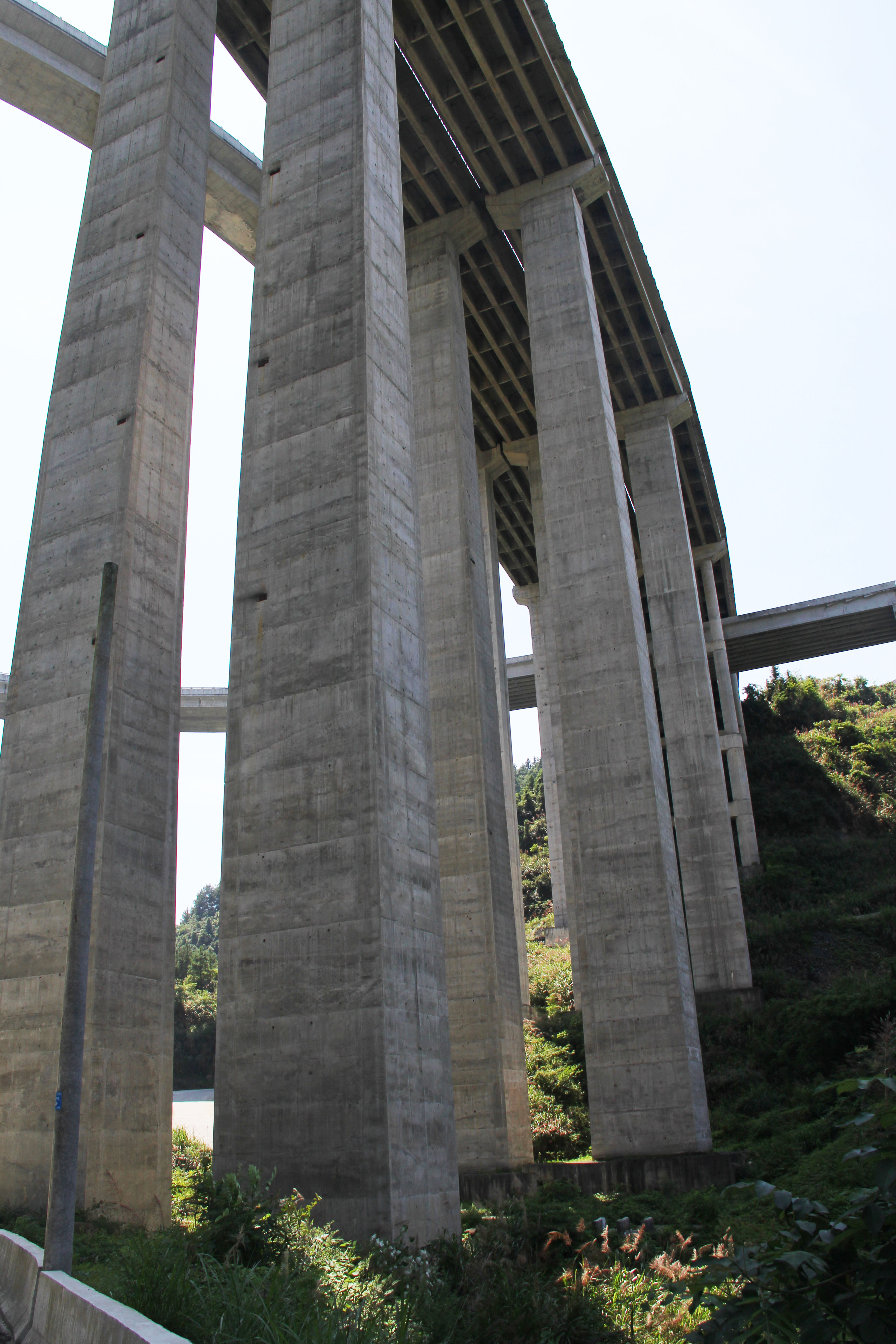

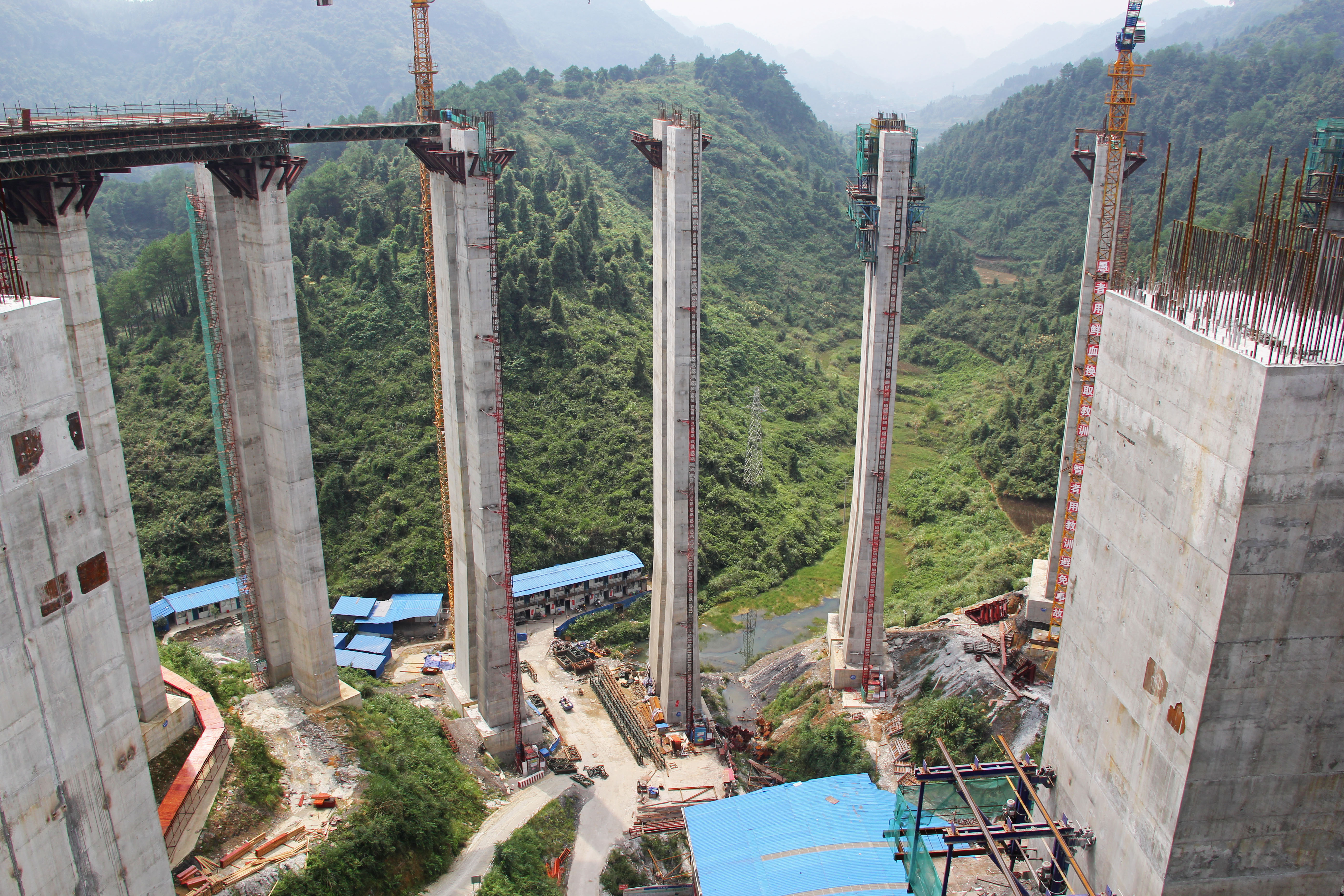

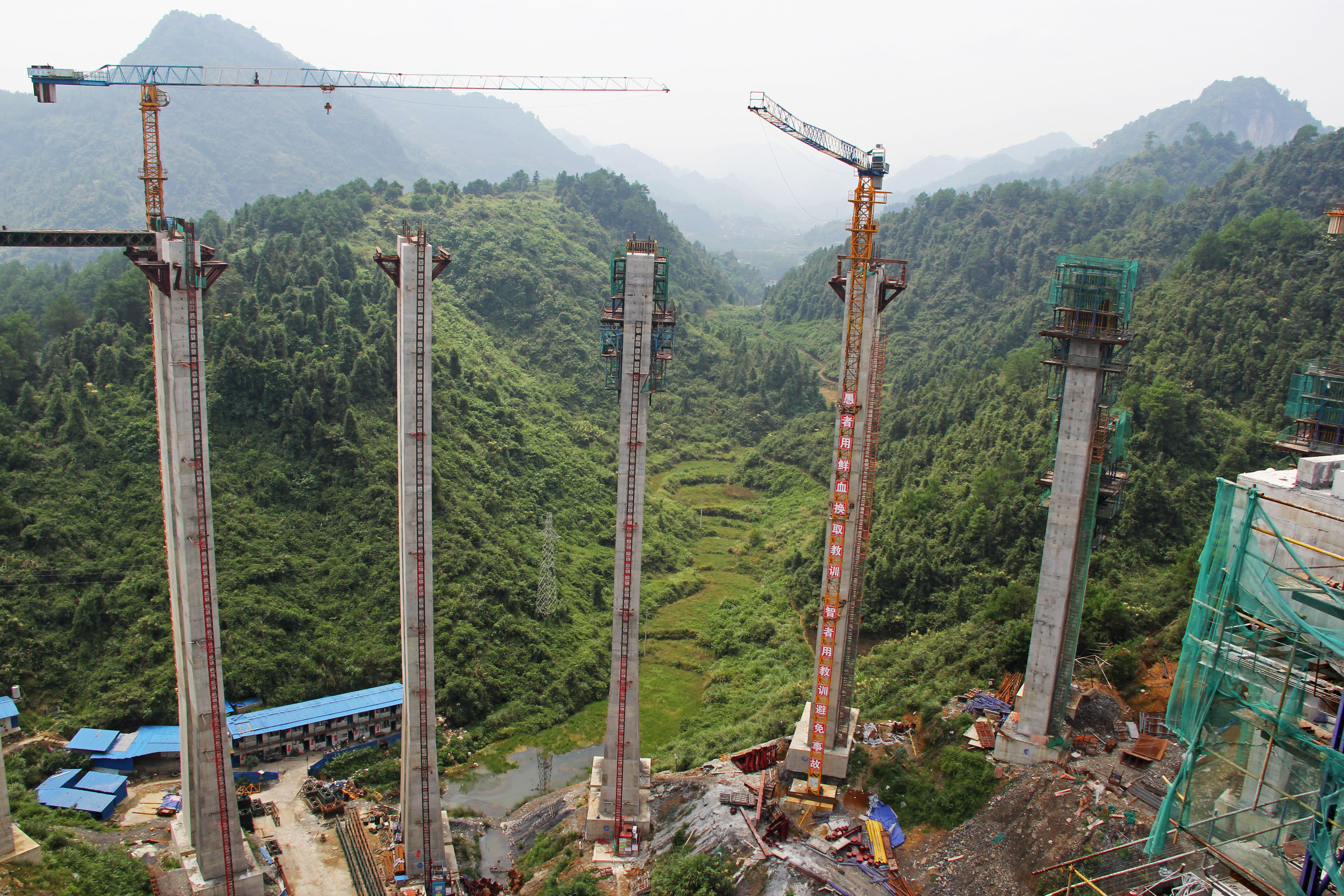

This is the first expressway interchange in the world to exceed 80 meters in height. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

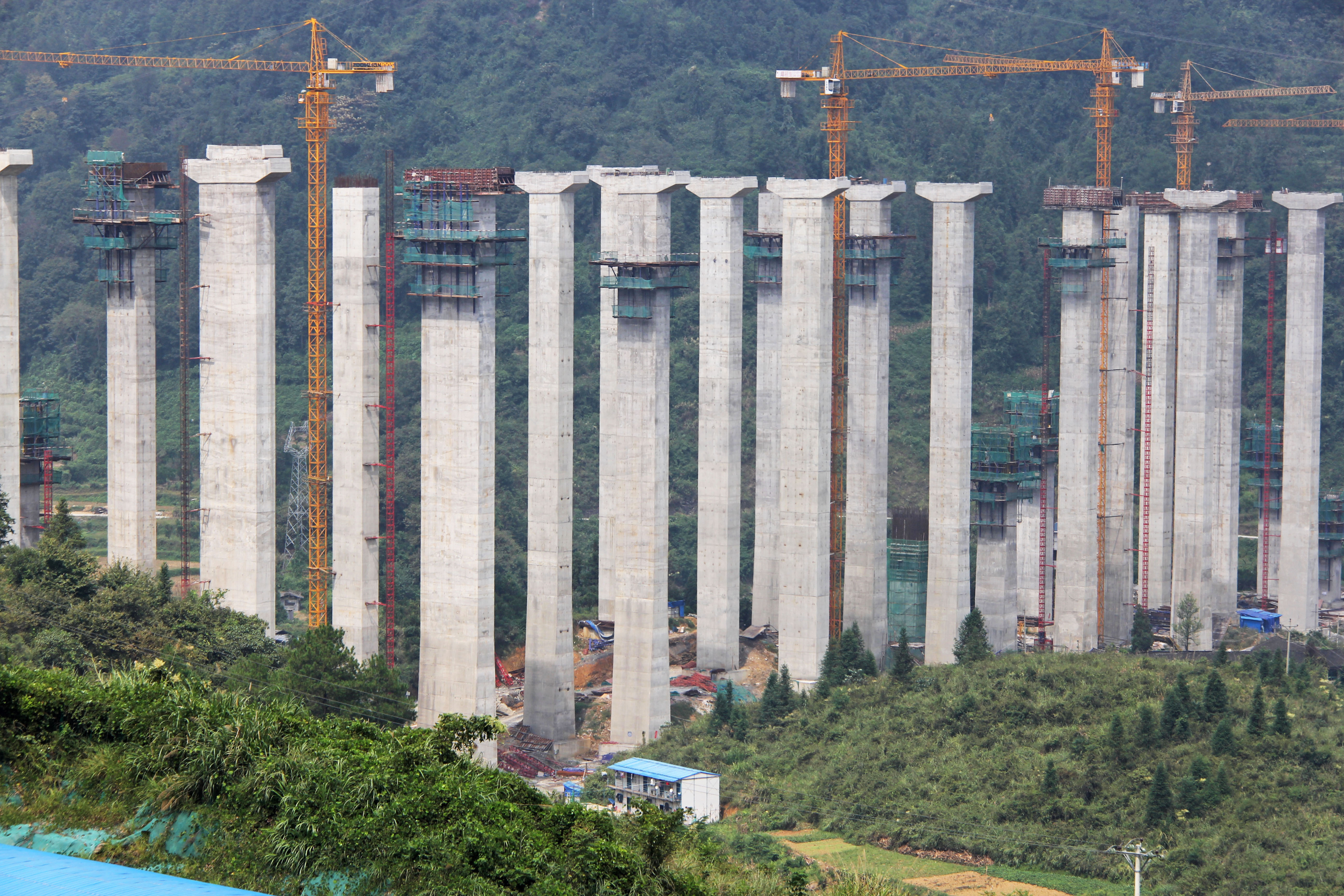

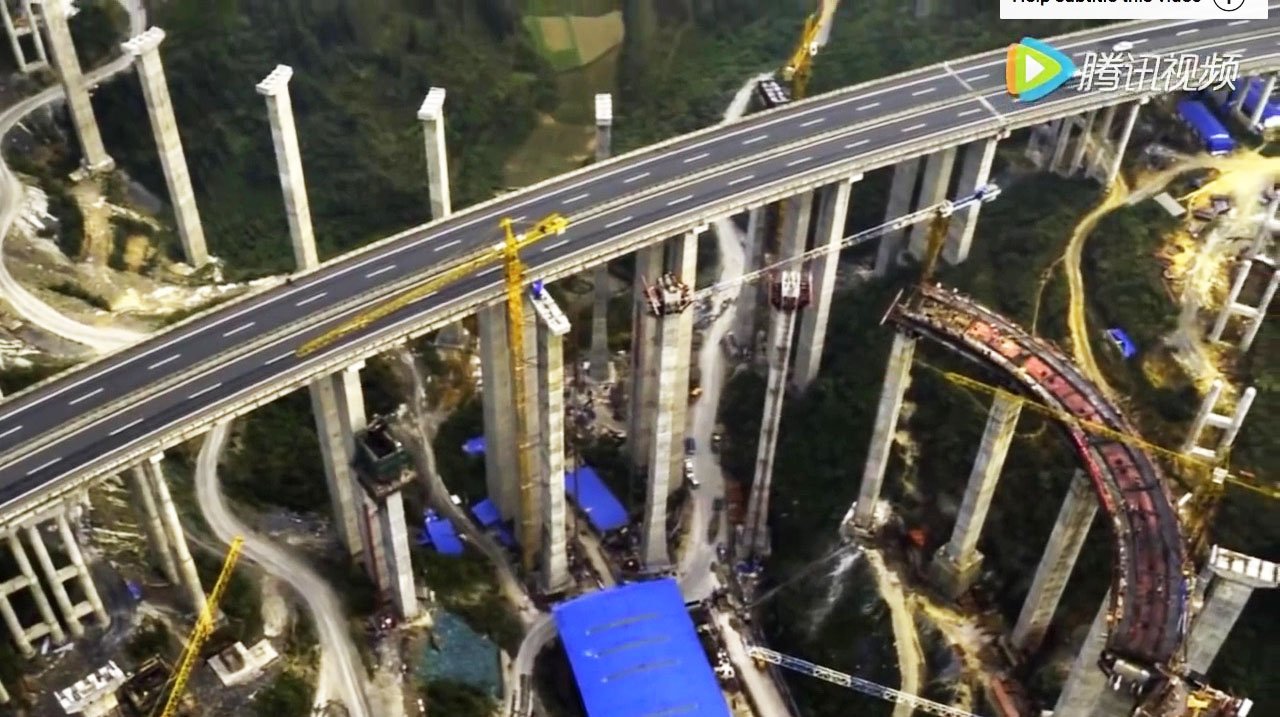

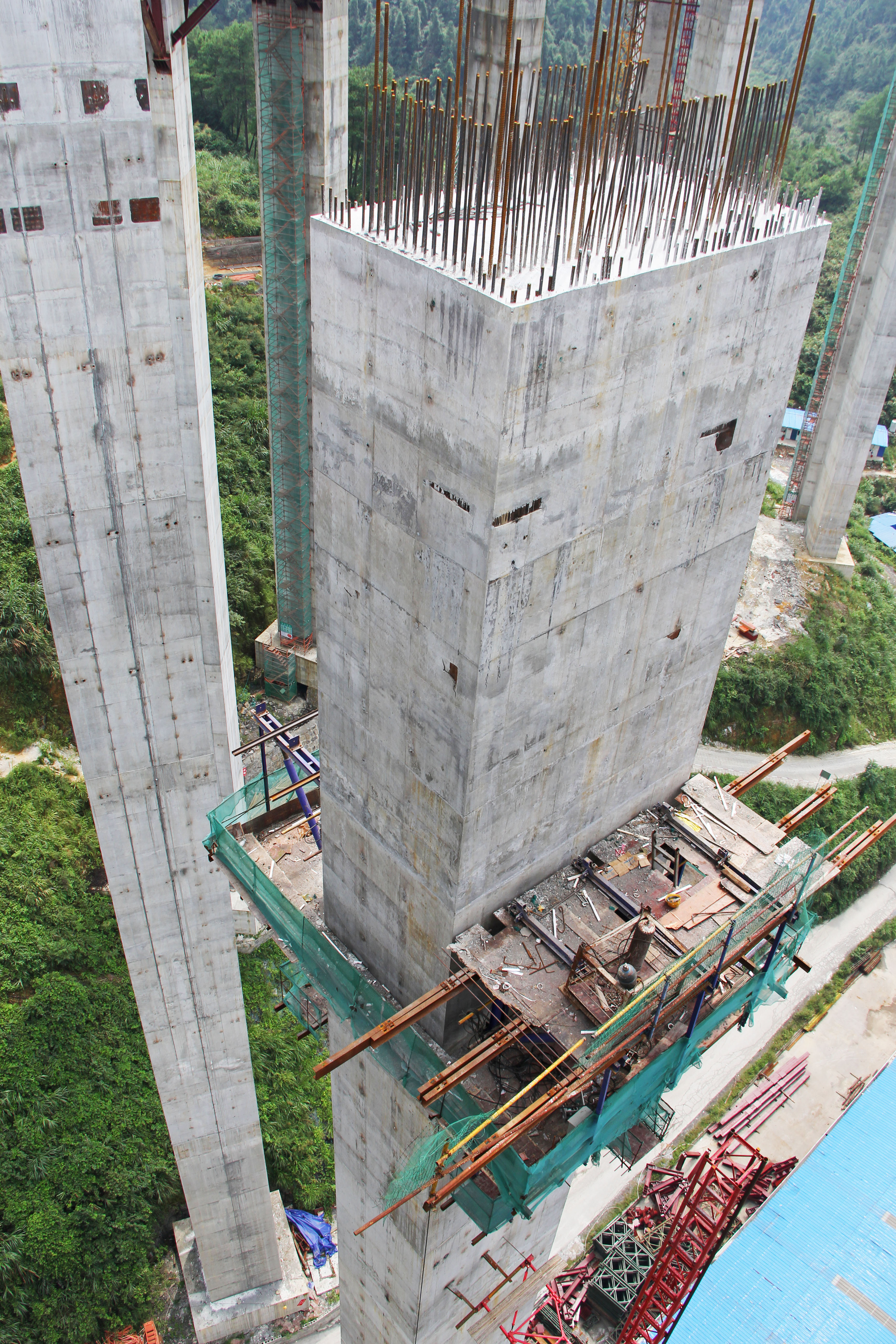

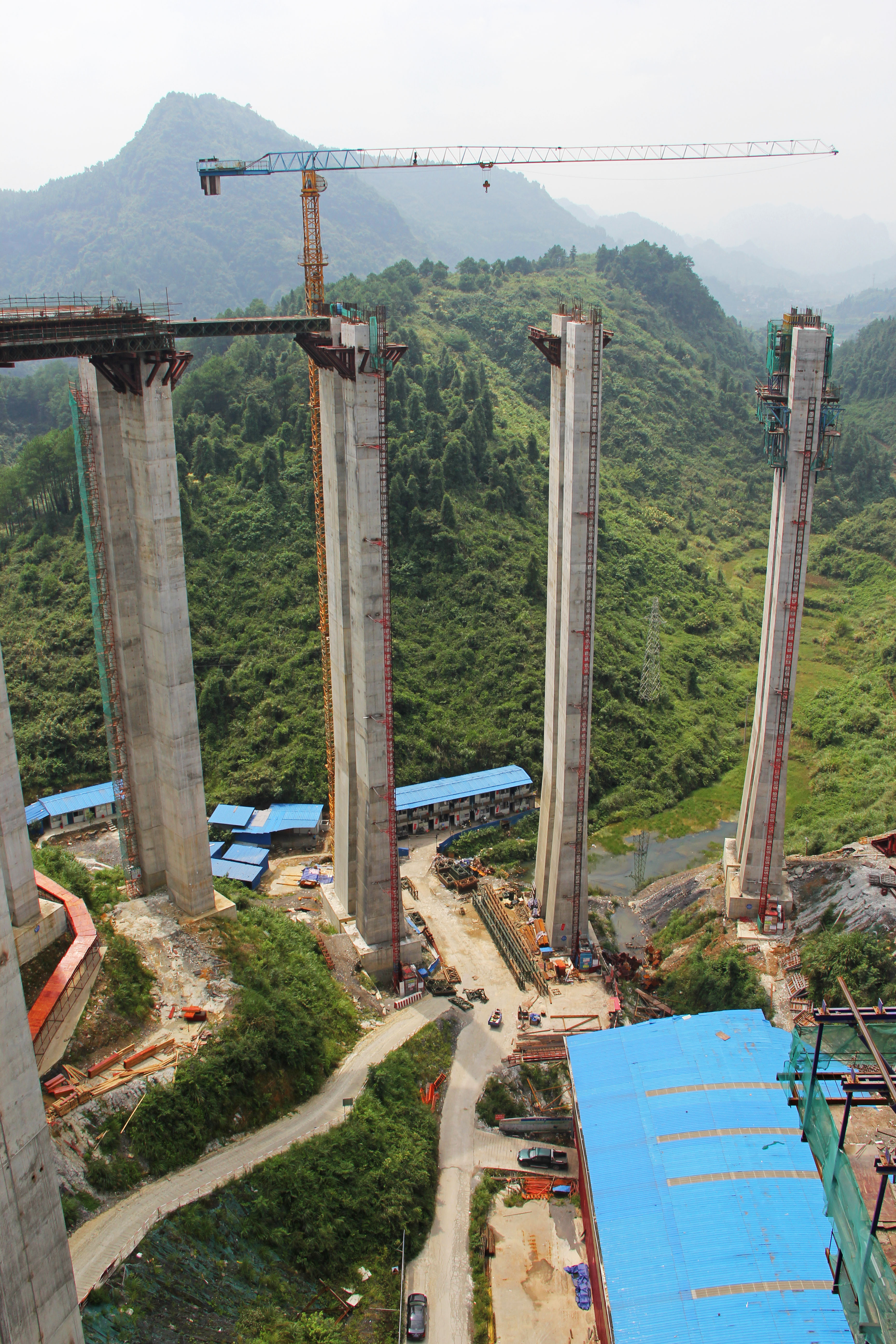

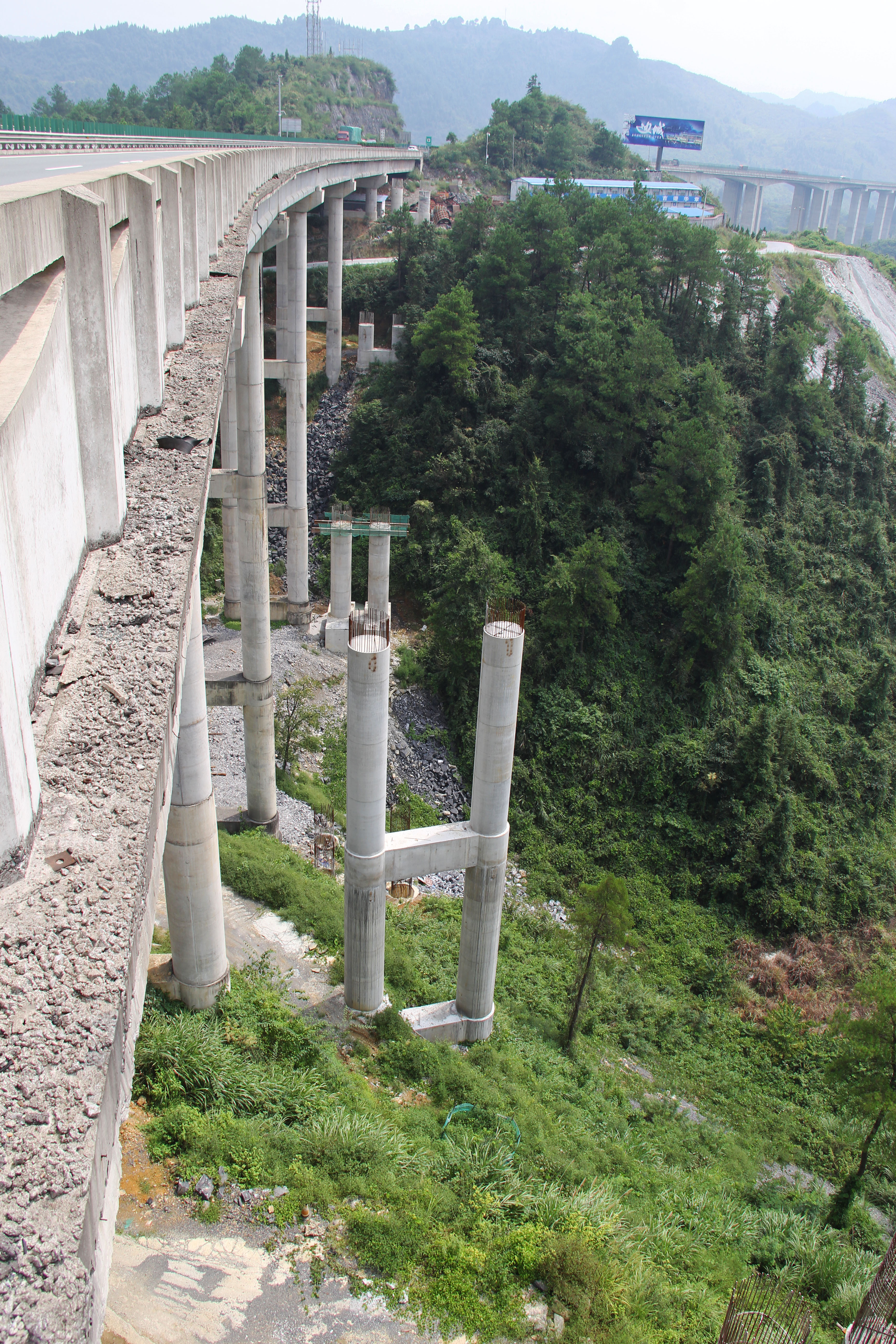

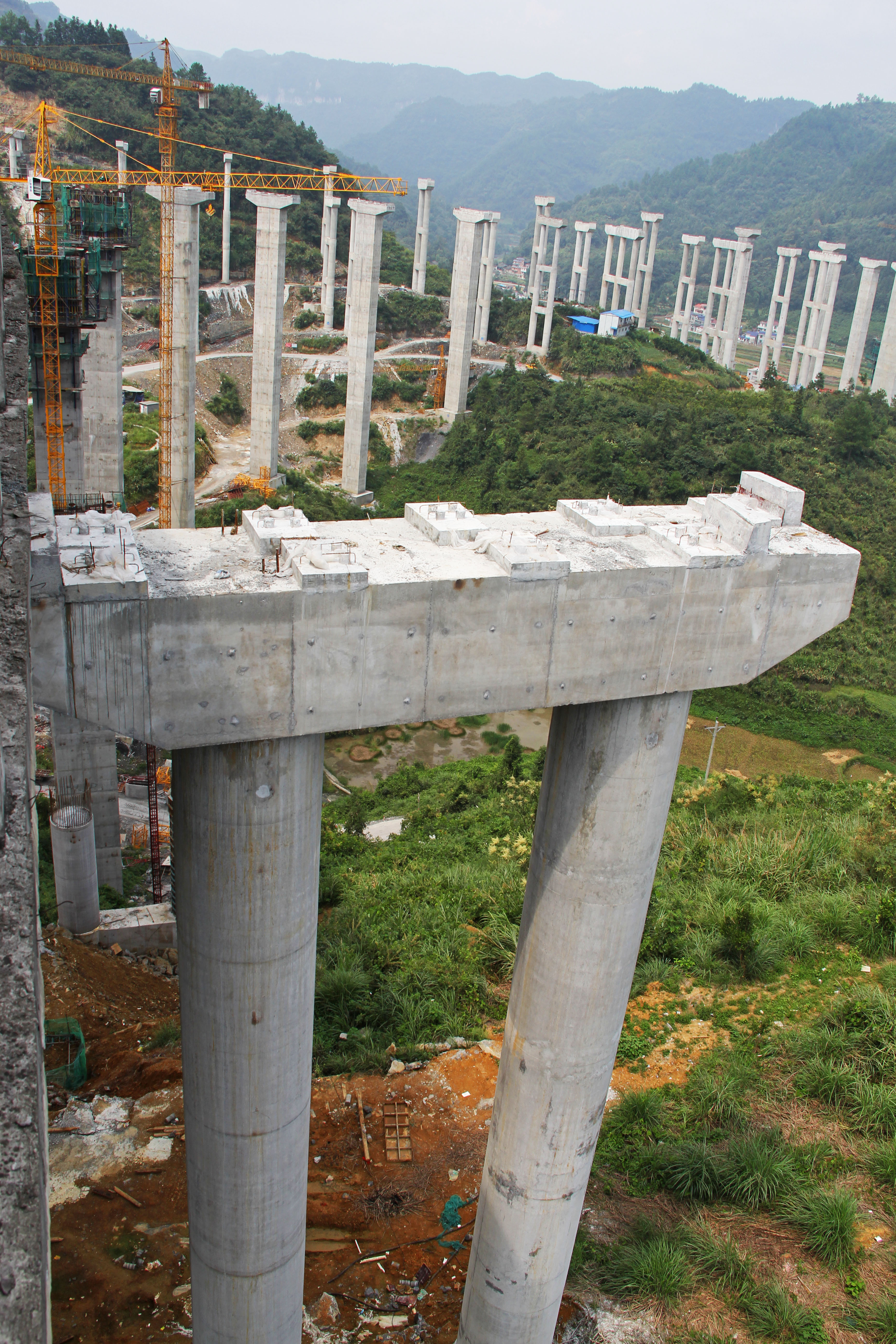

Piers for the exit from the Northbound G65 to the Northbound S99 Yongshun Expressway. Image by Eric Sakowski / HighestBridges.com

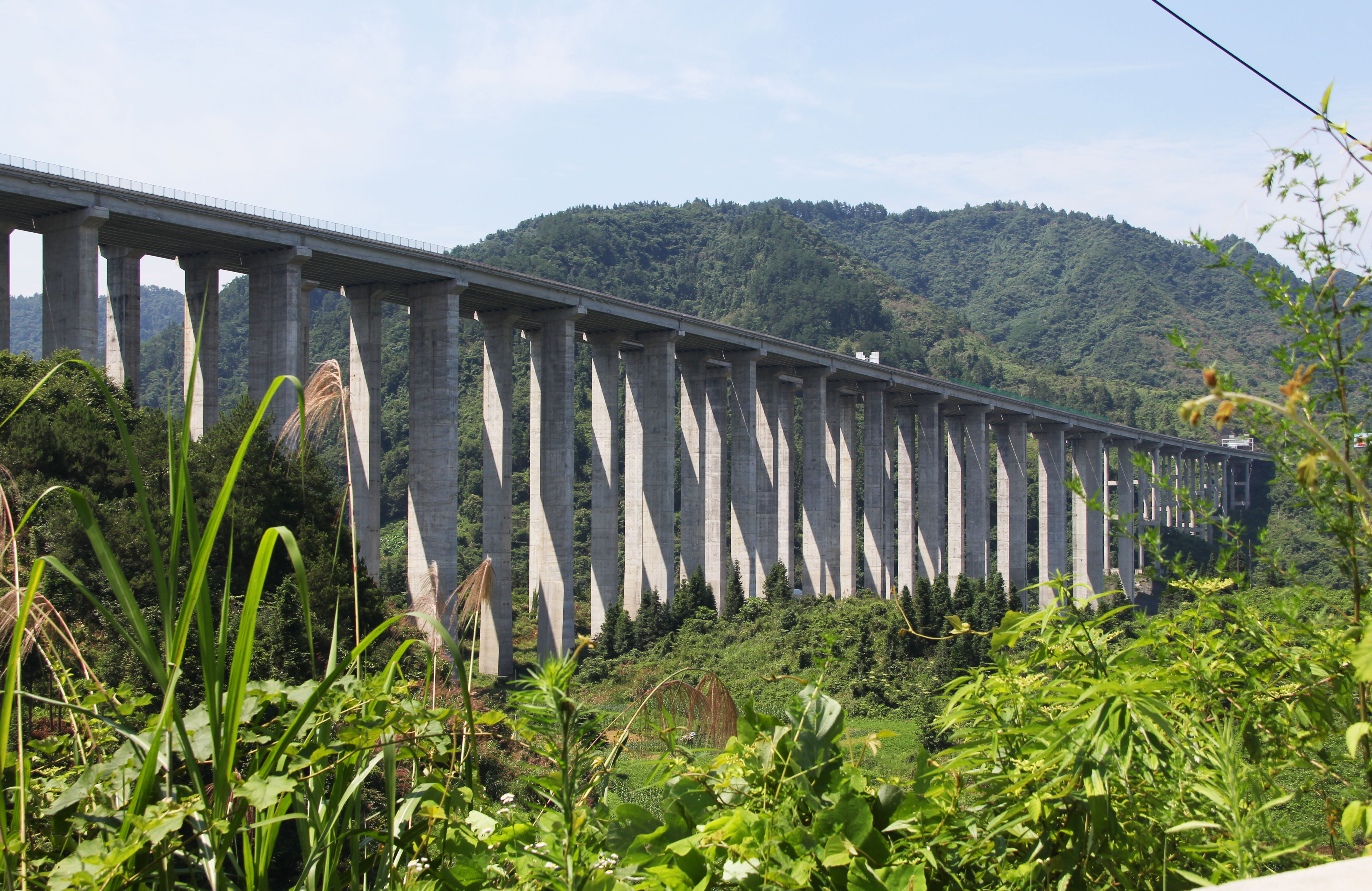

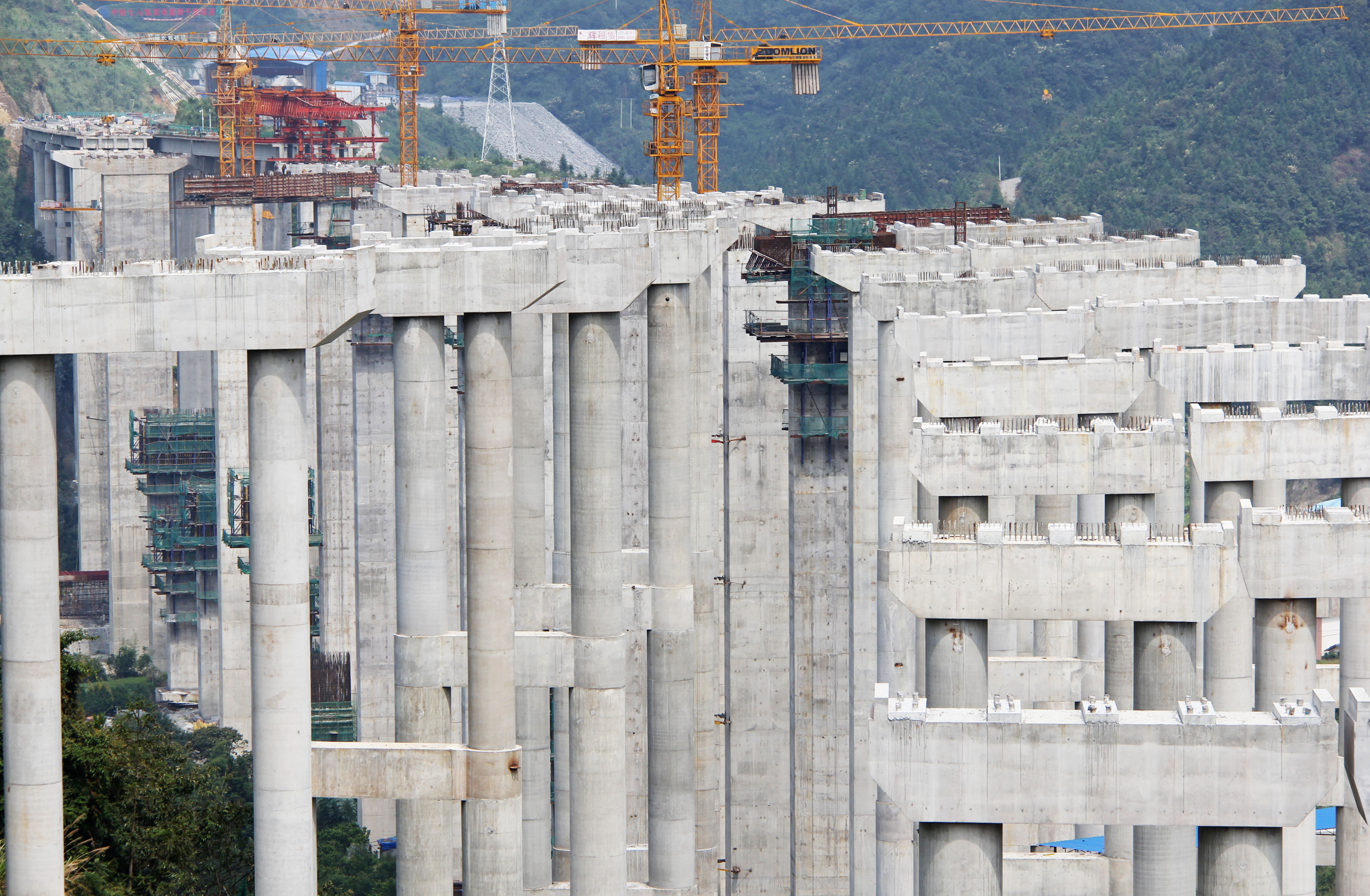

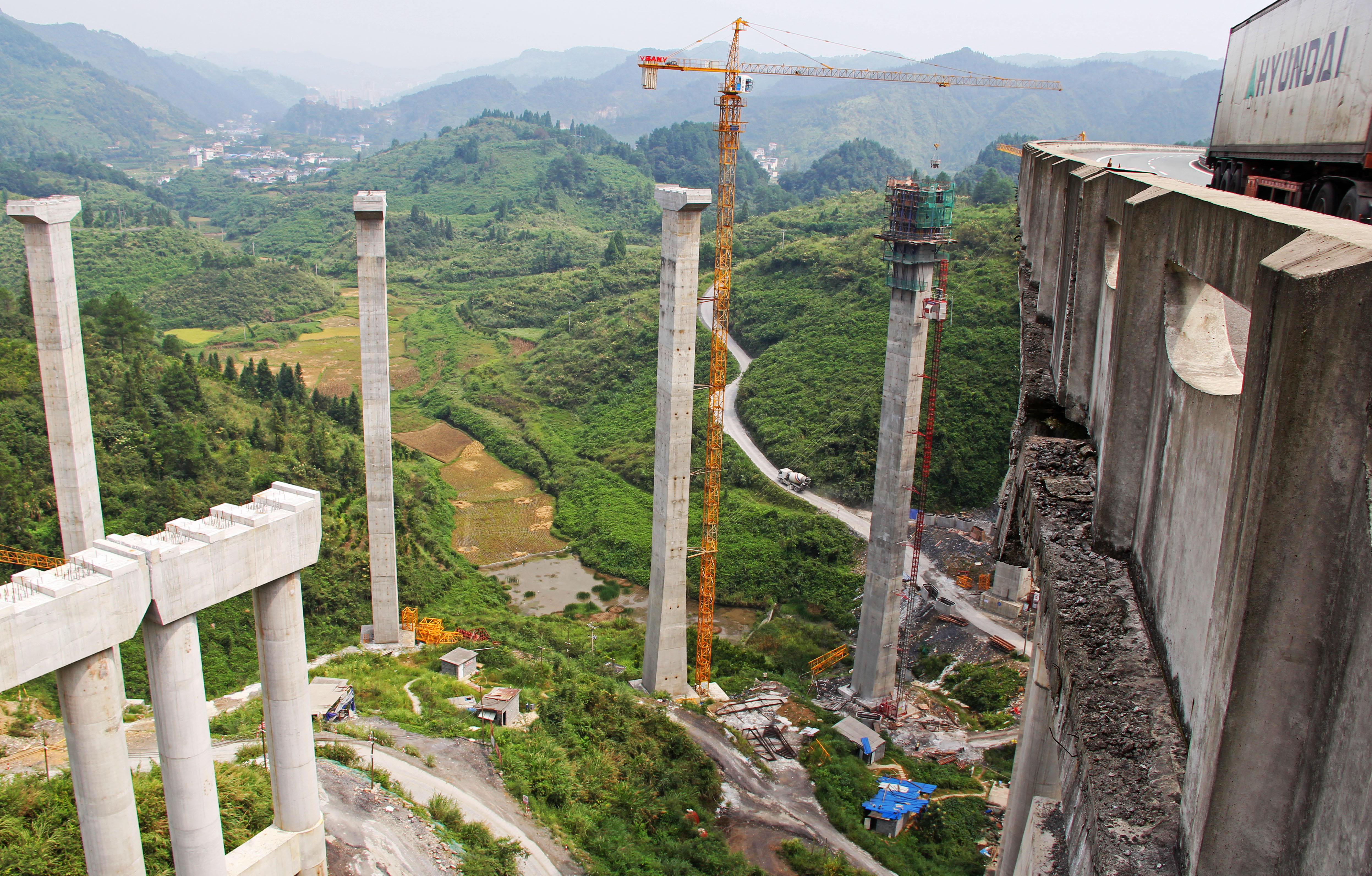

The colossal series of spans on the beginning Northbound section of the Yongshun Expressway. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com





Piers for the exit from the Yongshun Expressway to the Northbound G65 Expressway. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

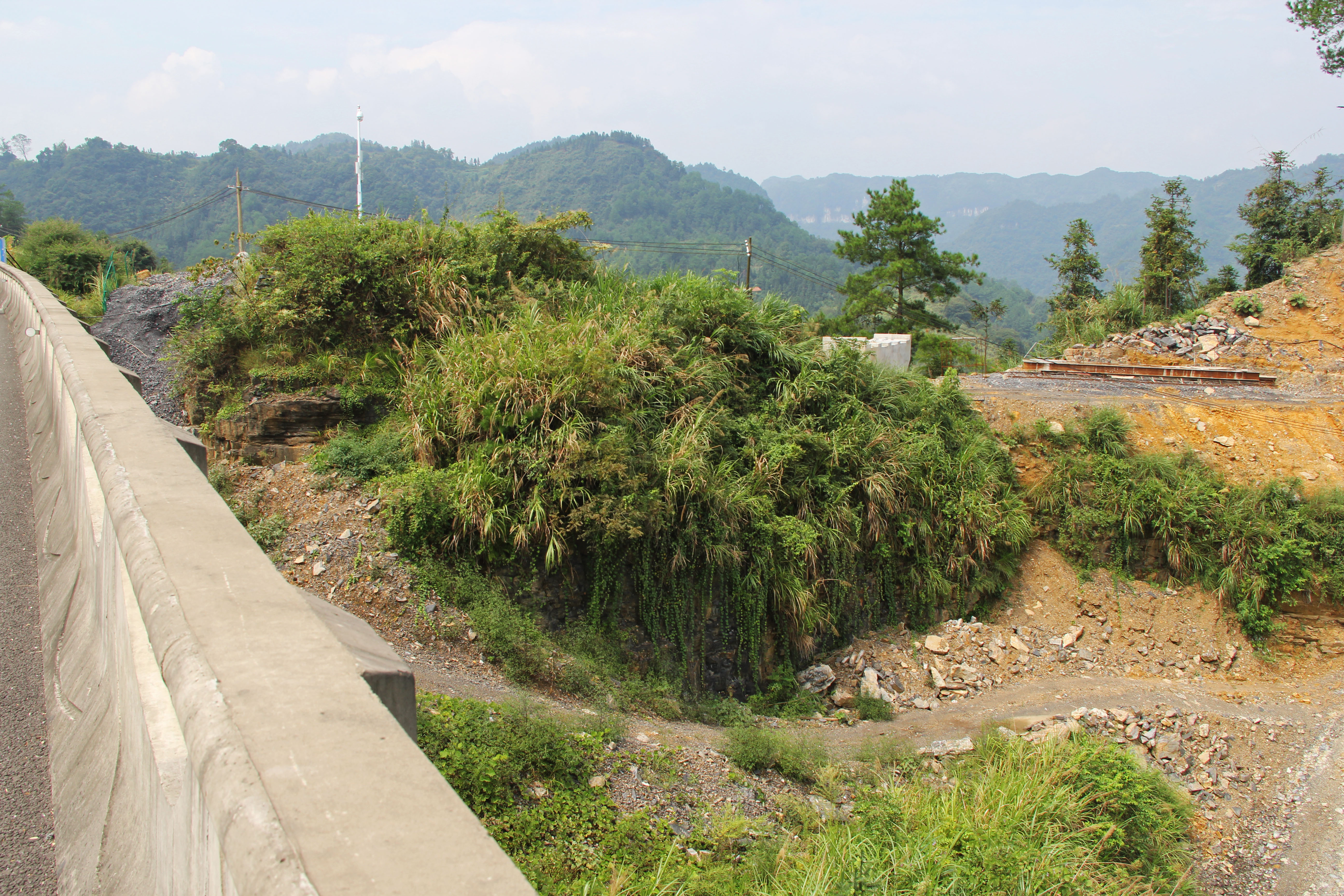

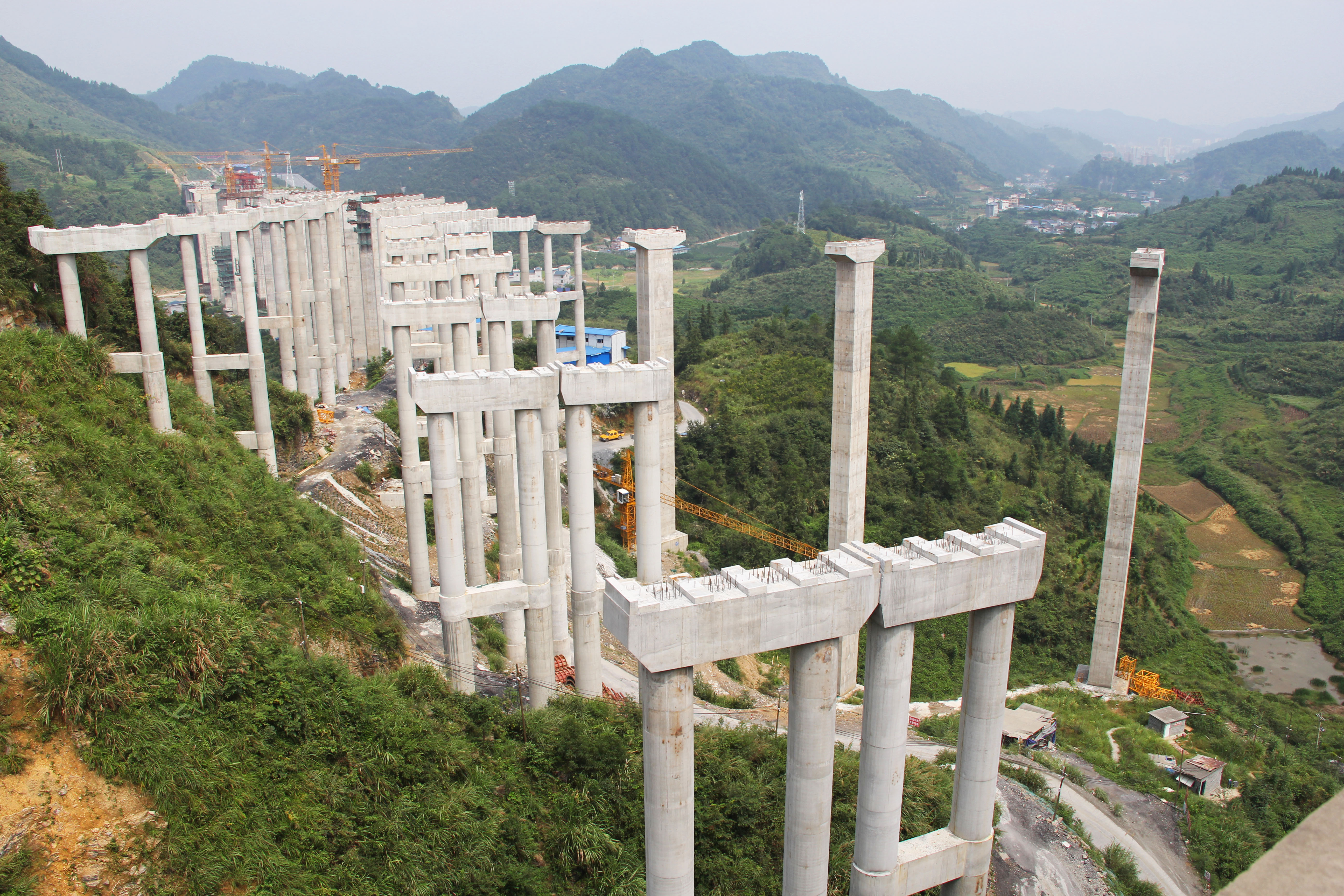

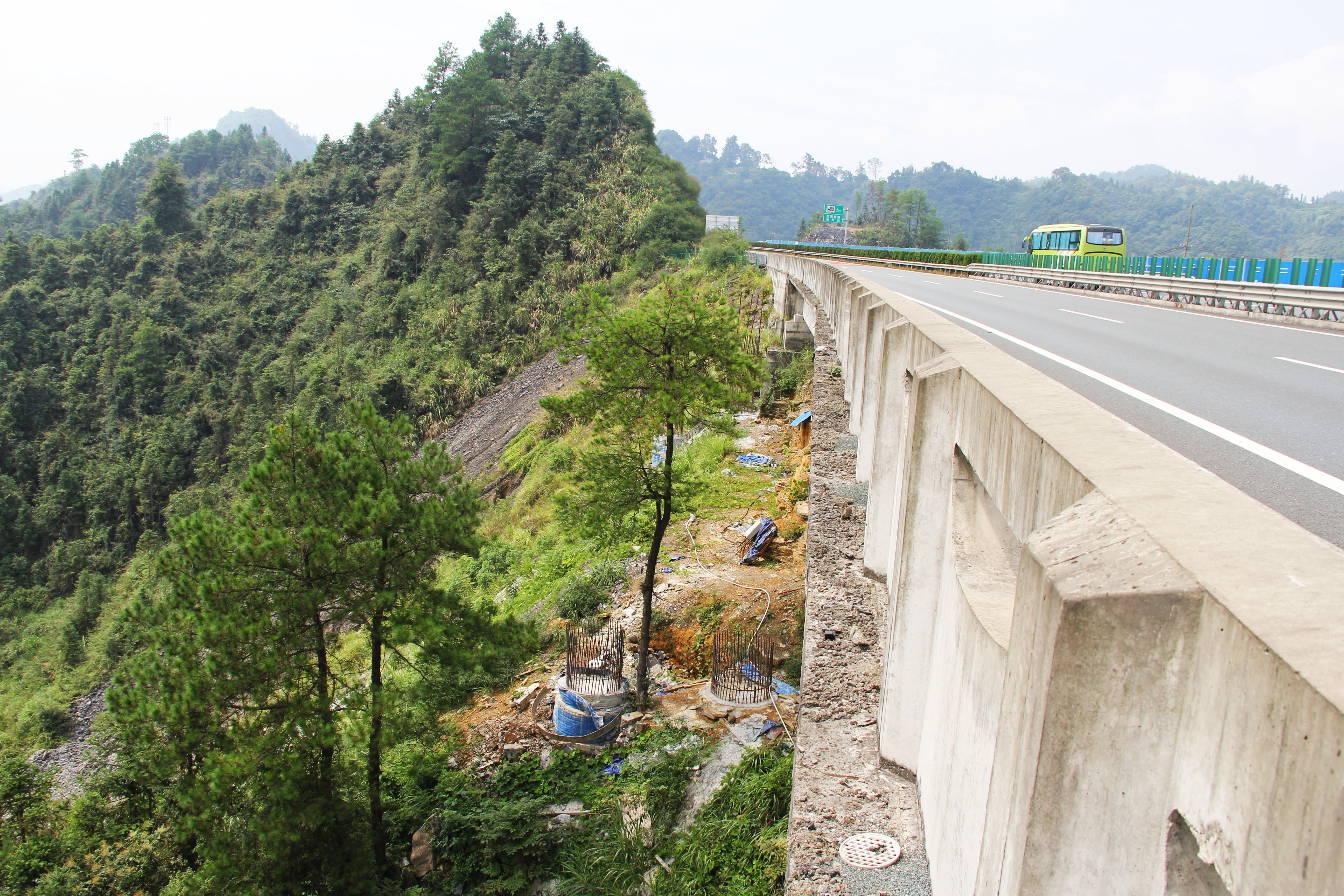

Note foundations for the start of the southbound exit lane from the G65 Expressway to the S99 Yongshun Expressway. Image by Eric Sakowski / HighestBridges.com

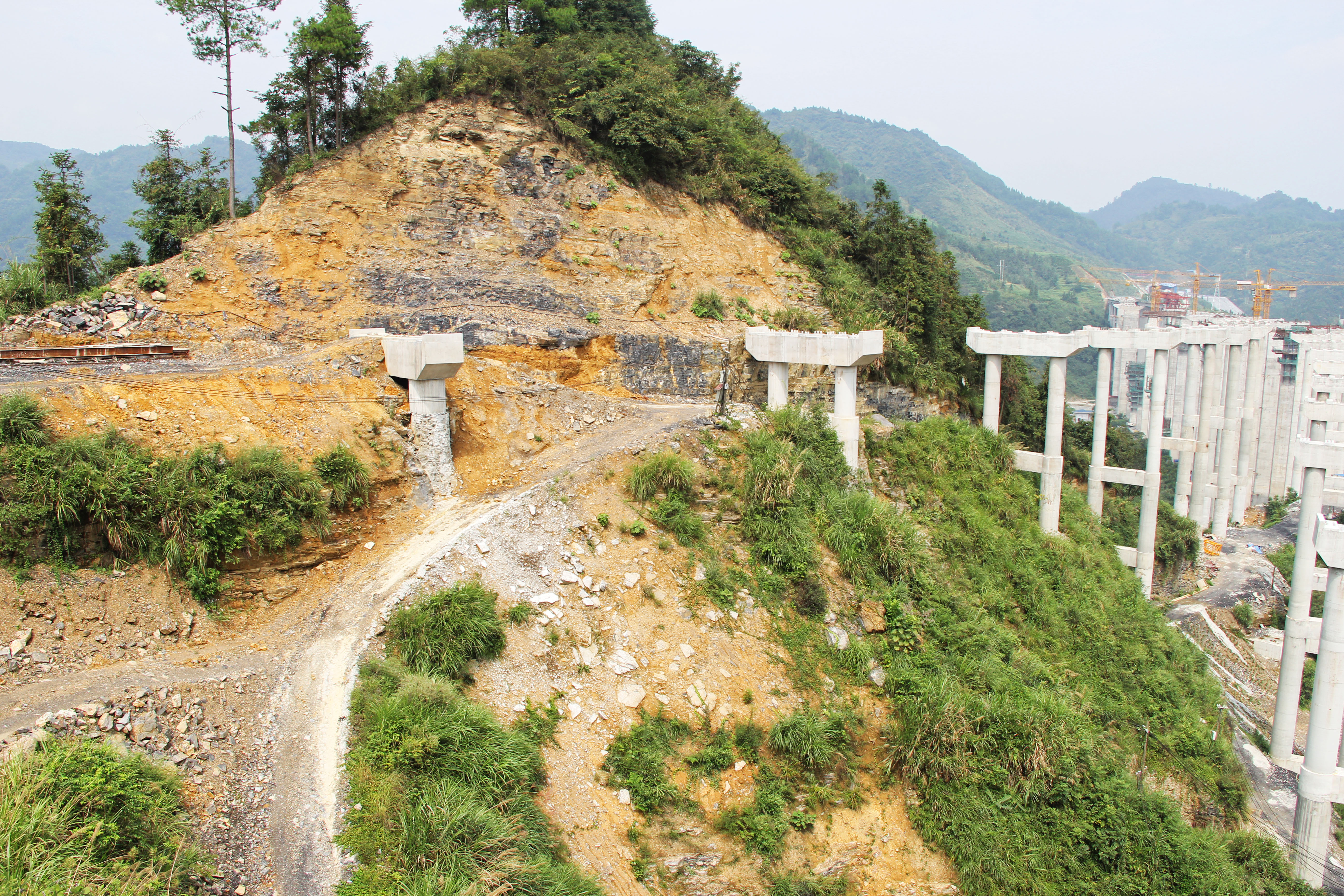

Low pier construction on the exit transition from the Yongshun Expressway to the northbound G65 Expressway. Image by Eric Sakowski / HighestBridges.com



Piers from the entry ramp that will transition from the Yongshun Expressway to the southbound G65 Expressway. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Shijiazhai Bridge location map.
