Tongzhuanghe Bridge
童庄河特大桥
Xiangxizhen, Hubei, China
443 feet high / 135 meters high
1,050 foot span / 320 meter span
2018

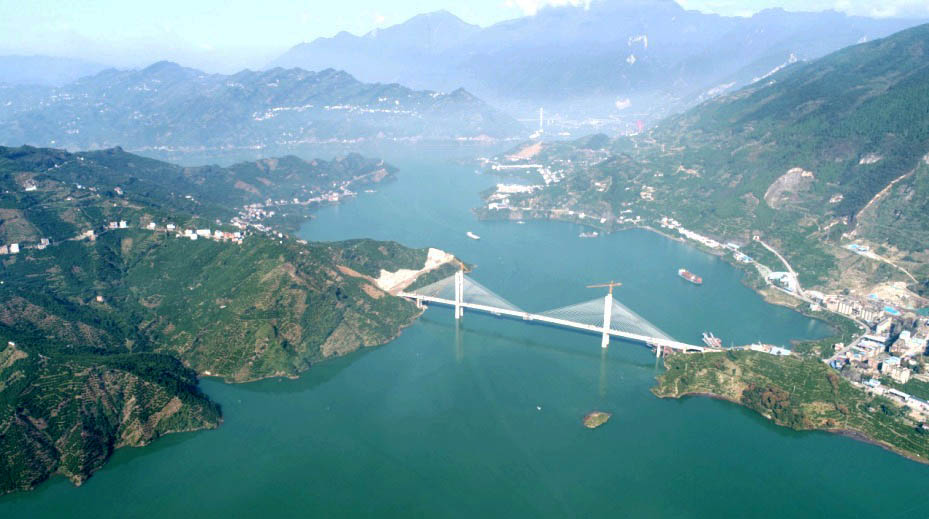

Tongzhuanghe Bridge is one of Hubei Province's smallest two tower cable stayed bridges with a main span of 320 meters. Built across a tributary river of the Yagntze that is largely under Three Gorges reservoir water, the Tongzhuanghe Bridge is part of a triangle of 3 new bridges that include the Xiangxi Yangtze River arch bridge and the Xiangxihe cable stayed bridge just a few kilometers to the north on a similarly submerged tributary of the Yangtze River.

Tongzhuanghe Bridge was originally designed as a 240 meter span beam bridge but aesthetics and having to build piers in the deep waters of the 3 Gorges reservoir were likely the reasons for the switch to a cable stayed bridge.






777Tongzhuanghe8 copy.JPG

Image by Eric Sakowski / HighestBridges.com


778Tongzhuanghe10 copy.JPG

Image by Eric Sakowski / HighestBridges.com

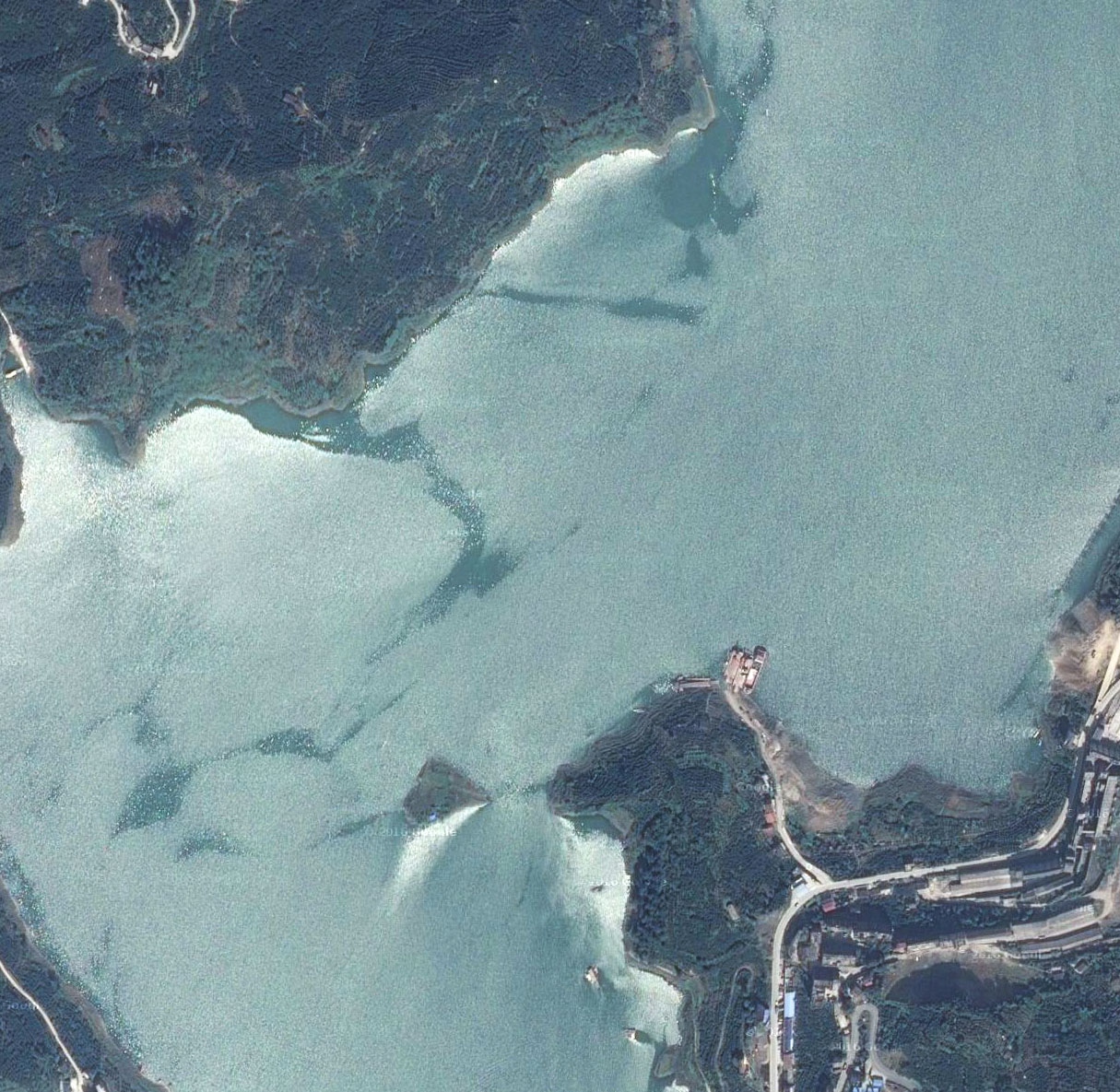

Tongzhuanghe Bridge satellite image.

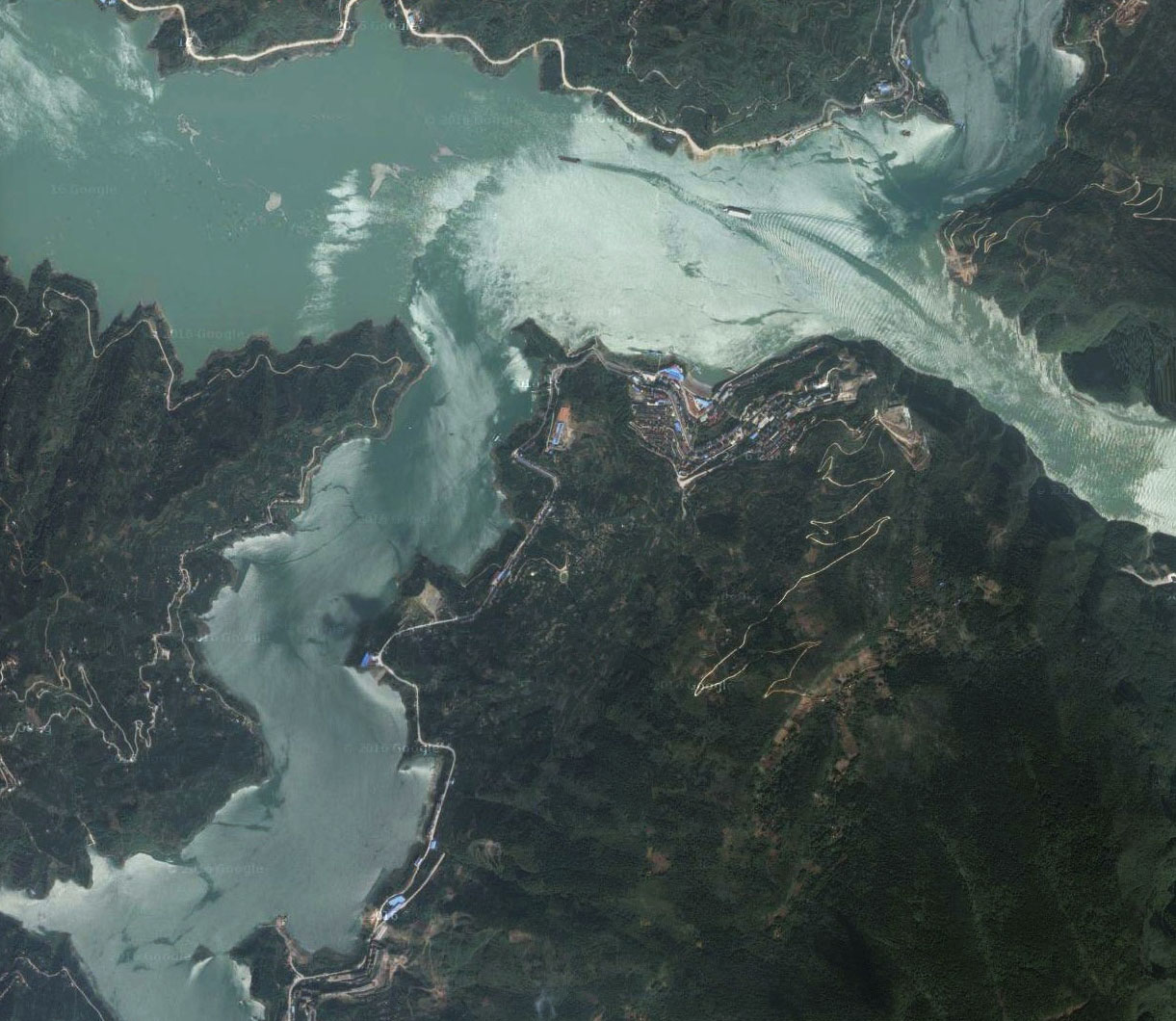

Tongzhuanghe Bridge location map.
