Xiaojiang Bridge
小江河特大桥
Tongren, Guizhou, China
410 feet high / 125 meters high
525 foot span / 160 meter span
2013



Stretching 2,935 kilometers across central China, the G56 Hangzhou-Ruili Expressway is loaded with high bridges, many of them prestressed beam spans. The greatest concentration of them are in Guizhou Province beginning in the east with the Xiaojiang Bridge just north of Tongren City.

The large viaduct crosses not only the Xiao River but also local road S201 and a railway line. The 842 meter long structure has a span configuration of 5x30 +85+3x160+85 +30 meters atop piers as tall as 102 meters.

The main spans are composed of single-cell box beams 12.25 meters wide and 6.5 meters wide at the bottom. The beam is 10 meters deep over the pier and 3.2 meters deep at midspan. The roadway is 11.25 meters wide.



Xiaojiang Bridge Elevation



Image by Peter Wu.


218Xiaojiang BridgeByFilmer.jpg

Image by John Filmer.



Image by John Filmer.



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

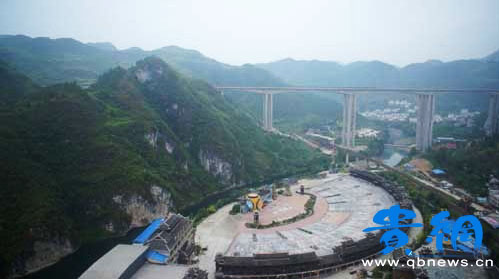

Image by www.qbnews.cn.









Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

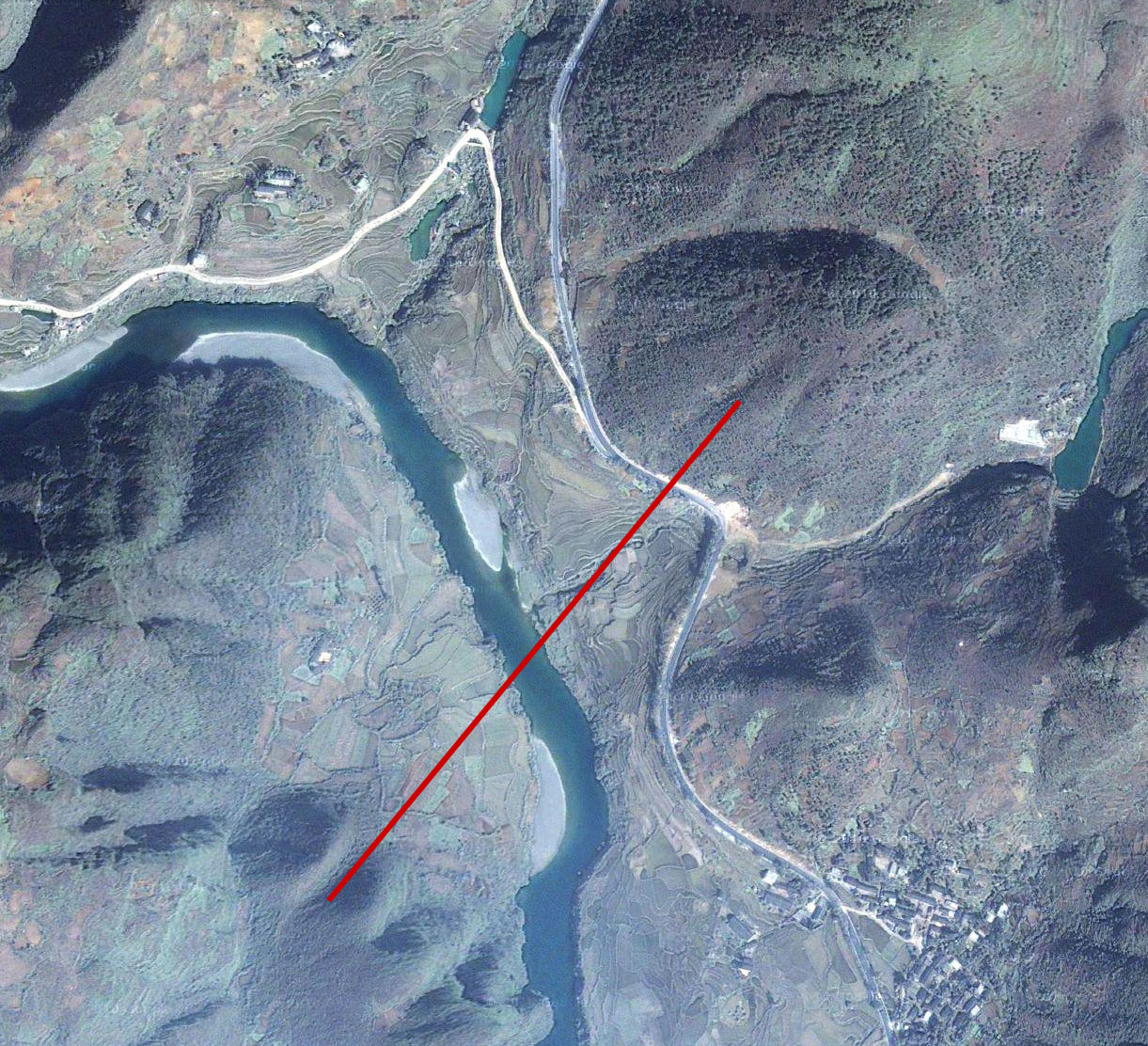

Xiaojiang Bridge satellite image.

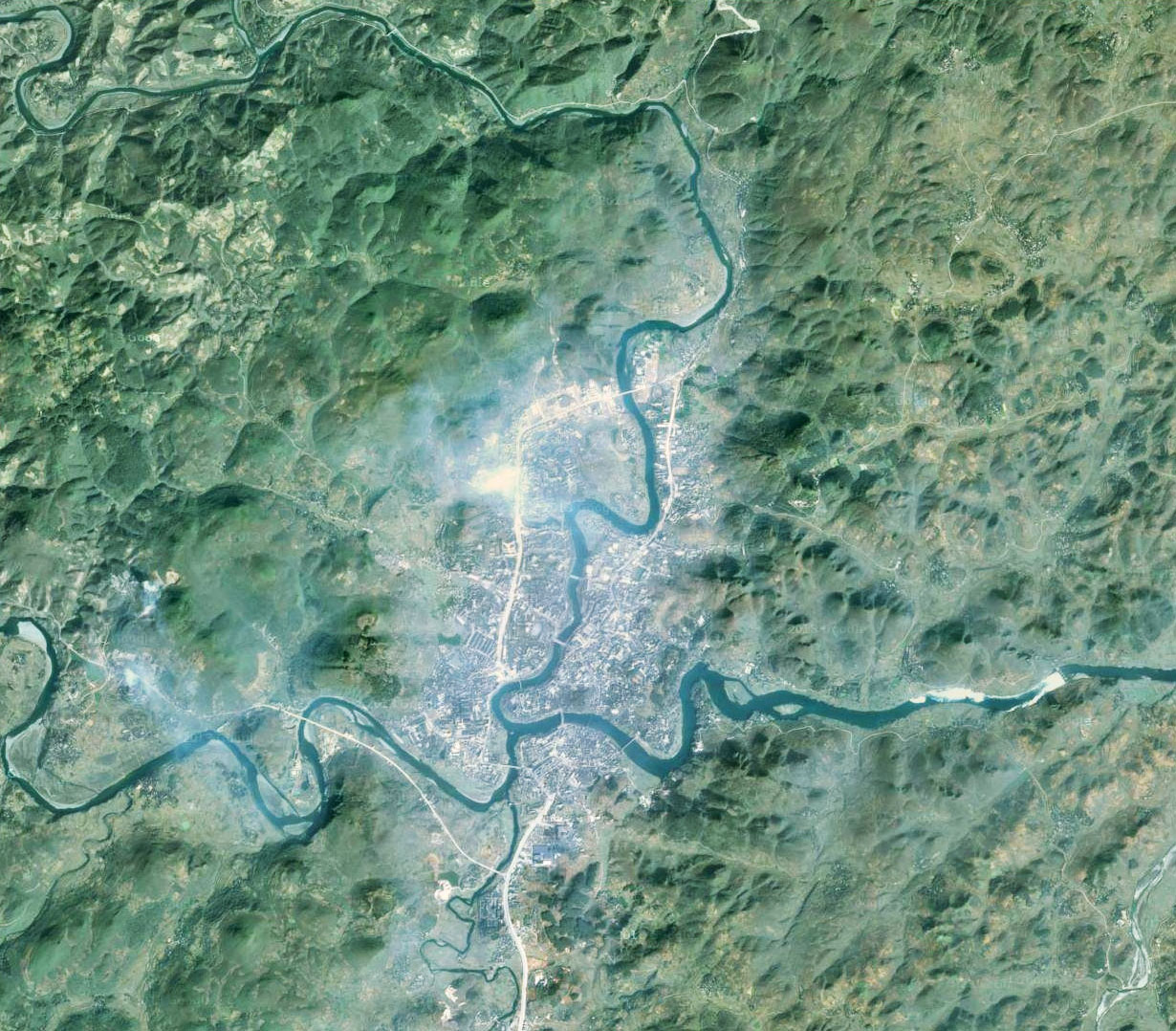

Xiaojiang Bridge location map.
