Yunwu Bridge

From HighestBridges.com
Jump to: navigation, search

Yunwu Bridge
云雾大桥
Yaoshangxiang, Guizhou, China
771 feet high / 235 meters high
1,575 foot span / 480 meter span
2021



Yunwu Bridge may not be the most famous high bridge in Guizhou Province but this cable stayed giant should not be ignored with two of the tallest bridge structures in the world. The 300 meter tall West tower is one of a rare group of only a dozen bridge "skyscrapers" in existence to reach the 300 meter threshold.

The 1,720 meter long structure has a span configuration of 12x40 +215+480+215 +12x40 meters. The East tower is 273 meters tall. Sometimes known as the Laomianhe Bridge for the river it crosses, the Yunwu Bridge is the largest structure on the Duyun to Anshun expressway in central Guizhou Province. A few kilometers to the east is the giant Changshanhe viaduct that reaches a height of 167 meters.

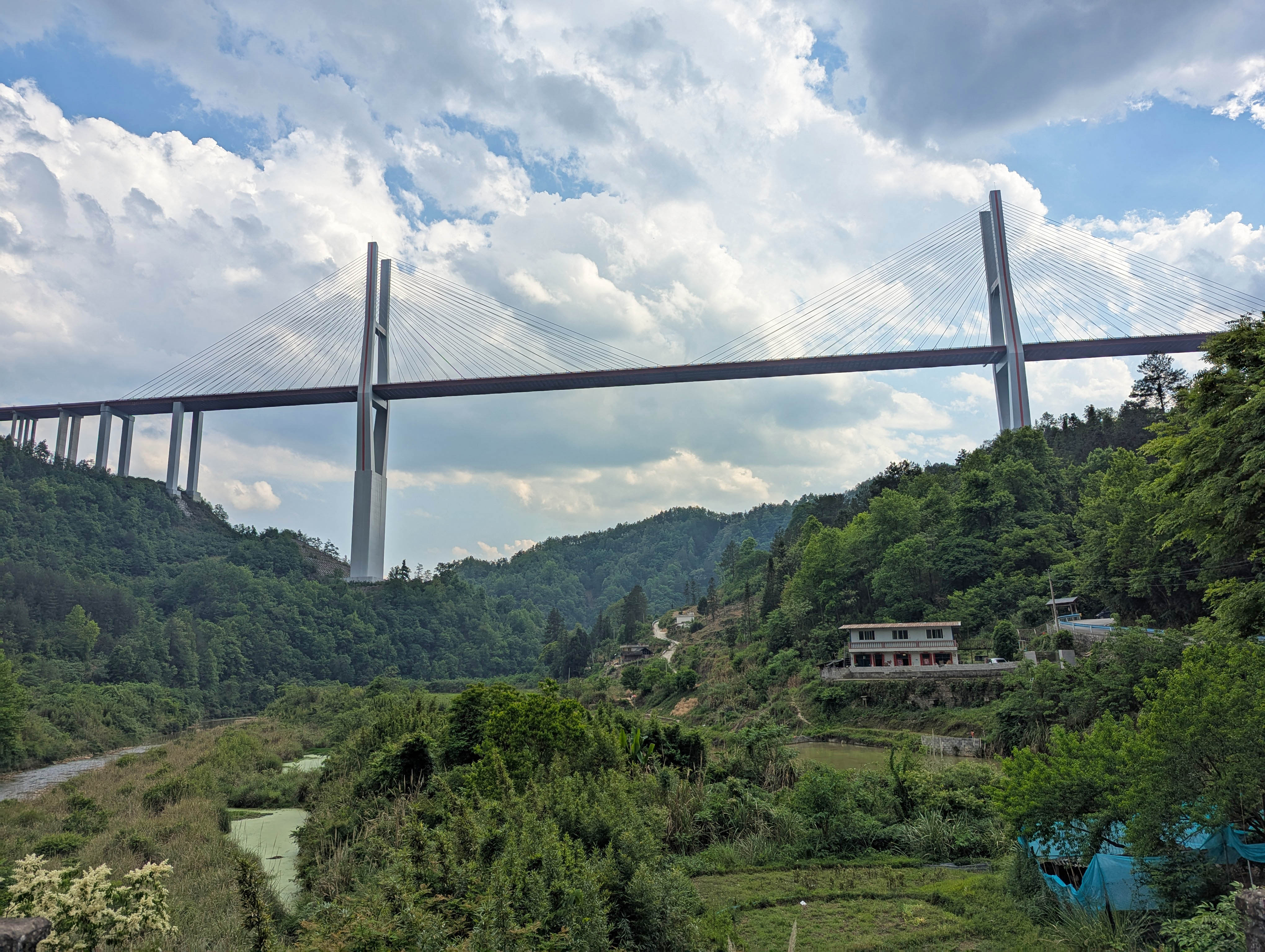

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



The 300 meter tall West Laomianhe Bridge tower.











Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Yunwu Bridge satellite view. Image courtesy of Planet Labs, Inc.



Yunwu Bridge location map.
