Yuyanghe Bridge

Yuyanghe Bridge
渔洋河大桥
Yuyangguanzhen, Hubei, China
(558) feet high / (170) meters high
387 foot span / 118 meter span
2024

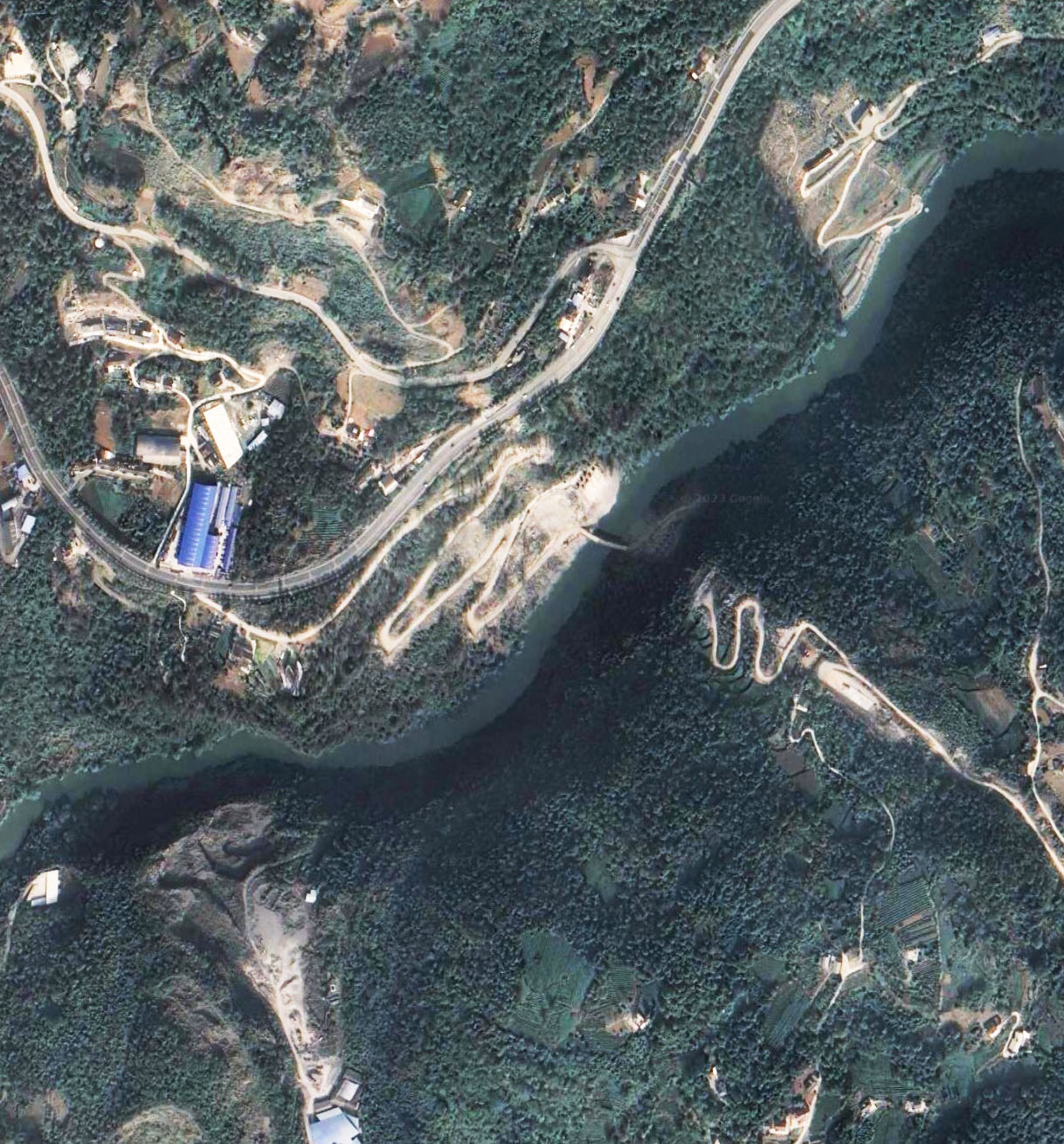

Yuyanghe Bridge crosses a steep and deep section of the G59 Yilai Expressway on the east side of Yuyangguanzhen city in Hubei. The expressway extends all the way from Yibin to Laifeng.

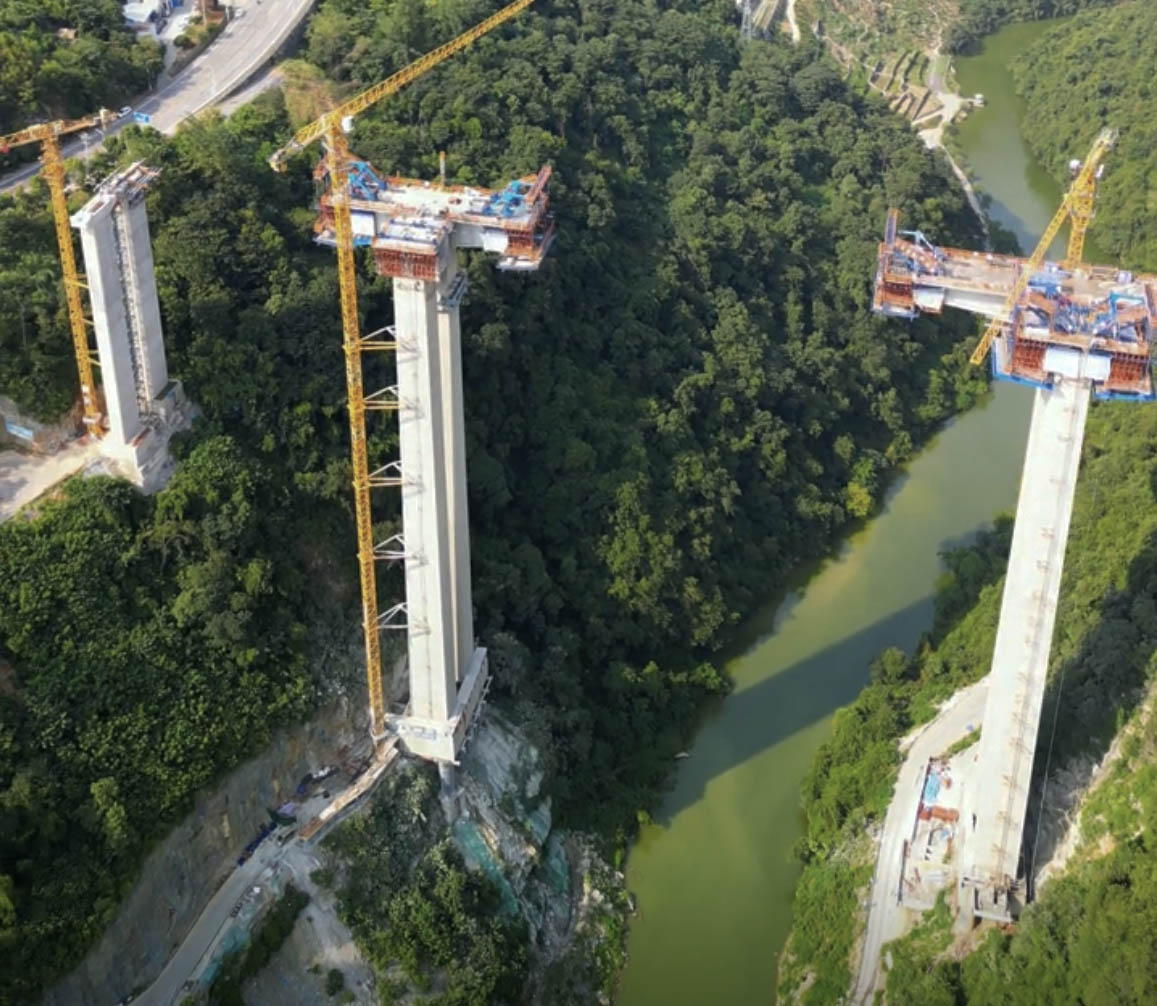

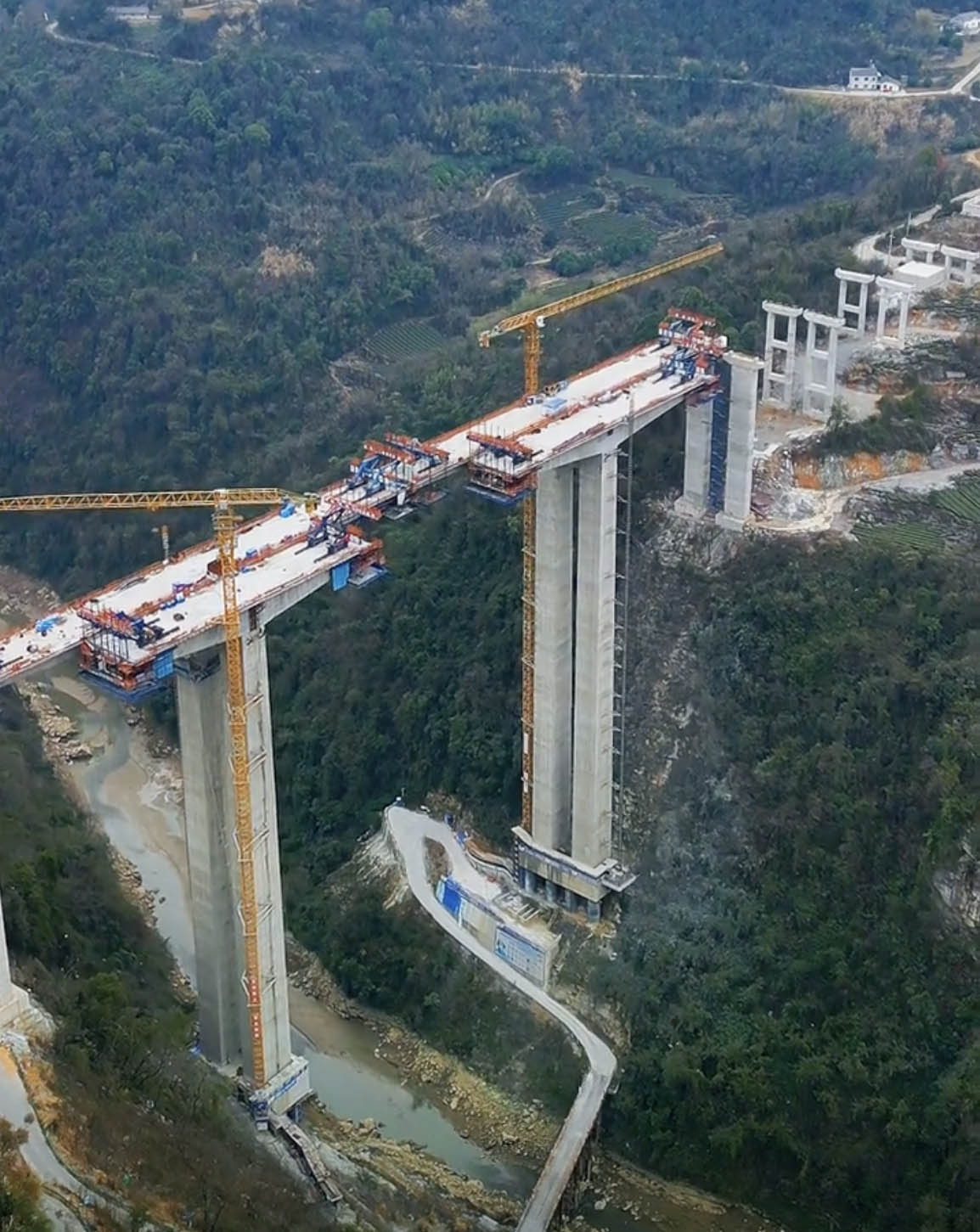

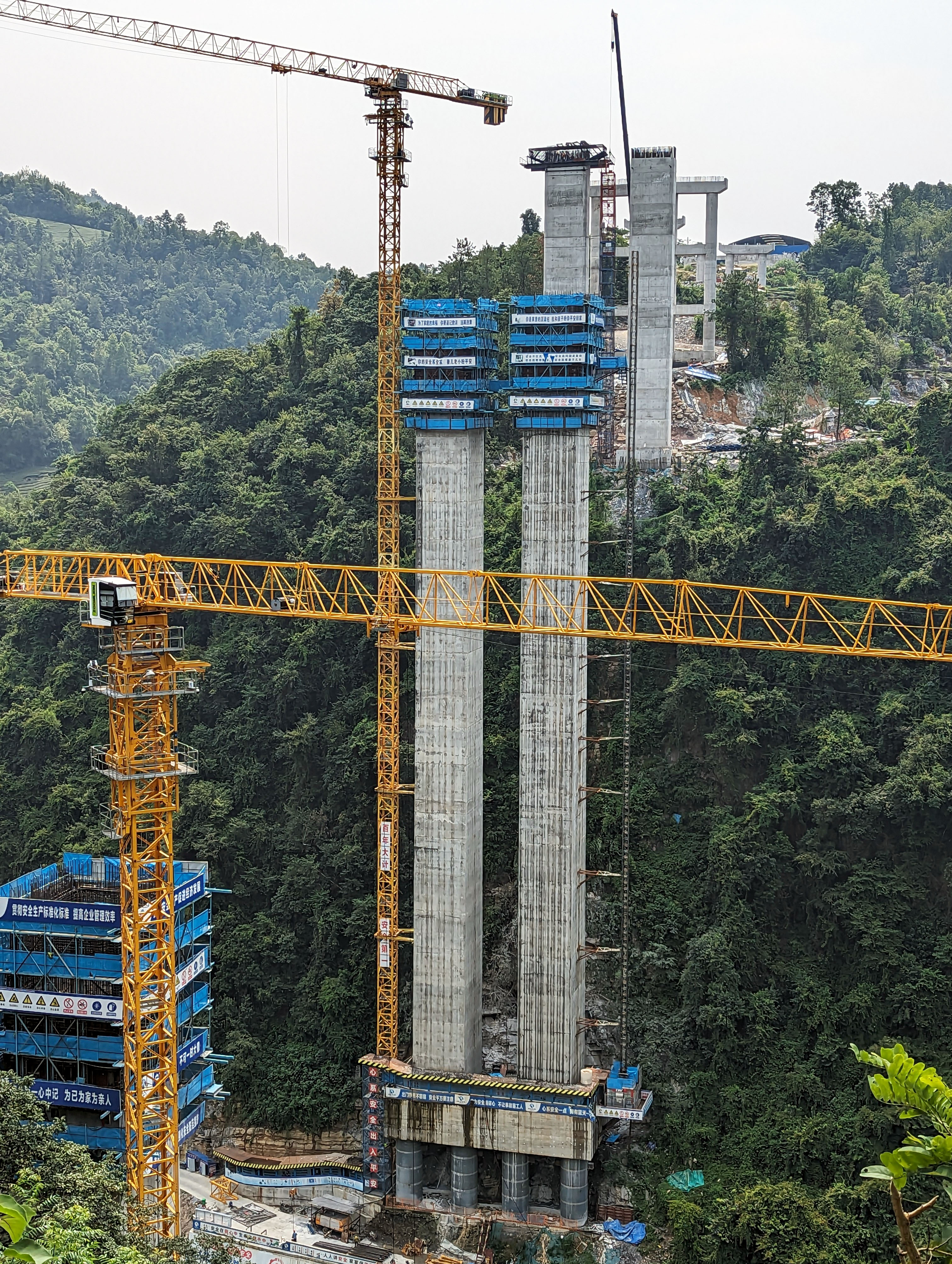

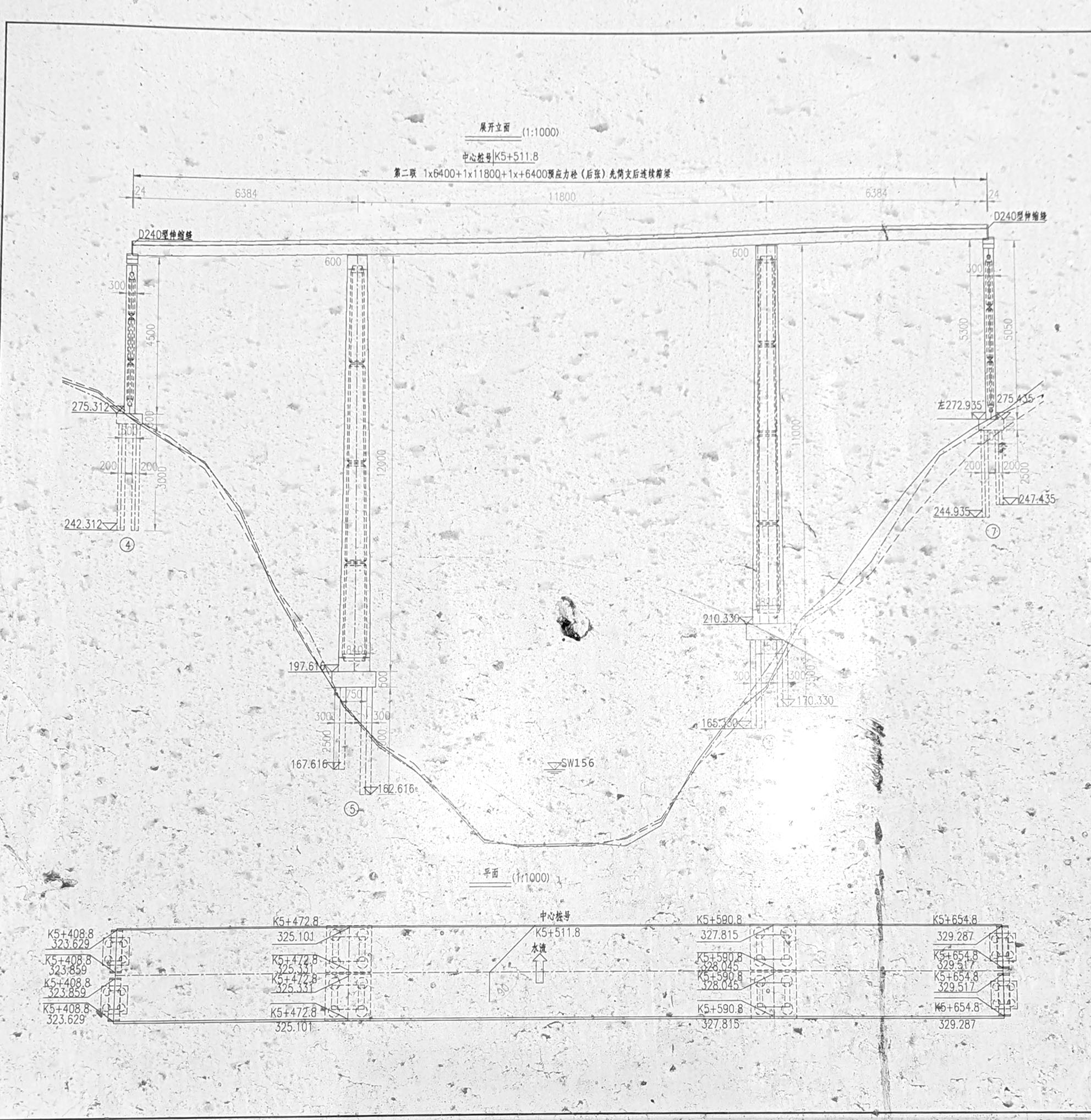

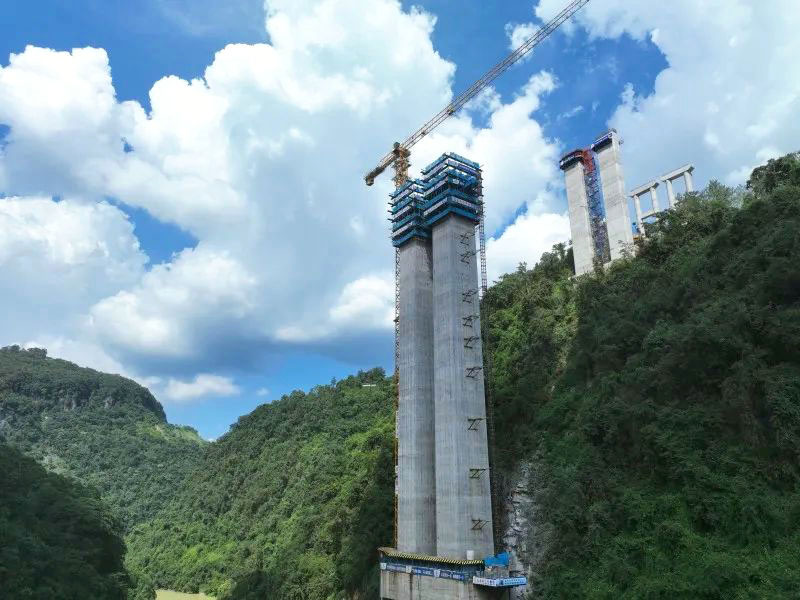

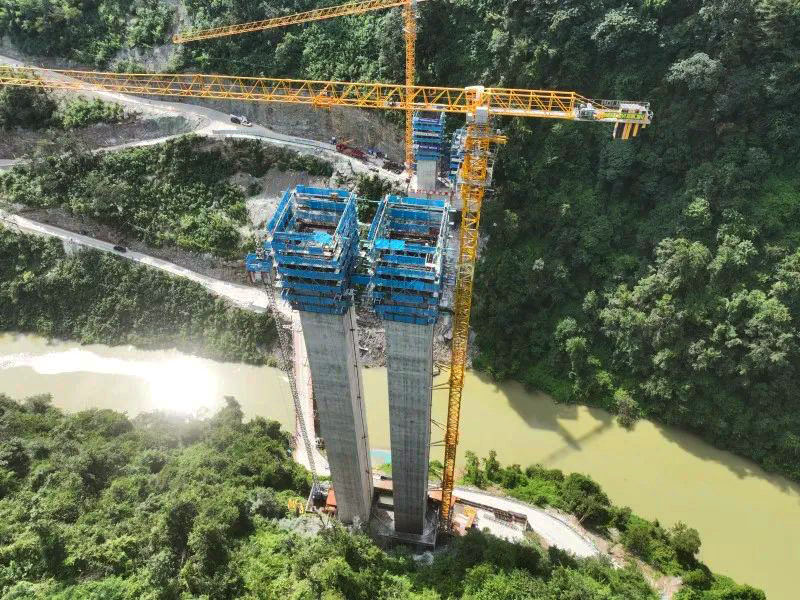

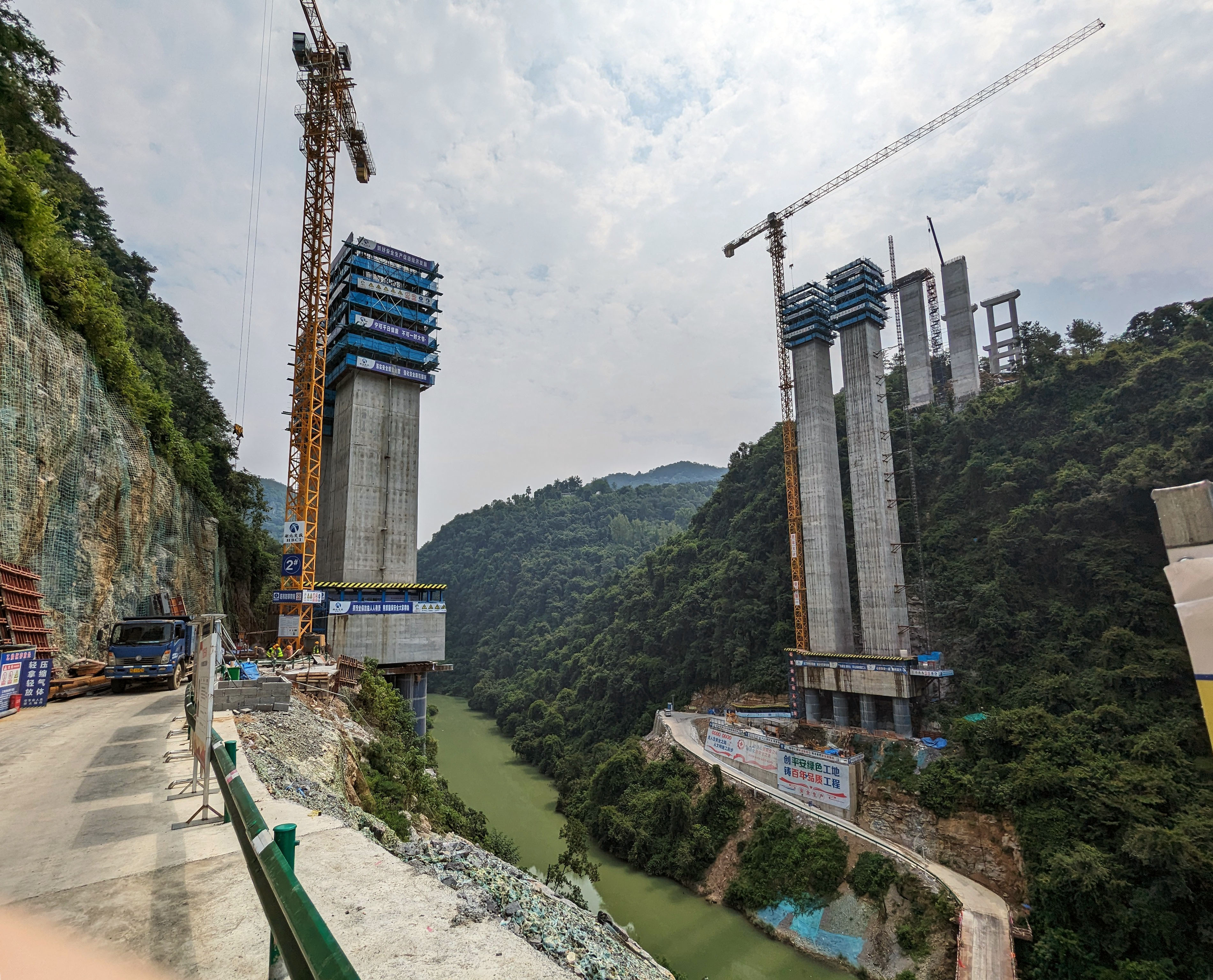

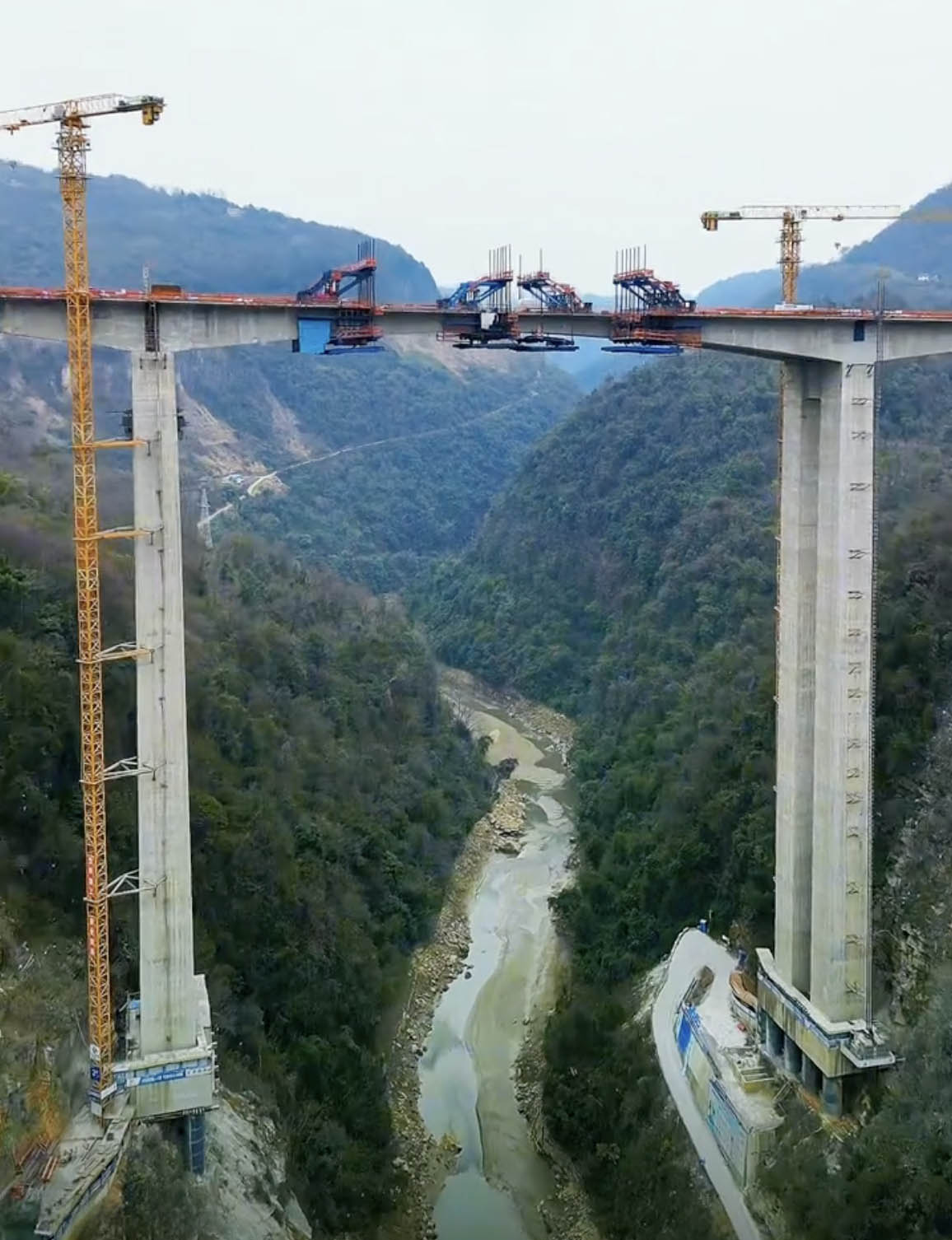

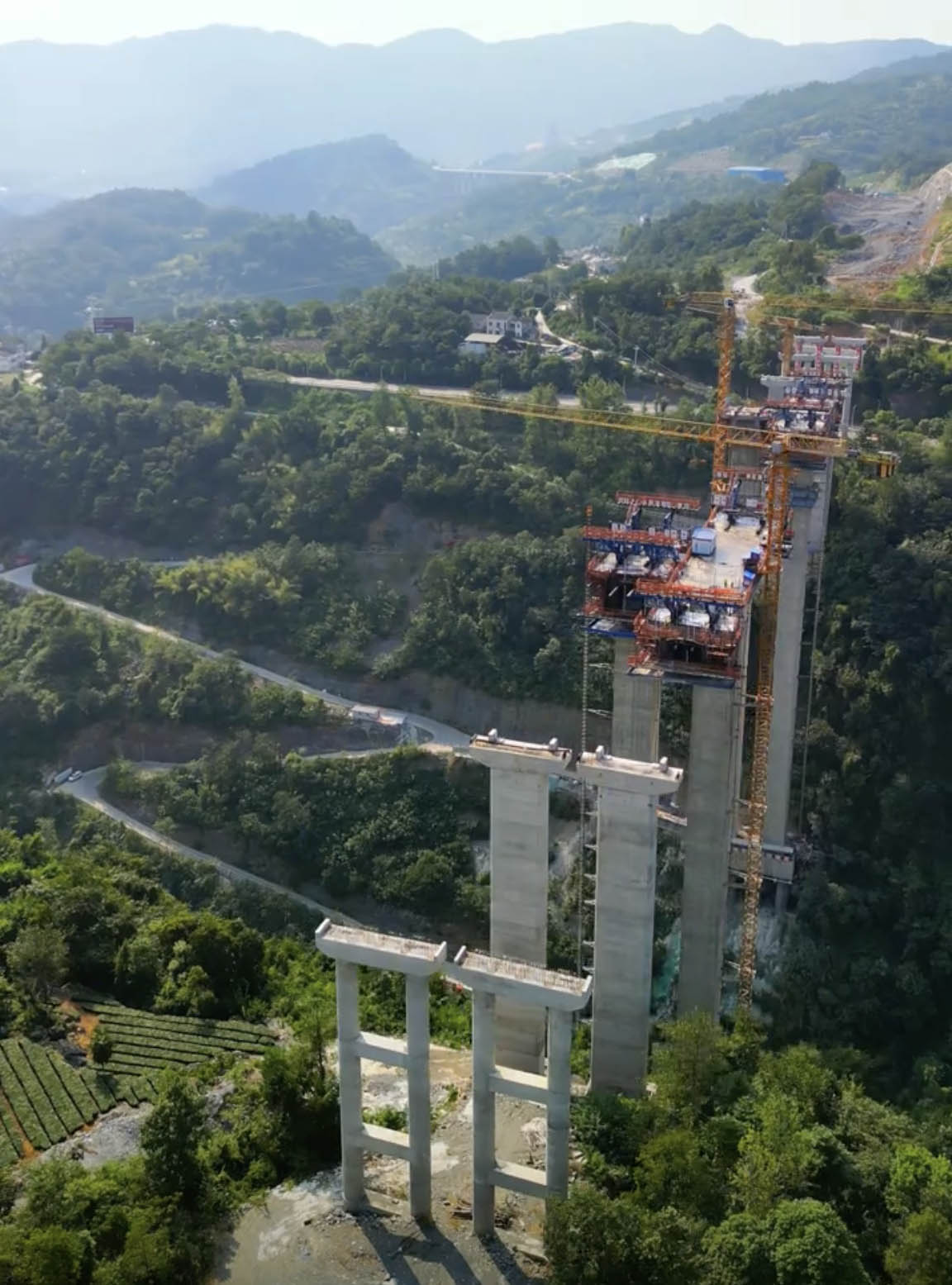

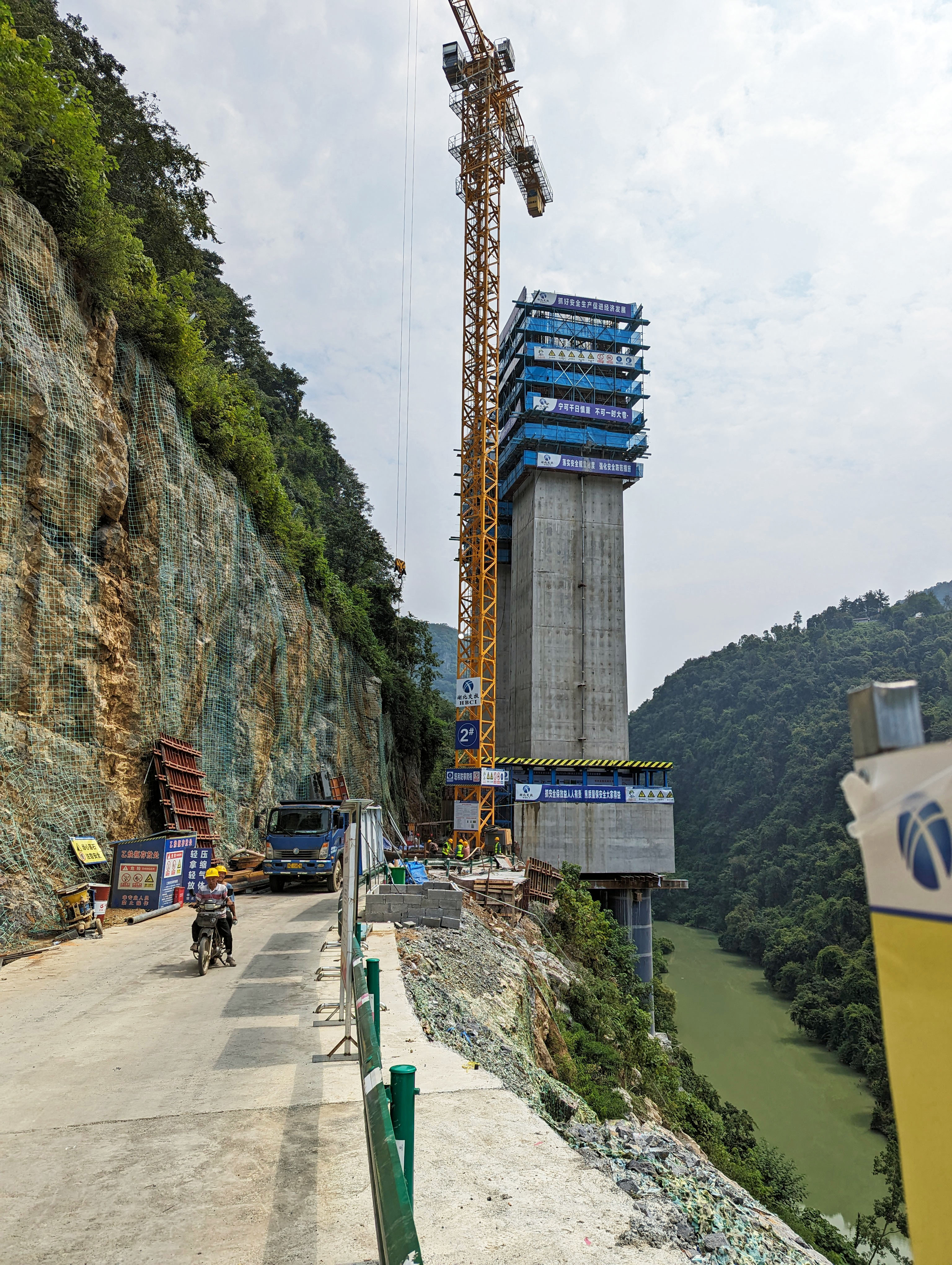

The main span is unique in that it is composed of a steel beam of uniform depth across a span configuration of 64+118+64 meters. The tallest pier is 120 meters.

The lower 20 meters of the canyon are flooded by a downstream dam.
