Zimogeni Bridge
子莫格尼特大桥
Layimuxiang, Sichuan, China
(591) feet high / (180) meters high
591 foot span / 180 meter span
2024

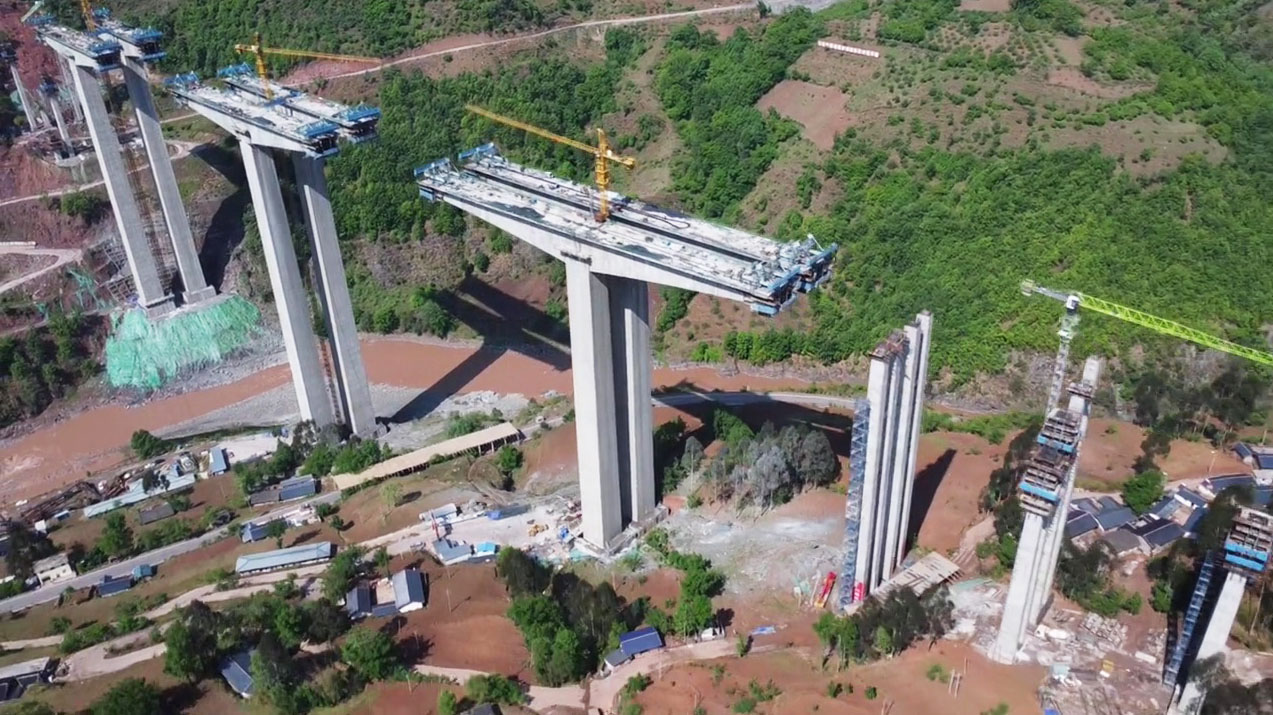

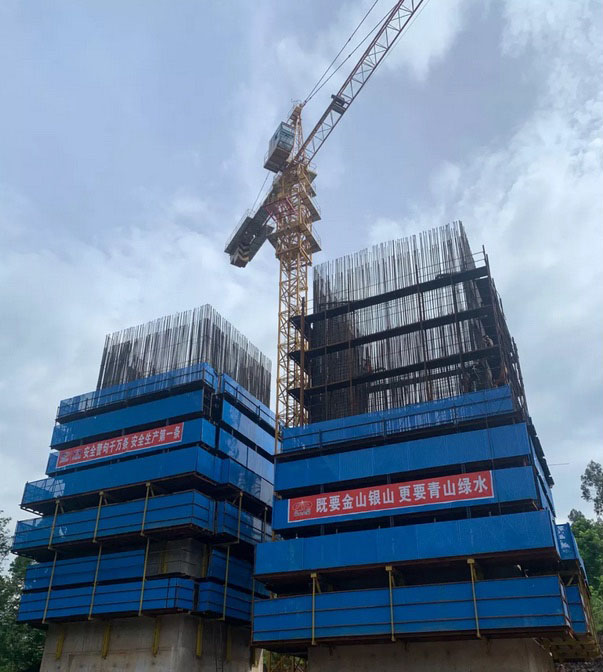

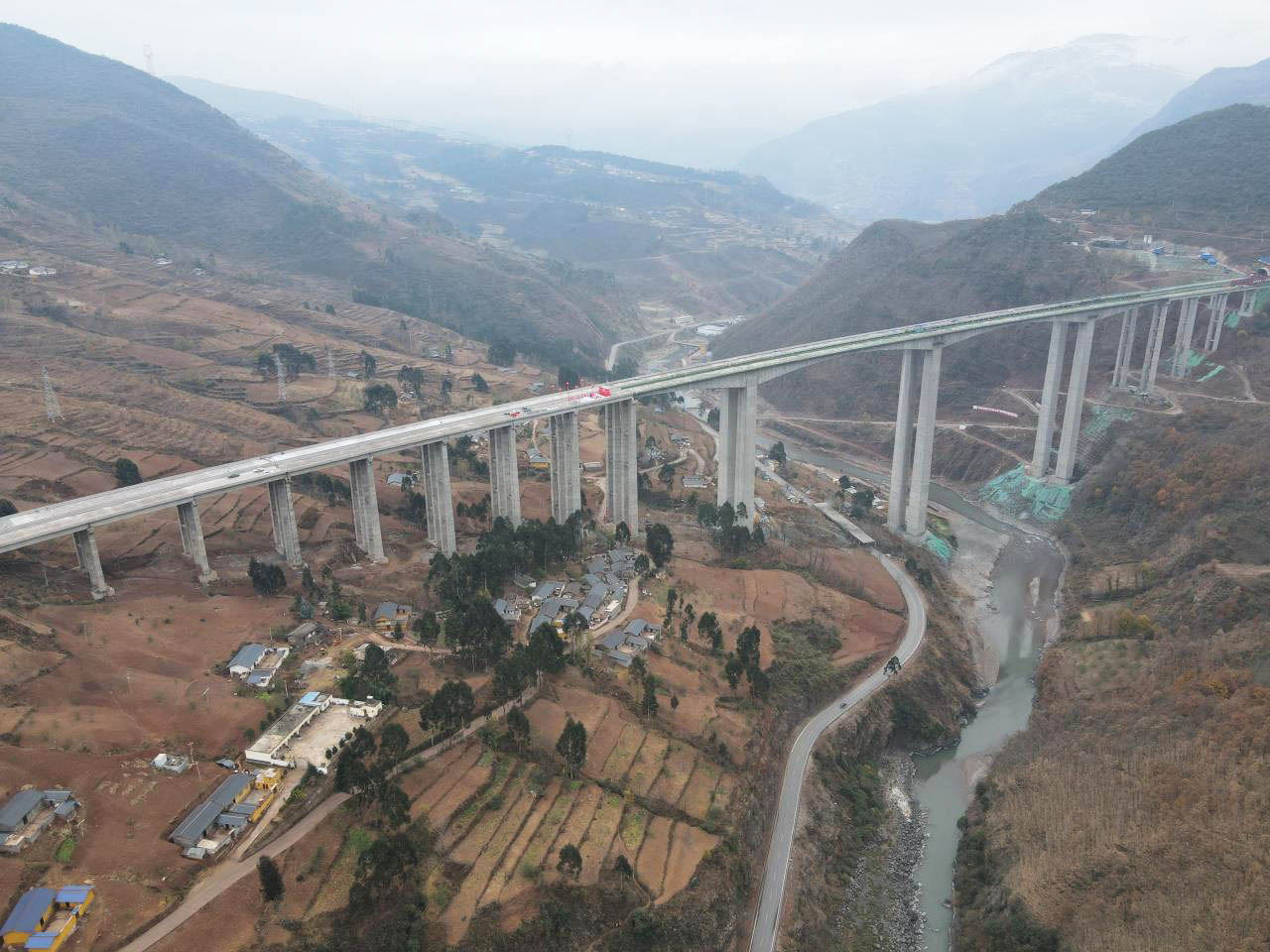

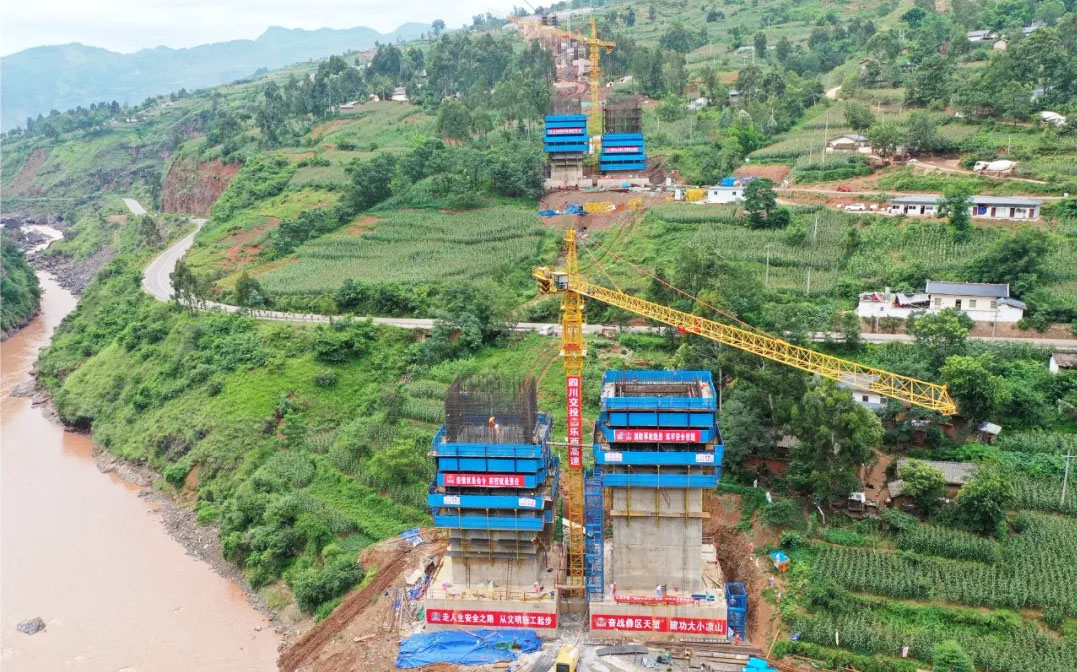

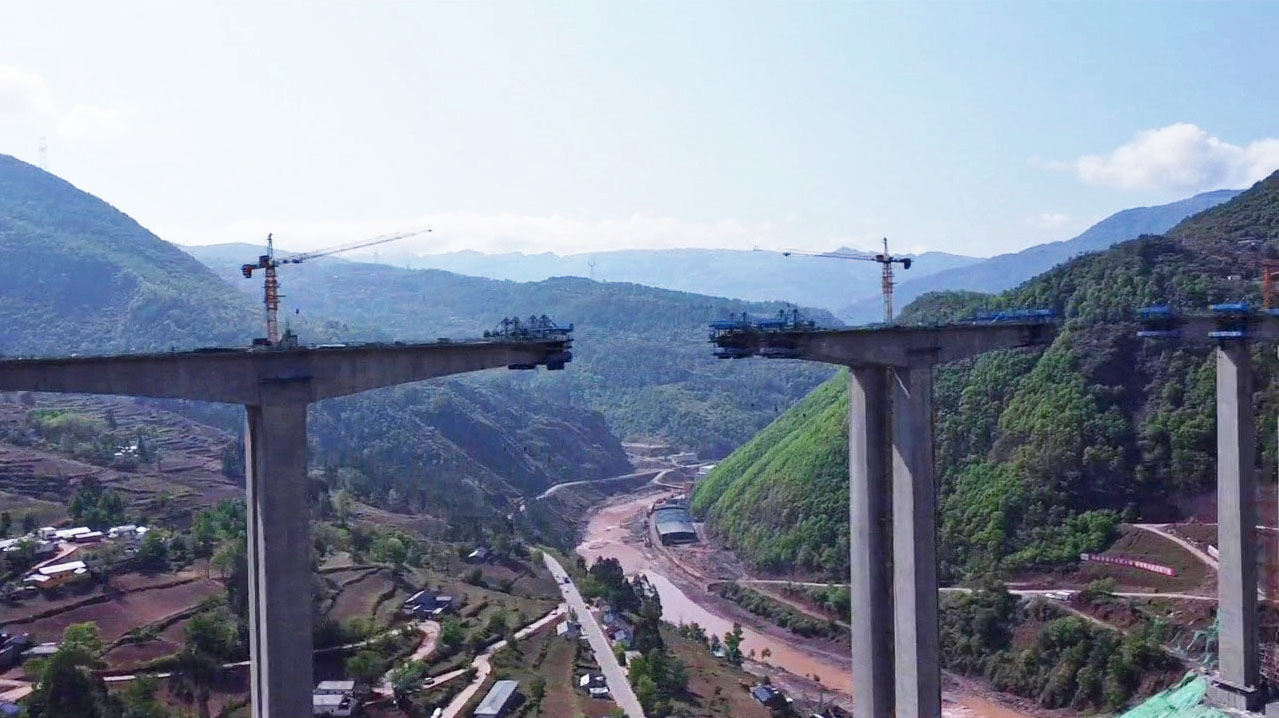

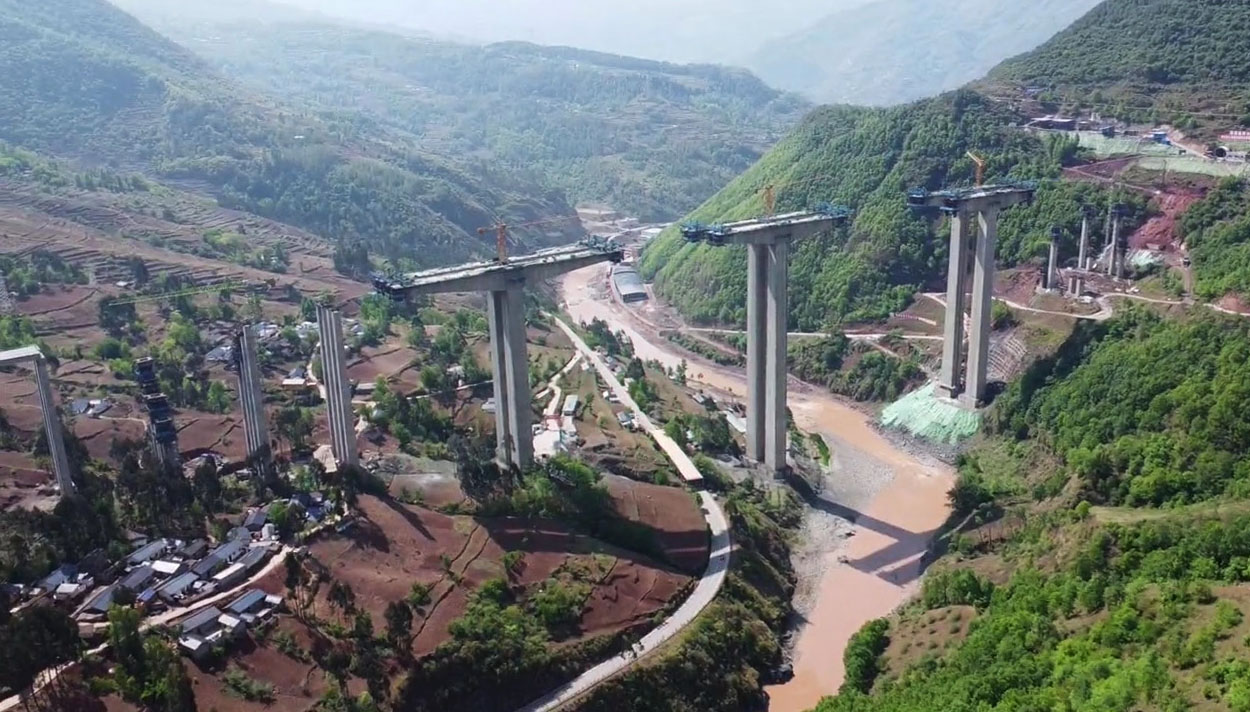

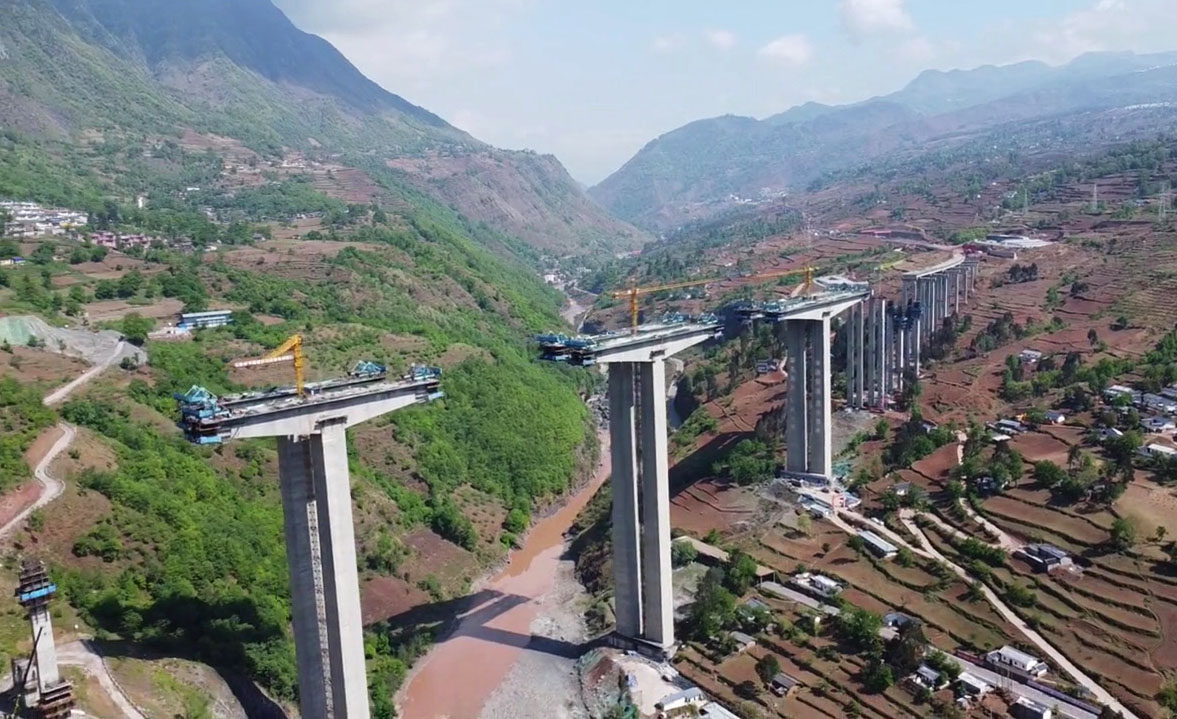

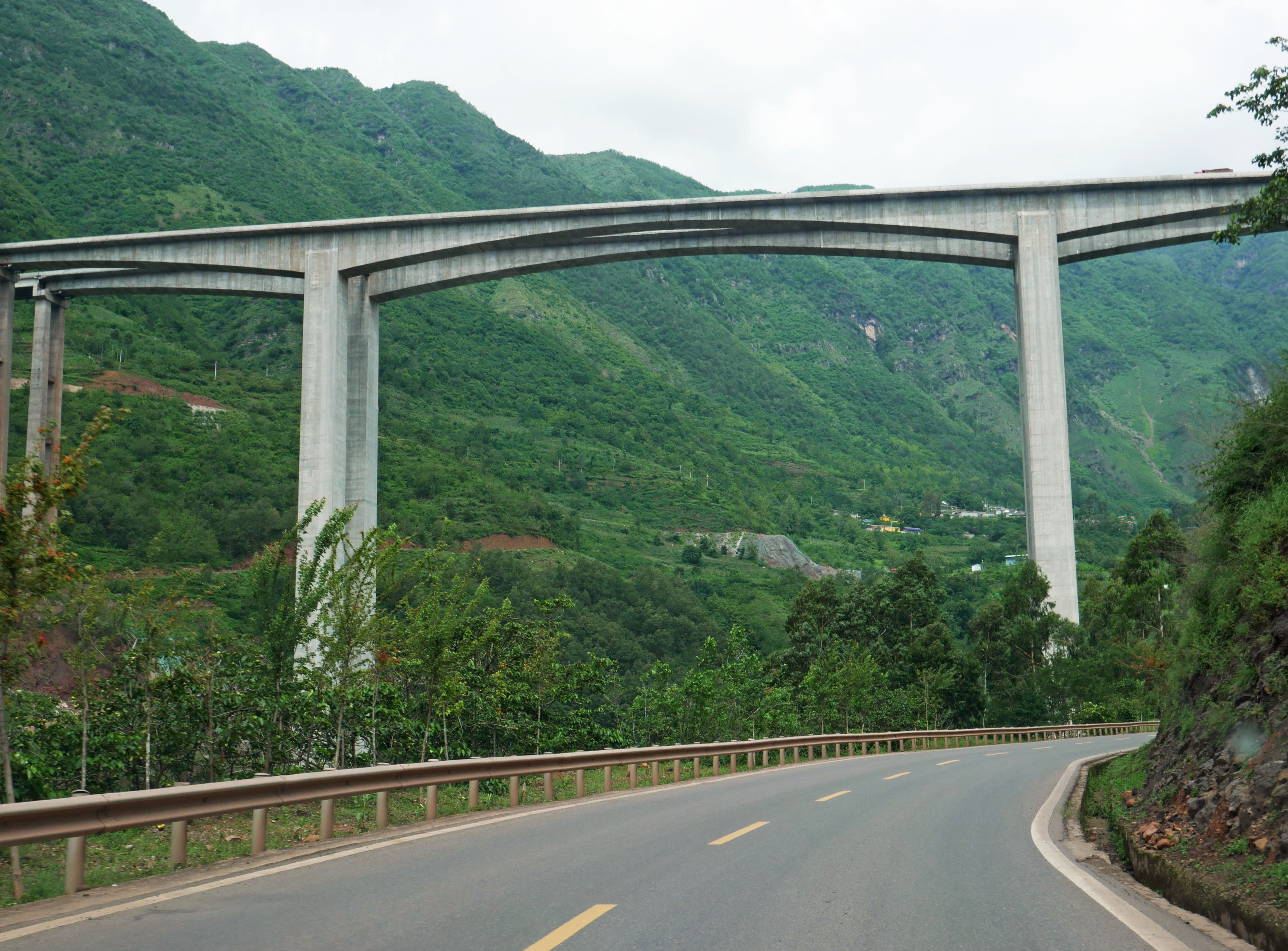

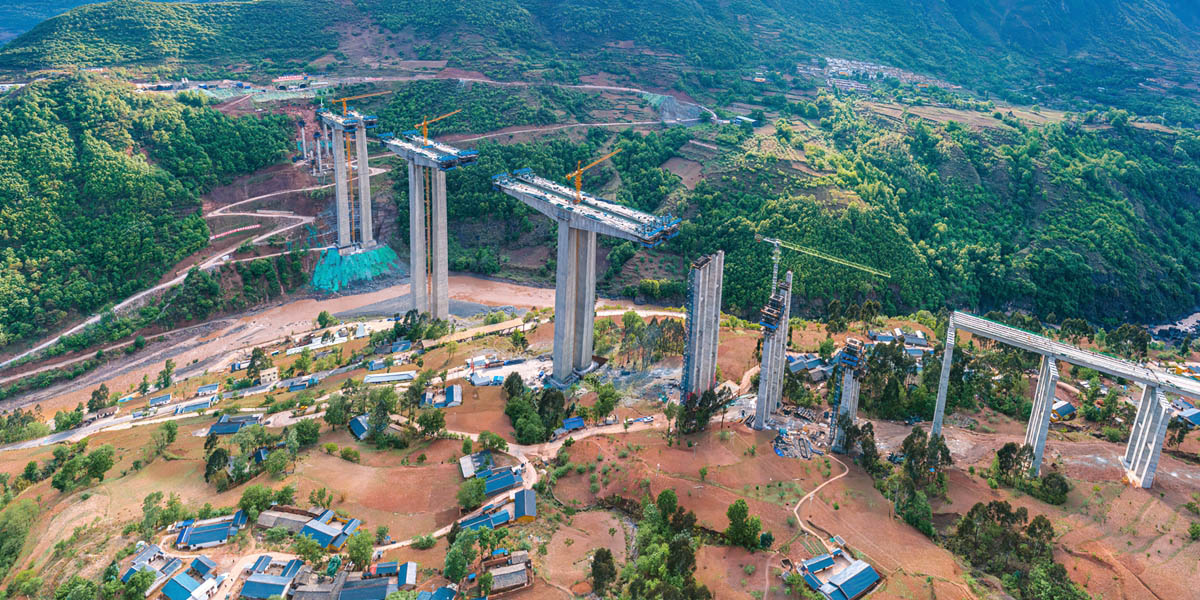

Zimogeni Bridge is one of the largest crossings along the Leshan to Xichang Expressway in Sichuan Province with two main spans of 180 meters on piers as tall as 148 meters. The 1,119 meter long structure has a span configuration of 10x40 +95+2x180+95 +4x40 meters

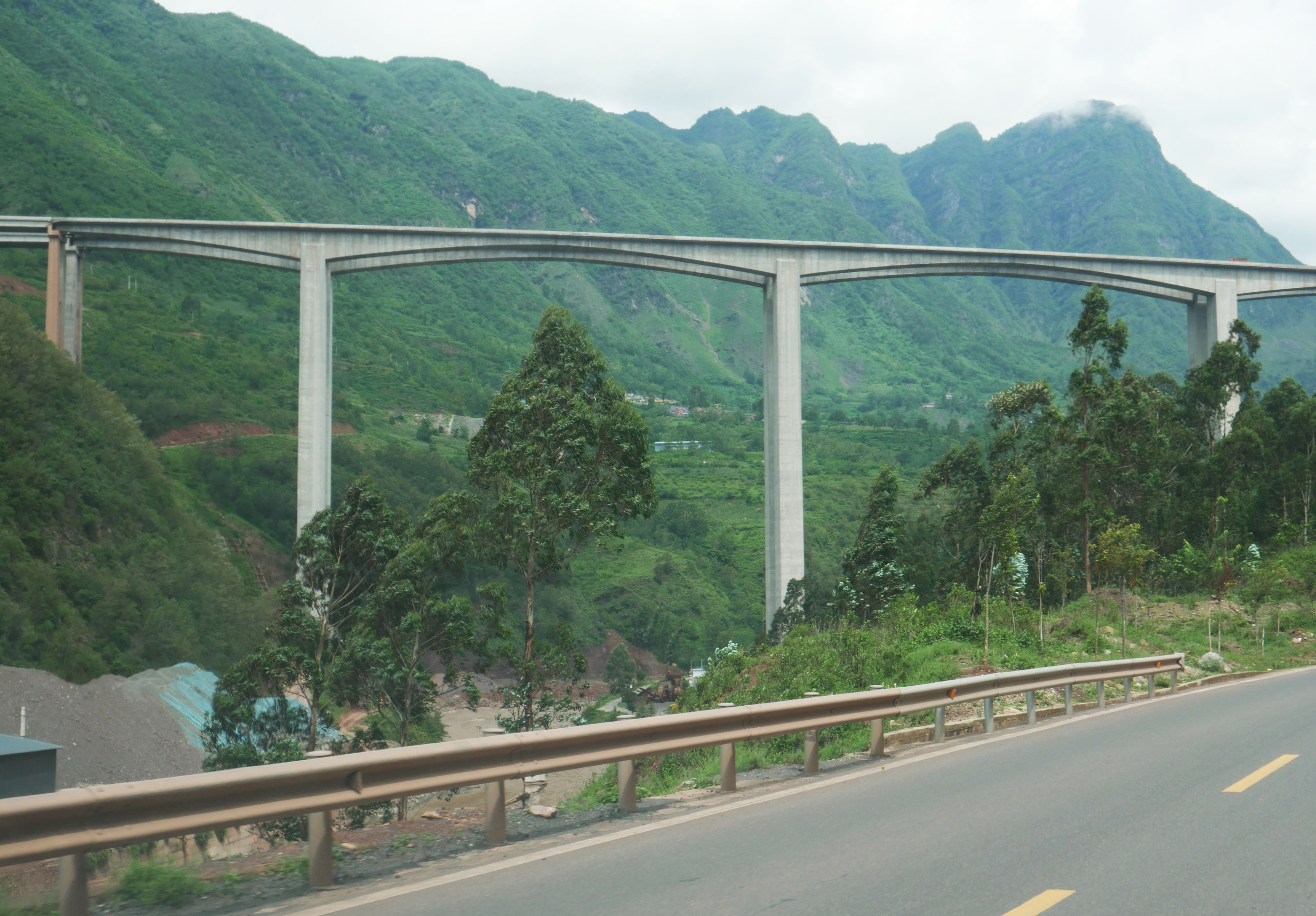

The expressway has at least half a dozen concrete beam spans over 90 meters high as well as the Suba arch bridge that is more then 200 meters high.

The biggest engineering challenge along the route is the 15.3 kilometer long Daliangshan #1 Tunnel that ranks among the 10 longest road tunnels in the world.









Zimogeni Bridge satellite image.



Zimogeni Bridge location map.
