Chaoyang Bridge Apengjiang
朝阳大桥
Xianfeng, Hubei, China
(427) feet high / (130) meters high
640 foot span / 195 meter span
2023

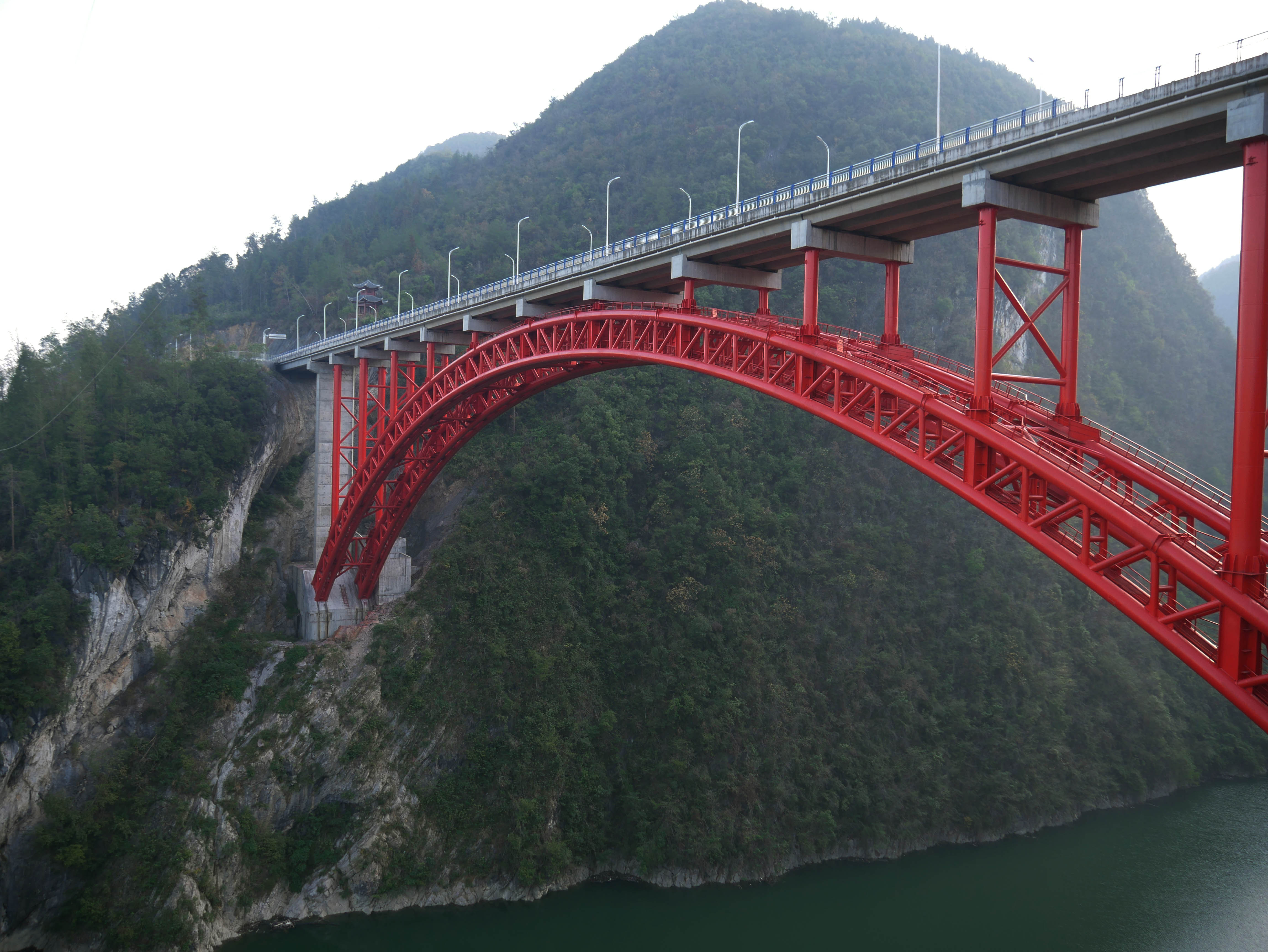

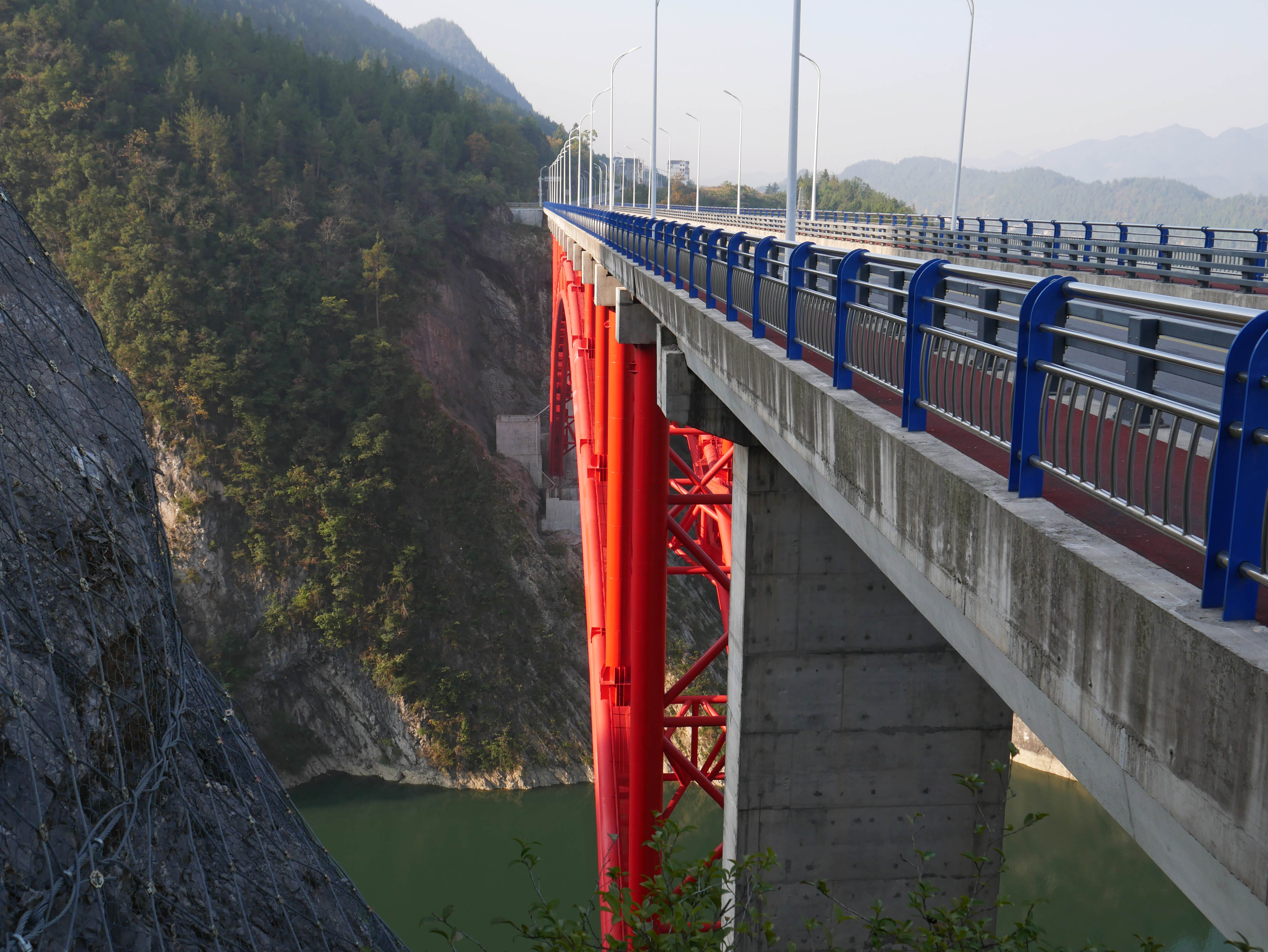

The Chaoyang Bridge is a Concrete Filled Steel Tubular arch that crosses the upper reaches of the Apeng River that is called the Tangyahe in Southern Hubei Province about 20 kilometers north of Qianjiang City. The deck is reportedly 99 meters above the full reservoir level.



Chaoyang Bridge Apengjiang Elevation



















Chaoyang Bridge Apengjiang satellite image.



Chaoyang Bridge Apengjiang location map.
