Guanyinqiao Railway Bridge
观音桥特大桥
Anwenzhen, Chongqing, China
318 feet high / 97 meters high
315 foot span / 96 meter span
2018



The Guanyinqiao Railway Bridge is one of several giant beam viaducts on the Chongqing to Guiyang high speed railway. Due to the crossing of both a river and the G75 expressway, the Guanyinqiao Railway Bridge has an unusual span configuration of 32+48+ 3x80 +56+96+56 +32 meters. The tallest pier is 85 meters.



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

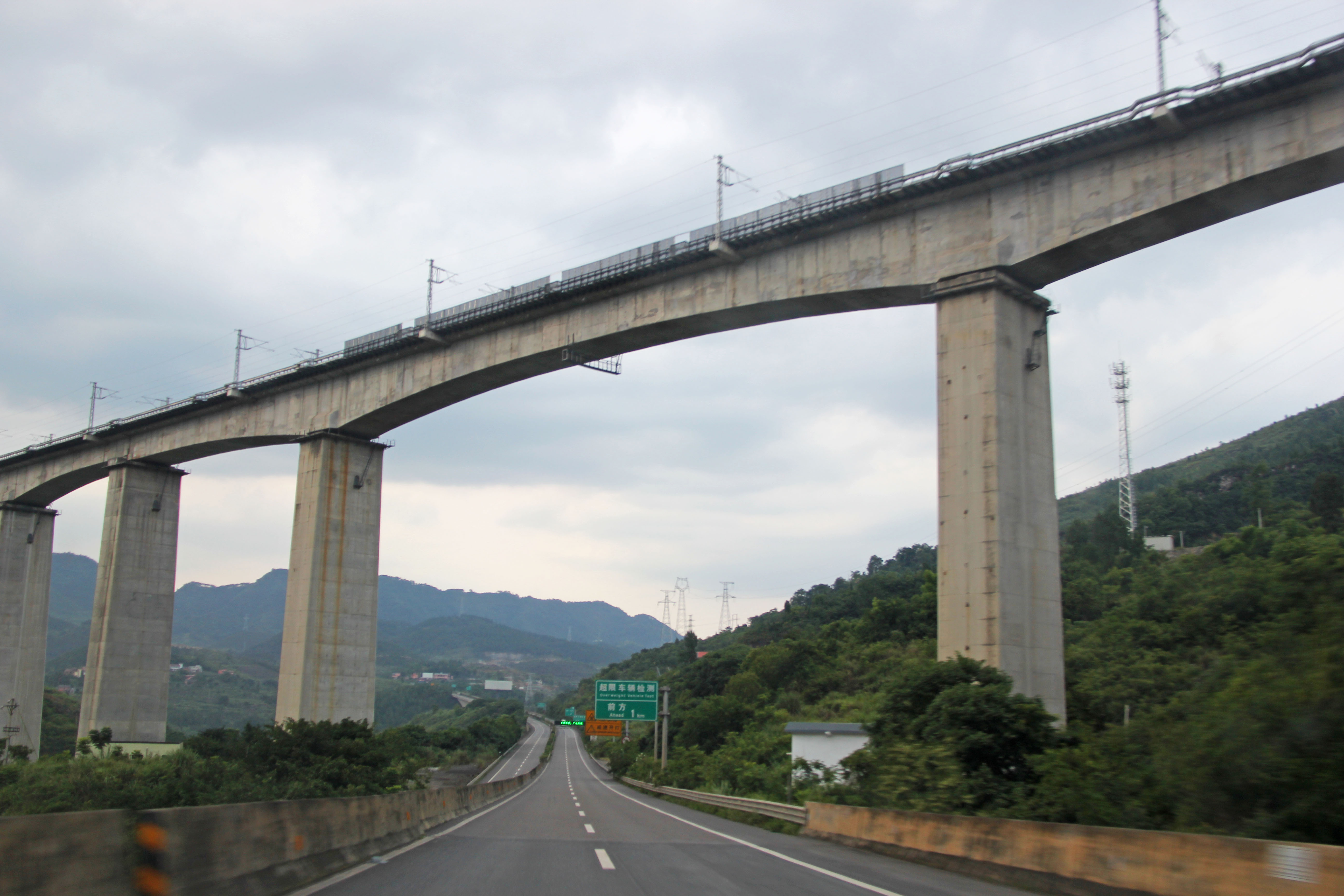

This span of 96 meters is the longest on the bridge and crosses over the G75 expressway. Image by Eric Sakowski / HighestBridges.com


Guanyinqiao Railway Crossing.JPG

Image by Eric Sakowski / HighestBridges.com



The main river span is 80 meters. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com







Guanyinqiao Railway Bridge satellite image.



The Lianghejiang Railway Bridge is in the middle while the Guanyinqiao Railway Bridge is in the lower right.



Guanyinqiao Railway Bridge satellite image before construction began.









Guanyinqiao Railway Bridge location map.
