Mabianhe Bridge Jianshe
建设马边河大桥
Mabian, Sichuan, China
(394) feet high / (120) meters high
492 foot span / 150 meter span
2024

Mabianhe Bridge JiansheAerial.jpeg


Mabianhe Bridge Jianshe is one of the largest crossings along the Leshan to Xichang Expressway in Sichuan Province with a main span of 150 meters.

The expressway has at least half a dozen concrete beam spans over 90 meters high as well as the Suba arch bridge that is more then 200 meters high.

The biggest engineering challenge along the route is the 15.3 kilometer long Daliangshan #1 Tunnel that ranks among the 10 longest road tunnels in the world.

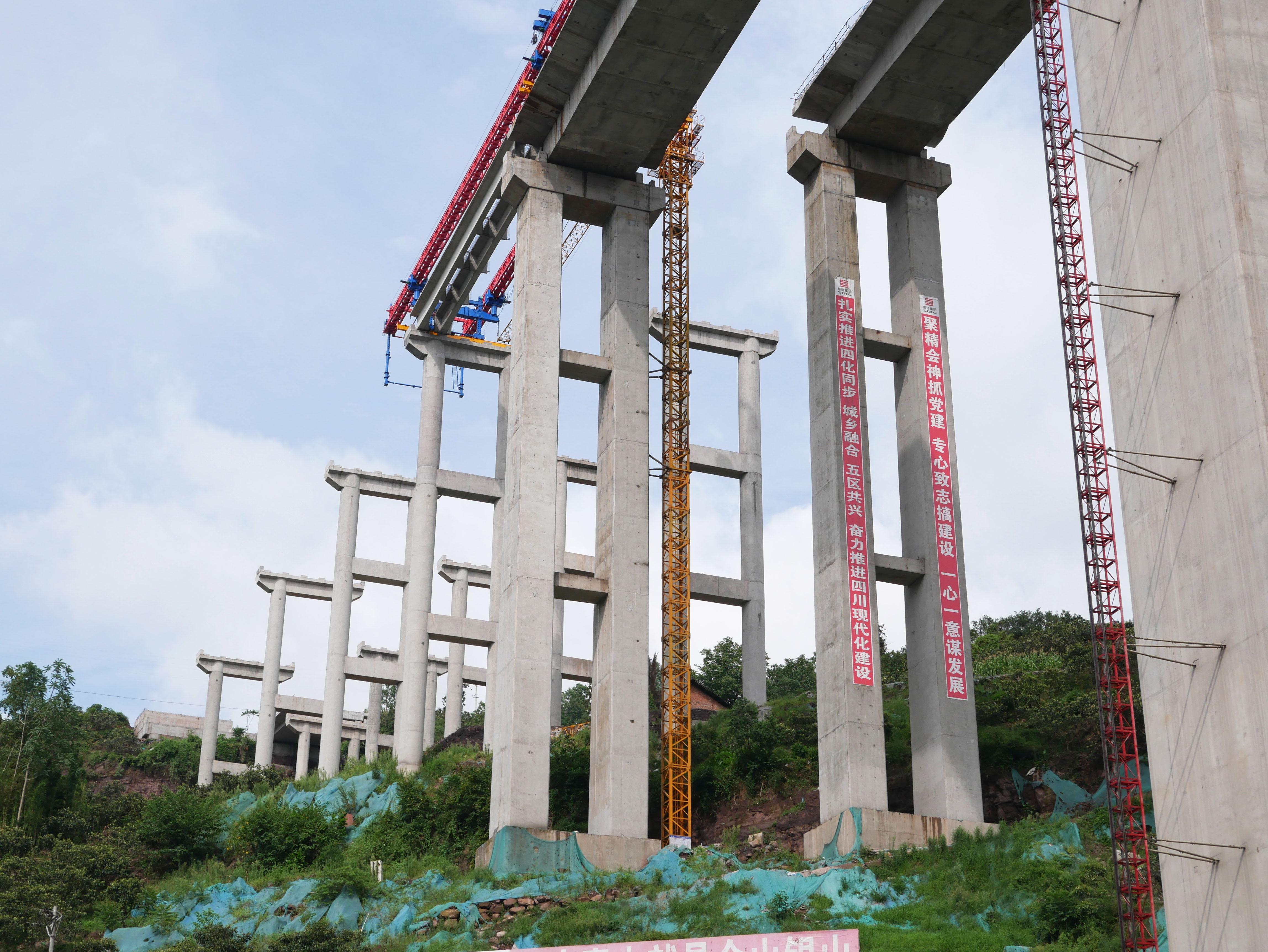

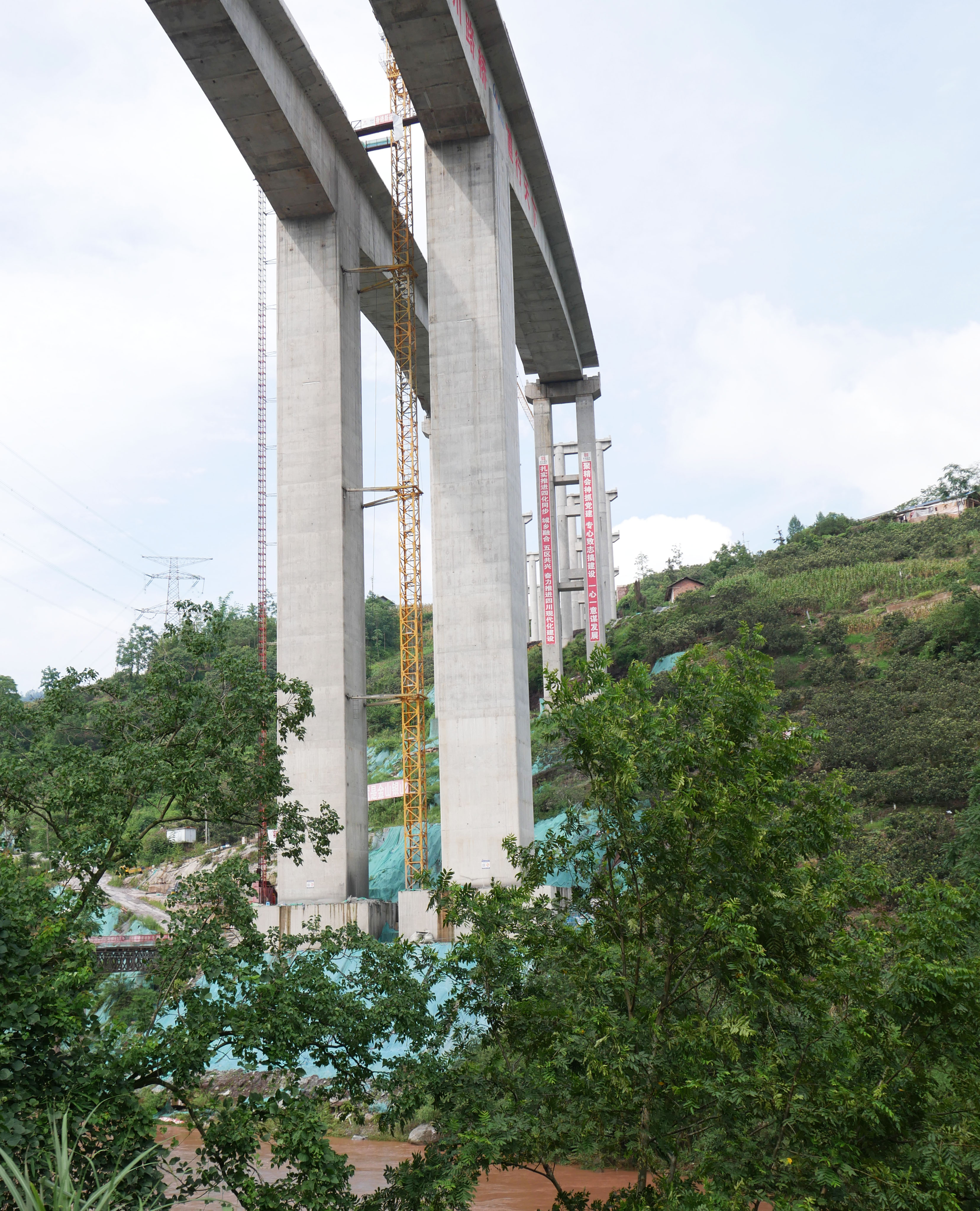

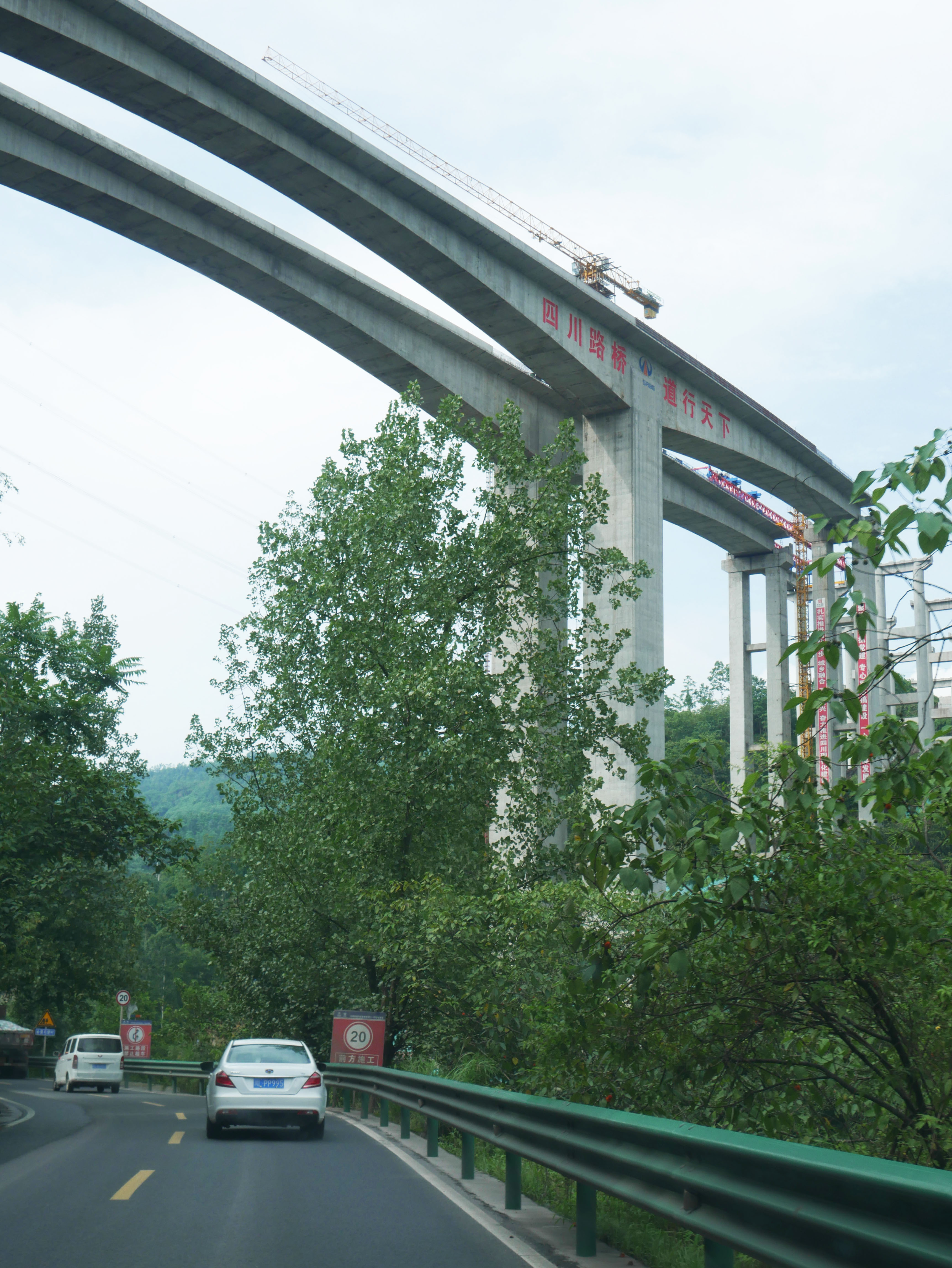

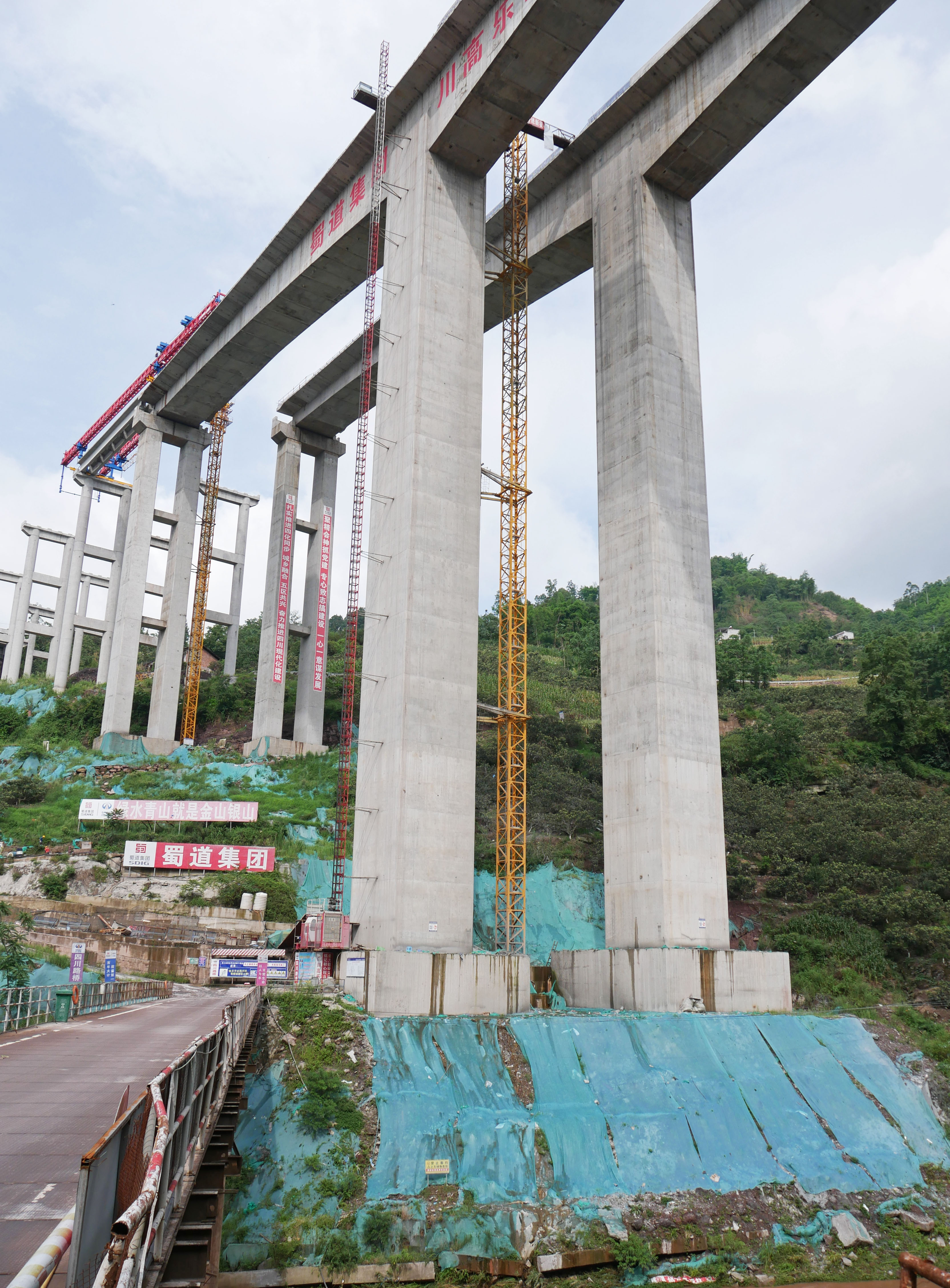

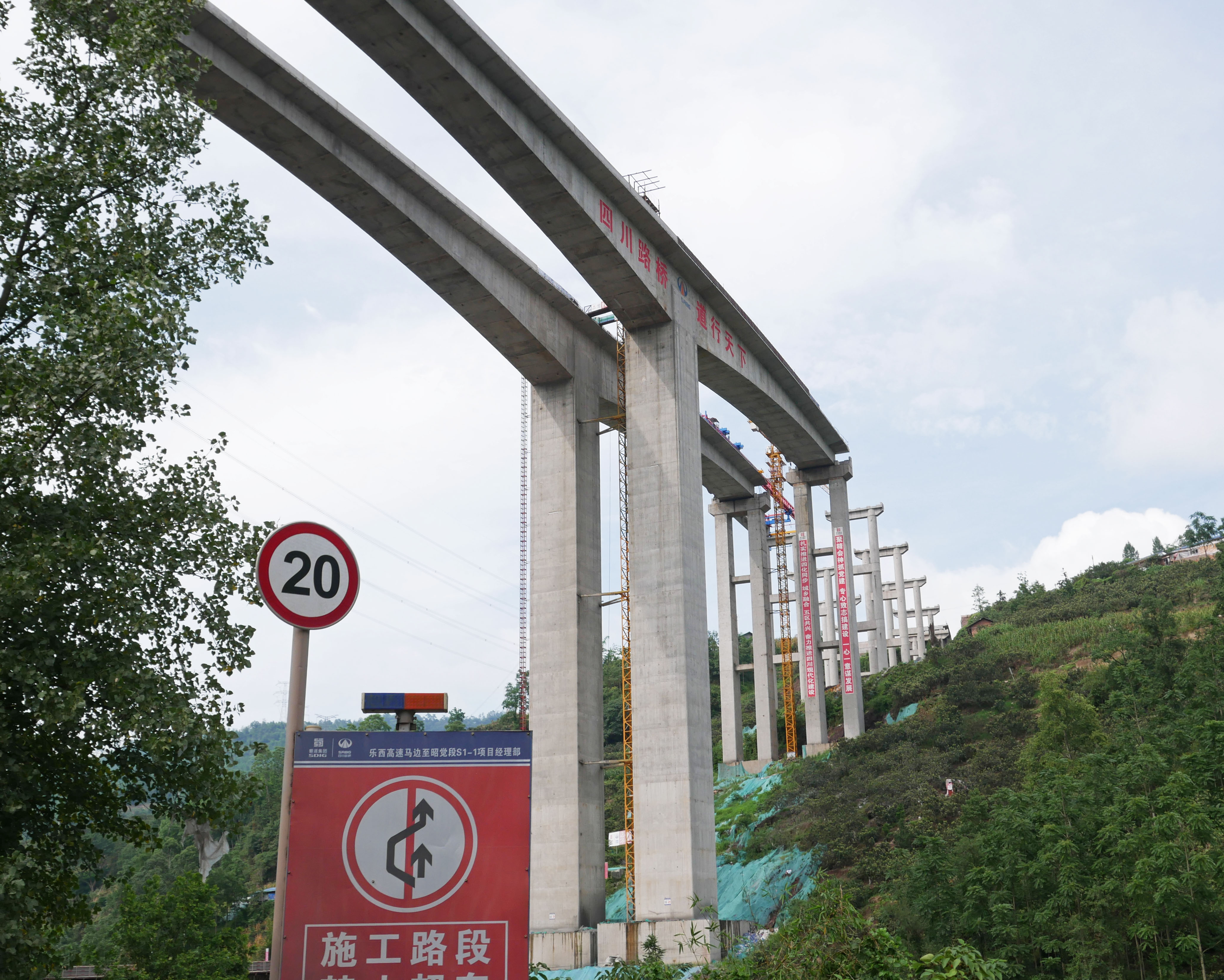

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


OldMabian Bridge 马边特大桥.jpg

The Mabianhe Bridge was originally planned to be a large double span extradoesed bridge before the crossing location was changed and the height reduced.

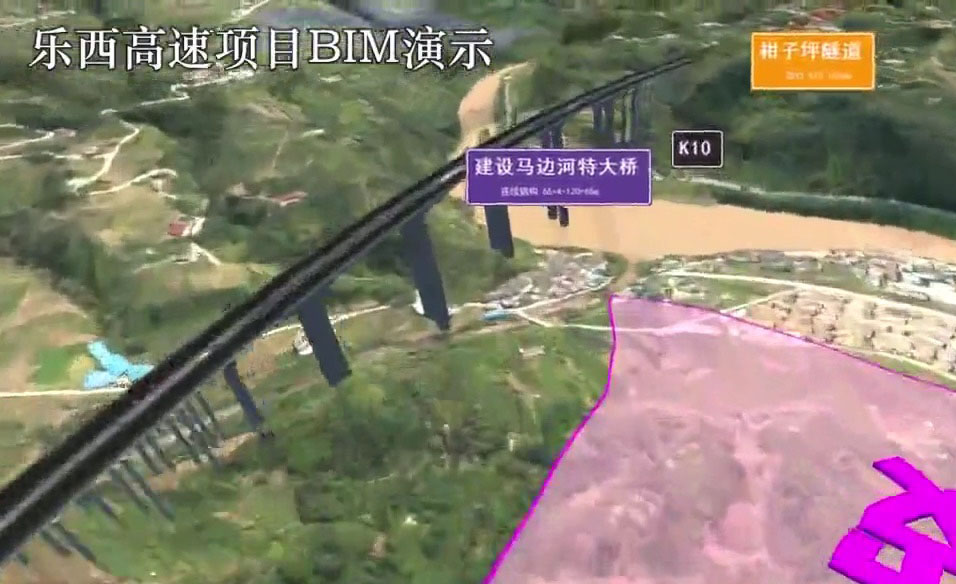

An older drawing of the Mabianhe Bridge Jianshe with several spans of 120 meters instead of one main span of 150 meters.

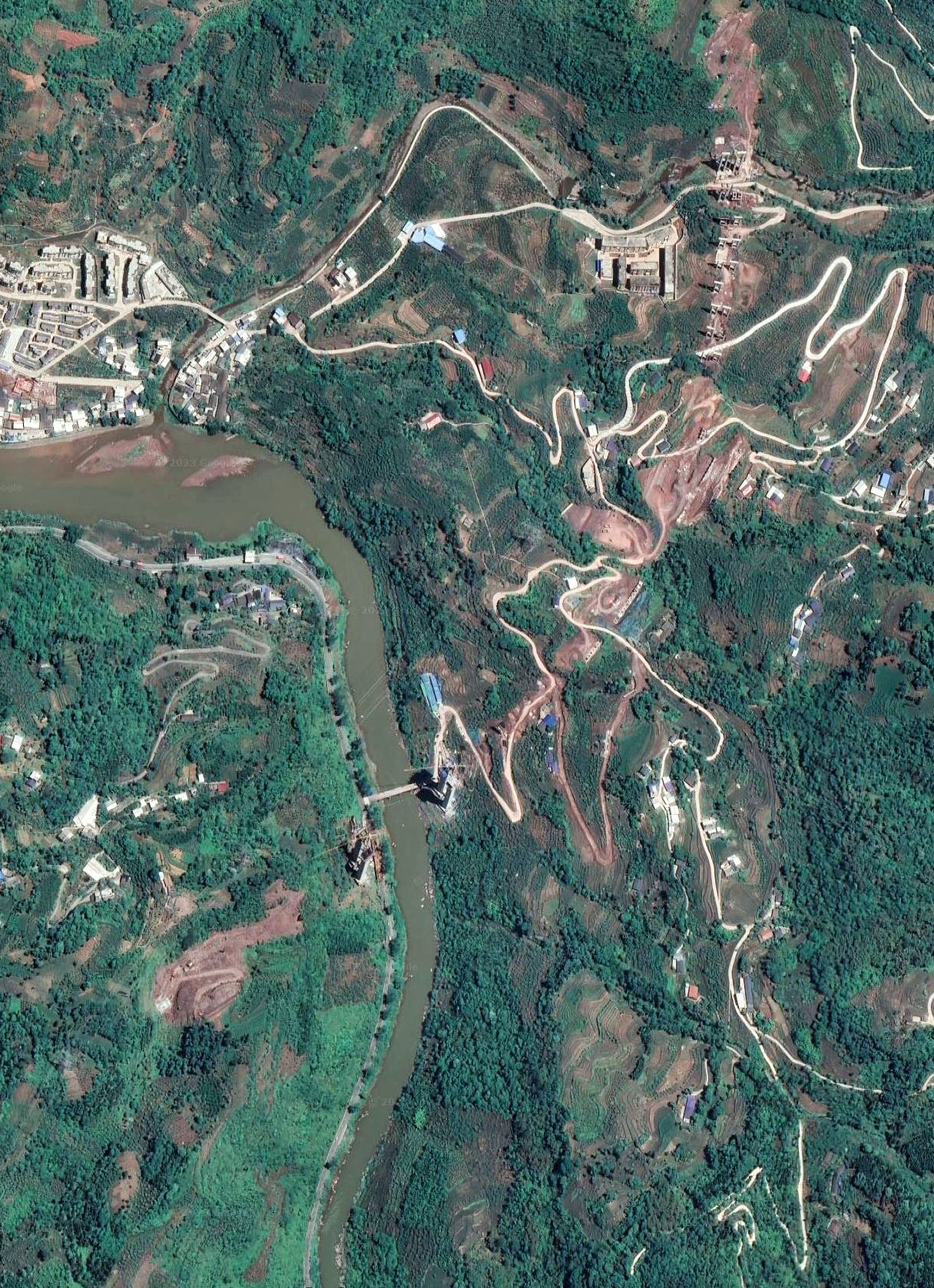

Mabianhe bridge JiansheSatellite.jpg

Mabianhe Bridge Jianshe satellite image.



Mabianhe Bridge Jianshe location map.
