Sanxia Lianxin Bridge

Sanxia Lianxin Bridge
三峡连心桥
Jinyang, Sichuan, China
837 feet high / 255 meters high
656 foot span / 200 meter span
2021

Located several miles north of the great Jinshajiang River gorge, the towering Sanxia Lianxin Bridge allows locals to get across the Jinyang River gorge bypassing a series of steep switchbacks through the local town of Jinyang. During construction the crossing was known as the Jinyanghe Bridge.

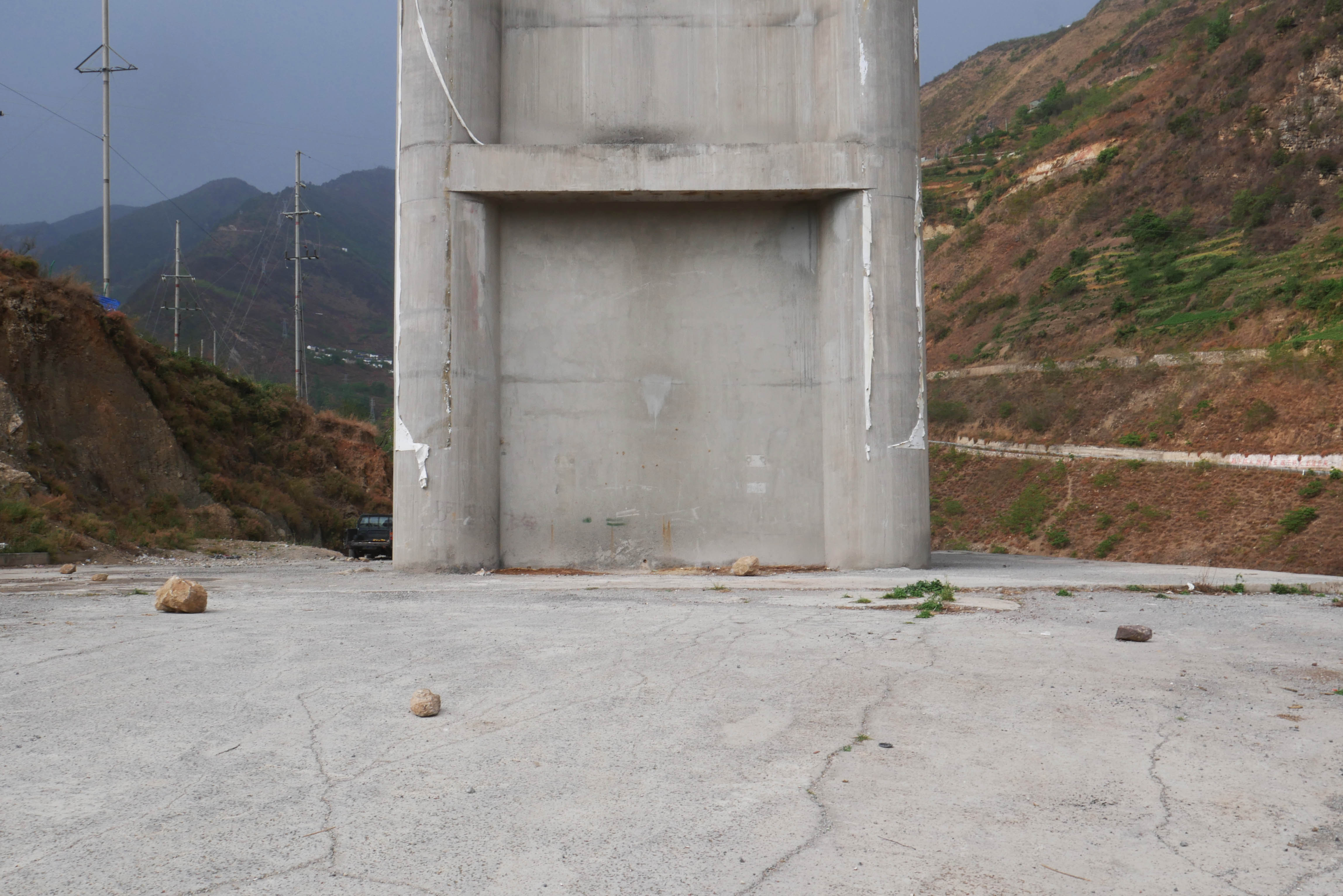

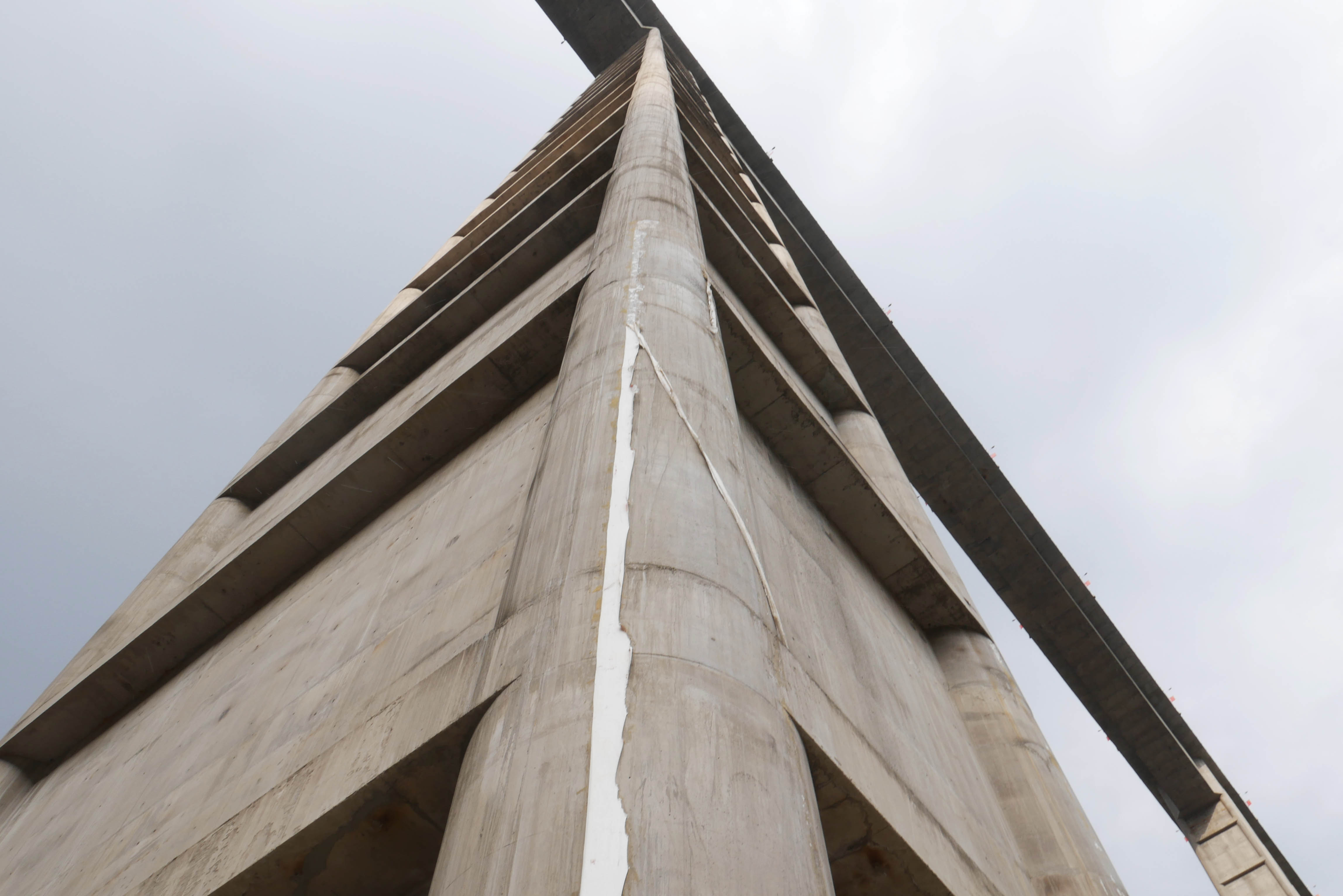

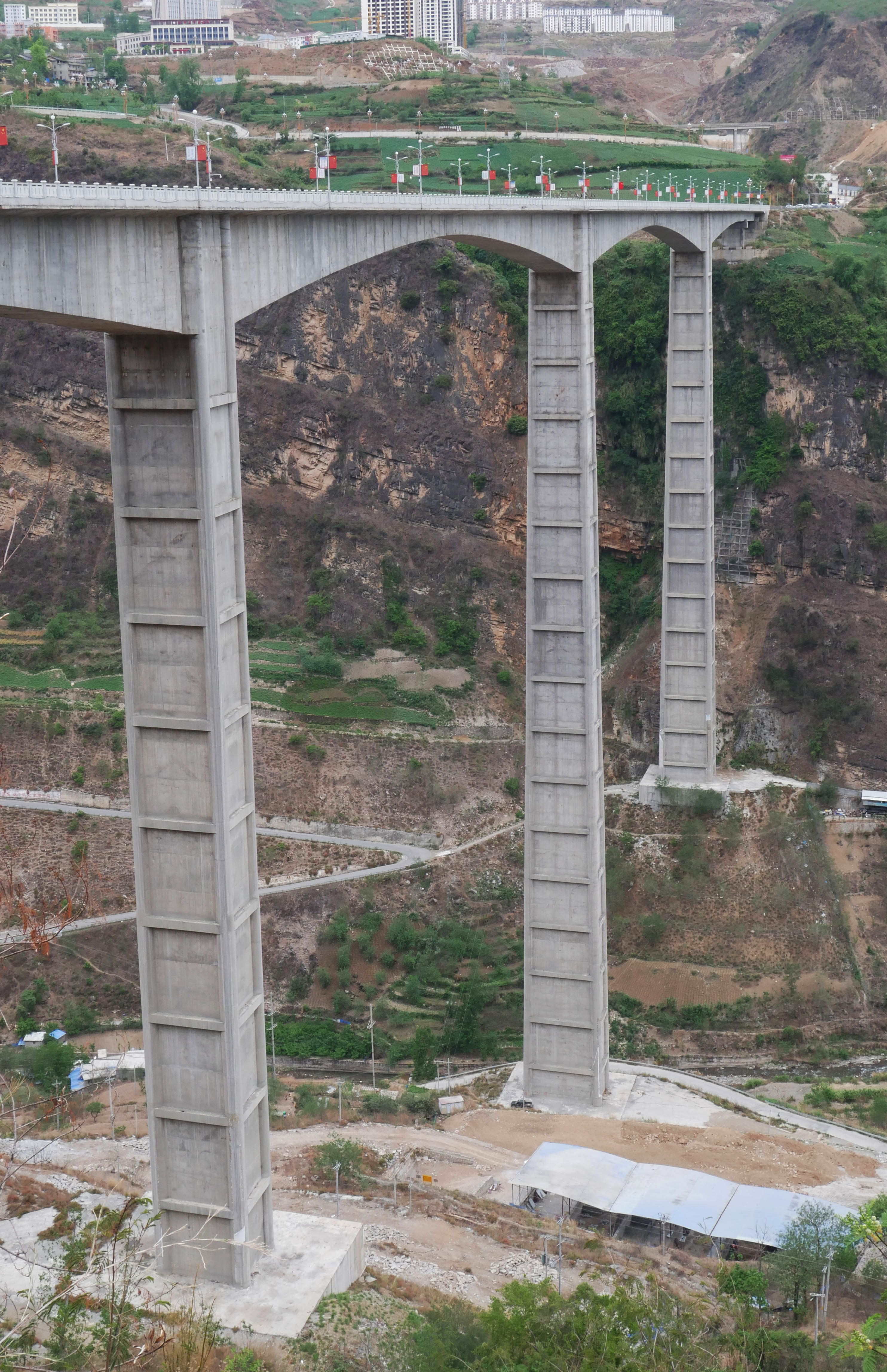

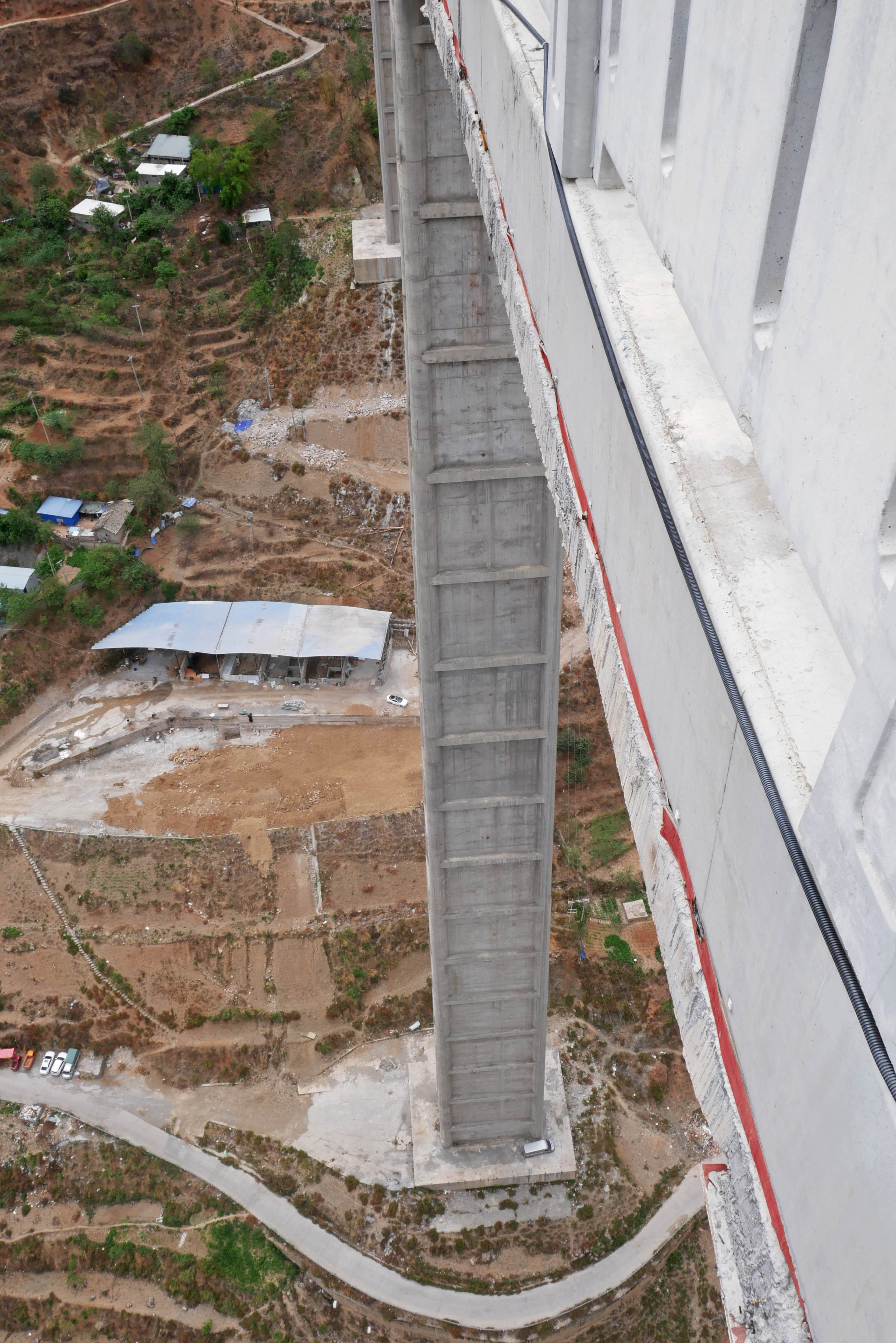

The Sanxia Lianxin Bridge structure is special for having the tallest pier in China at 196 meters, surpassing the Hezhang Bridge in Guizhou Province by 1 meter. Among all bridge piers in the world, only Mexico's San Marcos Bridge and the Millau Viaduct in France are taller. The 757.7 meter long 2-lane bridge has a span configuration of 19.38+3x22+106+2x200+115+40 meters.

Sanxia Lianxin Bridge satellite image.

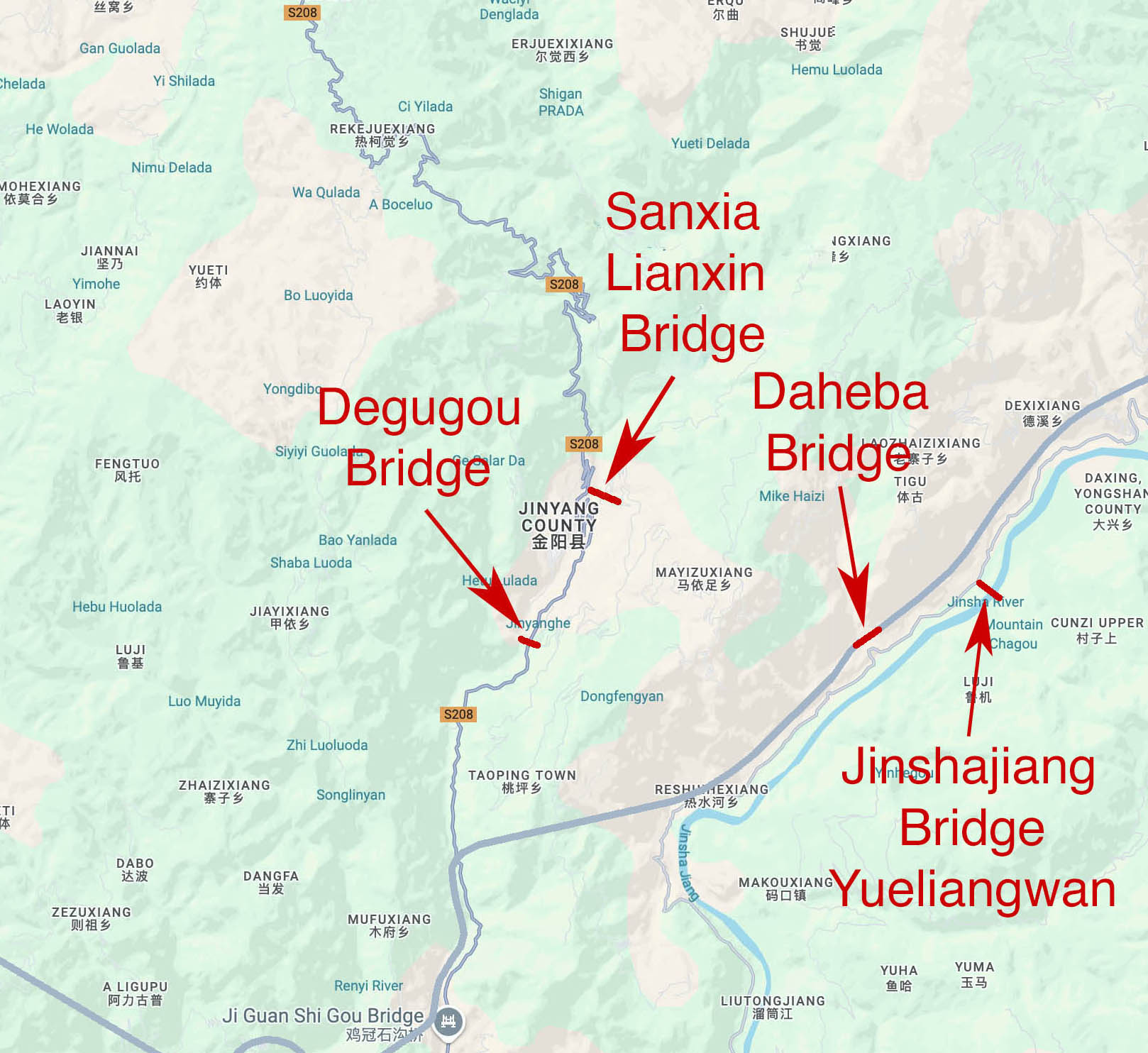

Sanxia Lianxin Bridge location map.
