Zhudu Longhe Railway Bridge

Zhudu Longhe Railway Bridge
註都龙河特太拆
Fengdu, Chongqing, China
(443) feet high / (135) meters high
591 foot span / 180 meter span
2030

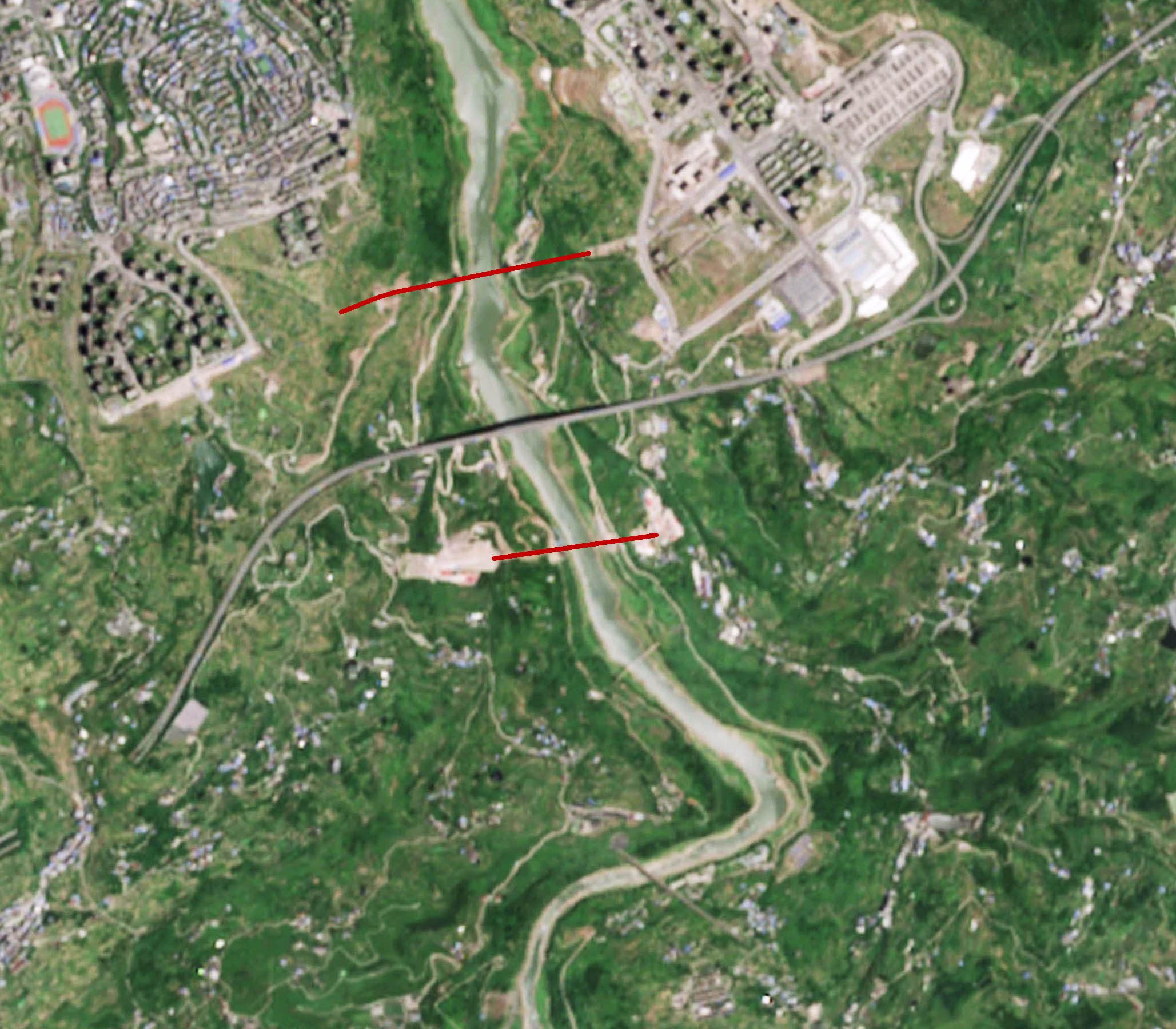

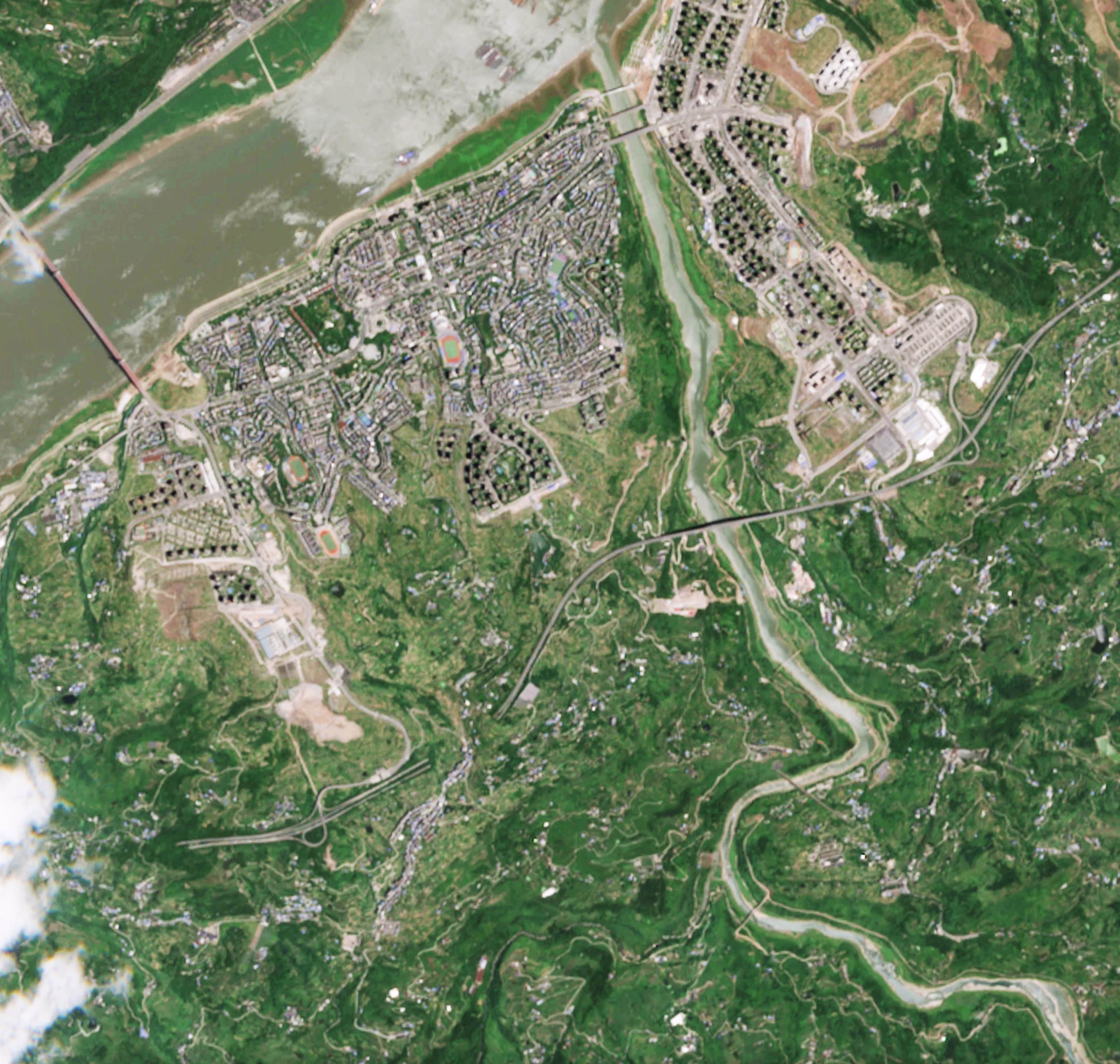

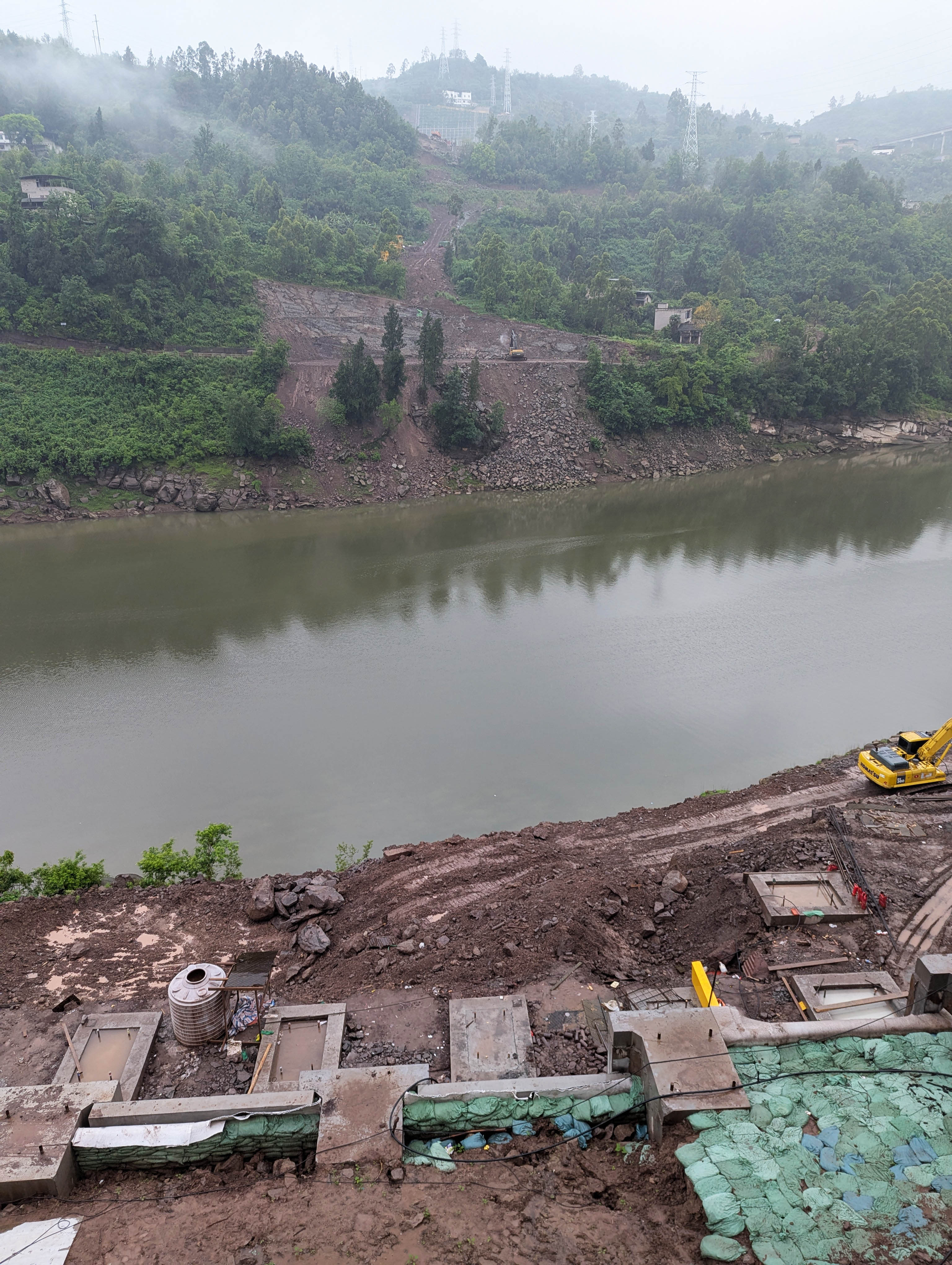

Zhudu Longhe Railway Bridge is a large beam crossing along the Yifu HSR line between Wuhan and Chongqing. The main cantilevered span of 180 meters rests on piers 74 and 76 meters tall. The deck is approximately 90 meters above the full reservoir level that is approximately 45 meters deep. Just to the north are two more towering cantilevered road bridges including the G69 Fengfu expressway Longhe Bridge.

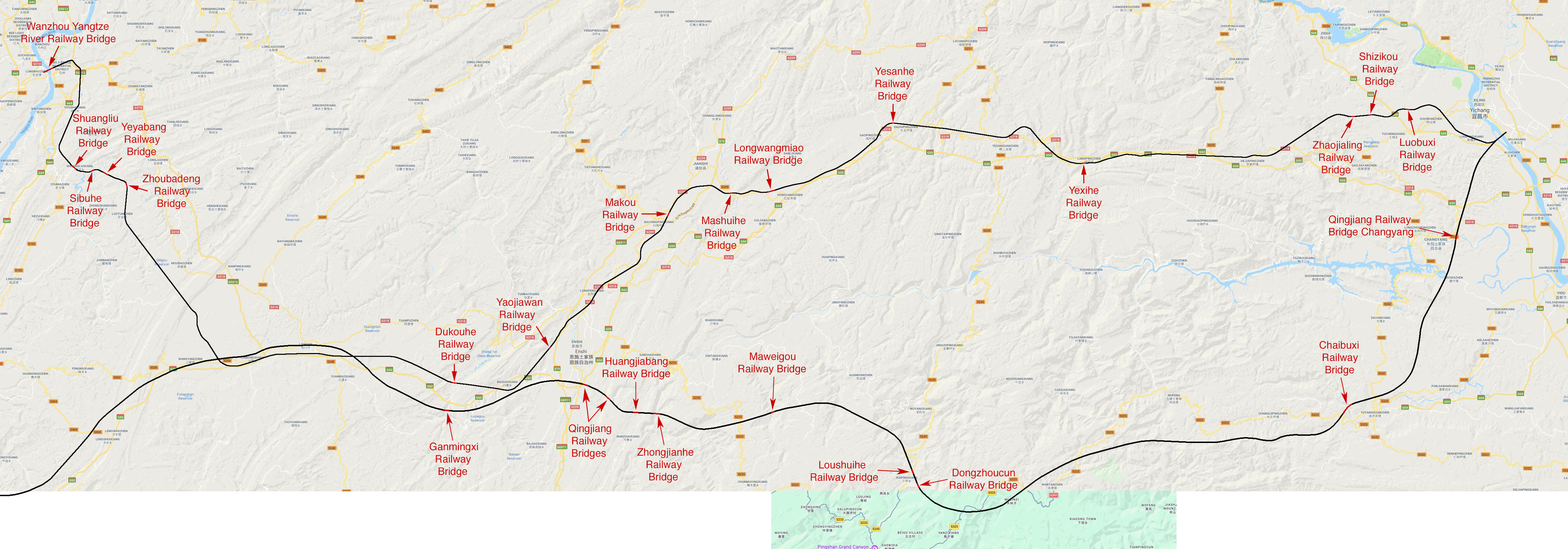

The amazing Yifu HSR line between Wuhan and Chongqing has more than a dozen high level bridges including the impressive cable stayed Chaibuxi Railway Bridge with a main span of 680 meters, the massive Fuling Qingxi Yangtze River road and rail bridge with a span of 736 meters, the Zhongjianhe Railway arch bridge with a 400 meter span and the colossal Caijiagou Railway Bridge with the world's tallest railway bridge pier of 165 meters.
